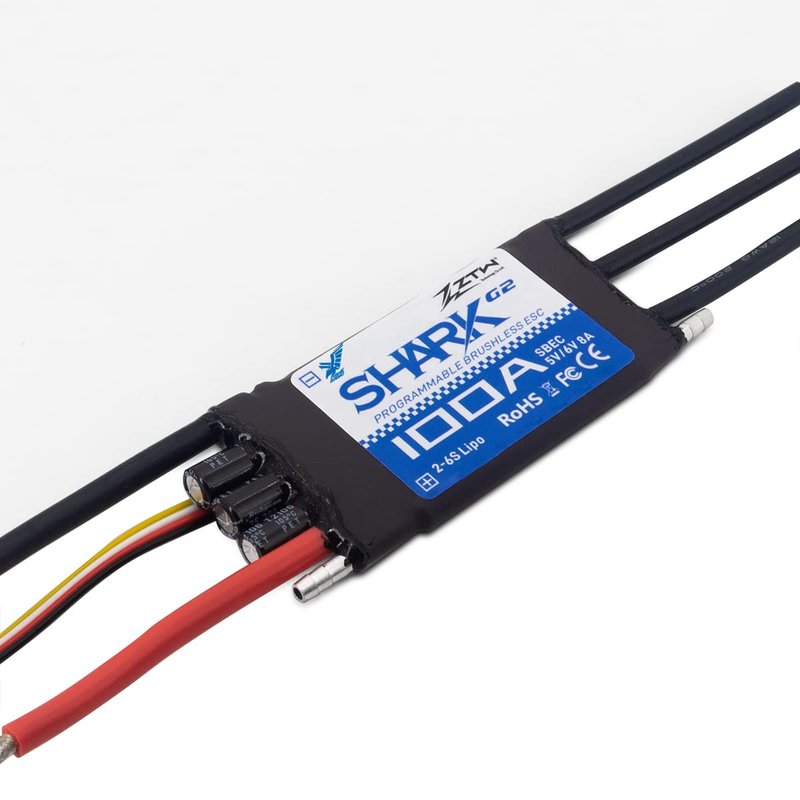

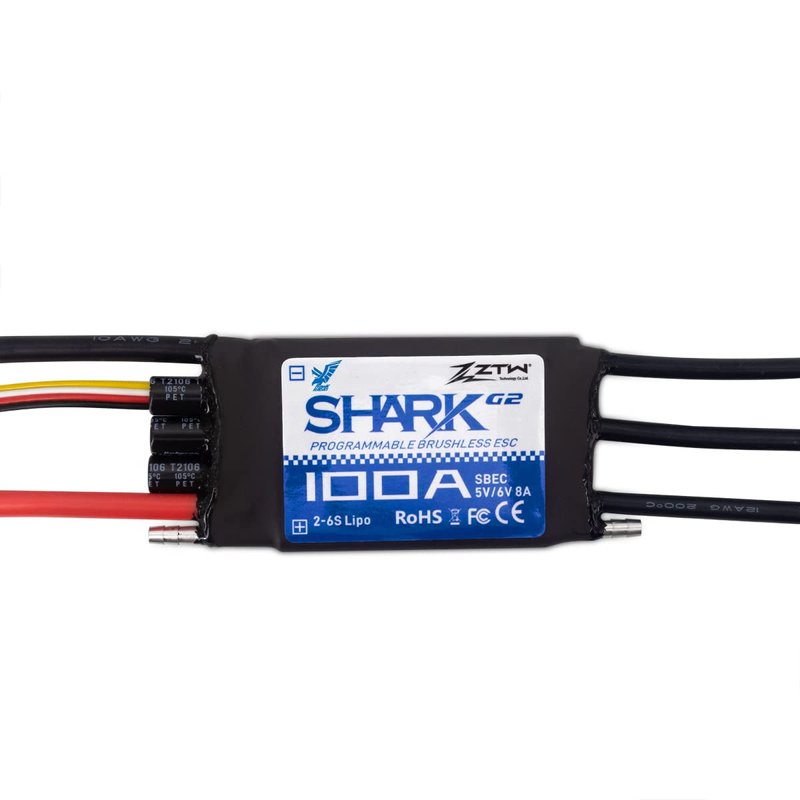

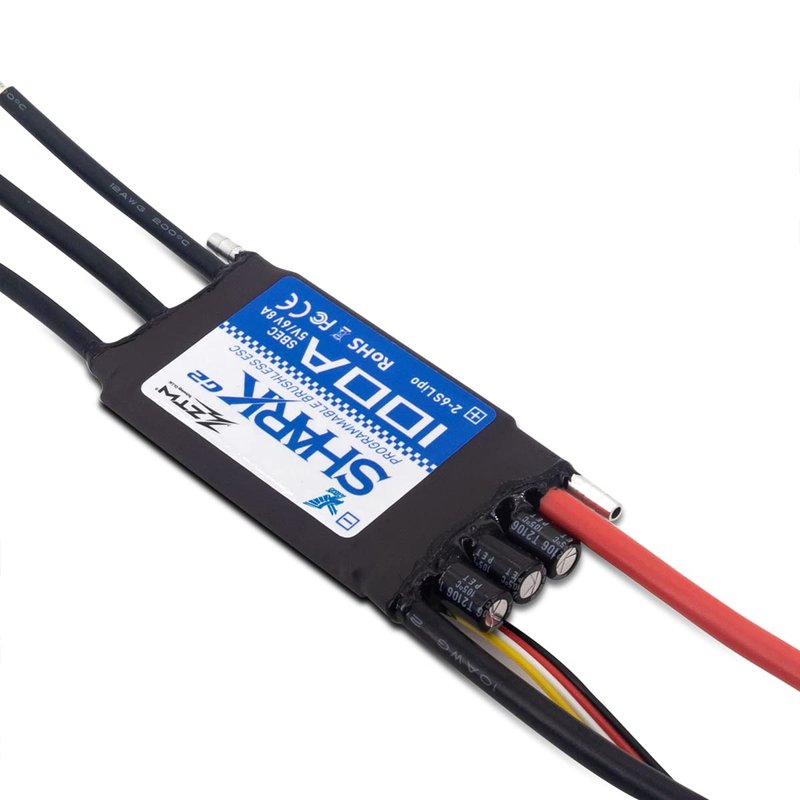

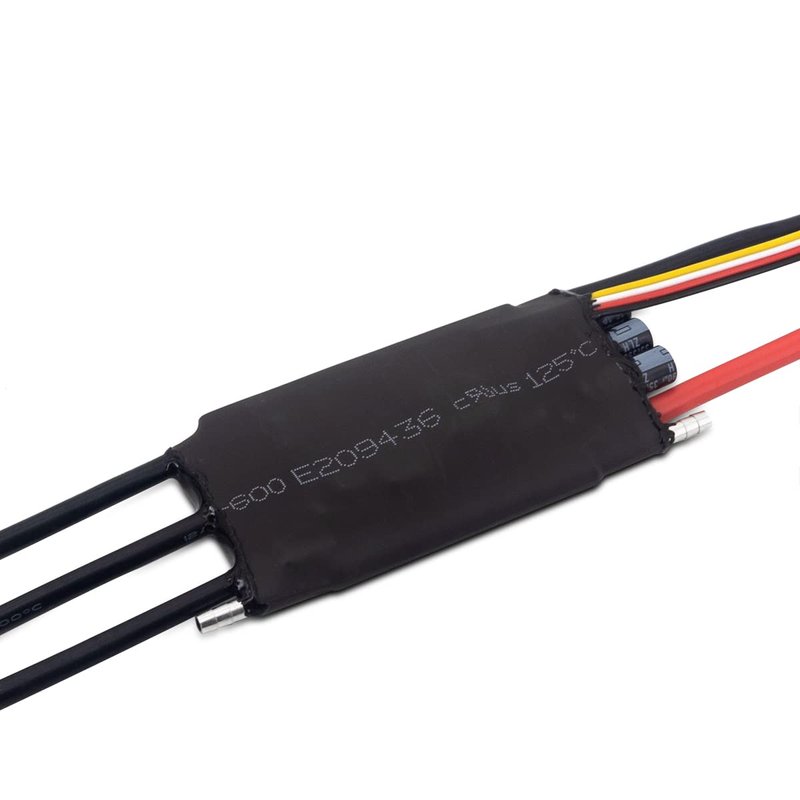

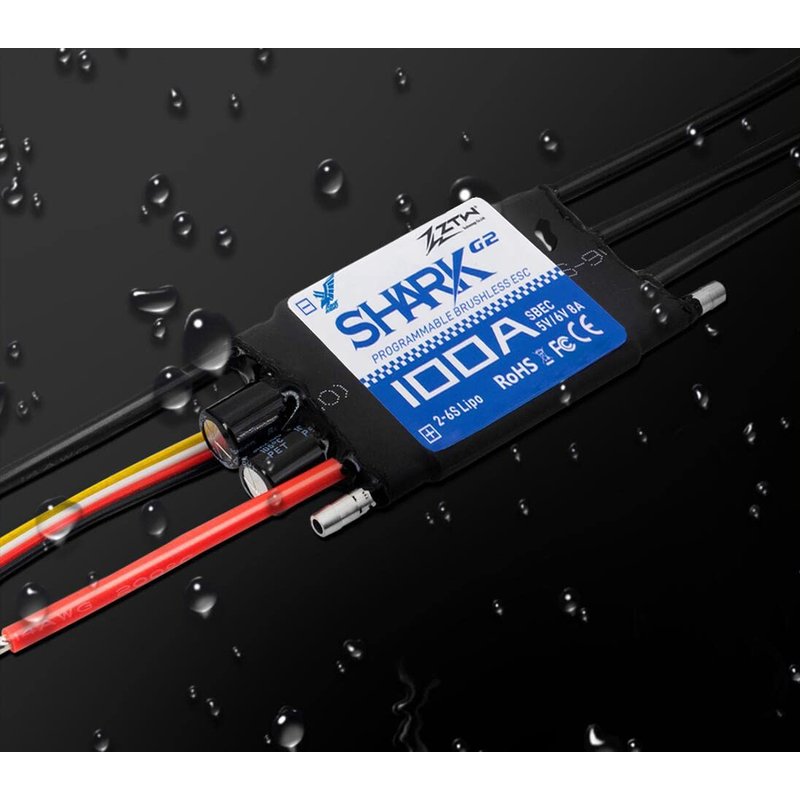

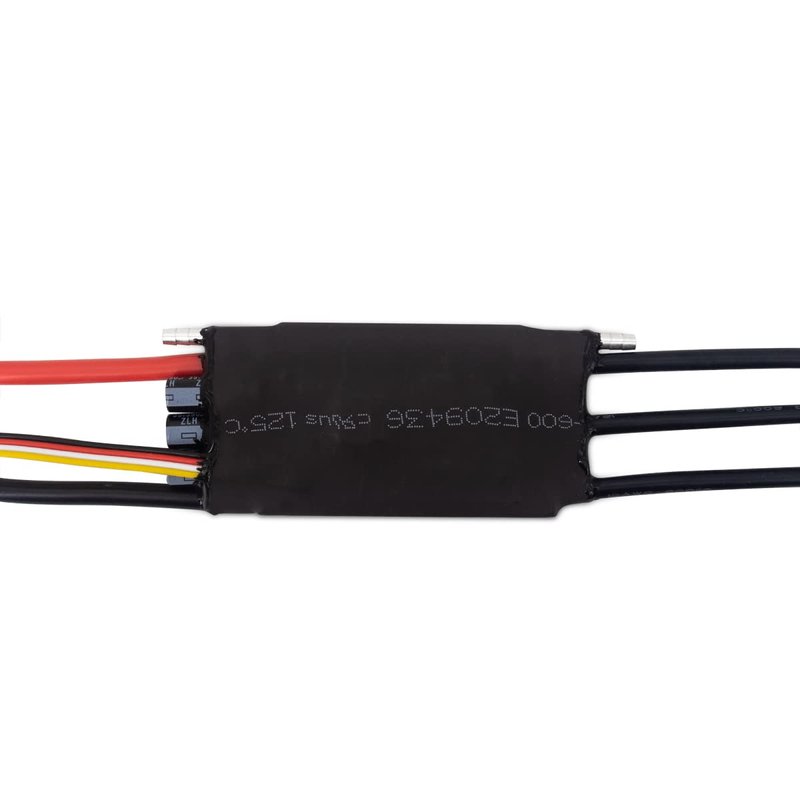

ZTW Shark G2 Series 100A Bi-Direction Water Cooling Brushless ESC with SBEC 8A/5V for RC Boat and Other DIY Project
- Super smooth, accurate and programmable throttle linearity and throttle response.
- Over temperature protection ,low voltage cut off protection ,signal loss protection and so on.
- Strong BEC output 8A/5V continuous and peak to 10A.
- Supporting high RPM motors and LCD programmable by programming card and transmitter.
- High efficiency with low resistance and low heat MOSFET and 32bit CPU.
- Manufacturer: ZTW
- Part Number: 20220728032
- Style: Modern
Description: Size:96mm x 44mm x 13mm / 3.8in x1.73 in x 0.51in (LxWxH). Battery: 2-6S Lipo / 5-18NC. Voltage: 7.6V-24V. Current:100A ,peak 120A for 10 seconds. BEC output: 8A/5V, peak 10A Weight:100g. Motor Rotation:Bi-Direction Motor Type: Brushless (no brushed) RPM support:200,000 for 2 P ,82,000 for 6 P,42,000 for 12 P. Package includes: ESC x 1 User Manual x 1 Application: 1>Work with RC boat inrunner motor. 2>Cooperate with Underwater thruster engine for RC Bait Tug Boat ROV Submarine. Note !! Q :How to make the throttle calibration : A :If need reverse/bidirection , first put sticker in natural position ,then power on ESC , After beep ,put sticker to MAX position,after beep again ,to MINIMAN position.then power off esc and restart it. B : If do not need reverse ,how to make the throttle calibration : Firstly ,put sticker in MAX position ,power on ESC ,after beep , Put sticker to MINIMUN position ,after beep again,repower ESC. Please do make the throttle calibration for the first time using or changed the TX. ZTW and HAWK HOBBY have 100% free warranty for this ESC.
