ZOSKAY RC servo High Torque Metal Gear Standard Digital Servo 25KG/0.13S 6.8V for 1/8 1/10 RC Cars (Control Angle 270)
- 25KG high torque servo - maximum torque can up to 25kg.cm (6.8V)
- Digital servo features HV high torque, metal gear, fast heat dissipation, sensitivity and responsiveness. With high quality and performance
- High- metal gear with hard anodizing for better accuracy CNC aluminium middle shell enhances heat dissipation and longer service life
- High Quality - equipped with strong copper & aluminum gears,CNC aluminium middle Shell, made of first-grade material
- Standard servo size:40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in) 1/8 1/10 scale car
- Manufacturer: AY
- Model Number: A270
- Part Number: A270

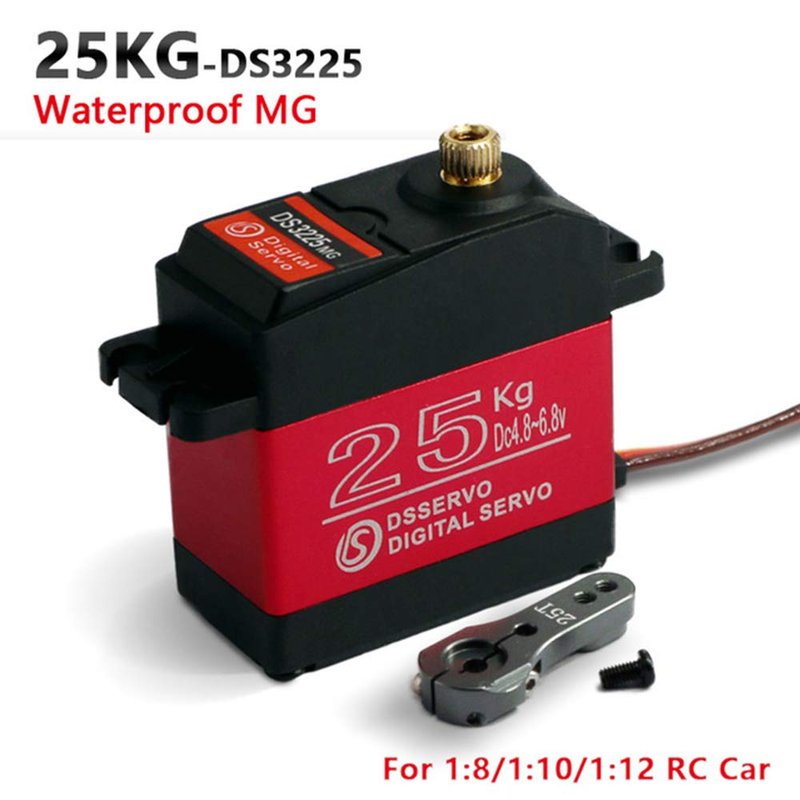

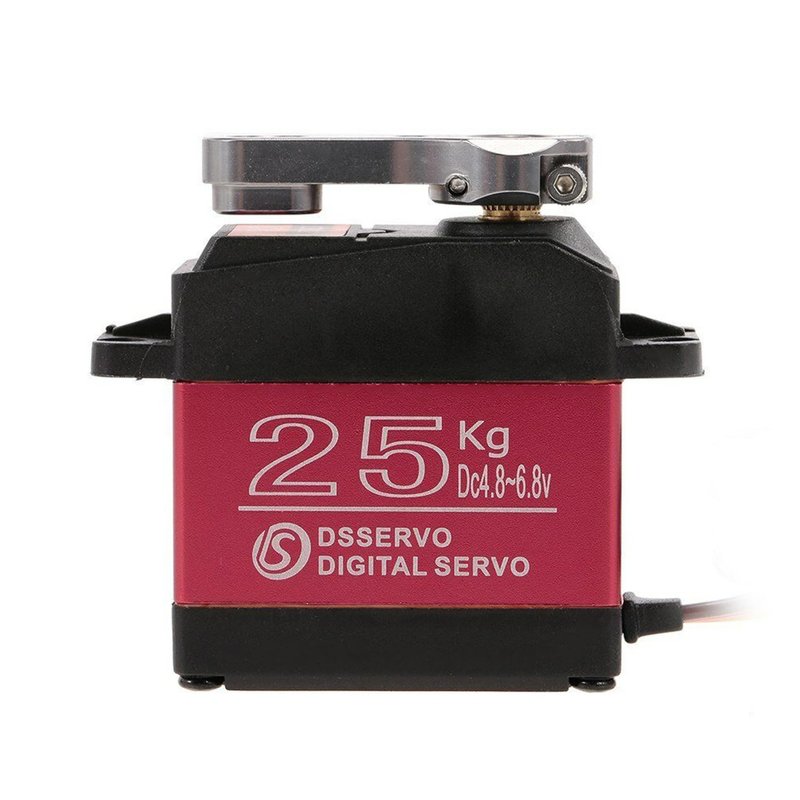

Item: DS3225 25KG Large Torque Digital Servo
Stall Torque (5V): 21 kg/cm (291.5oz/in)
Stall Torque (6.8V): 24.5 kg/cm (340.1 oz/in)
Speed : 0.15 sec/60°(5V) / 0.13 sec/60°(6.8V)
Operating Voltage: 4.8 ~ 6.8 DC Volts
Dead brand: 3μs
Weight: 60 g (2.12 oz)
Motor Type: DC Motor
Gear Type: Copper & Aluminum
Working frequence: 50-333Hz

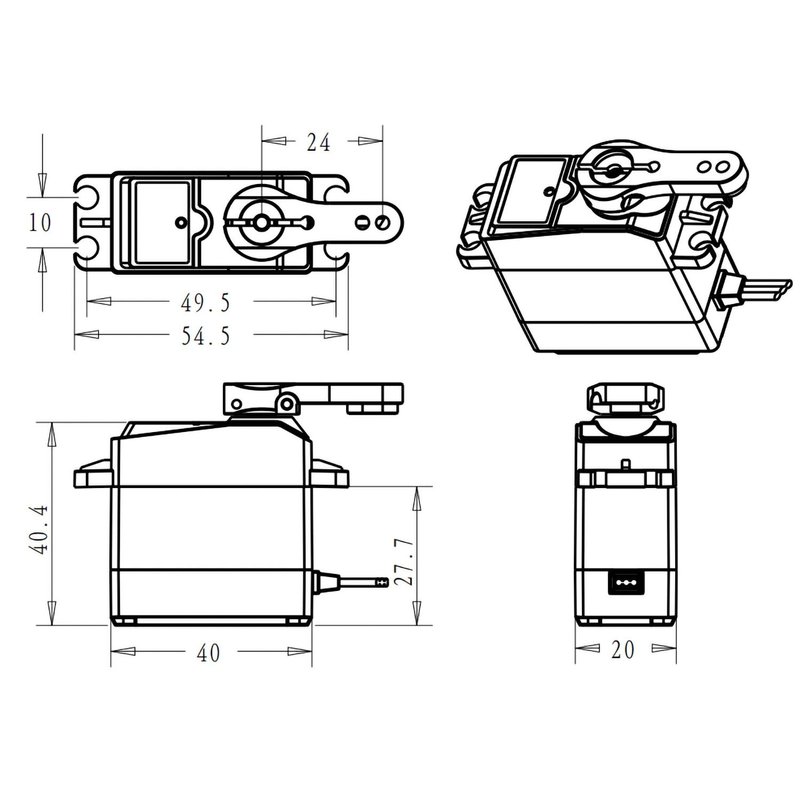

Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
Features:
- High performance digital standard servo
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell
- Dual ball bearings
Package Included:

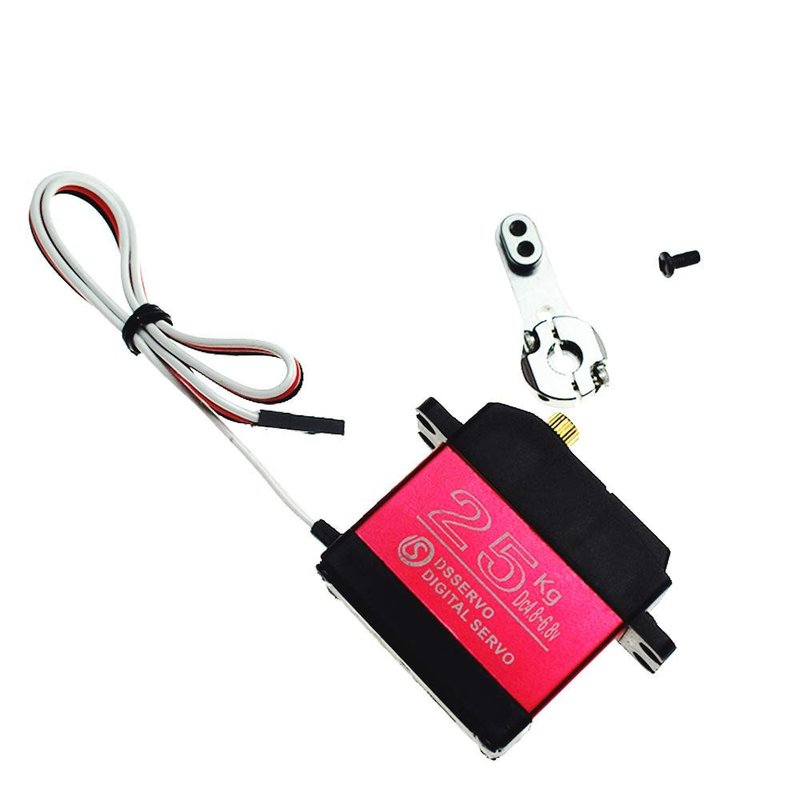

1 x DS3225 25KG Large Torque Digital Servo(Control Angle 270)

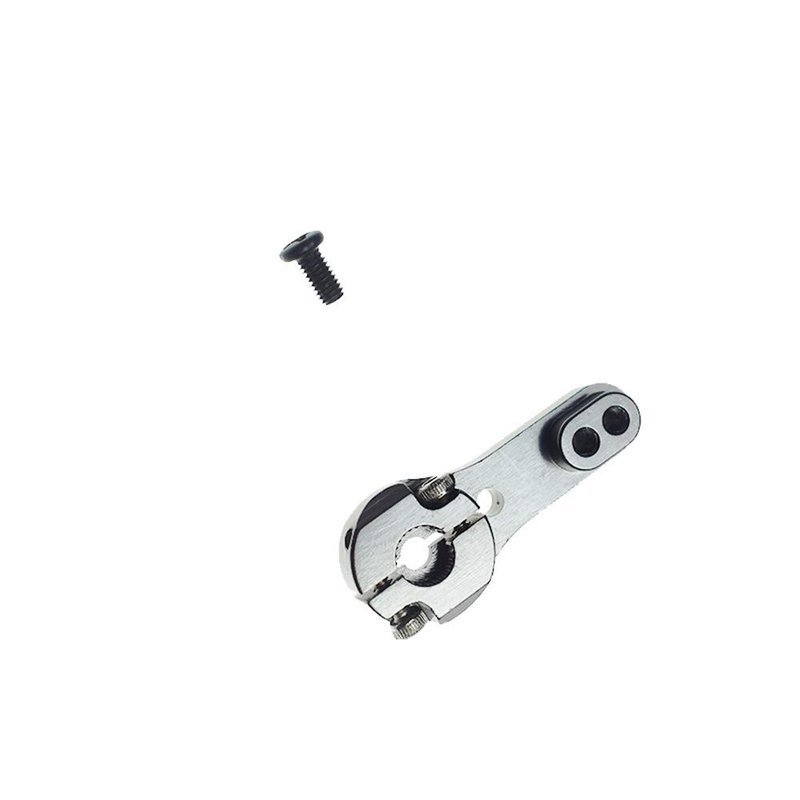

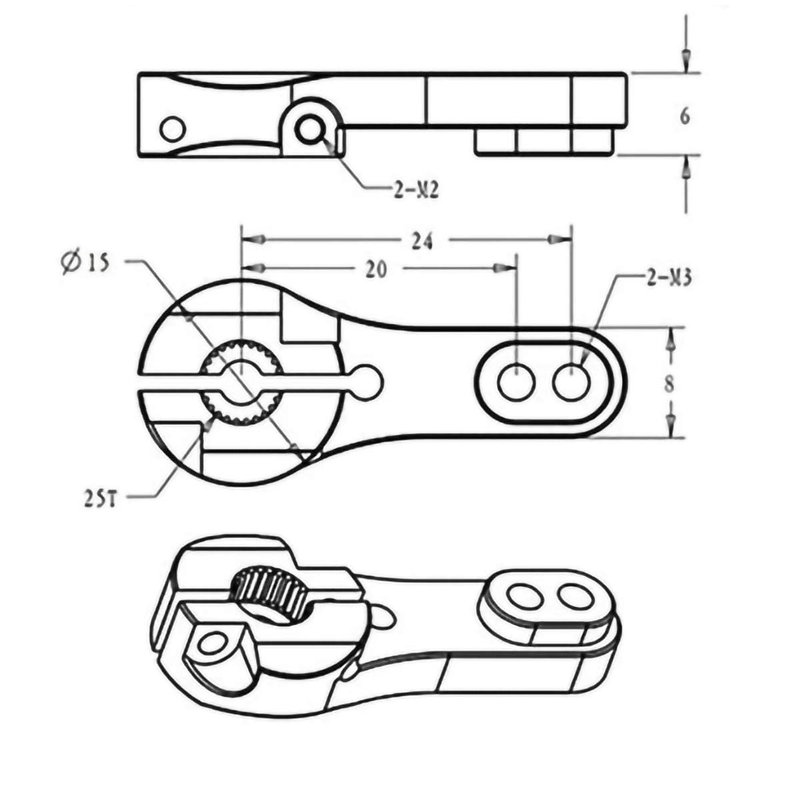

1 x 25T Adjustable metal servo arm
