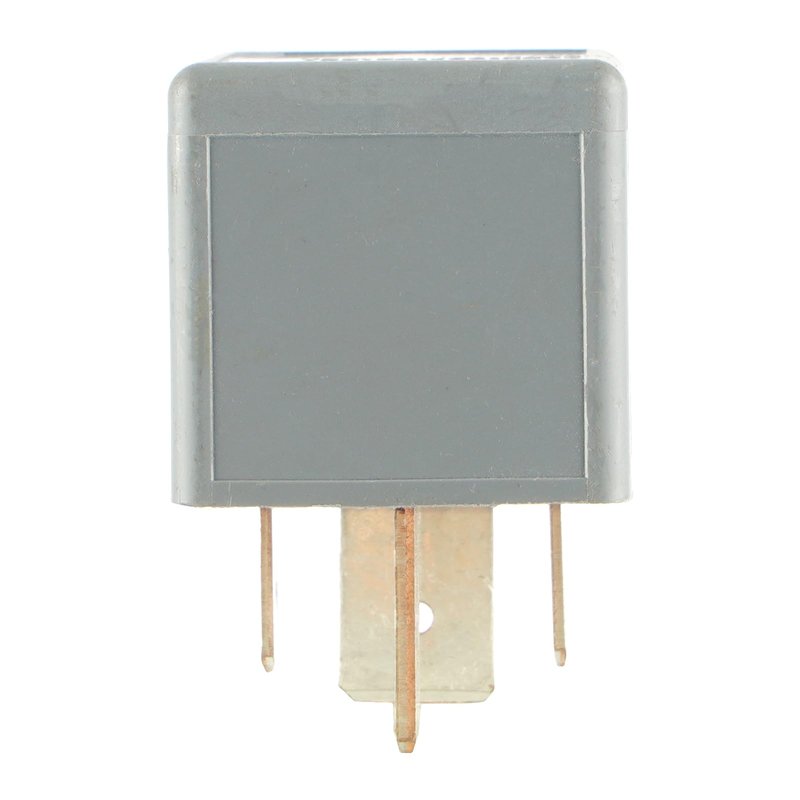

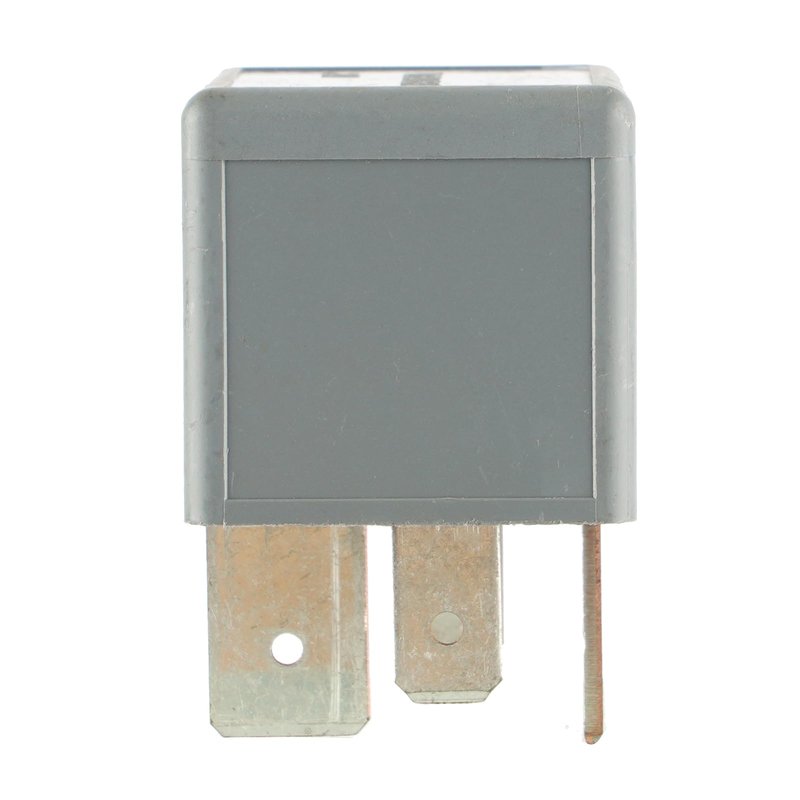

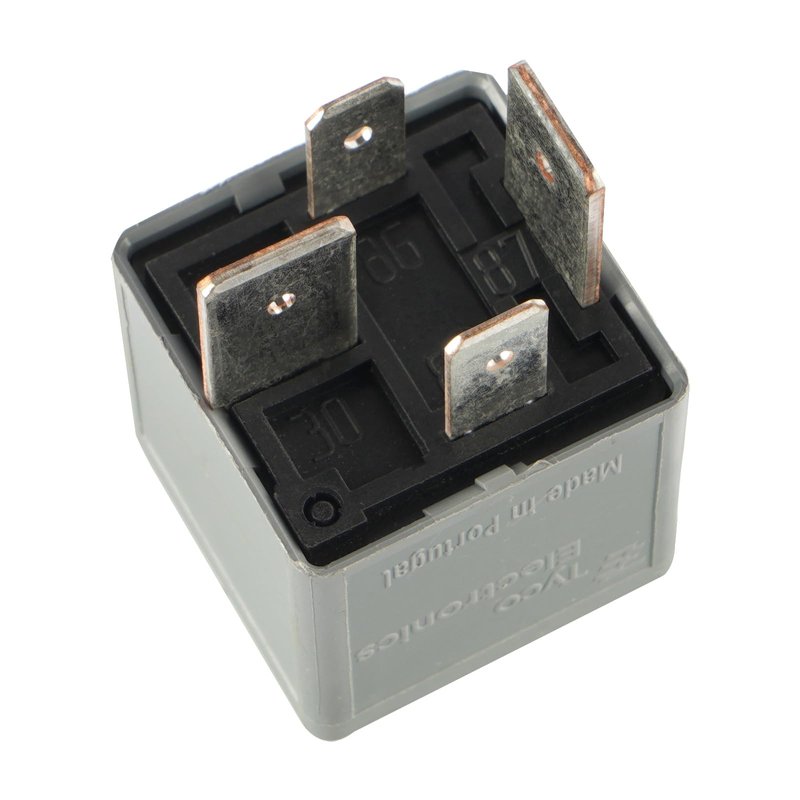

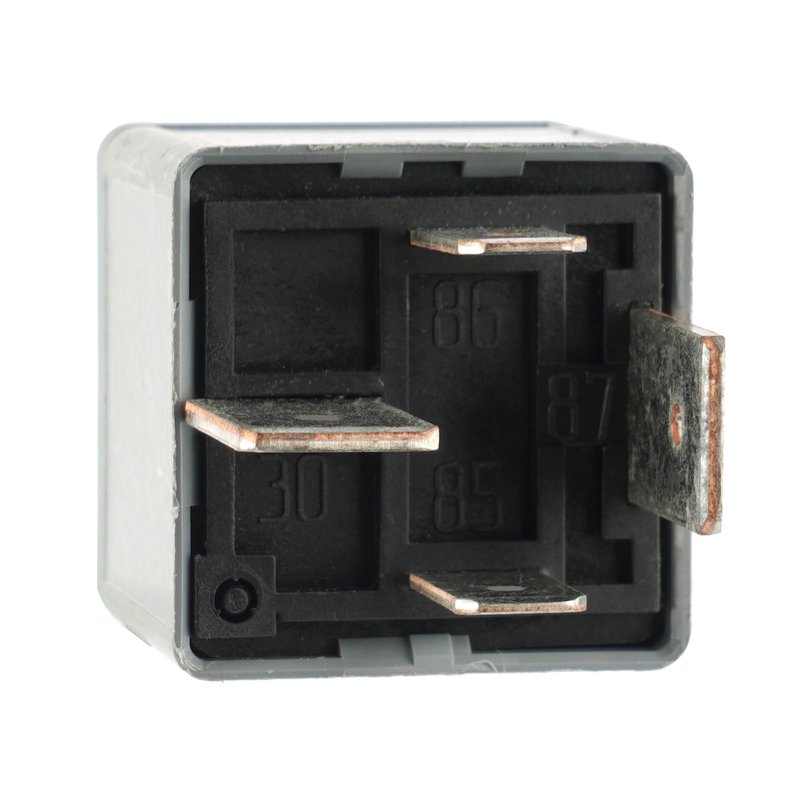

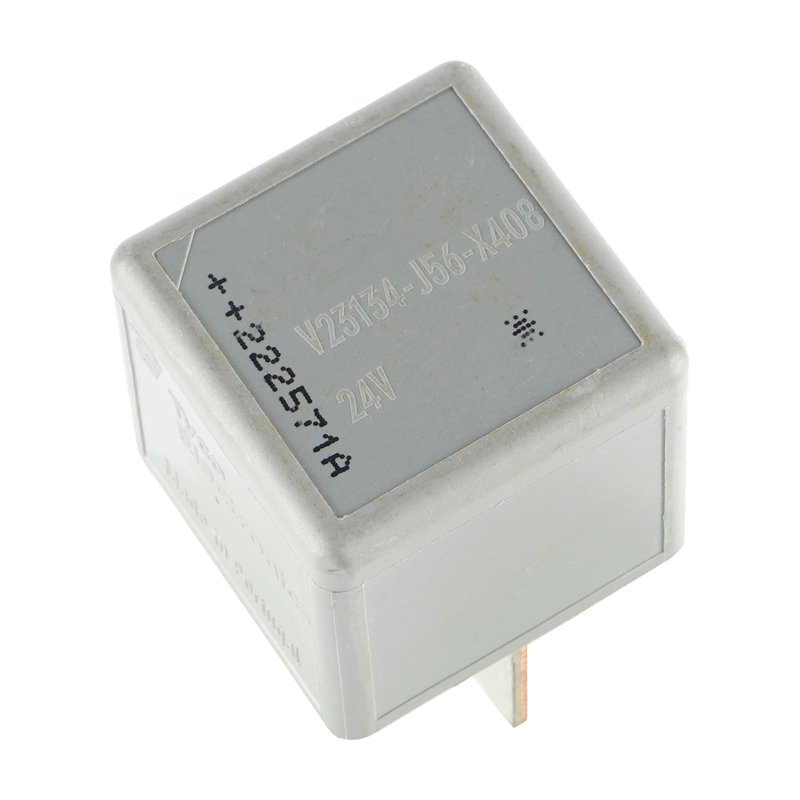

V23134-J56-X408 24VDC 70A 1 Form A 4Pins Quick Connect Automotive Relays Plug-in Maxi ISO Relays SPNO with Resistor
- High-quality automotive relay with a 24VDC rating and 70A capacity for reliable performance.
- Features 1 form A and 4 pins for easy installation and quick connection.
- Equipped with a resistor of 1200Ω and a contact gap of >0.8mm for optimal functionality.
- Built to withstand extreme temperatures ranging from -40 to 125°C for versatile use.
- Made with durable silver-based contact material for long-lasting performance.
- Manufacturer: EC-HPOCKET
- Part Number: V23134-J56-X408
"
Nominal Coil Voltage: 24VDC
Contact Form: 1 Form A
Resistive load：70A
Connector Type: Quick Connect
Contact material: Silver alloy
Resistor: 1200Ω
Weight: approx. 38g (1.3oz)
Package Content: 1 x V23134-J56-X408 0-1393304-5
Typical applications
Cross carline up to 70A for example: ABS control, cooling fan, energy management, engine control, glow plug, heated front screen, ignition, lamps: front, rear, fog light, main switch/supply relay.
This high quality relay has A 1 form A 4pin and is designed to provide reliable and efficient performance for automotive applications.
With a contact gap of over 0.8mm and a resistor of 1200Ω, this relay delivers outstanding performance even in extreme temperatures ranging from -40 to 125°C.
The contact material is silver-based, ensuring long-lasting durability and reliable operation. Weighing in at just 38g (1.3oz), this plug-in Maxi ISO relay is easy to install and use.
Attention:
Do not switch the contactswithout any load as the contact resistance may become increased rapidly.
Do not use relays that exceedcoil ratings, contact ratings, and life expectancy, as doing so may result inRisk of overheating.
