Usongshine Nema 17 Stepper Motor Bipolar Step Motor for Titan Extruder 3D Printer 4.1V 1A 13Ncm (18.4oz.in) 4 Lead 1.8 Deg with 1m Cable (17HS4023)
- High Torque: Adopting high quality motor steel material,with high torque 13Ncm(18.4oz.in), low self-inductance reactance, responsive and can avoid system error.
- Low Resistance: Usongshine stepper motor can get a lower resistance value compared to motors of the same thickness and torque. This considerably increases the thermal conductivity of the motor. This effectively reduces the increase in temperature.
- Dimensions: 42x42x23mm/1.65""x1.65""x0.9"" ,1.8 deg. step angle(200 steps/rev),Rated current 1.0 A & resistance 3.5ohms.
- Wide Application: This small motors can be used in various area, such as stage lighting; laser engraving; textile machinery; medical equipment; placement machine; non-standard equipment; 3D printer; automation equipment, and etc.
- What You Get: The package includes 1*Titan Stepper Motor/ 1PCS 1m 4pins cable and Connector;Connection: Black(A+), Green(A-), Red(B+), Blue(B-)
- Color: 17HS4023(13Ncm)
- Manufacturer: Usongshine
- Part Number: Nema 23 Stepper Motor
- Size: 1PCS
- Style: 17HS4023(13Ncm)

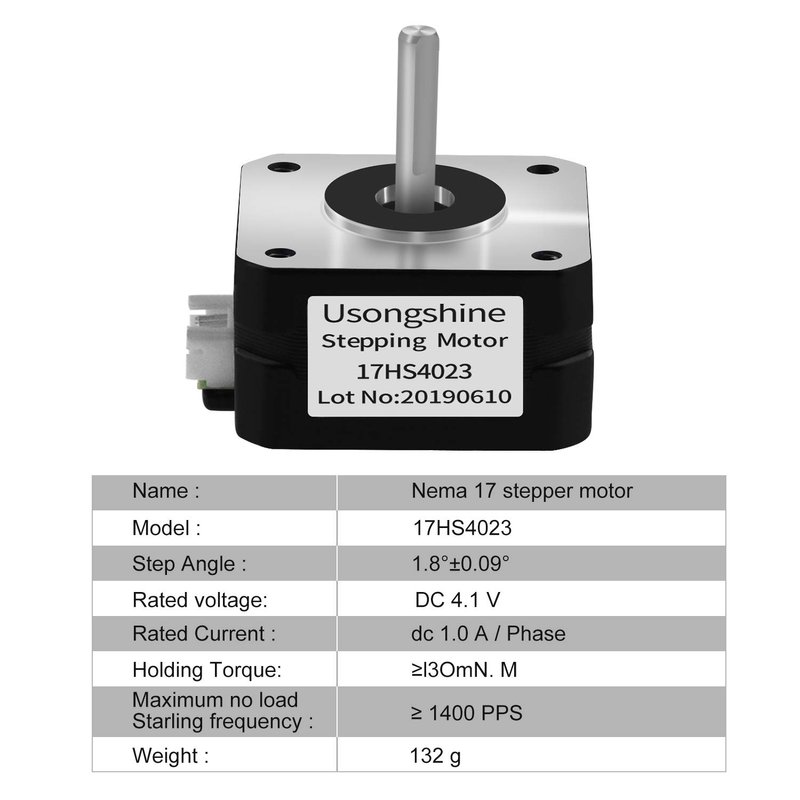

Product name: Bipolar Stepper Motor

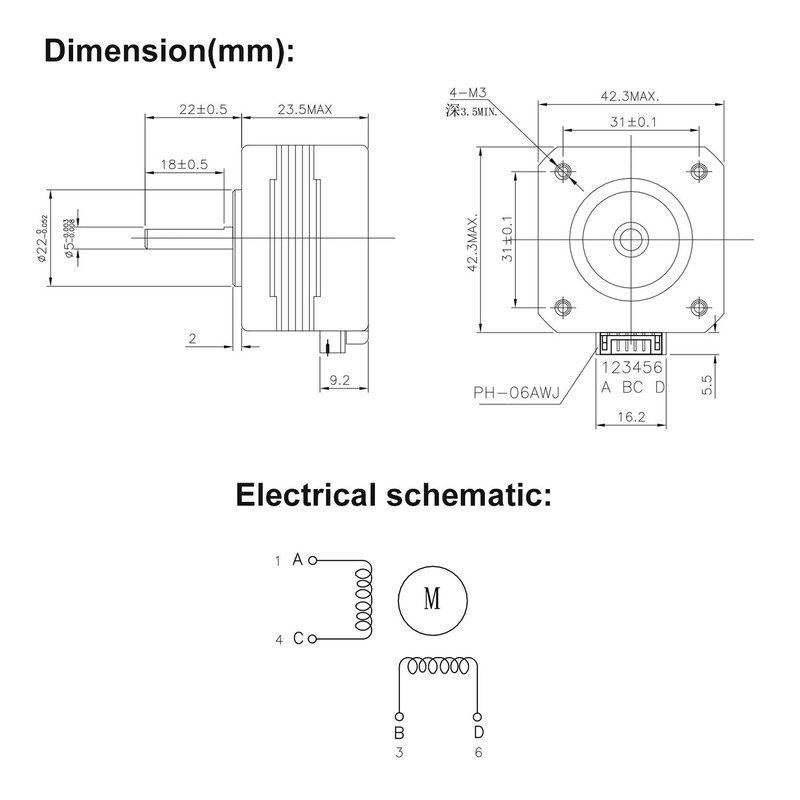

Size:42*42*23mm
Phase: 2 Phase
Current: 1 A/Phase
Phase Resistance: 3.5ohms
Inductance: 3.2 ± 20% mH/Phase
Holding Togque: 13 N.cm(18.4oz.in)
Insulation Class: B
Step Angle: 1.8±5% /STEP
Connection: Black(A+), Green(A-), Red(B+), Blue(B-)
Warning: Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

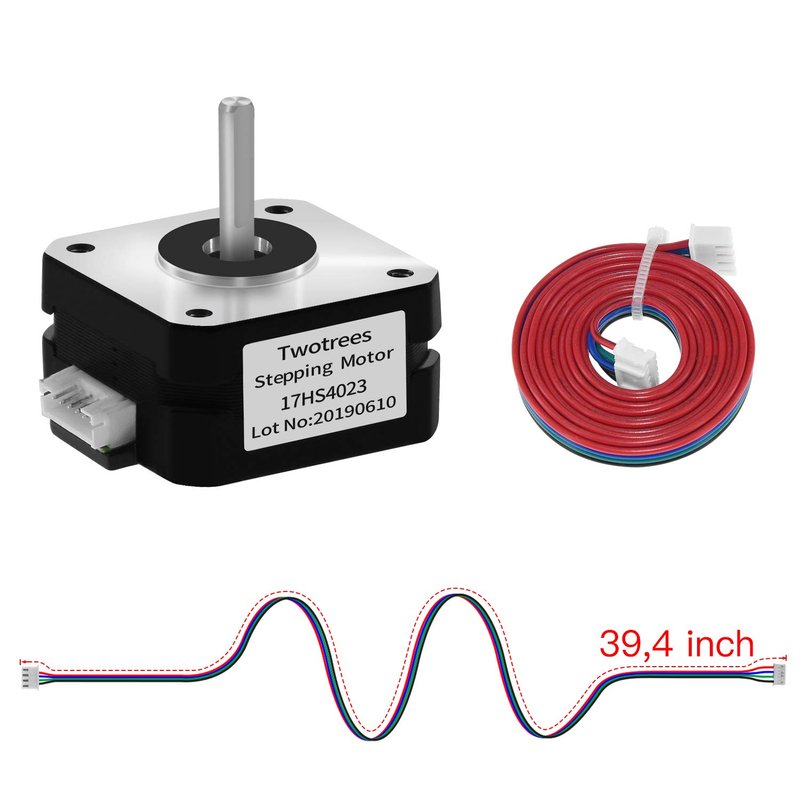

Packing list:
