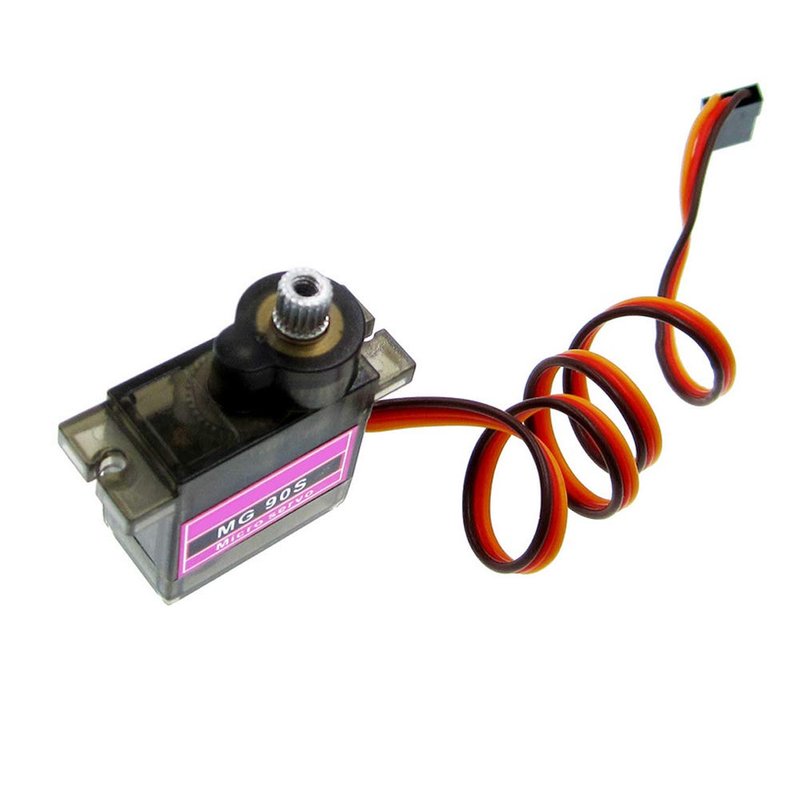

MG90S micro servo motor is the upgraded version form SG90 servo motor. Structural material: Metal copper teeth, hollow cup motor, double ball bearing. Metal Gear with less noise. Operating Speed(At no load): 0.12±0.01 seconds / 60 degrees (4.8V); 0.11±0.01 seconds / 60 degrees (6.0V) For all kind of remote contro toys, some electronics DIY project based on Arduino, Raspberry Pi. Application:Fixed win...
Product Details
  • MG90S micro servo motor is the upgraded version form SG90 servo motor.
  • Structural material: Metal copper teeth, hollow cup motor, double ball bearing. Metal Gear with less noise.
  • Operating Speed(At no load): 0.12±0.01 seconds / 60 degrees (4.8V); 0.11±0.01 seconds / 60 degrees (6.0V)
  • For all kind of remote contro toys, some electronics DIY project based on Arduino, Raspberry Pi.
  • Application:Fixed wing, Aircraft, Ship, Small robot, Mechanical arm and other models.

  • Manufacturer: Treedix
  • Model Number: TRX2-0053
  • Part Number: TRX2-0053


Specification:
Size: 22.9 x 12.2 x 28.5 mm(0.9*0.48*1.12in)
Weight: 12g
Operating Temperature: -10~50℃
Operating Voltage:4.8 ~ 6 V
Operating Speed(At no load): 0.12±0.01 seconds / 60 degrees (4.8V); 0.11±0.01 seconds / 60 degrees (6.0V)
Running Current(At no load):220±20mA (4.8V); 250±20mA (6.0V)
Stall Torque(At locked):1.5±0.01kg·cm (4.8V); 1.8±0.01kg·cm (6.0V)
Stall Current(At locked):700±50mA (4.8V); 900±50mA (6.0V)
Idle Current(At stopped):4±1mA(4.8V); 4±1mA (6.0V)
Control System:To change the pulse width
Amplifier Type:Analog Controller
Operating Angle:90±5°(At 1000→2000 μs)
Left&Right Travelling Angle Deviation:≤3°
Centering Deviation:≤1°
Neutral Position:1500 μs
Dead Band Width:5 μs
Rotating Direction:Counter Clockwise(At 1500→800 μs)
Pulse Width Range:800→2200 μs
Maximun Travelling Angle:About 145°(At 800→2200 μs)
Three Line Definition:Dark grey:GND; Red:VCC 4.8~6V; Yellow:Pulse Input

Package included:
3 x MG90S Servo Motor
9 x Rudder disc
9 x Fixing screws
