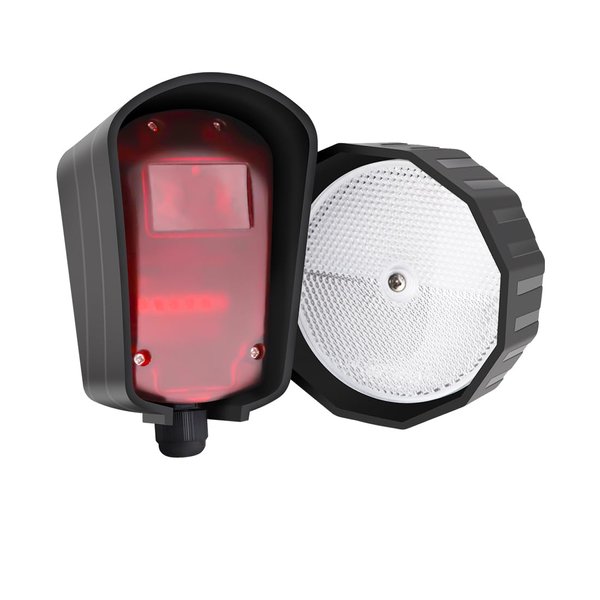

TOPENS TRF3 Safety Reflection Photocell Retro-Reflective Photoelectric Beam Sensor for Automatic Swing Sliding Gate Openers Garage Door Openers Access Control Security Alarm Systems Outdoor Use
- Reliable Reversing Sensor - TOPENS TRF3 Reflection Photocell Sensor is an outdoor photoelectric sensor with rapid response. It creates a safety barrier that detects any movement in its path. Once triggered, it perfectly makes the gate stop or reverse automatically in case of obstruction. It is strongly recommended to use the TRF3 reflective sensor with automatic gate opener system to ensure multiple protection & security.
- Wide Compatibility - Works with all the TOPENS gate openers, and compatible with most third party swing / sliding gate opener or garage door opener whose control board accepts “Normal Open or Normal Close Dry Contact” signal. It can be powered by the control board of the gate opener or by the external 12-30VDC or 10-25VAC power source. This safety beam sensor is commonly used for the household, courtyard, farm, ranch, warehouse and other commercial / industrial sites.
- Easy DIY Installation - Simple wire connection makes the installation labor-saving. Just connect the retro-reflective photocell to the gate opener system. It is suggested to mount the photocell at least 8” (20cm) above the ground. Power on to determine the reflector position. Ensure that there is no obstruction between the photocell and the reflector during alignment. Fix the reflector position when the photocell status LED is green.
- Clever Design - The waterproof cover offers stable protection in bad weather conditions. The photocell beam sensor is completely free to maintain for outdoor use. Made of high-quality UV-resistant and flame-retardant material, the durable housing promises a long-lasting performance.
- Customer Service and Technical Support - All the TOPENS products come with a 12-month war-ranty against defects, a 30-day worry-free exchange & return and lifetime tech support. Visit TOPENS website for the user manual, installation video, and personalized service. TOPENS is ready to offer professional solutions for any questions or assistance. Enjoy an easier and smarter life by ordering other TOPENS accessories.
- Color: Black；Red；Siver
- Manufacturer: TOPENS
- Model Number: TRF3
- Package Quantity: 1
- Part Number: TRF3
- Size: Small
Kindly Note
- If the gate operator system is only solar powered, and the beam sensor is powered by the gate opener system during both working and standby modes, please add 30W solar panels or more and upgrade the battery capacity (NOT incl.) to at least 17 Ah or higher to meet the power consumption.
- Please refer to the corresponding TOPENS gate opener user manual for the correct wire connection.
- The cable (size: 4C x 22 AWG) for connecting the photocell to the gate operator system is required but NOT included.
- Generally, the distance between the sensor and the control board of the gate opener should be within 33 feet (10m).
- One TRF3 photocell sensor can only work for one gate operator, while one gate operator can connect two TRF3 security sensors at most.
- Sensing range may be affected in extreme weather conditions, such as blizzard, rainstorm etc.

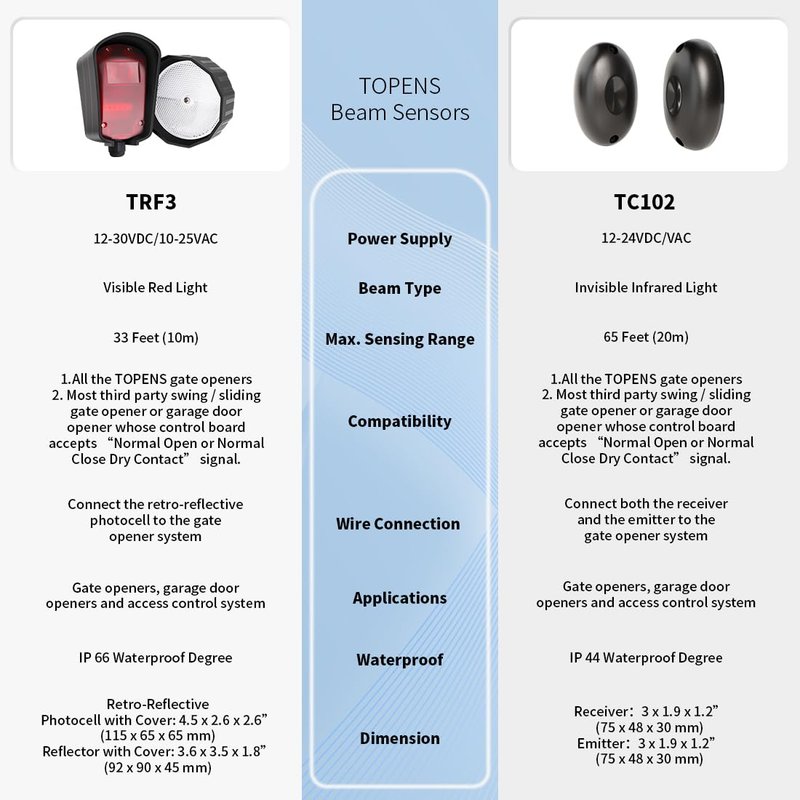

Specifications
Detection Method: Retro-Reflective
Angle: 1.5 Degrees Approx.
Max. Sensing Range: 33ft. (10m)
Operating Voltage: 12-30VDC / 10-25VAC
Output: Relay SPDT
Output Capacity: 3A/24VDC, 3A/120VAC
Protection Degree: IP66
Working Temperature: 0°F to 120°F (-20℃~ +50℃)
Response Time: 10ms (Max)
Status LED - Red Indicates Beam is Obstructed
Status LED - Green Indicates Beam is Aligned
Dimension of the Retro-Reflective Photocell with Cover: 4.5 x 2.6 x 2.6” (115 x 65 x 65 mm)
Dimension of the Reflector with Cover: 3.6 x 3.5 x 1.8” (92 x 90 x 45 mm)
What's in the Box
1 x Retro-Reflective Photocell (one Emitter and one Receiver)
1 x Water-proof Cover for Retro-Reflective Photocell
1 x Reflector
1 x Water-proof Cover for Reflector
1 x Mounting Accessories
1 x TOPENS User Manual
