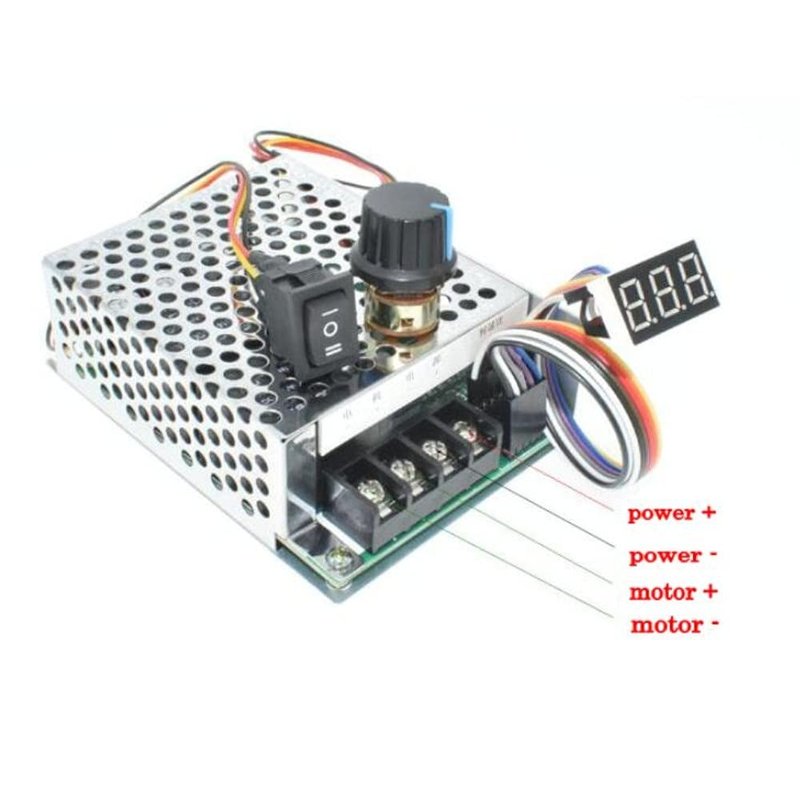

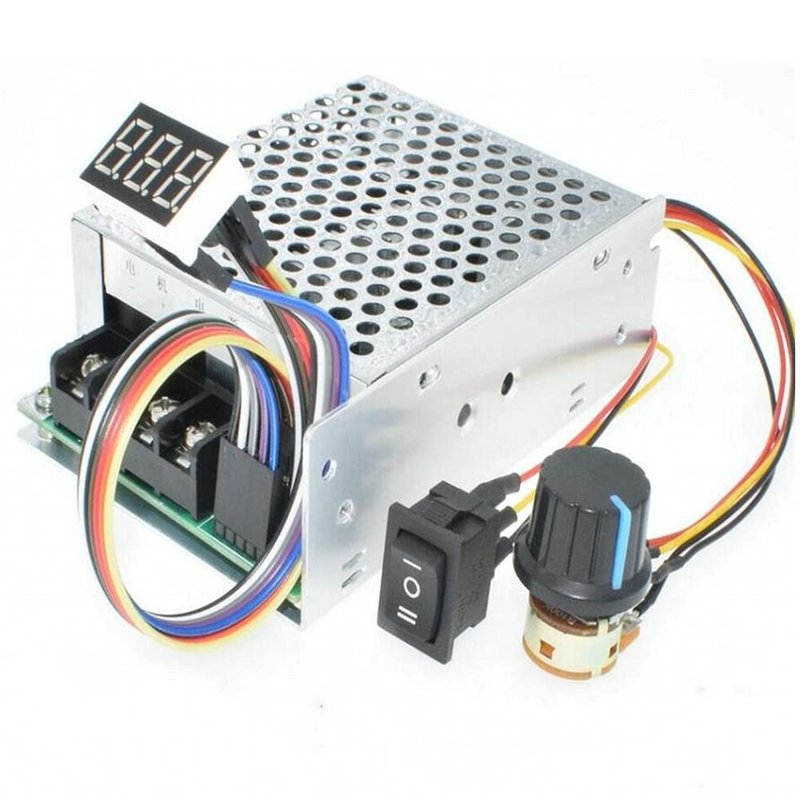

TKXEC Adjustable Digital display 10-55V 60A PWM DC Brushed Motor Speed Controller Switch Control 12V 24V 36V 48V Forward Brake Reverse For power wheels regulation (60A PWM)
- The input voltage must be equal to the rated voltage of the motor.Wide Voltage: Wide voltage input 10-55V, maximum output current 60A,Continuous current: 40A.
- Digital display :Motor Rotation Speed Percentage 0~100% ,Accurate adjustment speed.Adjust Output Current Control Motor Speed
- Speed Control Knob:Stepless speed regulation ,and with Forward-Brake-Reverse Switch.Only Work for Brushed Motor.
- Notice 1: The power of the input power supply must be greater than 1.5 times the rated power of the motor to make the motor work (note: the input voltage and the rated voltage of the motor must be consistent).
- Notice: If there is a forward-reverse circuit regulator on the children's car, please be sure to connect the speed controller between the power supply and the forward -reverse circuit regulator of the children's car. Otherwise, the speed controller may be damaged.
- Manufacturer: shenzhenshixinruidianzikejiyouxiangongsi

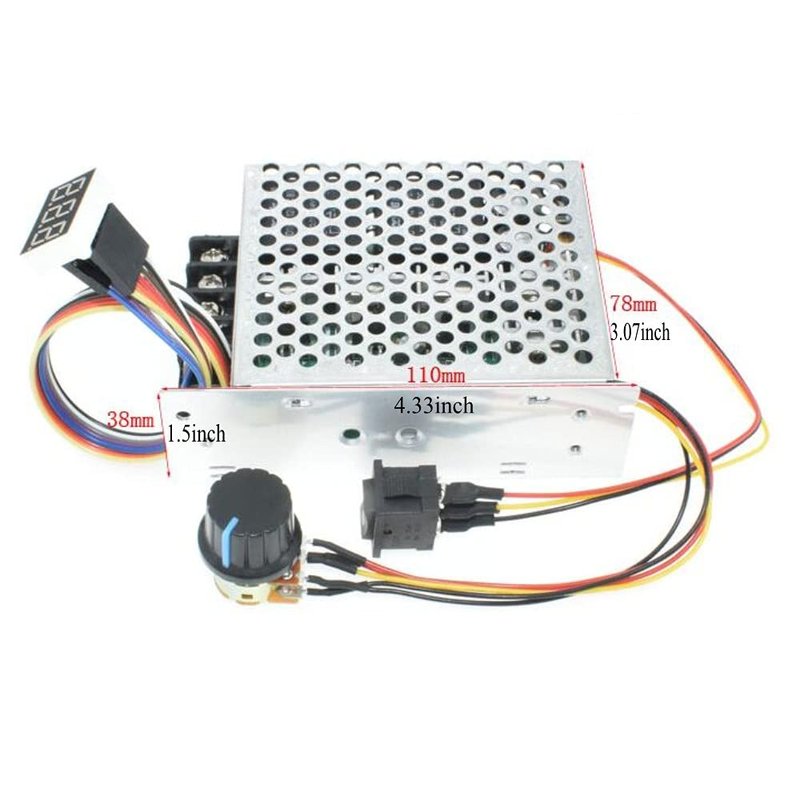

- Size: 4.33*3.07*1.5inch
- Style: 60A PWM
Input voltage: DC10-55V (equal to the ratedvoltage of the motor)
Output voltage: Linear under load Connection Type: Barrier TerminalProduct
Maximum current: 60A Continuous current: 40A
Speed Type: Adjusting Current Speedmode: potentiometer (linear)
forward reverse: support Speed range: 0--100%
Control frequency: 15KHZ Wiring type: Terminal knob
Support motor: DC brush motor,can't work for Brushless motor stepper motor
Specifications: 100K (with switch)

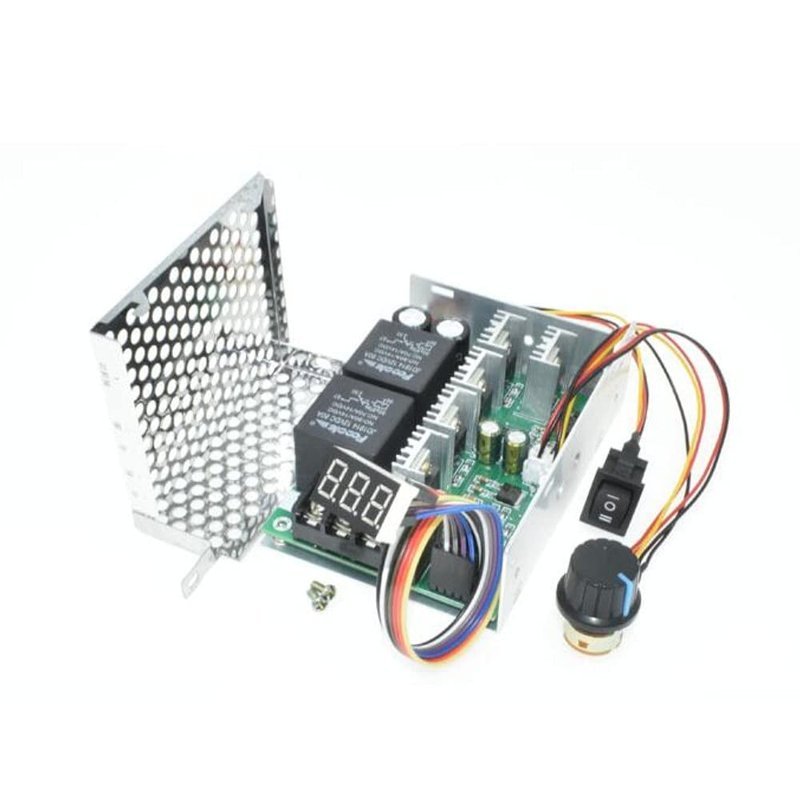

Motherboard size: 100MM * 76MM * 28MM Shell size: 110 * 78 * 38MM
Note: The digital display is the full speed percentage of the motor 0-100 not the motor actual speed
The input voltage must be positive and negative Correctly Connect
