Stepper Motor Driver Controller Integrated Board Forward/Reverse Pulse Speed Angle Control Module PLC Serial Communication for NEMA 17 23 Motor
- [Controller & Driver] Integrated step motor controller and driver functions.It can not only realize the drive motor, but also control the working state of the stepper motor in real time

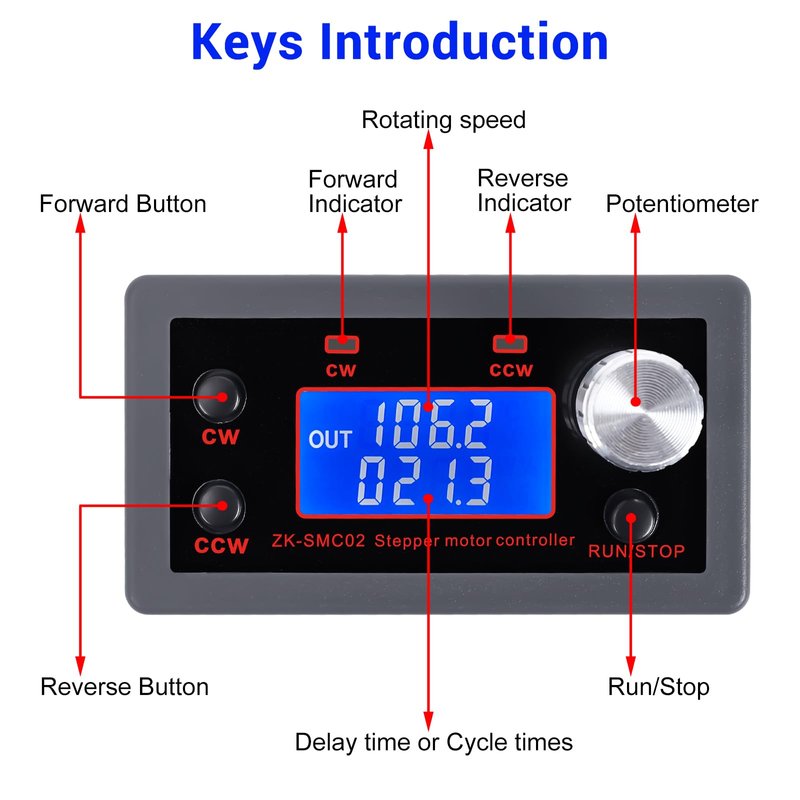

- [Forward & Reverse] It can not only change rotation direction by pressing button, but also by potentiometer. It is also automatically change the direction through the selected working mode to achieve multi-scene and multi-application
- [4 Control Mode] In addition to its built-in parameters work mode,it can also control by external buttons or others driver or UART commands
- [9 work states] Built-in 9 default workflow programs, covering most applications, to meet the needs of different scenarios.Forward/Reverse/Delay/Loop/Self-locking/No-lock/Rotating speed and so on

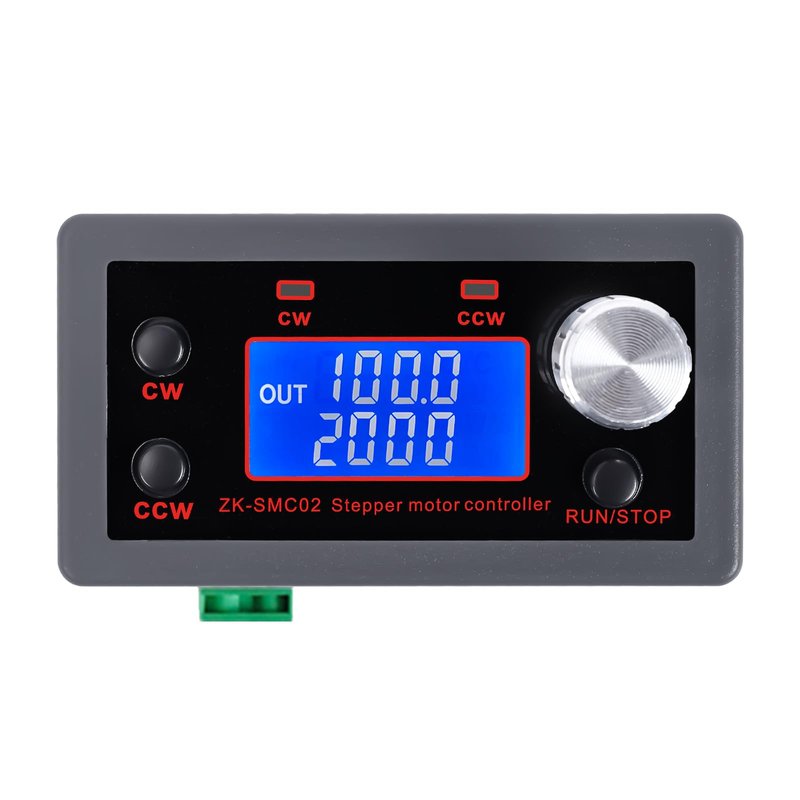

- [HD LCD display] The HD LCD can clearly display the speed/delay/cycle times, making it easier to browse and set various parameters. Realize high-precision control of the motor. Parameters support memory function that will not be lost
- Manufacturer: BANRIA
- Model Number: 4257
- Package Quantity: 1
- Part Number: 4257
Feature
1. A control module for single-axis stepper motors;

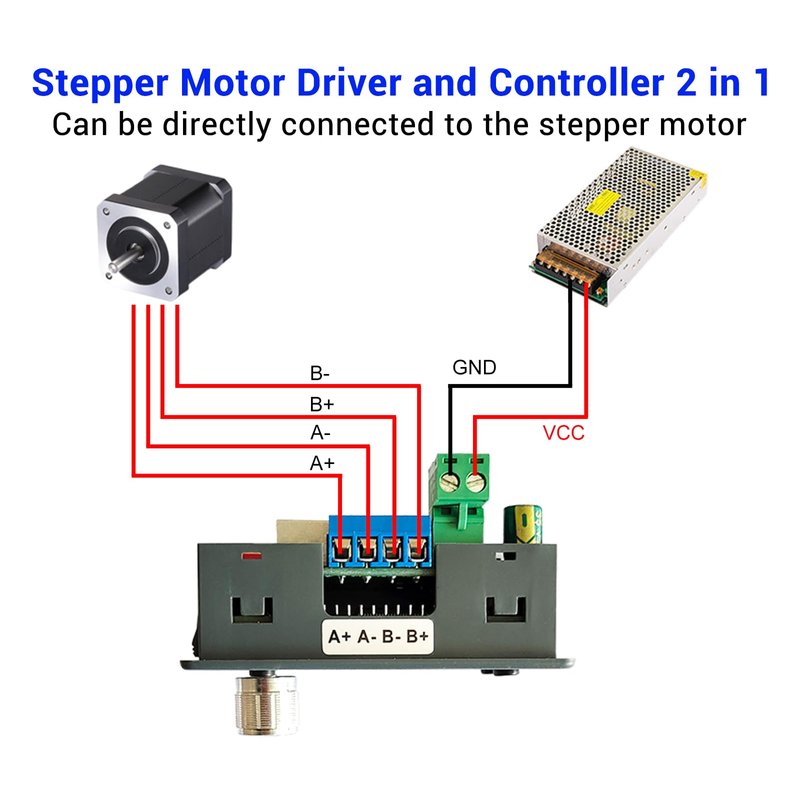

2. Can be directly connected to stepping motor;

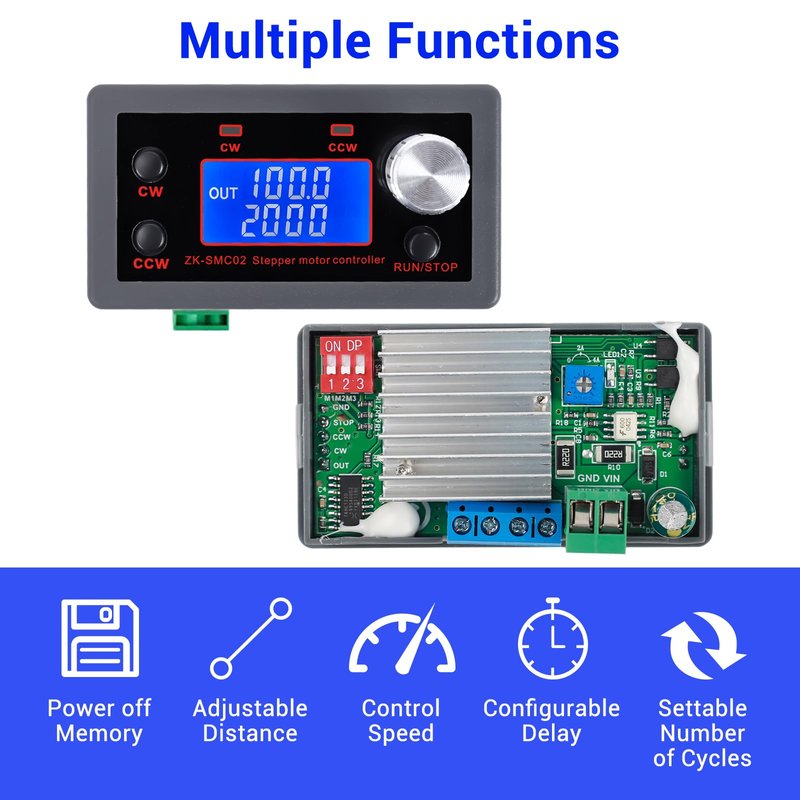

3. Adjustable Delay/Speed Regulation/Angle Adjustment/Distance Adjustment;
4. Has a variety of fixed operating modes built-in, and you can quickly select the appropriate motion track, can save and set the distance/speed/delay/cycle times when power off.
Parameter
Model: stepper motor controller + driver
Suitable motor: stepper motor (single axis)
Number of axes: single
Motor signal: common cathode
Power supply: DC 5-30V
Drive capability: 4A
Command characteristic: streamline and optimize multiple commonly used instructions
Acceleration and deceleration: Yes
Main function of system: automatic / manual / setting / serial control
Speed range: 0.1-999 circle/ minute
Number of Forward/Reverse pulses: 1-9999
Cycle work times: 1-9999
Forward&Reverse delay time: 0.0-999.9 seconds
Subdivision selection range: 1-32
Operating temperature range: -5℃~60℃ (No condensation )
Note
It can be used in general industrial control occasions, but can't be used in special industries such as medical treatment or fire fighting or life-critical fields.
