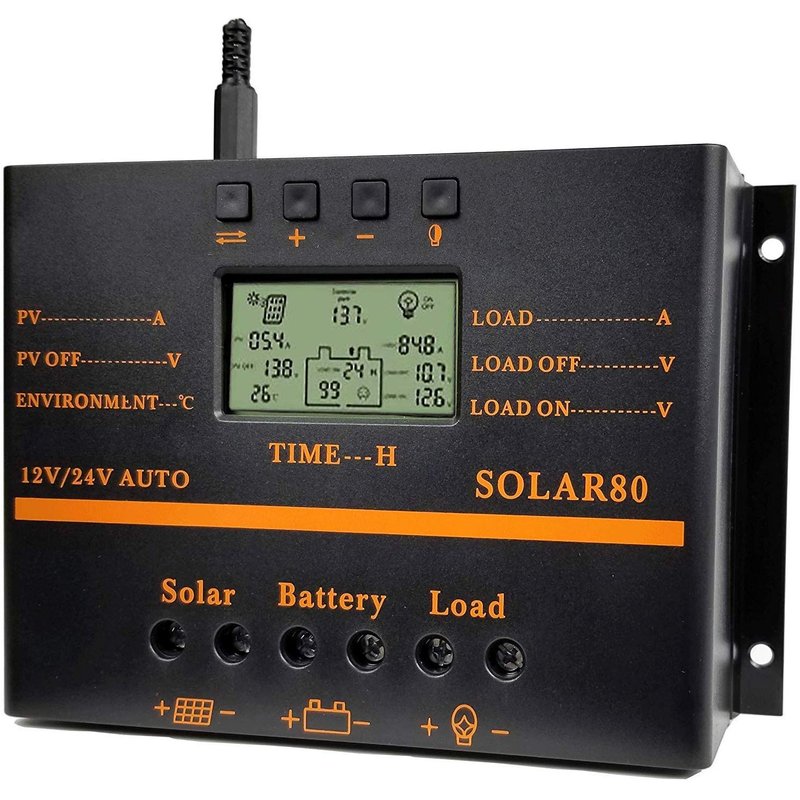

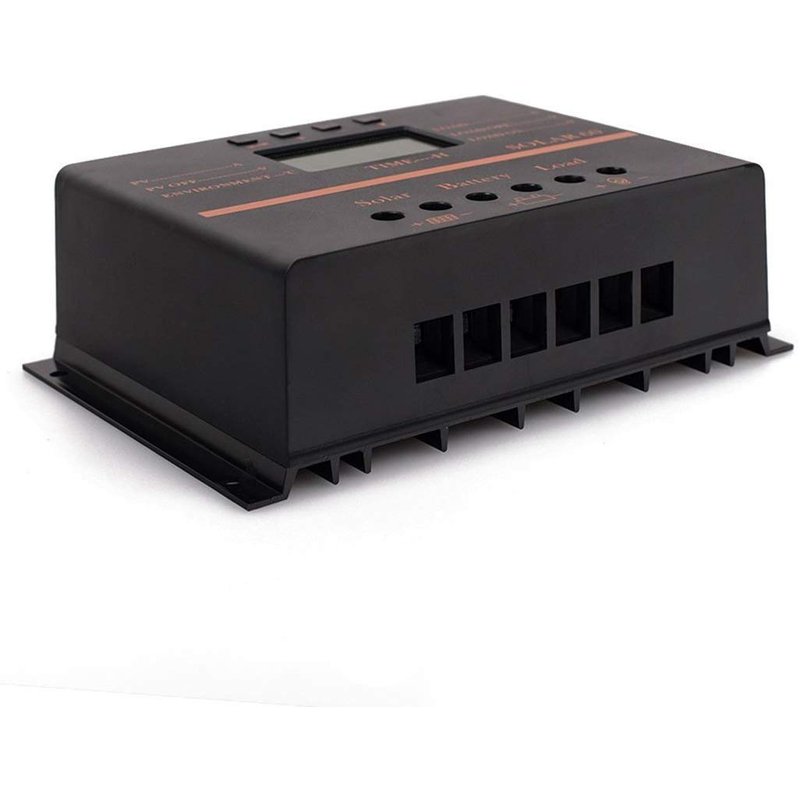

Solar Charge Controller 80A PWM 12V 24V 1920W Solar Panel Charger Discharge Regulator with 5V USB Output Multip Circuit Protection Anti-Fall Durable ABS Housing Discharge Regulator for Lighting System

Brand: HZRE    Sold By: Everymarket

Solar Charge Controller 80A PWM 12V 24V 1920W Solar Panel Charger Discharge Regulator with 5V USB Output Multip Circuit Protection Anti-Fall Durable ABS Housing Discharge Regulator for Lighting System

Brand: HZRE Sold By: Everymarket
$168.30 In Stock
Ships from US, Arrives in 10-17 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
12
March2025
-
21
March2025
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
satisfaction

100% Satisfaction Guarantee

value

Amazing Value

fast shipping

Fast Shipping

customer service

Expert Customer Service

Solar Charge Controller 80A PWM 12V 24V 1920W Solar Panel Charger Discharge Regulator with 5V USB Output Multip Circuit Protection Anti-Fall Durable ABS Housing Discharge Regulator for Lighting System

Solar Charge Controller 80A PWM 12V 24V 1920W S...

$168.30

High Charging Ability: Large Power 80 amp solar charge controller, 12V/24V Auto Identification, 5V USB output, Max PV Array input Voltage/Power (Battery Voltage): 24V/960W(12V), 48V/1920W(24V), Get Free Battery Monitor in the Package Intelligent High-complex Protection Technology: Short Circuit Protection, Overcharge Protection, Over-current Protection, Reverse Connection Protection ABS Material Shell Design: Anti-Fal...
Product Details
  • High Charging Ability: Large Power 80 amp solar charge controller, 12V/24V Auto Identification, 5V USB output, Max PV Array input Voltage/Power (Battery Voltage): 24V/960W(12V), 48V/1920W(24V), Get Free Battery Monitor in the Package
  • Intelligent High-complex Protection Technology: Short Circuit Protection, Overcharge Protection, Over-current Protection, Reverse Connection Protection
  • ABS Material Shell Design: Anti-Fall & Durable Overall Design, Achieve the Longest Product Service Lifetime
  • Enhanced Heat Sink: High-Quality aluminum alloy Heat Sink, Super Efficient Heat Dissipation, the thickest Part can Reach to 0.12 In. Simple Operation: 1, Simple & Easy Button Operation 2, Adjustable Charge-Discharge Parameter 4, Operation Mode of Load is Settable
  • Our controller is backed by FULL MONEY BACK GUARANTEE! If for any reason you are not satisfied with this purchase, kindly contact us and our dedicated world class customer support team will offer a replacement or full refund without any cost from your side!

  • Manufacturer: HZRE
  • Part Number: B083KN9H22

This controller has an efficient charging system and can handle high power input reach to 1920W, this controller equipped with industrial-grade STM 8 microprocessor to control the charge and discharge process. It has perfect and liable battery charge and discharge period management. The charge circuit is characterized by high efficiency and low consumption by controlling the MOSFET of the ultra-low internal resistance with PWM. This controller has multiple load control modes and adaptable to different industries. the housing of this controller is made of superior quality ABS material that is extra durable.USB output port also equipped with this controller for electrical devices charging.
User Manual is available for Download
Product Specification:

Charge Control Mode: PWM
Rated Current : 80A
Rated voltage: 12V/24V Automatic Identification
Max input Power: 960W(12V), 1920W(24V)
Installation Cable Area: 3# AWG (25mm2)
Maximum Voltage of solar panel: 48V
Float Voltage: 13.8V/27.6V
Low Voltage Disconnection: 10.7V/21.4V
Low Voltage Re-connection: 12.5V/25V
No load loss: <30mA
loop voltage drop:<200mV
Temperature compensation: -4mV/Cell/°C
Operating Temperature: -10℃~60℃
Storage temperature: -30℃~70℃
Humidity Requirement: ≤90%
Dimension: 128 mm×188 mm×61mm
Mounting hole spacing: 98mm×178 mm --Φ5
Net Weight: 720g

Package List:

1 x 80A Solar Charging Controller
1 x Temperature Sensor
1 x User Manual

Shipping Summary:

  • => Standard International Shipping from the United States to Canada costs CAD 9.99.

  • => Orders are processed within 1-3 business days (excluding weekends and holidays).

  • => Once your order ships, you will receive a confirmation email with tracking details.

Shipping Time:

  • => Standard International Shipping: Estimated 10-15 business days within Canada.

  • => Shipping times are estimates and may be affected by external factors such as weather, holidays, or customs delays.

  • => We do not guarantee exact delivery dates, as delays may occur due to the shipping carrier.

Tracking Your Order:

  • => A tracking number will be provided once your order ships.

  • => Orders may be shipped from different fulfillment centers worldwide to ensure quality and affordability.

Delivery Conditions:

  • => Shipments are delivered to most addresses, except P.O. Boxes.

  • => In certain remote areas, additional delivery charges may apply, or you may need to pick up your package from the nearest service location of our shipping partner.

Order Modifications:

If you need to cancel or modify your order, please contact our customer support immediately.

Issues with Delivery:

If your order shows as delivered but you have not received it, please contact the shipping carrier directly to resolve the issue. For persistent problems, contact our customer service at cs@everymarket.ca.

Customer Support:

Our team is available 24/7 to assist you with any questions or concerns regarding your order. We are committed to ensuring a smooth shopping experience.

Return Policy

  • => Duration: You have 30 days from receiving your item to initiate a return.

  • => Condition: Items must be unworn, unwashed, with original tags and packaging intact.

  • => Shipping Costs: Customers are responsible for return shipping costs.

  • => Packaging: Ensure returned items are well-packaged to avoid damage during transit.

  • => Tracking: Use a trackable and insured shipping method as we are not liable for items lost or damaged on return.

  • => Initiating a Return: Contact us at cs@everymarket.ca to start your return. We will provide a return shipping label and instructions upon approval. Returns without prior approval will not be accepted.

How to Return

  • => Method: Returns must be sent back by mail to the address provided in the return instructions.

Return Label

  • => Defective Products: Return labels are provided for defective items.

  • => Non-Defective Returns: Customers are responsible for obtaining their return shipping label.

Product Conditions for Return

  • => Eligible Products: Returns are only accepted for items in new condition.

Non-returnable Items

  • Certain items are not eligible for return:

    • => Electronic devices after 30 days (e.g., computers, laptops, Kindles).

    • => Gift cards, prepaid game cards.

    • => Perishable goods, live insects, some jewelry, some health and personal care items.

    • => Customized or personalized products.

    • => Items with special shipping restrictions.

Refund Policy

  • => Window: Eligible products may be returned within 30 days of delivery for a refund.

  • => Refund Method: Refunds are processed to the original payment method or as store credit for items purchased with gift cards.

  • => Processing Time: Refunds are processed within 3-5 business days after we receive the return; please allow additional time for shipping and bank processing.

Claims

  • => Inspect your order upon arrival and report any defects, damages, or incorrect items immediately to allow us to address the issue.

  • => For claims, contact our support team with details of the issue.

Exchange Policy

  • => For the quickest service, return your original item and place a new order for the desired product once your return is accepted.

For any further inquiries, feel free to contact our customer support team at cs@everymarket.ca



  • High Charging Ability: Large Power 80 amp solar charge controller, 12V/24V Auto Identification, 5V USB output, Max PV Array input Voltage/Power (Battery Voltage): 24V/960W(12V), 48V/1920W(24V), Get Free Battery Monitor in the Package
  • Intelligent High-complex Protection Technology: Short Circuit Protection, Overcharge Protection, Over-current Protection, Reverse Connection Protection
  • ABS Material Shell Design: Anti-Fall & Durable Overall Design, Achieve the Longest Product Service Lifetime
  • Enhanced Heat Sink: High-Quality aluminum alloy Heat Sink, Super Efficient Heat Dissipation, the thickest Part can Reach to 0.12 In. Simple Operation: 1, Simple & Easy Button Operation 2, Adjustable Charge-Discharge Parameter 4, Operation Mode of Load is Settable
  • Our controller is backed by FULL MONEY BACK GUARANTEE! If for any reason you are not satisfied with this purchase, kindly contact us and our dedicated world class customer support team will offer a replacement or full refund without any cost from your side!

  • Manufacturer: HZRE
  • Part Number: B083KN9H22

This controller has an efficient charging system and can handle high power input reach to 1920W, this controller equipped with industrial-grade STM 8 microprocessor to control the charge and discharge process. It has perfect and liable battery charge and discharge period management. The charge circuit is characterized by high efficiency and low consumption by controlling the MOSFET of the ultra-low internal resistance with PWM. This controller has multiple load control modes and adaptable to different industries. the housing of this controller is made of superior quality ABS material that is extra durable.USB output port also equipped with this controller for electrical devices charging.
User Manual is available for Download
Product Specification:

Charge Control Mode: PWM
Rated Current : 80A
Rated voltage: 12V/24V Automatic Identification
Max input Power: 960W(12V), 1920W(24V)
Installation Cable Area: 3# AWG (25mm2)
Maximum Voltage of solar panel: 48V
Float Voltage: 13.8V/27.6V
Low Voltage Disconnection: 10.7V/21.4V
Low Voltage Re-connection: 12.5V/25V
No load loss: <30mA
loop voltage drop:<200mV
Temperature compensation: -4mV/Cell/°C
Operating Temperature: -10℃~60℃
Storage temperature: -30℃~70℃
Humidity Requirement: ≤90%
Dimension: 128 mm×188 mm×61mm
Mounting hole spacing: 98mm×178 mm --Φ5
Net Weight: 720g

Package List:

1 x 80A Solar Charging Controller
1 x Temperature Sensor
1 x User Manual
