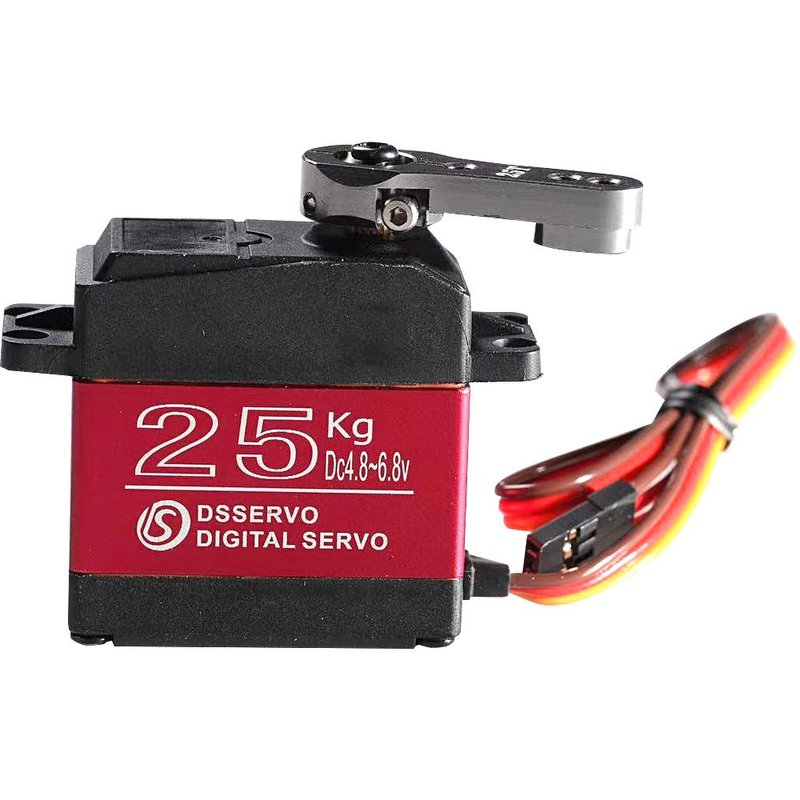

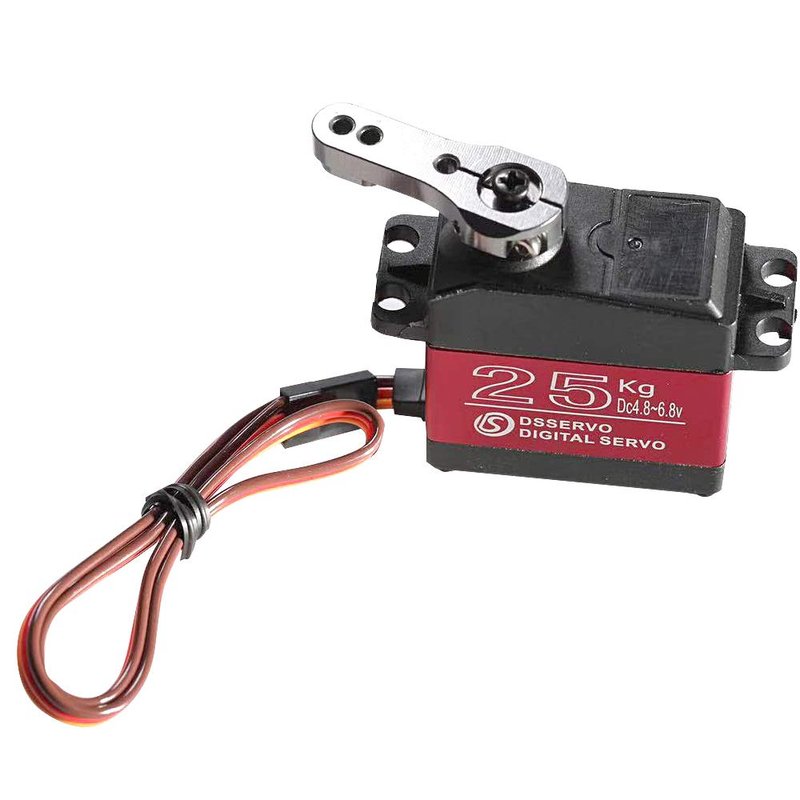

Servo Waterproof High Torque - Update 25KG Full Metal Gear Digital Servo Baja Servo Mechanical arm Fittings Baja RC Cars (180 Degree Control Angle)
- Equipped with high precision potentiometers and high-resolution digital chip,ensure stable performance, fast response, strong anti-interference ability,low noise,fast heat dissipation，Good performance digital standard servo, with 1/8 and 1/10 scale crawler,truck,buggy,robotic arm,and any application where standard servos are used
- 180 Degree Control Angle：DS3225MG 25kg Servos 100% Waterproof servo Large torque - maximum torque can up to 25kg.cm (6.8V)

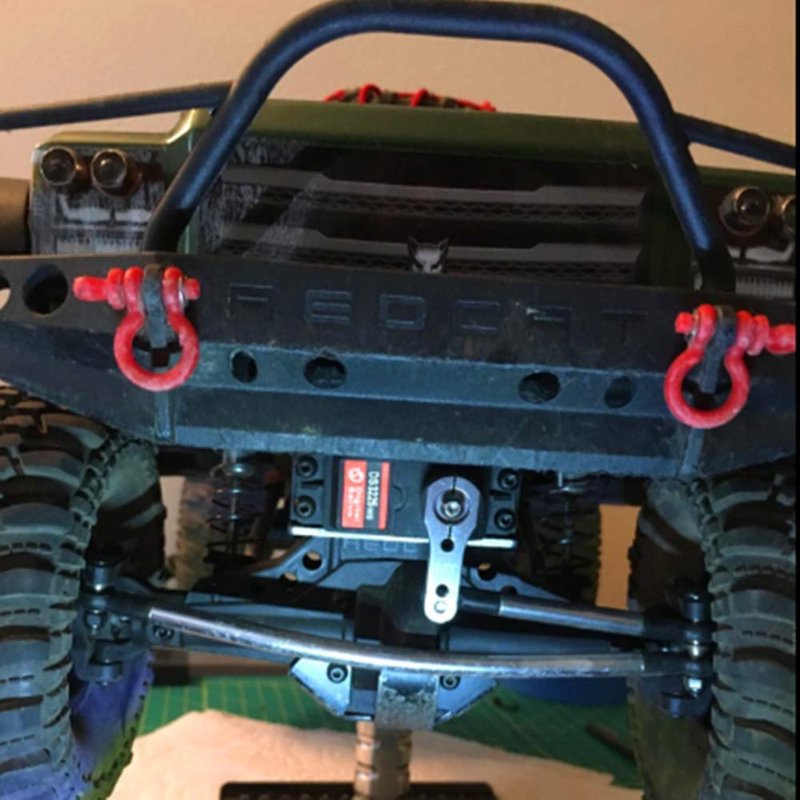

- Compatible: with 1:10 and 1:8 scale Crawler/Buggy/Truck RC Car, mechanical arm, Quadcopter Drone and other remote control equipment.
- Use : Great choice for university professors and students who are interested in developing software for robot parts
- Middle Aluminum Casing With Plastic Top and Bottom Dimensions:40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)(75g)
- Manufacturer: DS3225
- Model Number: DS3225
- Part Number: DS3225
- Size: 180 Degree Control Angle
DS3225MG RC hobby servos are designed for remotely operating model vehicles,such as cars,airplanes,and robots.It provides the functionality of a light weight standard-sized servo, high-speed big torque, water-resistant,sensitive,responsive;
It features an all-metal gear train,digital control electronics,and two ball bearings on the output shaft for reduced friction, and it offers easy access to the rest-point adjustment potentiometer,making them great actuators for robotic projects.This new item is a very good choice for students and hobbyists. It will not let you down!
Electrical Specification
Operating voltage range: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 180° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 275
Bearing: Double bearing
Connector wire: 11.8inches(300mm)
Motor: 3-pole(s)
Waterproof performance: IP66
Package:
1 x DS3225MG Digital Servo

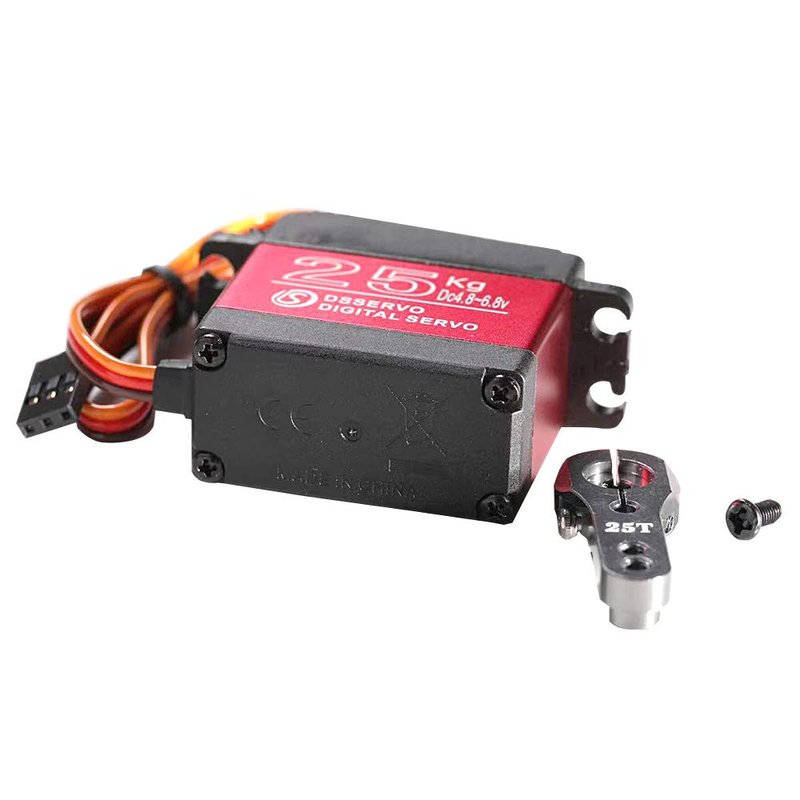

1 x 25T Adjustable metal servo arm
