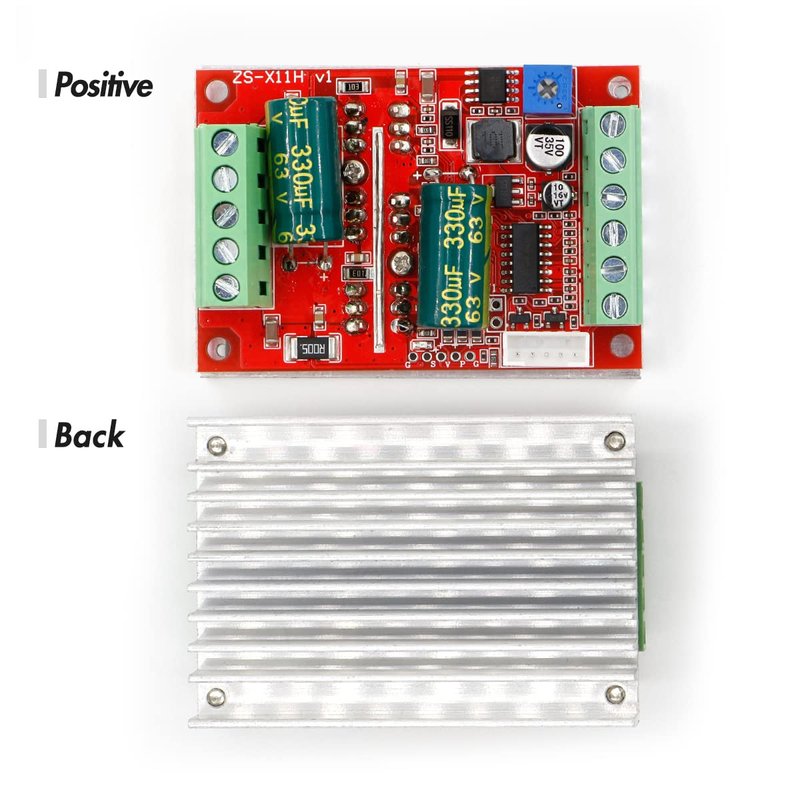

RioRand 350W 6-60V PWM DC Brushless Electric Motor Speed Controller with Hall

Brand: RioRand    Sold By: Everymarket

RioRand 350W 6-60V PWM DC Brushless Electric Motor Speed Controller with Hall

Brand: RioRand Sold By: Everymarket
$55.56 In Stock
Ships from US, Arrives in 10-17 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
12
March2025
-
21
March2025
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
satisfaction

100% Satisfaction Guarantee

value

Amazing Value

fast shipping

Fast Shipping

customer service

Expert Customer Service

RioRand 350W 6-60V PWM DC Brushless Electric Motor Speed Controller with Hall

RioRand 350W 6-60V PWM DC Brushless Electric Mo...

$55.56

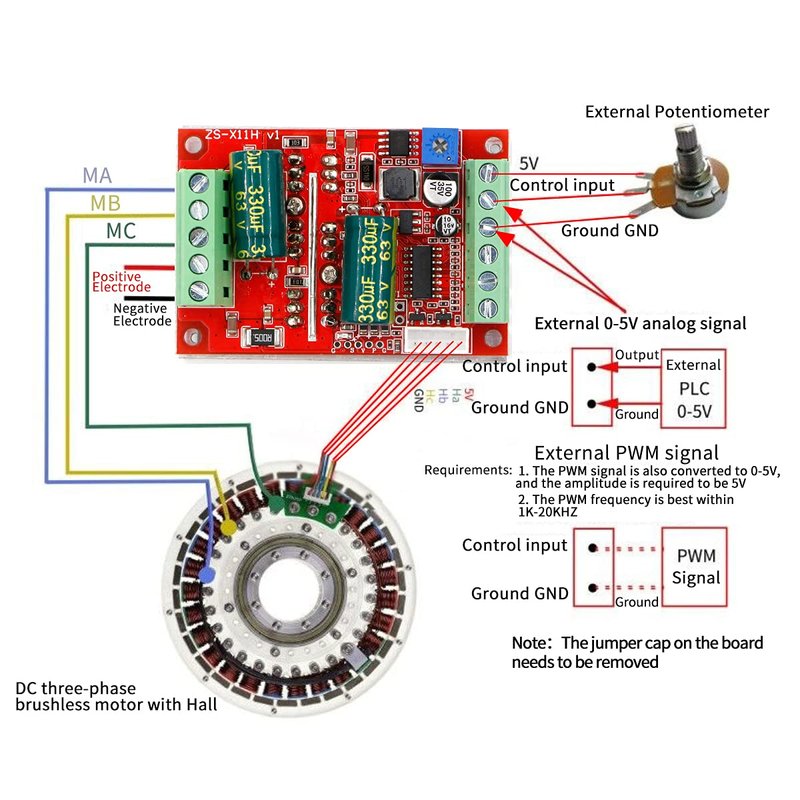

Three phase DC brushless with Hall motor controller, need motor with Hall to work properly. Brushless motor driver board, high power PLC. This driver is only for DC brushless with Hall motor with electric angle 120 degrees. New upgrade BLDC wide voltage 6-60V high power 350W, DC three-phase brushless with Hall controller, support PLC 0-5V touch volume control, support PWM control amplitude 2.5-5V. The main board power...
Product Details

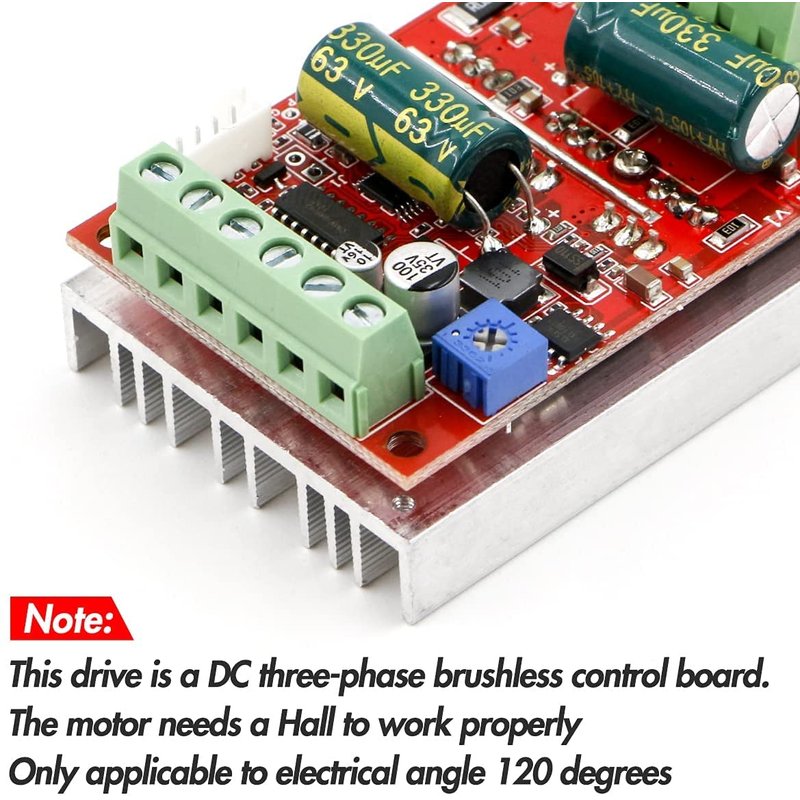

  • Three phase DC brushless with Hall motor controller, need motor with Hall to work properly. Brushless motor driver board, high power PLC. This driver is only for DC brushless with Hall motor with electric angle 120 degrees.
  • New upgrade BLDC wide voltage 6-60V high power 350W, DC three-phase brushless with Hall controller, support PLC 0-5V touch volume control, support PWM control amplitude 2.5-5V.
  • The main board power supply circuit without fuse, can be added(by yourself), the power supply positive and negative terminals will cause permanent damage to some of the chips on the board (not even for a few seconds when the high current)
  • Motor output for sampling overcurrent protection, due to the module power supply current are very large. Do not artificially cause a short circuit in the normal operation of the module, a short circuit will damage the tube. Wiring test machine for small-current low-voltage test, successful then through the high-current high-voltage . Bare board module, pay attention to wire insulation when wiring, forbid strong voltage to touch the board.
  • Do not connect the obvious and drive module voltage, current, power phase does not match or far from the motor to avoid inexplicable "nonsense" damage.

  • Color: Red
  • Manufacturer: RioRand
  • Model Number: KJL-01
  • Package Quantity: 1
  • Part Number: KJL-01

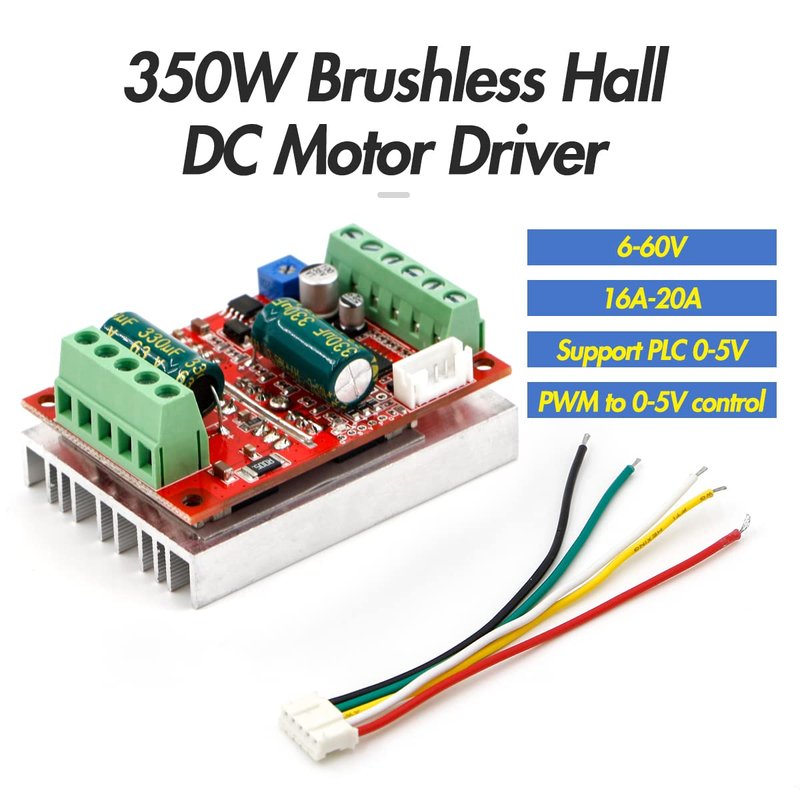

Product Name:350W Brushless Hall DC Motor Driver
Working voltage:6-60V(limit 60V leave a margin for use)
Operating current: rated 16A peak 20A
Power: rated 200-300W peak 350W (leave a margin to strengthen heat dissipation when using large power)
Overcurrent protection: Yes

Note: 1:
1. Because the forward and reverse rotation is no delay hard commutation, and the brake will have a large impact, so you can not operate these two functions at high voltage full speed operation, forced operation may damage the power tube and chip, the need to speed control throttle down to 50% below before operation.
2. The maximum voltage (60V) and maximum power (350W) marked in this module are the limit parameters under specific conditions, so the actual application should leave a margin for use.

Received the goods, in the wiring and use of unclear, please contact us at the first time to communicate, even if there are problems with the use of the product, but also friendly consultation properly handled.
