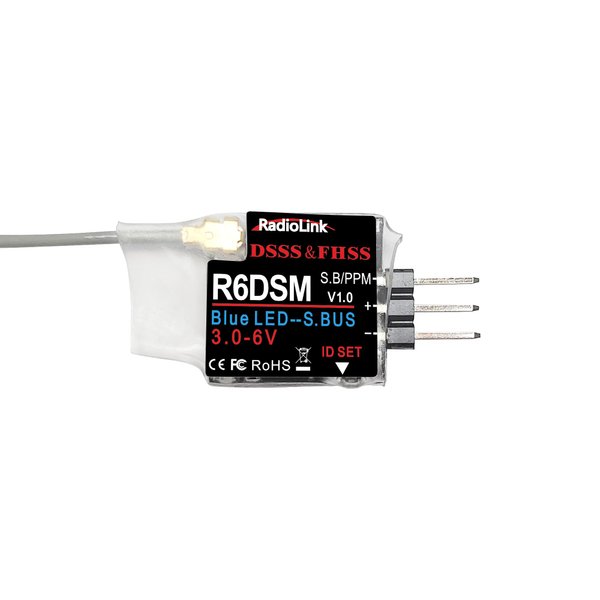

Radiolink R6DSM 2.4Ghz 10 Channels Micro RC Receiver SBUS/PPM for Mini FPV Racing Drone, Quadcopters Aircraft, AT9S AT9S Pro/AT10/AT10II Transmitter
- Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give R6DSM with excellent anti-interference ability.

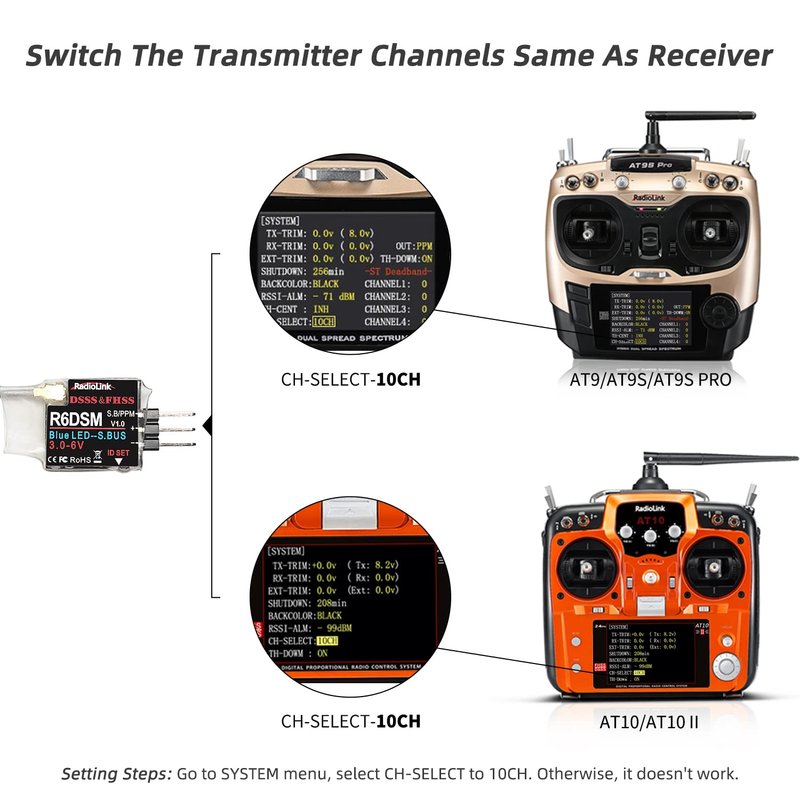

- 10 Channels: Support PPM/SBUS signal output, ideal for most aircraft. Make sure menu SYSTEM CH selection is 10CH when it works with AT9S/AT9S Pro/AT10/AT10II transmitter, or it won't work well.
- Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the transmitter.

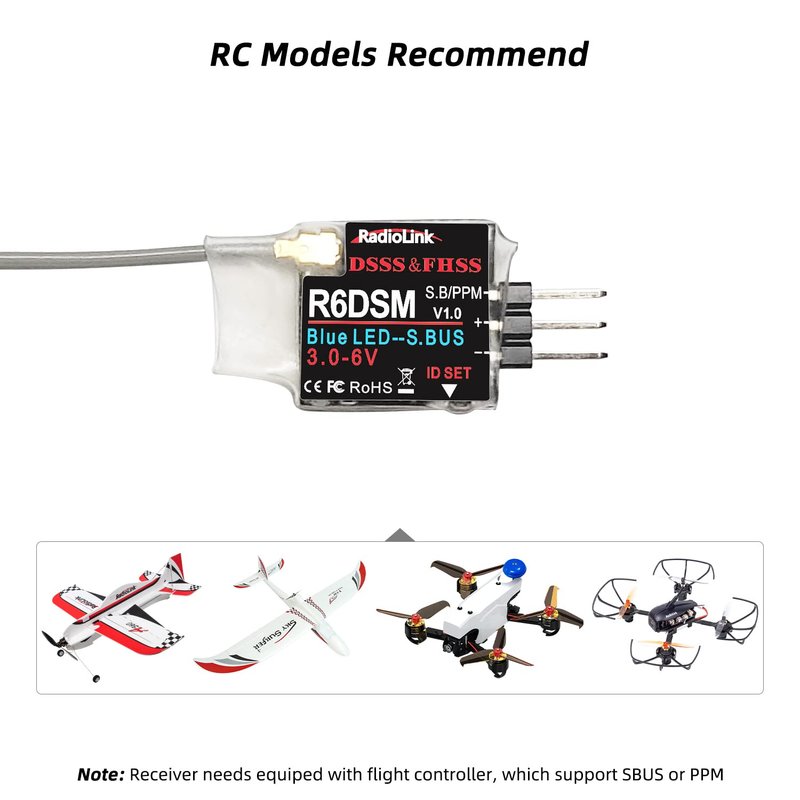

- Mini Size: Only 0.59*0.51 inch and 0.035oz, fit a wide range of RC aircraft models, like mini racing drone, such as 130mm, 80mm quadcopters in the market.
- Quick Bind and Anti-polarity Protection: No need bind plug, just press bind button 1 second to bind. With reverse polarity protection circuit, not damage the receiver even you insert wrong polarity.
- Color: Blue
- Manufacturer: Radiolink
- Model Number: 1086867
- Package Quantity: 1
- Part Number: r6dsm
- Size: Small
- Style: Modern
Installment of receiver antenna：
1. The antenna must be kept as straight as possible. Otherwise it will reduce the effective range.
2. Large model aircraft may of some metal part interfering signal; in this case the antennas should be placed at both sides of the model. Then the best RF signal condition is obtained at any flying attitude.
3. The antennas must be kept away from conductive materials, such as metal and carbon by at least a half inch. The coaxial part of the antennas does not need to follow these guidelines, but do not bend it in a small radius.
4. Keep the antennas away from the motor, ESC, and other noise sources as much as possible.
5. Press and hold the Easy Link (ID SET) one second, now the receiver starts work.
6. After all of the above steps finished, the LED indicator will turn and keep in red.
7. The receiver can be packed by sponge or foam for shocking proof when it is installed to the model.
After all of the above steps finished, turn off the transmitter and then power it on, now the program functions to assure it under control of transmitter with a right connection.
Technical Parameters
1) Channels: 10 channels
2) Working voltage: 4.8-6V
3) Working current: 38-45mA（input voltage: 5V）
4) Size: 15 x 13 MM (0.78 x 0.51 inches)
5) Weight: 1g
6) Detachable antenna
7) 4096 section precision, 0.25us per section, servo anti-shake rudder.
8) Control distance: about 600 meters, actually control distance depends on the environment.
Package Included:
Radiolink R6DSM Receiver x 1
