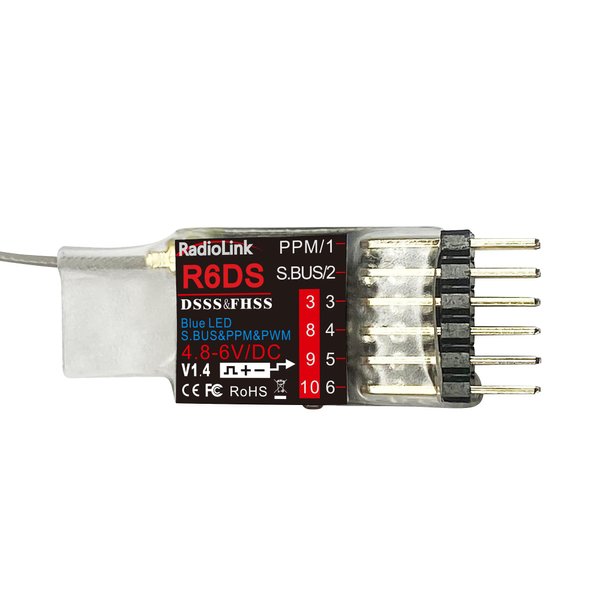

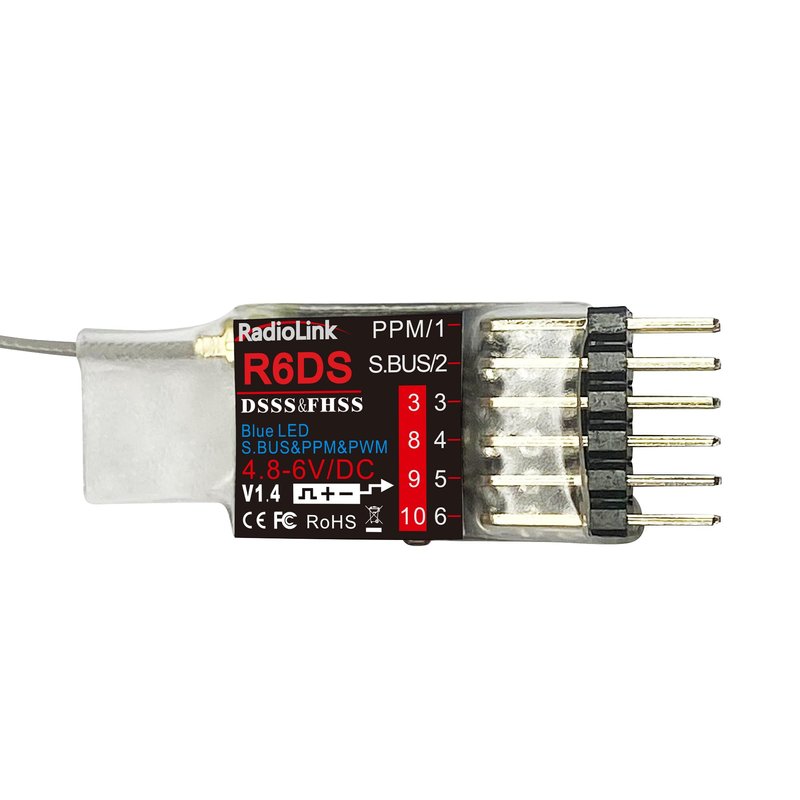

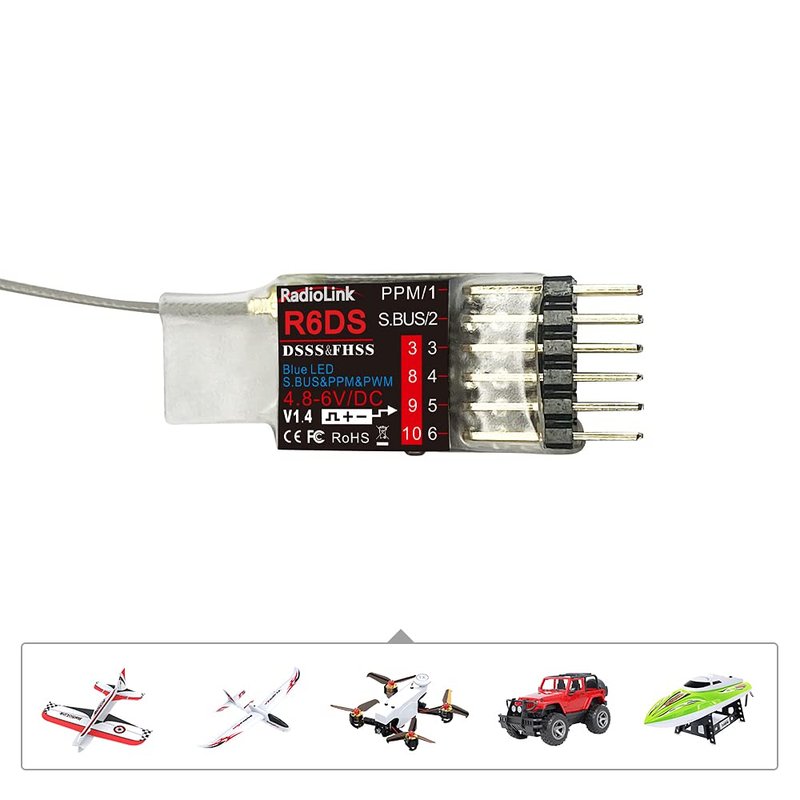

Radiolink R6DS 2.4GHz RC Receiver 6/10 Channels SBUS/PWM/PPM for Drone Airplane Fixed Wing AT9S/AT9S Pro/AT10/AT10II Transmitter RX
- Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give R6DS with excellent anti-interference ability.
- 6/10 Channels: Support PWM/PPM/SBUS signal output, ideal for most aircraft. Make sure menu SYSTEM CH selection is 10CH when it works with AT10/AT10II transmitter, or it won't work well.
- Fast Response: High resolution ratio of 4096, the stability of 0.5us, to provide a quicker, low-latency connection for the driver.
- Press to Bind: No need old bind plug and any radio setting, only press bind button for 1 second after power up radio and receiver. High resolution ratio of 4096, stable signal and fast response.
- Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity.
- Color: black
- Manufacturer: Radiolink
- Model Number: R6DS
- Package Quantity: 1
- Part Number: R6DS
- Size: Small
- Style: RC Receiver
Radiolink is a high technology manufacturing company dedicated to researching, manufacturing and marketing of RC model radio transmitters.
Our products included: RC transmitter, flight controller, receiver, GPS, drone etc.
We are committed to providing customers with a high reliability and high performance product solution, as well as providing technical support and friendly after-sales service.
Please note:
R6DS is only available for Radiolink transmitter products: AT9, AT9S, AT10,AT10II.
How to Match Code With Transmitter:
1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Turn on the transmitter, then power on the R6DS.
3. There is a black button on the R6DS, press the binding button one second and release, receiver light start blinking, after about blinking 8 times, match code success then receiver signal LED always on.

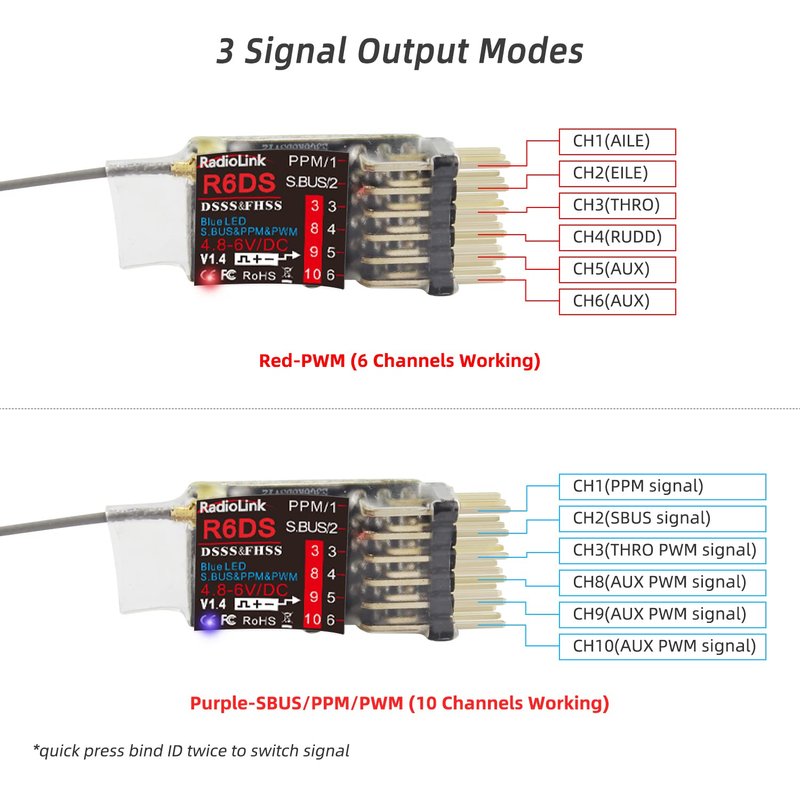

SBUS/PPM and PWM signal change
Short press the ID SET switch 2 times within 1 second, the signal is changed from normal PWM to SBUS/PPM. The red LED indicates the normal PWM, the blue/purple indicates SBUS/PPM.
SBUS&PPM Output Working Mode:
1.CH1 out PPM signal, CH2 output SBUS signal.
2.CH3 output PWM signal and CH4-CH6, CH8-CH10 independent output PWM signal simultaneously, 10CH totally
R6DS Receiver Specifications:
Channel: PWM:6CH; SBUS&PPM: 10CH
Signal Output:: SBUS/PPM/PWM
Model: racing drone/quadcoptor
Control Distance: more than 600m air
Spread Spectrum: FHSS
Work Current: 38-45mA(5V)
Power Supply: 4.8~6V
RF Power: <10dbm
Precision: 4096

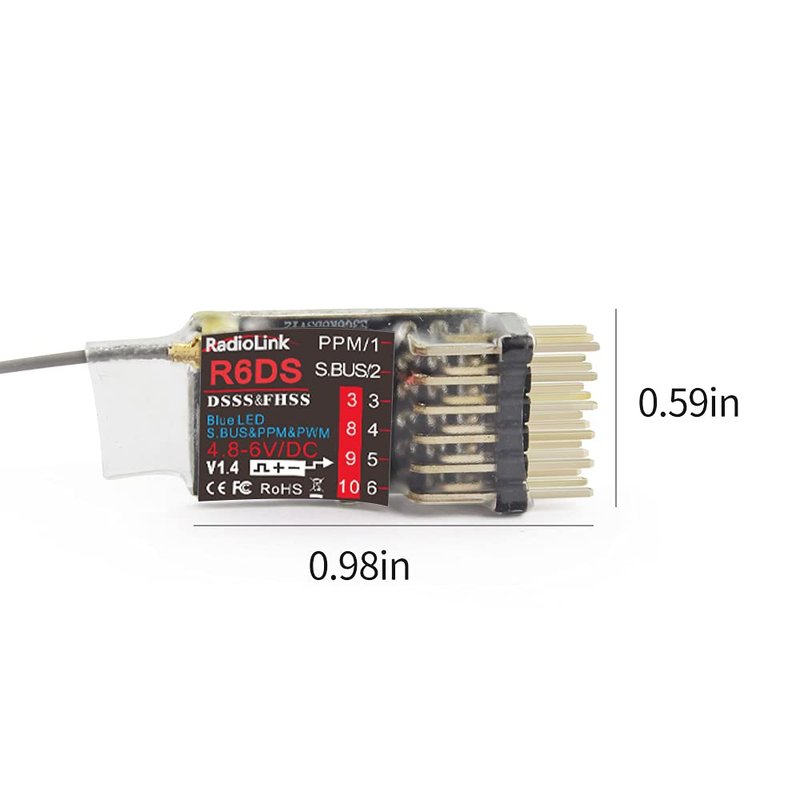

Size: 0.98*0.59*0.4in
Weight: 3.5g
