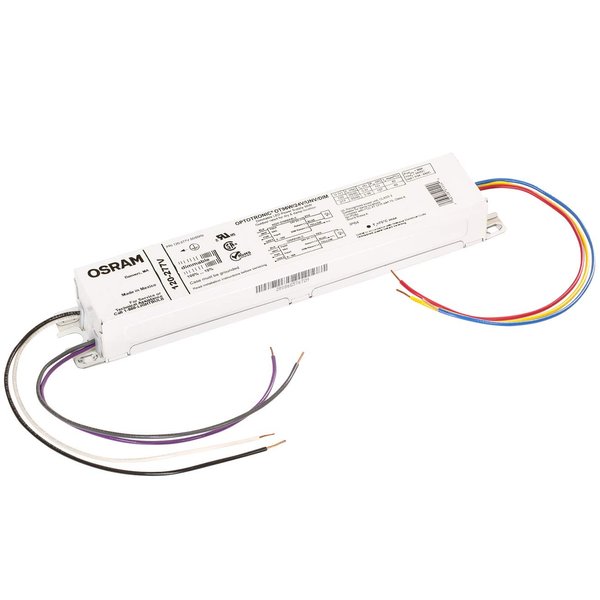

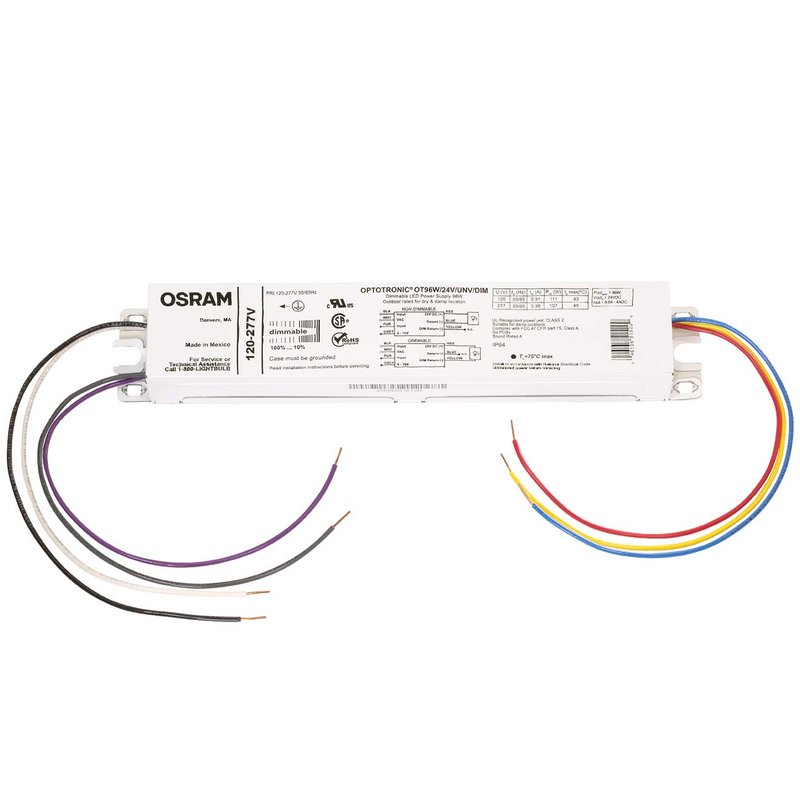

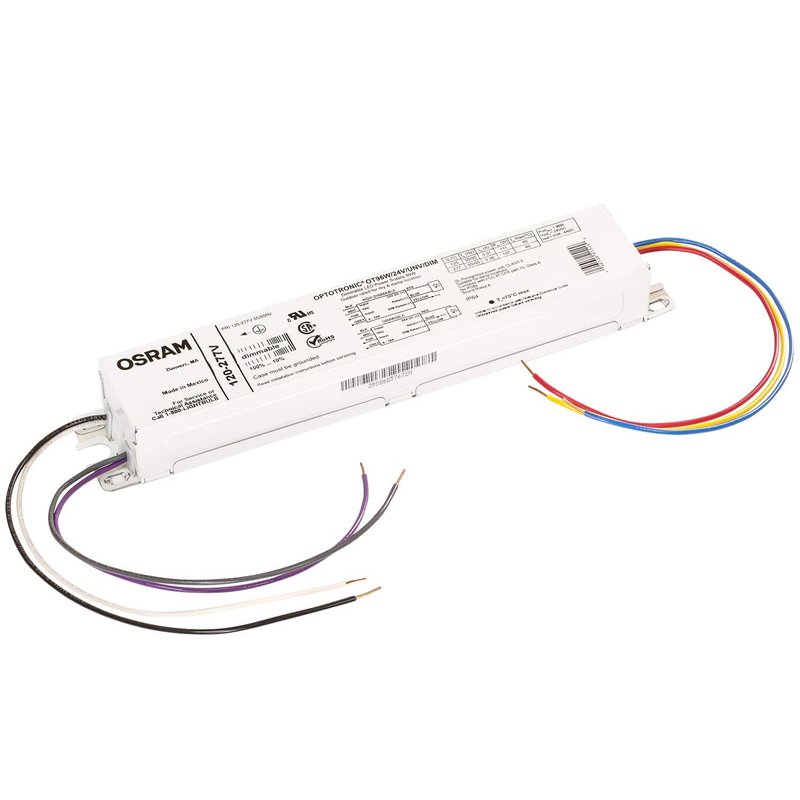

Osram 51520 Optotronic 96W 24V DC 120/277V AC 50/60Hz Constant Voltage Dimmable LED Driver OT 96W/24V/UNV/DIM
- OSRAM OPTOTRONIC Electronic 24VDC Constant Voltage
- Constant Voltage, 0-10V Dimmable LED Driver
- Input Voltage: 120-277VAC 50/60 Hz
- Pout: 96W, Vout: 24VDC, Iout: 0.04-4ADC
- UL Class 2 output for safe operation
- Manufacturer: OSRAM
- Model Number: OT96W/24V/UNV/DIM
- Package Quantity: 1
- Part Number: 51520
OPTOTRONIC Electronic 12VDC & 24VDC Constant Voltage LED Power Supplies
Osram 51520 Optotronic 96W 24V DC 120/277V AC 50/60Hz Constant Voltage Dimmable LED Driver OT96W/24V/UNV/DIM
Product Features
- General Description
- 96-Watt
- 24-Volt LED power supply
- 0-10V dimmable
- Install in accordance with National Electric Codes
- Class A Sound Rating.
- Input Frequency: 50/60Hz.
- Damp and dry location rated
- UL recognized Class 2 Power Supply
- UL 1310 recognized
- Nominal Total Max Wattage: 100 W
- Nominal Voltage: 120-277 V
- Power Factor: > 0.95
- Product Dimensions (L x W x H): 9.48" x 1.68" x 1.17"
- Product Weight: 19.6 oz
- Quantity: 1
- Maximum Case Temperature: 75ºC
Product Family Features
- Wet and damp-rated designs available for use in outdoor applications
- Wide input voltage range: 120-277Vac (select models)
- Broad ambient temperature range for use in extreme application conditions
- Electronically stabilized output voltage with low-line ripple
- Integrated dimming (select models)
- Short circuit, overload and overheat protection for sustained performance
- High-power factor and efficiency
- Compact enclosures for variety of applications and fixture designs
- UL Class 2 output for safe operation
- Exceptional line and load regulation
Areas of Application: Ambience lighting inside furniture, Backlighting, Effect lighting, Compact installations, General lighting, Panel lighting, Low & medium power applications, Path and roadway marking, Signs, Step & seat marking, Wall washing
