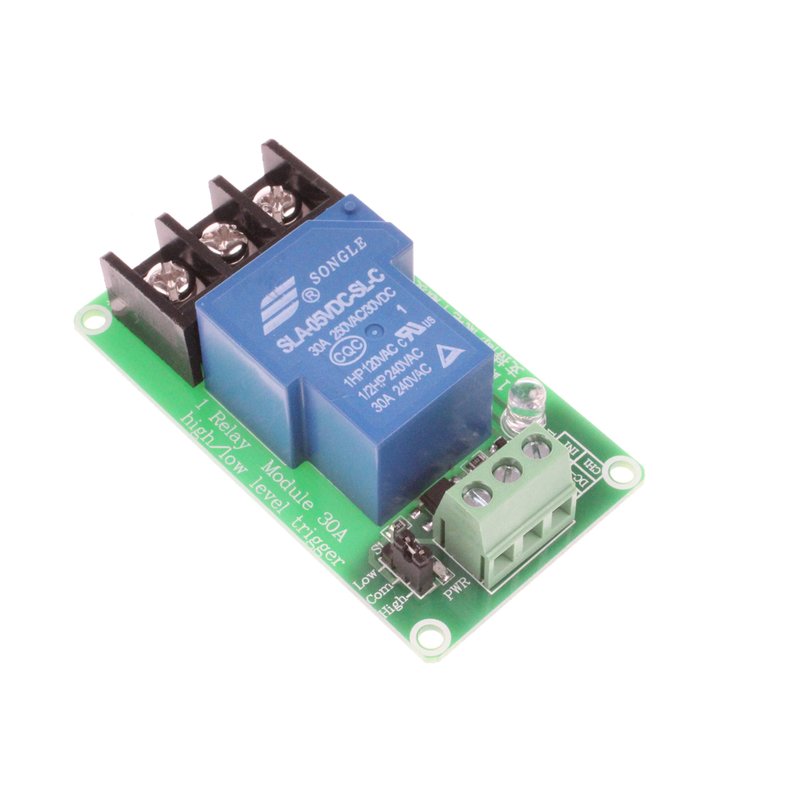

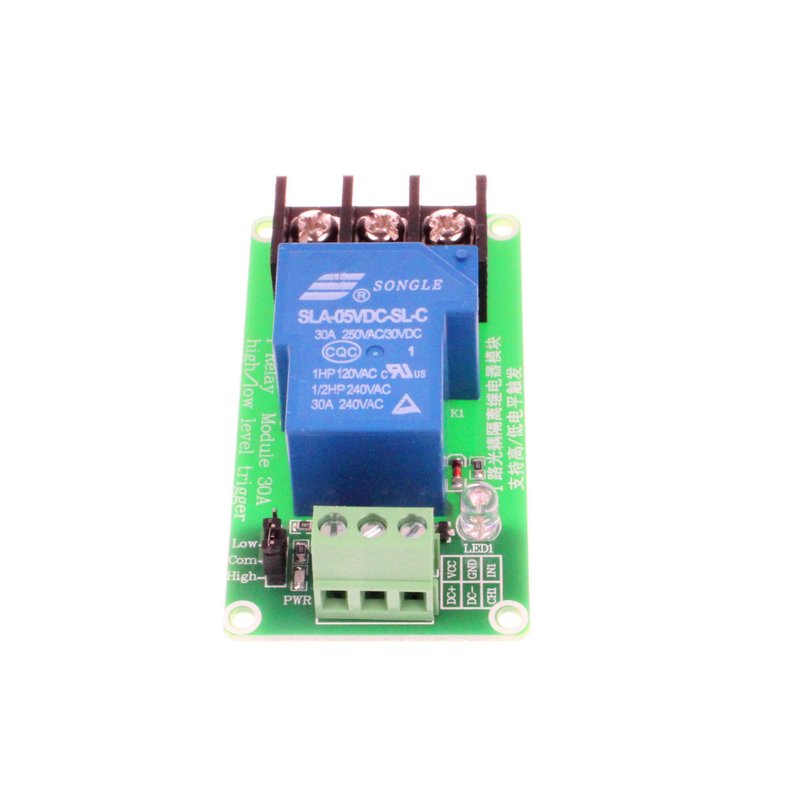

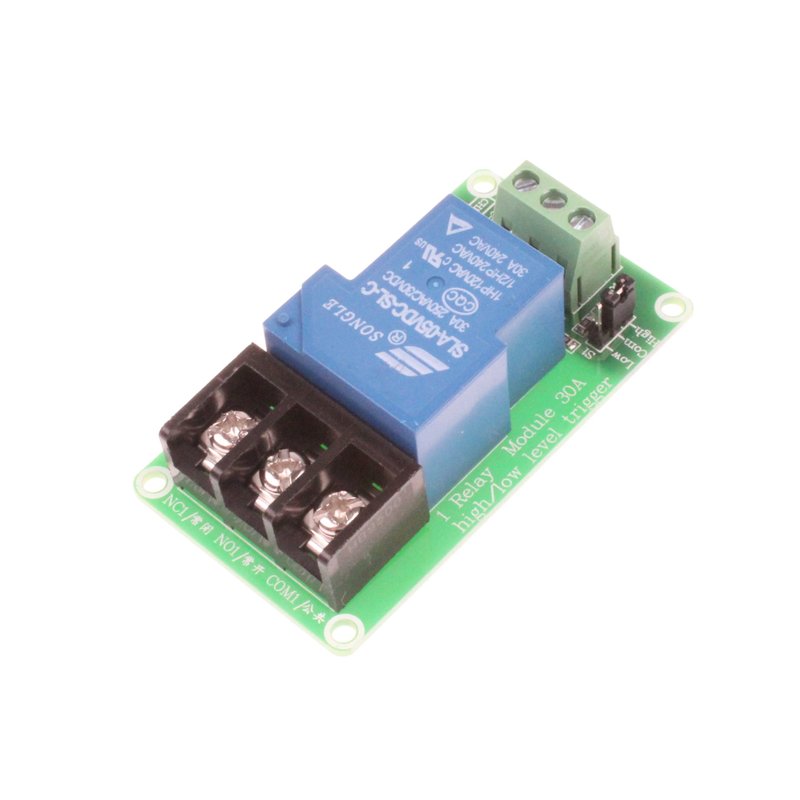

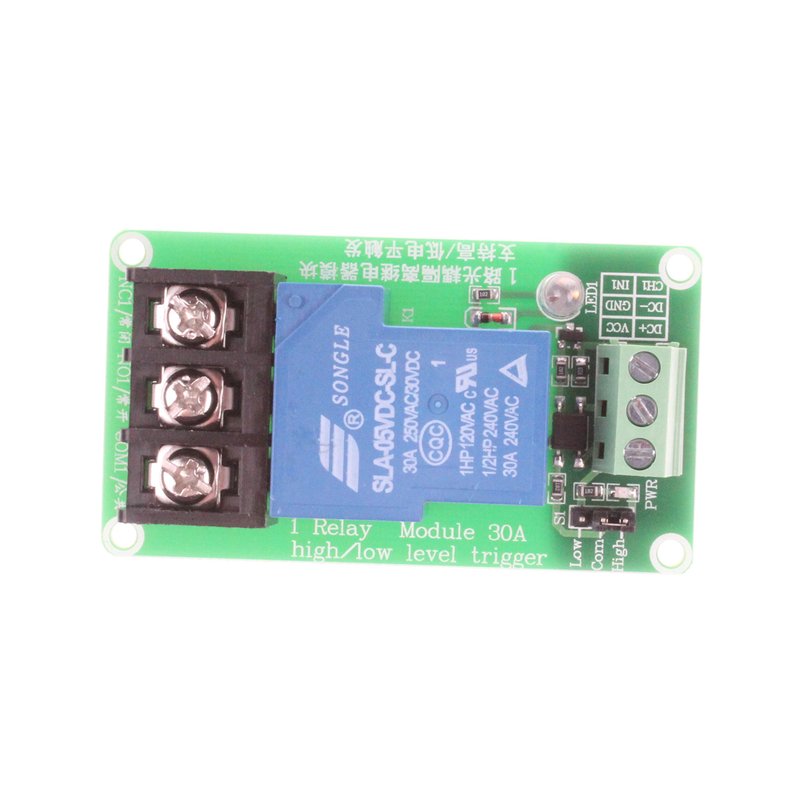

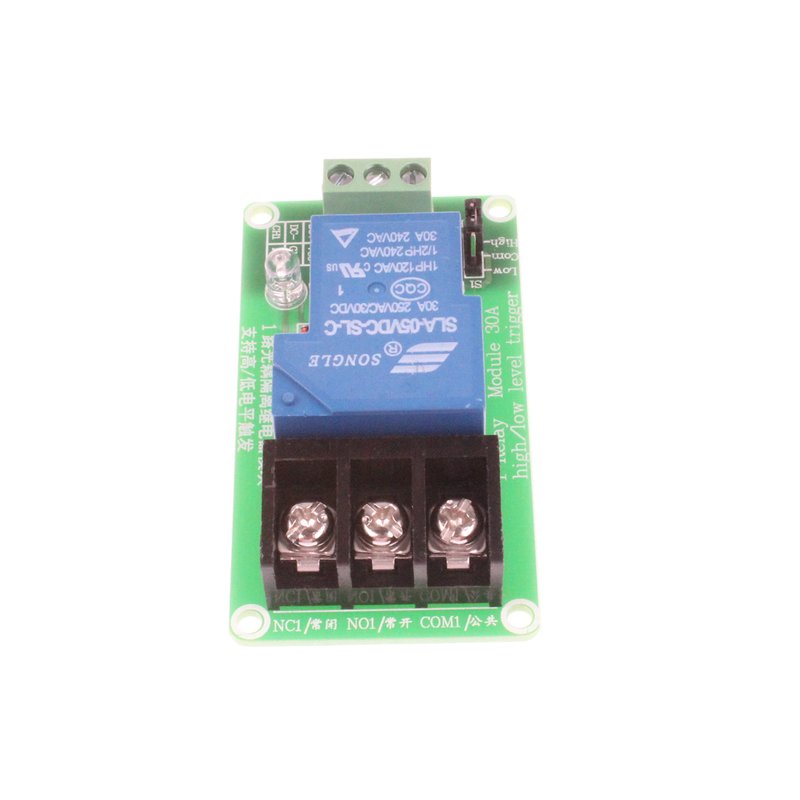

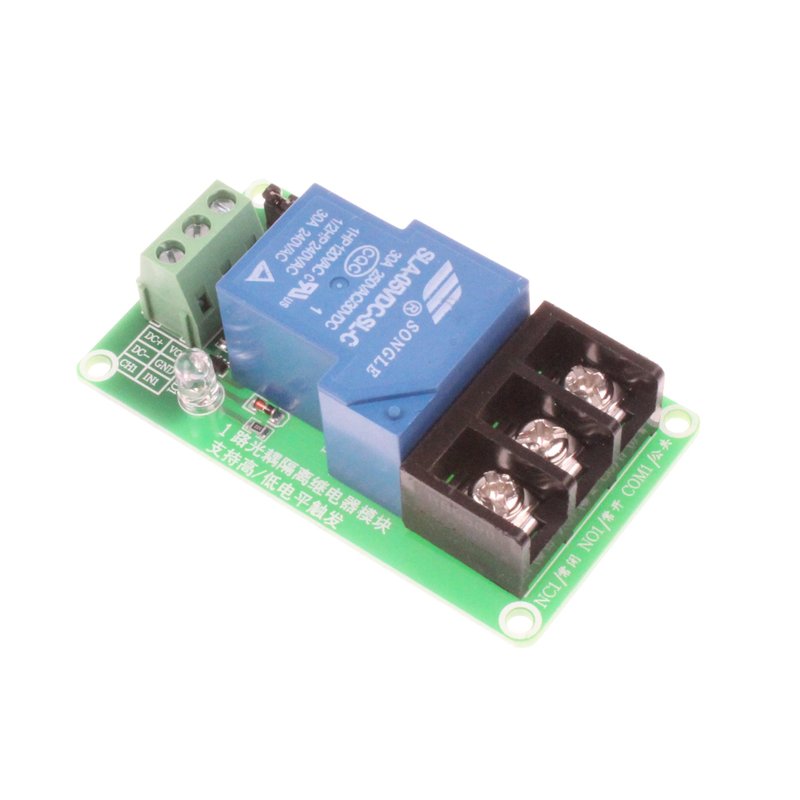

NOYITO 30A 1-Channel Relay Module High Low Level Trigger with Optocoupler Isolation Load DC 30V AC 250V 30A for PLC Automation Equipment Control Industrial Control (1-Channel 5V)
- Product Applications: PLC automation equipment control, industrial system control, Internet of Things control, electronic enthusiasts to develop experiments, all kinds of circuit modification.
- Each channel with optocoupler isolation, anti-interference ability.
- Using high-power relay, control the load up to 30A
- Each channel with relay on / off LED indicator.
- Module load voltage: DC30V / AC 250V 30A ; Module Power Supply : DC 5V（Module supply voltage must be DC, and the voltage to be consistent with the relay voltage.）.
- Manufacturer's One-year After-sale Warranty
- NOYITO 30A 1 2 4-Channel Relay Module User Manual https://1drv.ms/b/s!AlzQUCOyZQhKij5iUaqI613FPf1x?e=9gvnH9
- Color: Green
- Manufacturer: NOYITO
- Style: 1-Channel 5V
Electrical parameters:
Supply voltage: DC5V;
Quiescent current: 5mA;
Maximum working current: 190mA;
Trigger mode: High / Low Level Trigger;
Load voltage: DC 30V / AC 250V;
Load current: 30A;
Module life: 10 million times;
Switch the maximum frequency: ≤ 5KHz;
Product weight: 46g;
Size:72x40x24mm (LxWxH);
Mounting hole size:44.5x27.5(LxW);
Trigger voltage range:
High-level trigger:
DC 3.3-5V relay on;
DC 0-2.5V relay off;
----
Low-level trigger:
DC 0-2V relay on;
DC 3-5V relay off;
Pacakage Included:
1pcs 1-Channel Relay Module
