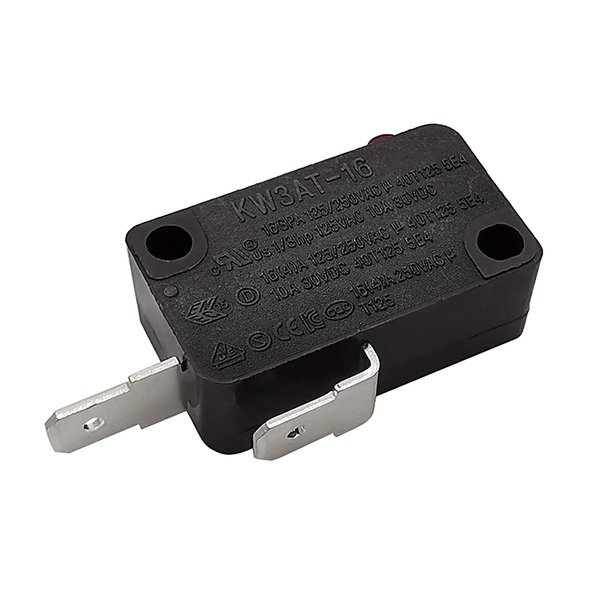

Microwave Oven Door Switch Replacement Part, 16A 125VAC, KW3AT-16 (Downward Compatible with KW3A-16), Normally Open - 1Pc

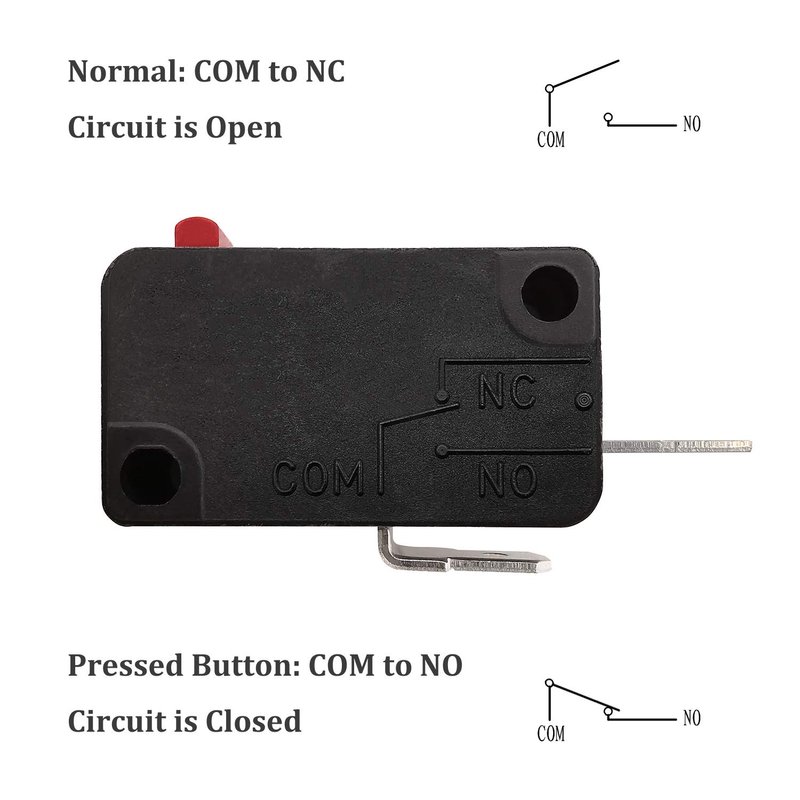

- Character: Normally Open (Normal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Closed)
- Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4
- Model Number: KW3AT-16, Compatible M/N: KW3A-16 SZM-V16-FD-63 SZM-V16-FA-63 3B73362F PS3522738
- KW3AT-16 has a maximum temperature resistance is 125 ℃ and KW3A-16 has a maximum temperature resistance is 105 ℃, Other electrical performances are the same, so KW3AT-16 is an upgraded version of KW3A-16, which is more competent in harsh working environments than KW3A-16
- Compatible with Most of Microwave Oven, If the microwave will not turn or heat properly, there could be an issue with the door switch, a new switch can return the microwave oven to normal operation
- Package Includes: 1x Microwave Door Switch (Normally Open)
- Color: Black (Normally Open) - 1Pc
- Manufacturer: HiQltyla
- Model Number: KW3AT-16 - NO -1Pc
- Package Quantity: 1
- Part Number: KW3AT-16 - NO -1Pc

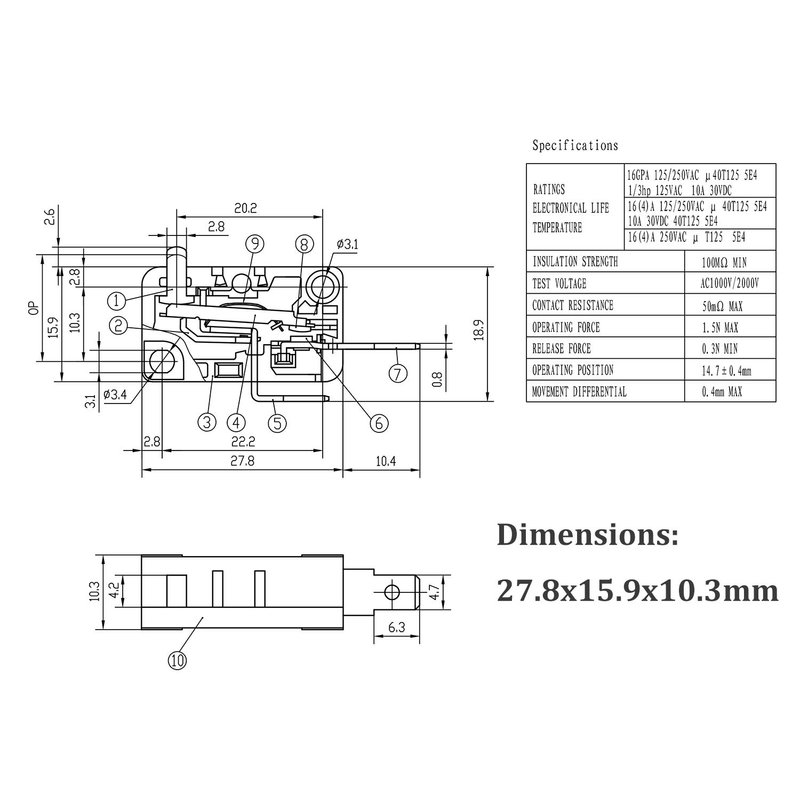

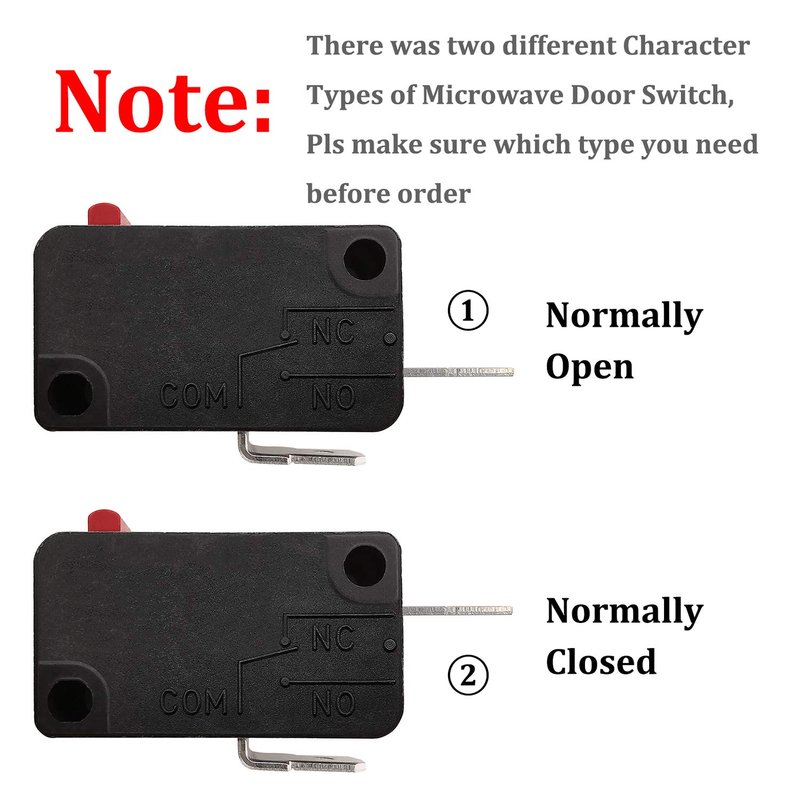

Universal Microwave Door Switch Model Number: KW3AT-16 Compatible Model Numbers: KW3A-16 SZM-V16-FD-63 SZM-V16-FA-63 3B73362F PS3522738 Character: Normally Open Outline Characteristic: Flat Terminal Material: High Temperature Resistant Plastics Color: Black Current: 16A Voltage: 125V / 250V Mechanical Life: 5E4 (50000 times) Temperature Resistance: 125° Terminal Type: Quick-connect Terminal #187(t=0.8) Shell Dimensions: 1.09" x 0.63"x 0.41"(27.8 x 15.9 x 10.3 mm) Single Weight: 0.22oz / 6.3g Specifications: Insulation Strength: 100MΩ Min Test Voltage: AC1000V/2000V Contact Resistance: 50mΩ Max Operating Force: 1.5N Max Release Force: 0.3N Min Operating Position: 14.7±0.4mm Movement Differential: 0.4mm Max Package Includes: 1x Microwave Door Switch (Normally Open) Note: There was two different Character Types of Microwave Door Switch: Normally Closed, Normally Open. One Switch is for the Top Sensor and the other is for the Bottom Sensor, Pls make sure which type you need before order.
