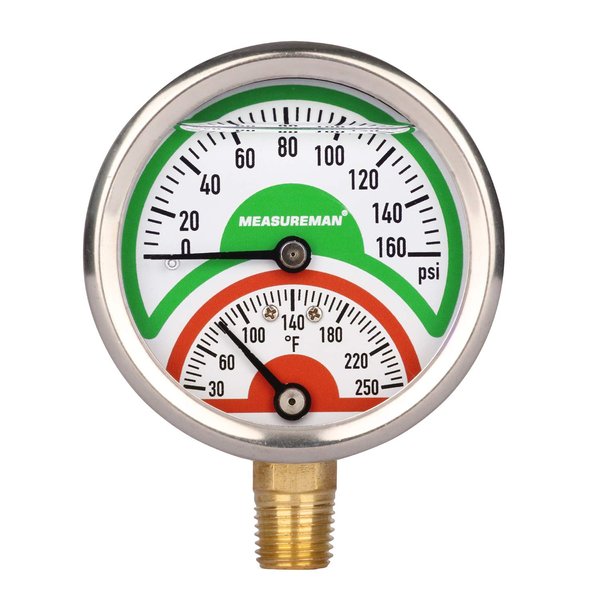

MEASUREMAN Tridicator, Thermo-Manometer, 2-1/2", Silicone Oil Filled, 0-160psi/30-250 deg F, Stainless Steel Case, 1/4"NPT Lower Mount Pressure Gauge
- For pressure and temperature measuring of gas, liquid which is not corrosive to brass, also where vibration and pulsation is a concern.
- 2-1/2" dial size, 1/4"NPT Lower mount
- Pressure range: 0-160psi/30-250 deg F, easy to read
- Stainless steel case, brass wetted parts, silicone oil filled
- Accuracy: +/-3-2-3%
- Manufacturer: MEASUREMAN
- Model Number: MA098
- Part Number: MA098
- Size: Lower Mount-Liquid Filled
Description
"This silicone oil filled tridicator/thermo-manometer is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern, Heating, Ventilation, Air conditoning, Cooling are typical applications.

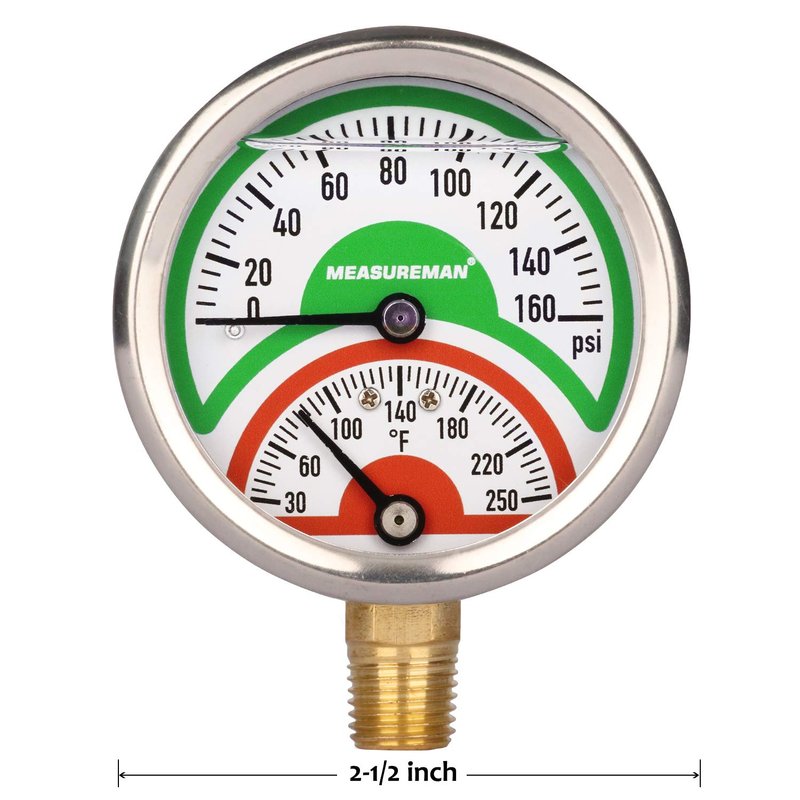

Dial size: 2-1/2""

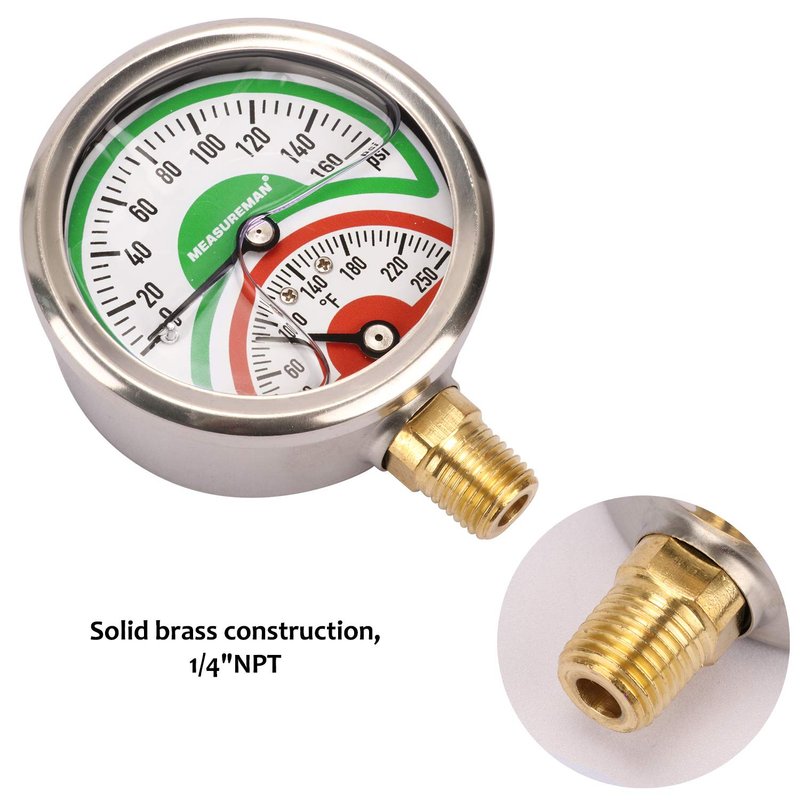

Process connection: 1/4""NPT lower mount
Case: 304 stainless steel case and crimped ring
Window: Polycarbonate
Dial plate: aluminum, with pointer stop
Pointer: Aluminum, black, DIN style
Bourdon tube: Copper alloy
Movement: Brass
Connection: Brass, one piece design
Oil cap: rubber, gray color
Filling: silicone oil filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
Bimetal system for temperature sensor
IP class: IP67
Accuracy: +/-3-2-3%

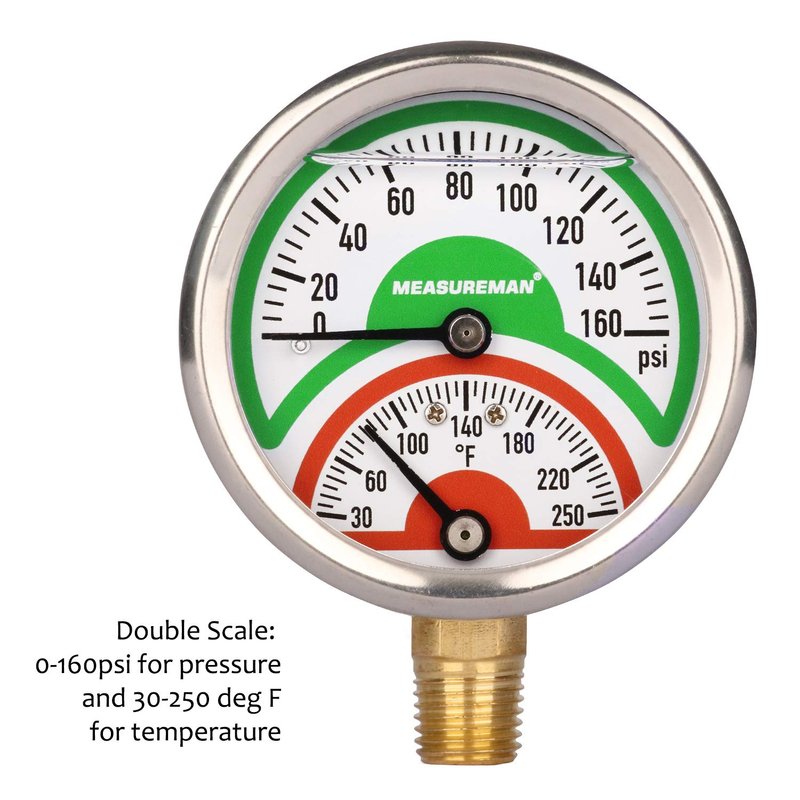

Range: 0-160psi/30-250 deg F double scale
Working temperature:0 to 220 deg F
Ambient temperature:140 deg F maximum"
Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
