MaySpare 80-Amp Relay 12V Continuous Duty Solenoid Relay Battery Isolator and Relay White Rodgers High Current Starter Relay 4 Pin SPST

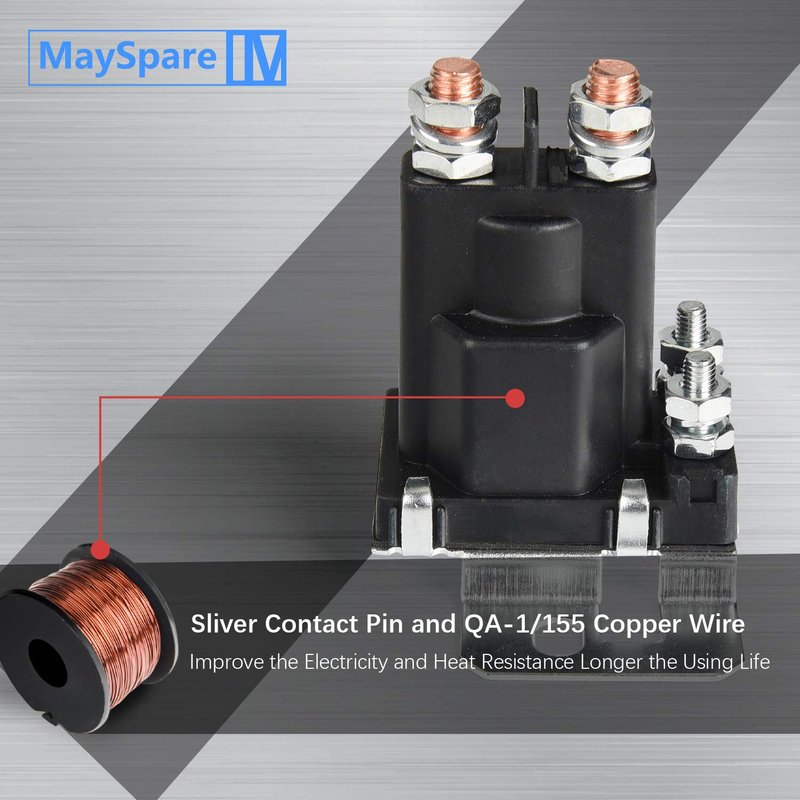

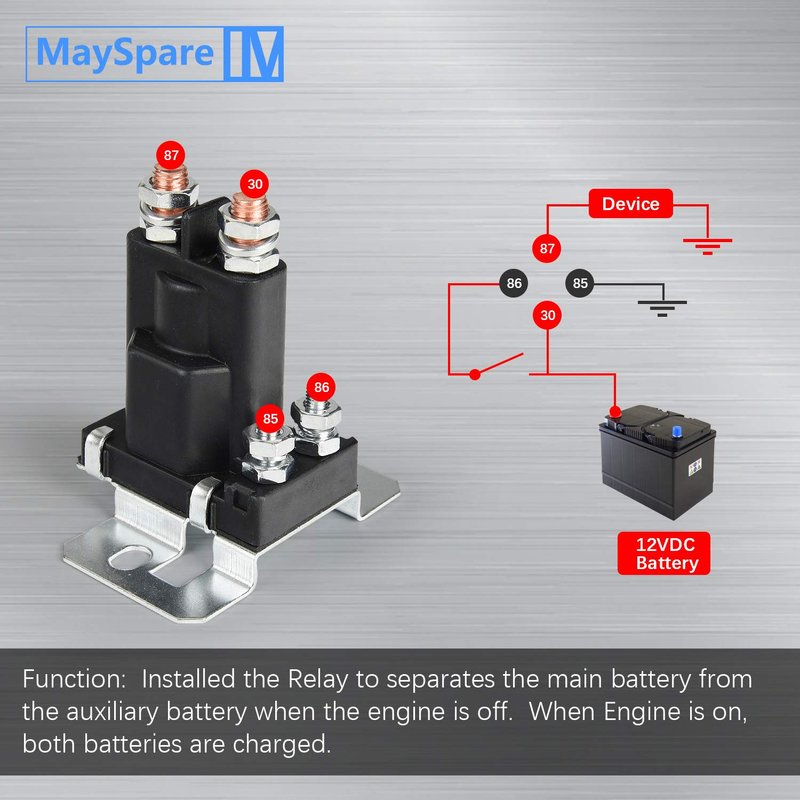

- Double Batteries Isolator Control On/Off Switch; Continuous Amps: 80,Surge Max Amps:500 ,Voltage: 12VDC; 100,000 mechanical cycle life./Normally Open With Attaching Hardware, Copper Contact With Sliver Pins
- Max Switching Currecnt could pass 500A at 5ms ,and Max Switching power could be 2000W / Replace: White Rodgers: 120-105751, 120-105751-6, 120-901S1,120-107112/ Cummins 3916301 3916302
- Note: It requires constant voltage as but depending on the application. The working time could be around continuous four or five hours , stop it and then use it.
- Install:The kit has included 4pcs big 100AMP terminals connected to loading and 4pcs small terminals which connected to original power. 4pcs insulated skin red cap.
- high current relays are the most reliable and efficient way to add secondary batteries to your system; 100% OEM Match & High Quality,direct replacement.
- Color: Black
- Manufacturer: May Spare Parts
- Model Number: US-4t500A
- Part Number: US-4t500A
- Size: M
Description:
- Contact Form: 1H(1A)
- Contact Ratings: NO:200A 14VCD
- Contact Resistance: 100mMax at6VCD 1A
- Max Switching Current: 300A(5ms)
- Max Switching Voltage: 75VCD
- Max Switching Power: 2000W
- Life Expectancy Electrical:30,000 Operations (at30 Operations/Minute)
- Life Expectancy Mechanical: 100,000 Operations
COIL SPECIFICATION
- Coil Resistance(?)?18W/33
- Max Operate Voltage (VCD):6.8-8.5
- Mix Release Voltage (VCD):1.2~3.5
- Max Applicable Voltage(VCD):14
CHARACTERISTICS:
- Temperature Range: -30~+80°C
- Vibration Resistance: 10-55Hz,1.5mm
- Hunidity:40%~85%
- Insulation resistance: 100m ? Min at 500VDC
- Dielectric Strength Between Open Contacts:500VAC (for one minute/see)
- Between Contact and coil: 750VAC (for one minute/see)
- Operate Tice: 25ms
- Release Tice:10ms
