LewanSoul 20KG RC Servo High Torque Servo Motors, Waterproof Full Metal Gear Steering Servo for 1/6 1/8 1/10 1/12 RC Car Robot DIY, Digital Servo with 25T Servo Horn, Control Angle 180°
- 【Note】LD-20MG model has been renamed as HPS-2018MG as part of our brand's upgrade.
- 【20kg-180°High Torque Servo Motor】This rc servo boasts a maximum torque of 20KG.CM 7.4V, enhanced by its accompanying metal servo arm. Delivering robust power, it is housed within an anodized aluminum case that facilitates excellent heat dissipation and effectively reduces power consumption.

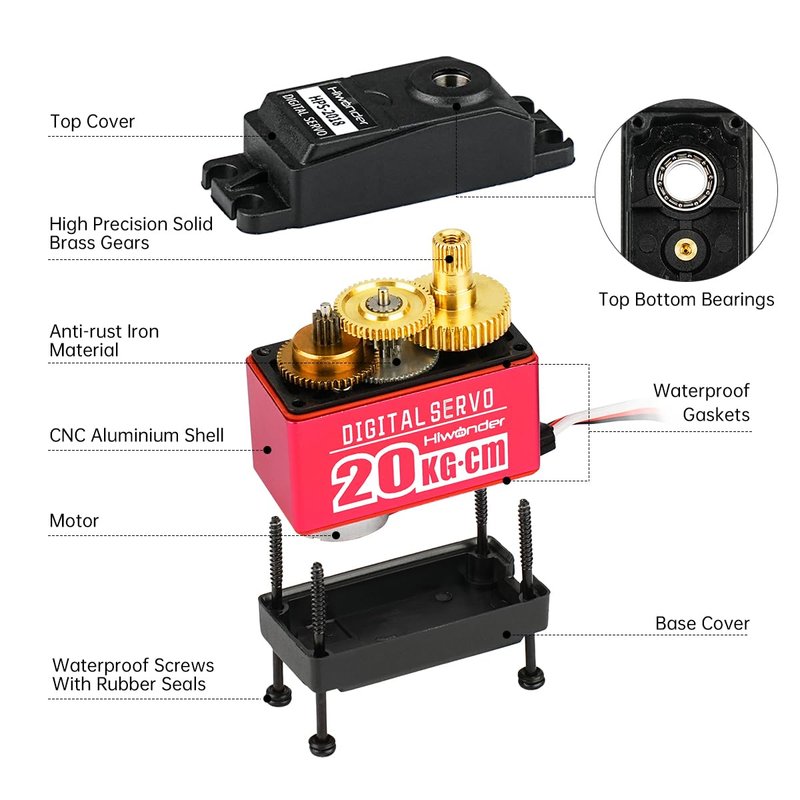

- 【Superior Quality & High Performance】This digital RC servo comes with metal gear and dual-ball bearings, which are well-made with exceptional performance, stability, and minimal noise output. By integrating a high-precision potentiometer, its accuracy and linearity are greatly enhanced leading to an extended service life.

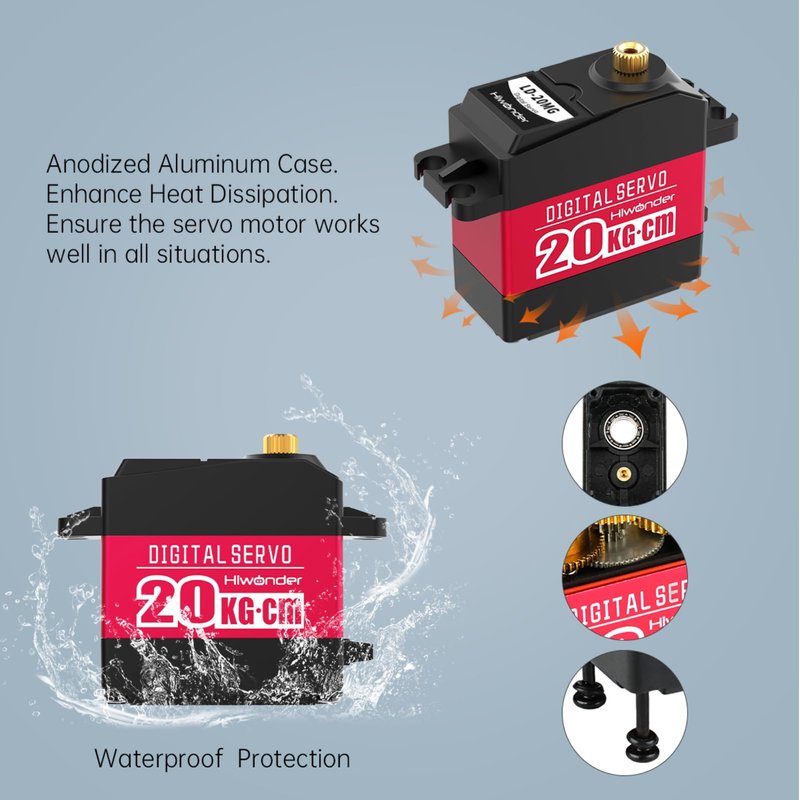

- 【Perfect Servo for Model DIY & IP67 Waterproof】It fits 1/6 1/8 1/10 1/12 RC cars, robots, vehicle/boat/airplane models, and any DIY. Crafted with high precision and thorough sealing, this rc servo provides IP67 water resistance, which allows it to operate even in the presence of water splashes.
- 【Excellent After-sale Service】We value all customer's shopping experiences. If you come across any issues with our products, please don't hesitate to reach out to us, and we will try our best to help within 24 hours. Order today with peace of mind!

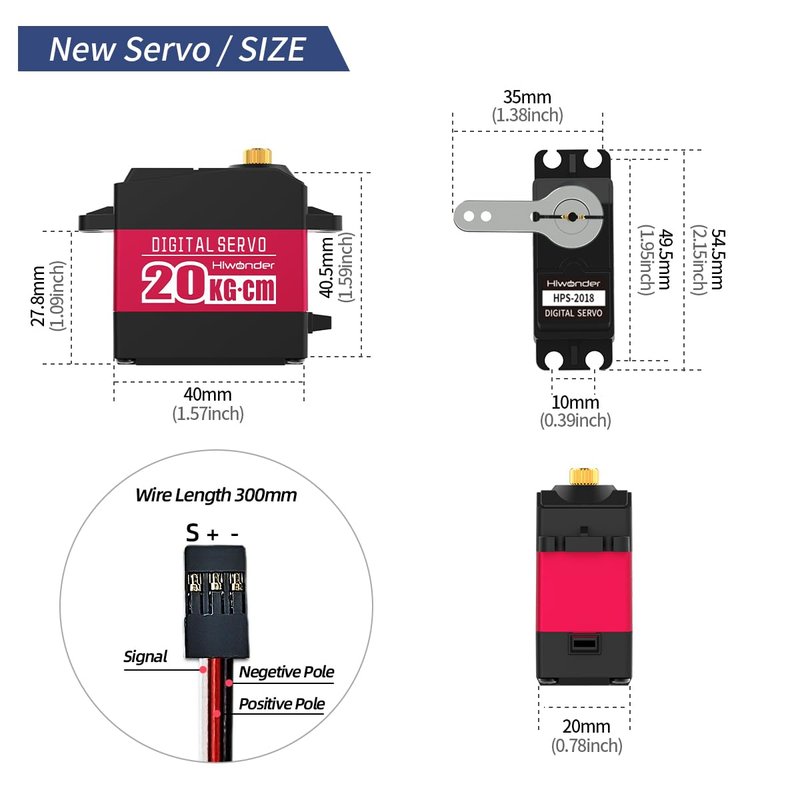

- 【Size & Weight】Size: 40*20*40.5mm (1.57*0.8*1.59inch); Weight: 68g (0.15 pound).
- Color: Red
- Manufacturer: LewanSoul
- Model Number: LD-20MG
- Package Quantity: 1
- Part Number: LD-20MG
- Size: 20KG-180°
- Style: RC Servo
Specifications:
Weight: 65g(2.32OZ)
Dimension: 40*20*40.5mm(1.57*0.78*1.59inch)
Speed: 0.16sec/60°(7.4V)
Torque: 20 kg·cm (277.6 oz·in) @6.6V
Working Voltage: 6-7.4V
Min Working Current: 1A(Our servo needs a larger current than other servo)
No-Load Current: 100mA
# Spline: 25T(6mm in diameter)
The servo wire: 30cm(11.8inch) in length
Control Specifications:
Control Method: PWM

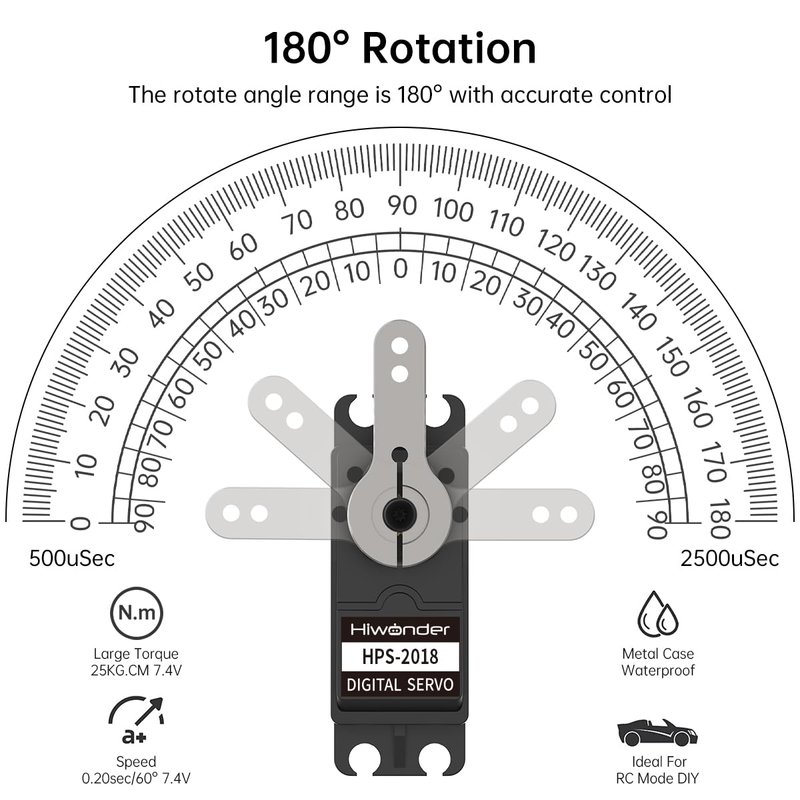

Pulse Width: 500~2500
Duty Ratio: 0.5ms~2.5ms
Pulse Period: 20ms
Please make sure that the duty cycle of the controller you are using conform to our specifications, otherwise the servo can't turn up to claimed degree
Wire Layout:
Red Wire: +
Black Wire: GND
White Wire: PWM/Signal

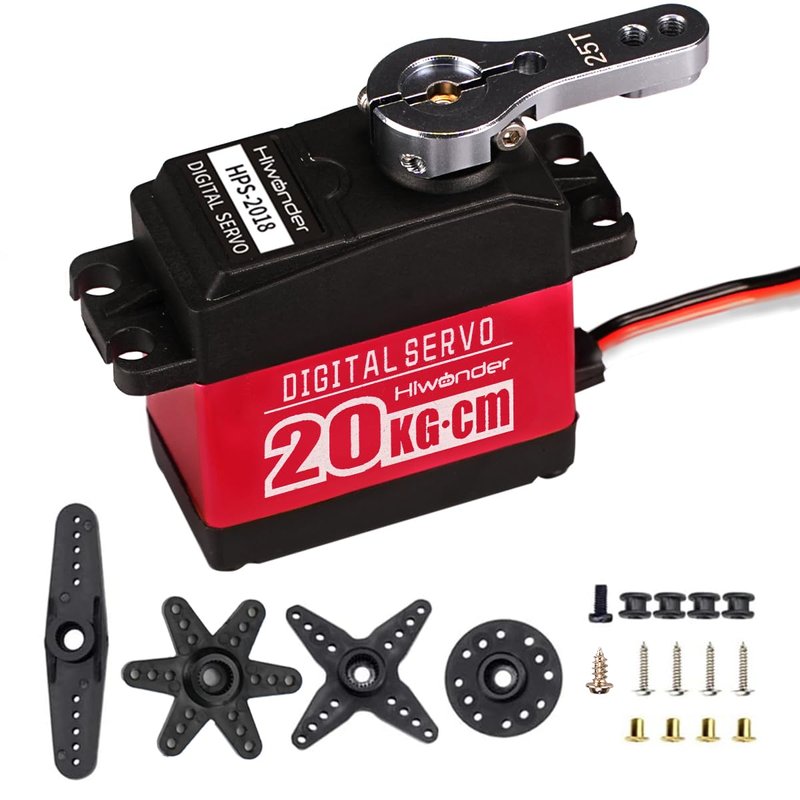

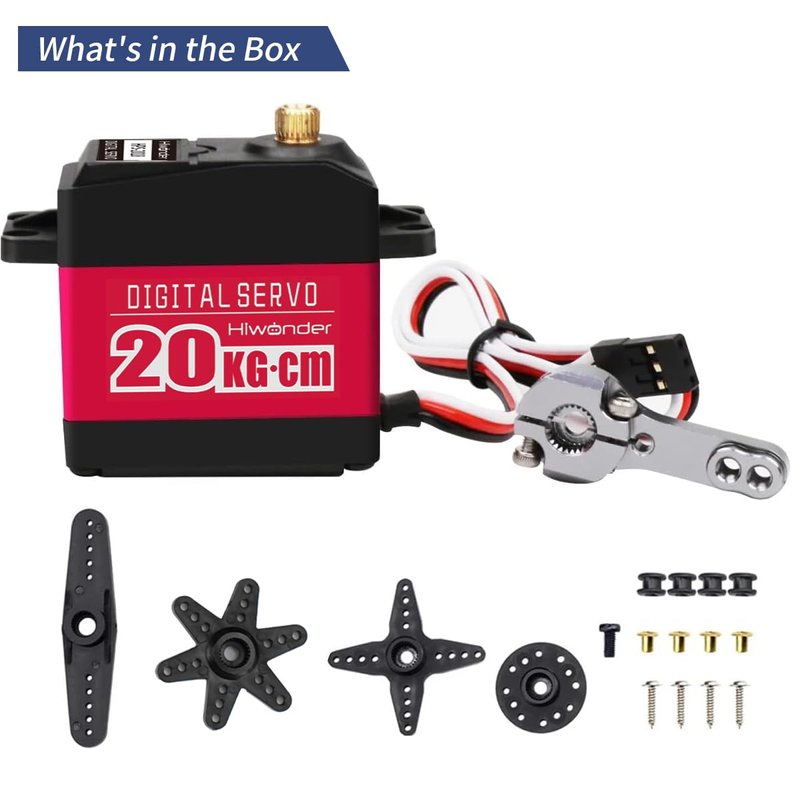

Package Contents:
1 x Digital servo
1 x Servo horn kit(as shown in the figure)
If you have any questions, please feel free to contact us, we will help you as soon as possible
Note:
Please be sure to avoid locked-rotor when using servo, locked-rotor means that artificially or machine obstructs the servo to rotate normally, the locked-rotor will lead to internal current increased to more than 7 times and the temperature increases, servo will burn out.
Important:
1. Connect GND is necessary.
2. It's recommended that use lithium polymer battery with high rate discharge(min 5C), please don't use dry battery.
3. Please use a short and thick power cord, don't use Dupont cord
4. Not compatible for redcat thunder drift rc car, not compatible for 1/16 scale car.
