KingVal Replacement 2440 4600KV Waterproof Brushless Motor Shaft 2.3mm with 35A Brushless ESC Compatible with 1/16 RC Car
- 4 Poles 12 Slots Hi-torque Motor Design
- CNC Machined 6061 T6 Billet Aluminum Heatsink Can
- High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings

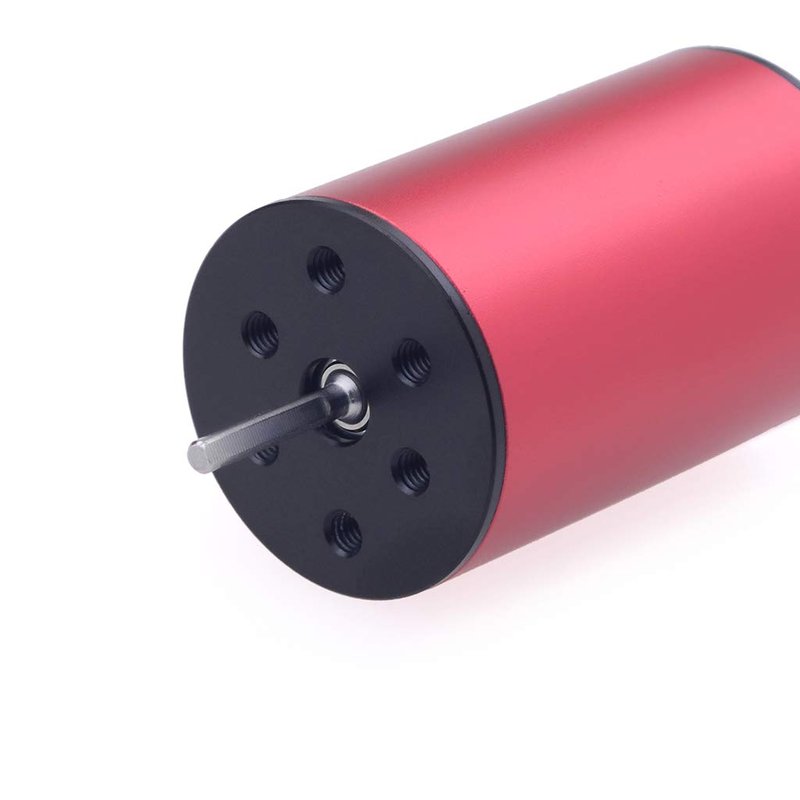

- Universal fit, fits all 1/16 brushless cars-multi-mounting system for M2.5 or M3 screws
- Precision balanced rotor, smoothness for best reliability and maximum RPM
- Manufacturer: KingVal
- Model Number: 2.3mm 2440 4600KV+35A
- Part Number: 2.3mm 2440 4600KV+35A
- Size: 4600KV
- Style: Waterproof 2440
Features:
*4 Poles 12 Slots Hi-torque Motor Design
*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency
*High RPM ABEC5 Oversized Bearings
*Universal fit, fits all 1/16, 1/18 brushless cars-multi-mounting system for M2.5 or M3 screws
*Precision balanced rotor, smoothness for best reliability and maximum RPM
*Stator - Super Thin (0.35mm) Laminations
*Precision Engineered for Maximum Energy Conversion

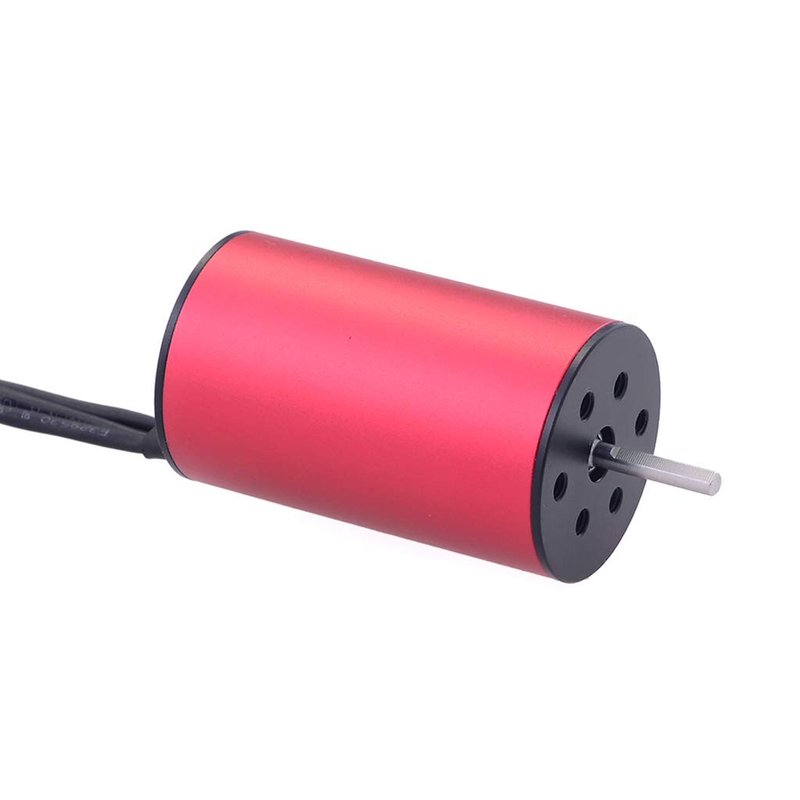

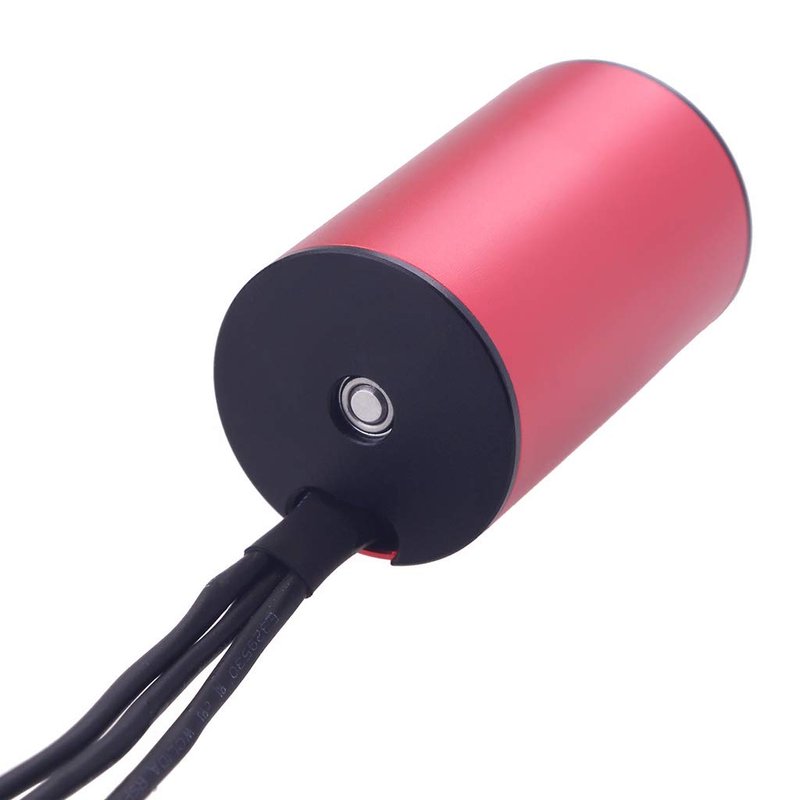

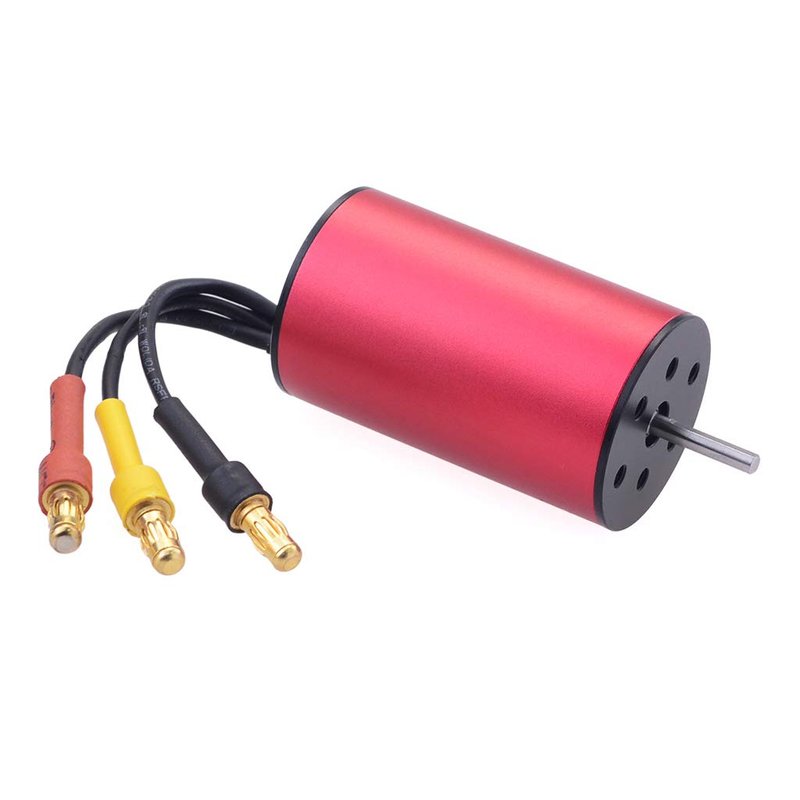

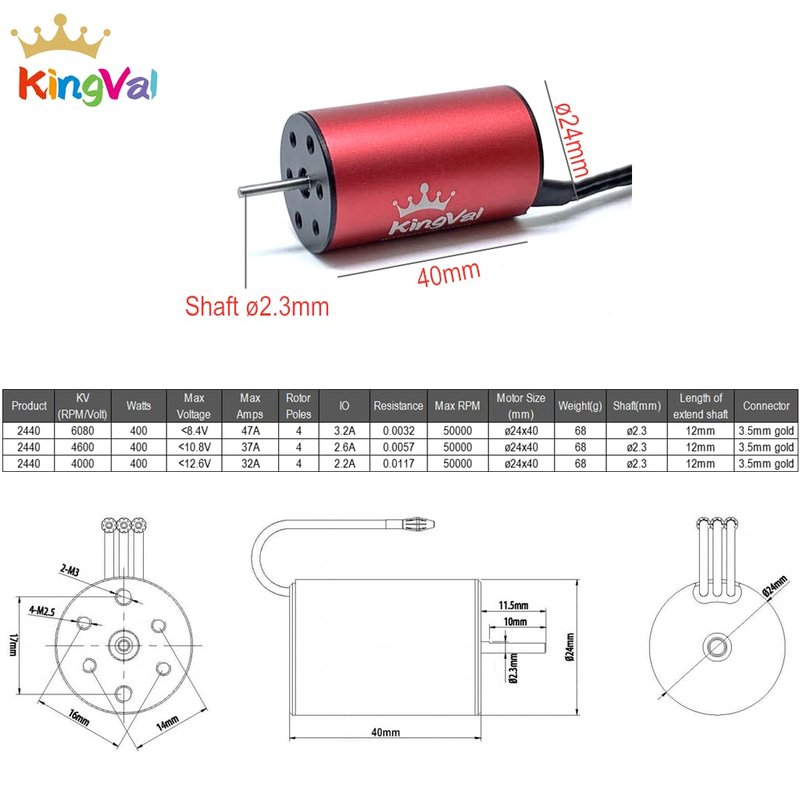

Specifications:
Brand: KingVal
Product: 2440 Waterproof Motor
KV(RPM/Volt): 4600
Watts: 400
Max Voltage: <10.8V
Max Amps: 37A
Rotor Poles: 4
IO: 2.6A
Resistance: 0.0057
Max RPM: 50000
Shaft Diameter: 2.3mm
Length of extend shaft: 12mm
Connector: 3.5mm gold
N.W: 68g

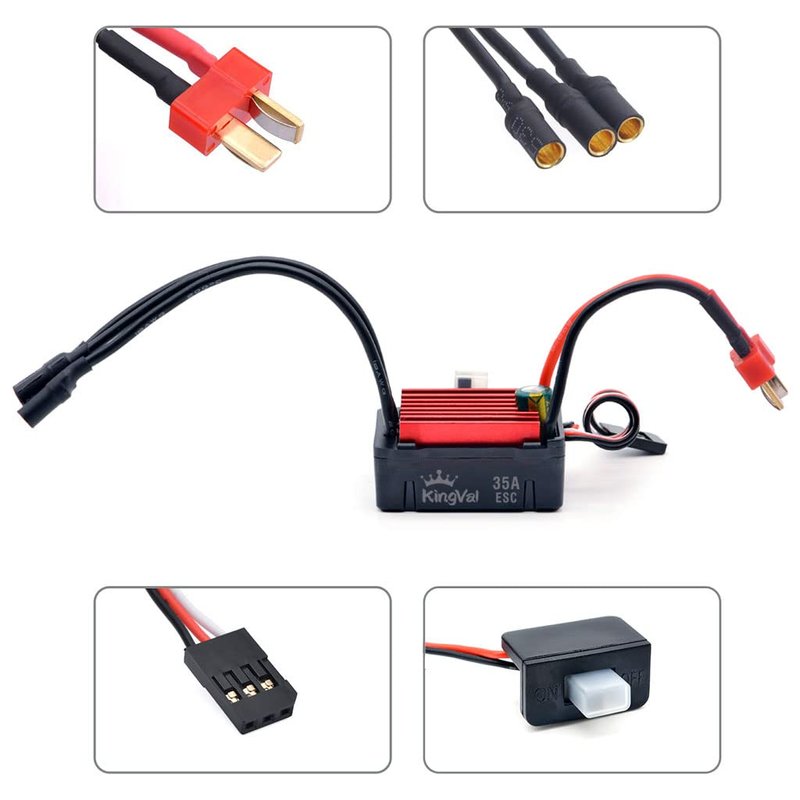

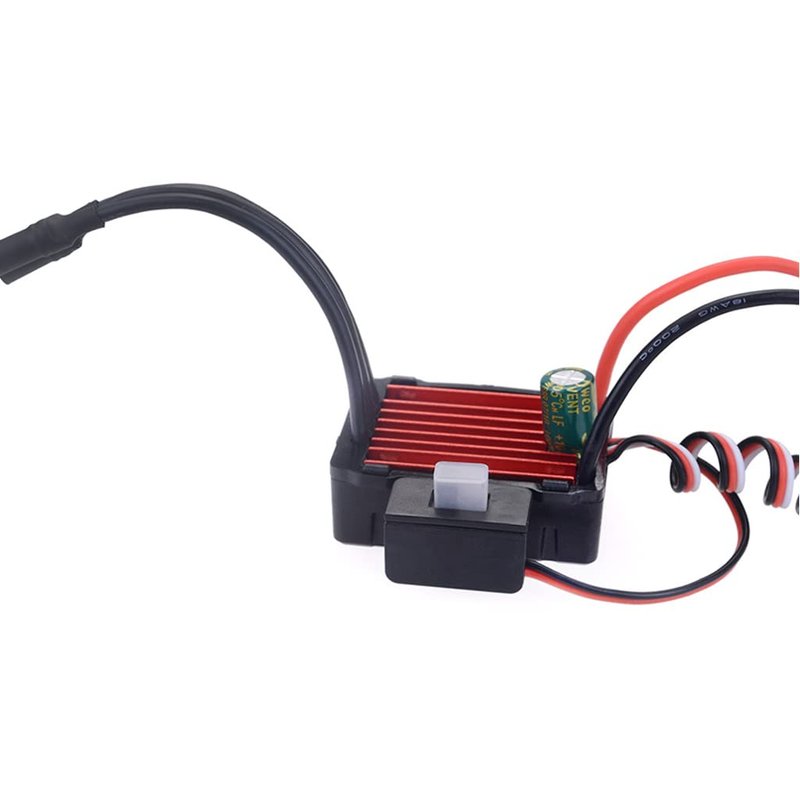

35A ESC:
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH:
1.On-road: 28xx-size or smaller motor with the KV<6000
2.Off-road/Buggy/Monster: 28xx-size or smaller with the KV<4000
For 3S Lipo or 9 cells NiMH:
1.On-road: 28xx-size or smaller motor with the KV<4000
2.Off-road: 28xx-size or smaller motor with the KV<3000
Suitable Car: 1/16, 1/14
Resistance: 0.0007ohm
Battery: 2-3 cells Lipo or 4-9 cells NiMH
BEC Output: 5.0V/2A (analog mode)

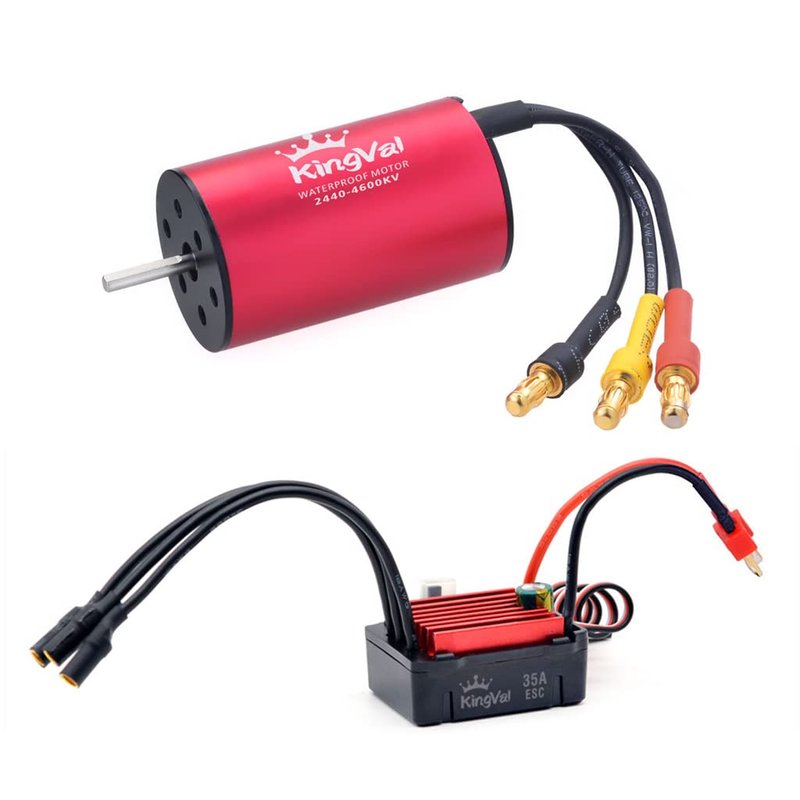

Package List:
1 x 2440 Waterproof Motor
1 x 35A ESC
