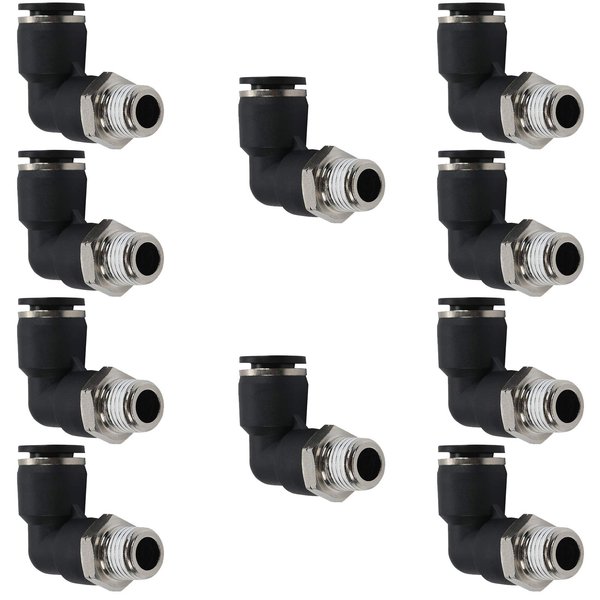

Jienk 10PCS Pneumatic Male Elbow 3/8" Tube OD x 1/4" NPT Thread Push to Connect Air Fittings,90 Degree Quick Connector for Air Compressor Air Horn Air Bag
- 【Durable】This fitting has a strong PBT housing with POM release button and zinc alloy ferrule. The thread port adopts nickel plated brass material. High pressure resistance, corrosion resistance and a long service life.
- 【Good Sealing Performance】Stainless steel tube gripping claw makes the grip force stronger, not easy to trip or leak. External tightening with a flat wrench or socket wrench.
- 【Push Lock】 Quick connect fittings easy to install and remove, just a simple push to connect the tube. The release ring adopts ellipse design, removed conveniently. 360°rotation, after installation, the tube direction can be changed easily.
- 【Use Tube】PU / PA / PE
- 【Operating Pressure】 0~145 Psi 【Working Temperature】 32～140°F
- Color: Black,Silver
- Manufacturer: Jienk
- Model Number: PL3/8-N02
- Part Number: JT88-96
- Size: 3/8"OD x 1/4"NPT
- Style: push to connect
This male elbow 3/8" Tube OD x 1/4" NPT Thread Push to Connect Air Fitting is most commonly used in the field for low-pressure hydraulic and pneumatic systems such as shop air, general industrial, maintenance and automotive assembly,as well as moving parts such as cylinders, air horns and air compressor.
Specifications：
Push-in Tubing O.D: 3/8"
Thread Size: 1/4" NPT
Shape: 90 Degree Elbow
Body Material: PBT(Thermoplastic)
Release Button: POM
Ferrule: Zinc Alloy
Gripping Ring Material: Stainless Steel
Metal Body Material: Nickel Plated Brass
Thread Sealing: Teflon-coating
Fluid type: Air, Vacuum
Max Working Pressure:1.32Mpa
Negative Pressure: -29.5"Hg(-750mm Hg)
Operating Pressure: 0~1Mpa(0~145Psi)
Operating Temperature Range: 0-60℃(32～140°F)
Applicable Tube:PU tube, Nylon tube , Soft PE tube
Package Included：
10 x PL Male Elbow Shape Push to Connector Fittings
Precaution for Use:
Do Not Use Fittings with Media Other Than Air.
Do Not Use the Product Where Weld Spatters Occur at Places Where There is Excessive Rotation or Vibration of the Fittings.
Do Not Use It in Places Where Metal Powder or Sand Dust is Mixed, such as Adhesion of Other Materials.
Do Not Exceed 145Psi Pressure.
Do Not Use Outside the Service Temperature Range.
The Pre-coated PTFE Thread Sealant Does Not Guarantee NO Air Leakage. Assemble all NPT Threads with Two Wraps of Teflon Tape and then Pipe Paste/Sealant which Prevents Thread Galling.
Make Sure That the Cutting Surface of the Tube is Vertical, There is No scratch on the Tube Surface or Deformations and the Tube is Not Oval.
Never Apply Tube Joint with Additional External Load( Twisting ,Bending or Pulling).
When Inserting the Tube, It Must Be Inserted into the Bottom.
To Disassemble, Make Sure there is No Air Pressure Inside of the Tube and Push the Release Button against the Body and Remove Tube.
