JDMSPEED New Universal Inline High Pressure Fuel Pump 12V Gasoline Fuel Injection Pump Replacement 0580464070 0580453911 0580463017 0580464023
- External Fuel Pump is made of high-density brass and steel alloy, with high hardness, not easy to wear, not easy to corrode, and has a long service life

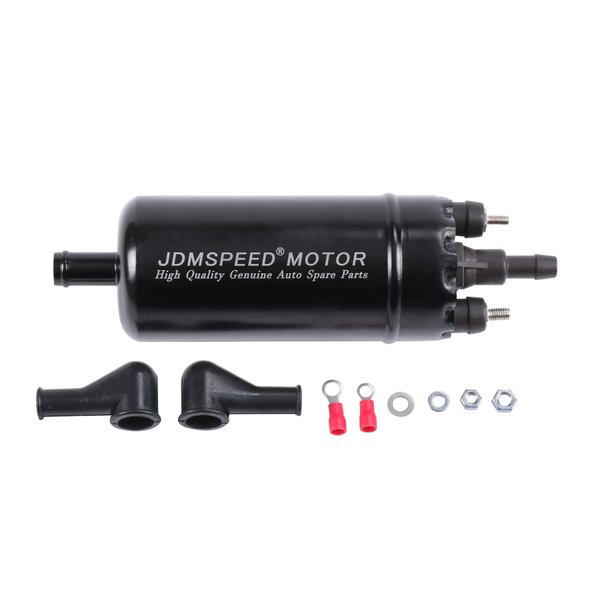

- Package Include: 1 x External Fuel Pump, 2 x Rubber Connection Cover, 2 x Terminal, 1 x Large Gasket, 1 x Small Gasket, 1 x Large Nut, 1 x Small Nut
- This is a universal fit pump and depending on your application some adapting will be required, Installation may require skill and knowledge, no instructions are included
- Support high power application: 300-800 H，Comes with a 1-3/4'' | 45mm gauge & 1/8'' NPT gauge port, adjustable from 0 to 100 psi to maximum fuel pump capacity
- Technical Data: Inlet - ½” (12mm) push on; Outlet – ¼” (8mm) push on; Flow rate - 135ltr/hr @ 3bar (35 gal/hr @ 45 psi); Max pressure - 8.5bar (125 psi)
- Interchange Part Number: 0580453911, 0580463017, 0580464023, 0580463010, 0580464008, 0580464032, 0580463011, 0580464013, 0580464033, 0580463012, 0580464014, 0580464038, 0580463013, 0580464015, 0580464048, 0580463014, 0580464016, 0580464050, 0580463015, 0580464019, 0580464051, 0580463016, 0580464020, 0580464055, 0580464056, 0580464070, 0580810046
- Universal external in line fuel pump. Does not need to be mounted inside the tank; Use this pump for turbo/non turbo gas fuel injection systems up to 250bhp
- This Inline High Pressure Fuel Pump is adopts the anodized surface process, which is not easy to fade and has rust proof, scratch proof and waterproof. The smooth surface is coated with black paint, which is a practical, exquisite and beautiful accessory
- Color: Black
- Manufacturer: JDMSPEED
- Model Number: E446
- Package Quantity: 1
- Part Number: 0580464008, 0580464013, 0580464019
- Size: Fuel Pump
- Style: Gerotor
Description:
In Line High Pressure Fuel Injection Pump
Universal external in line fuel pump. Does not need to be mounted inside the tank.
Replaces Bosch 0580464070 and others but is not made by Bosch.
Great for use with MegaSquirt and other aftermarket systems.
Use this pump for turbo/non turbo gas fuel injection systems up to 250bhp.

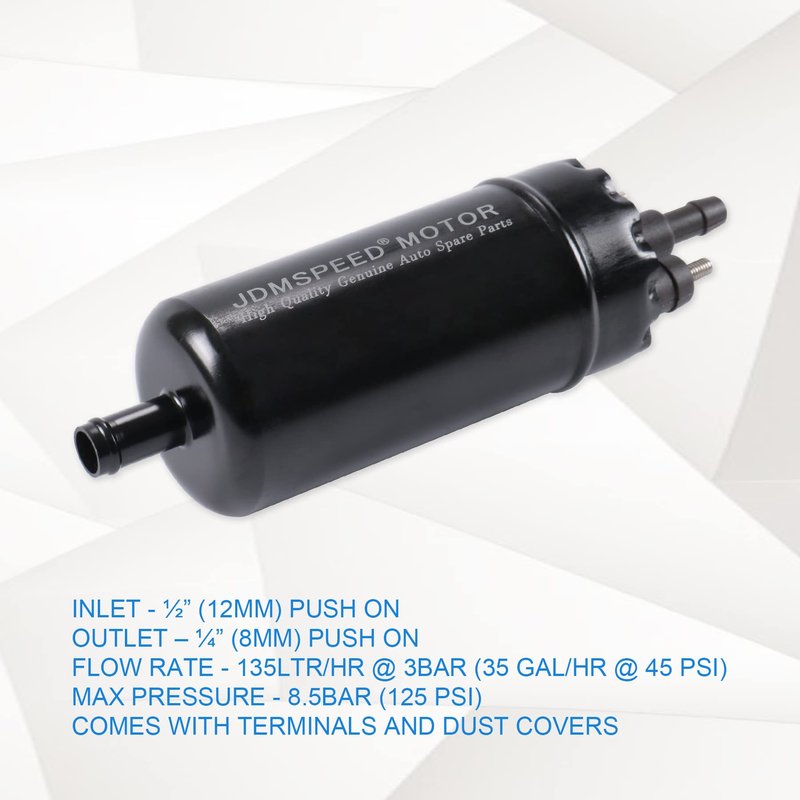

Specifications:
Inlet - ½” (12mm) push on
Outlet – ¼” (8mm) push on
Flow rate - 135ltr/hr @ 3bar (35 gal/hr @ 45 psi)
Max pressure - 8.5bar (125 psi)
Comes with terminals and dust covers
This pump can also be used to replace the following Bosch part numbers:
0580453911 0580463017 0580464023
0580463011 0580464013 0580464033
0580463012 0580464014 0580464038
0580463013 0580464015 0580464048
0580463014 0580464016 0580464050
0580463015 0580464019 0580464051
0580463016 0580464020 0580464055
0580464056 0580464070 0580810046
This is a universal fit pump and depending on your application some adapting will be required, Installation may require skill and knowledge, no instructions are included.
