Homend DC12V 2inch Stroke Linear Actuator with Mounting Bracket 900N(225lbs) Maximum Lift 10mm/s for Recliner TV Table Lift Massage Bed Electric Sofa Linear Actuator (2 inch)

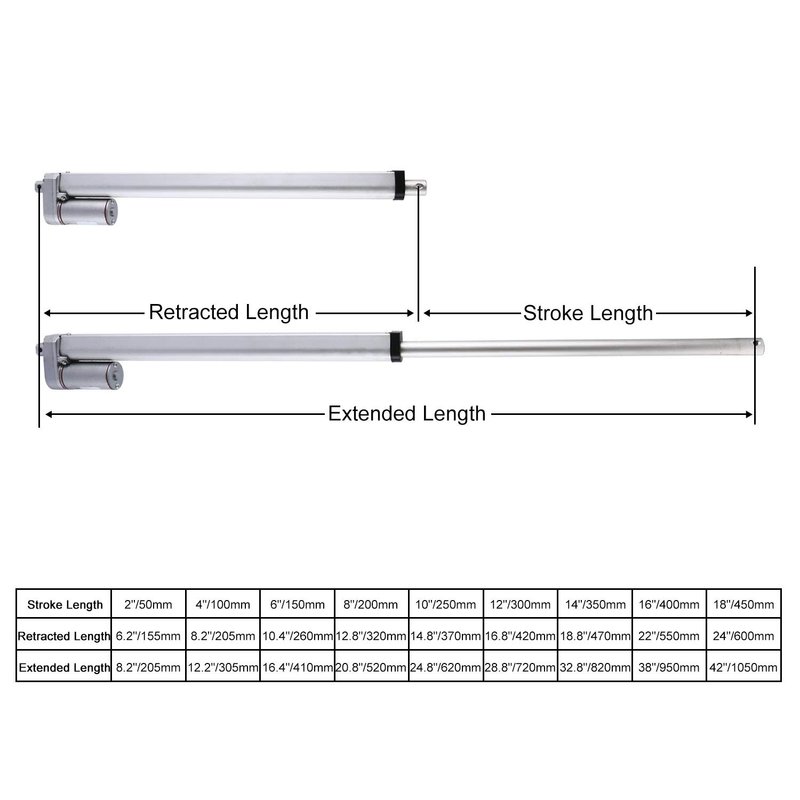

- ★ Specification: Stroke length = 50mm(2"); Retracted length = 155mm(6.2"); Extended Length= 205mm(8.2"); Travel speed = 0.39 inches/sec (10 mm/s);Maximum current draw = 3Amps; Maximum Load = 225lbs(900N). (After connecting the installation brackets at both ends, the actual length will increase by a few inches. If you have strict size requirements, please carefully consider the bracket size)
- ★ Material: High quality aluminum alloy material, sturdy enough and with fashion look, High performance motor ,Built-in high quality limit switch
- ★ Low noise: The low noise design, noise level below 50 dB
- ★ IP54 rated: (suitable for outdoor use). Commonly Used In Automotive, Medical Devices and Engineering Industry, massage sofa, recliner, TV lifter, lifting table, electric window opener etc.

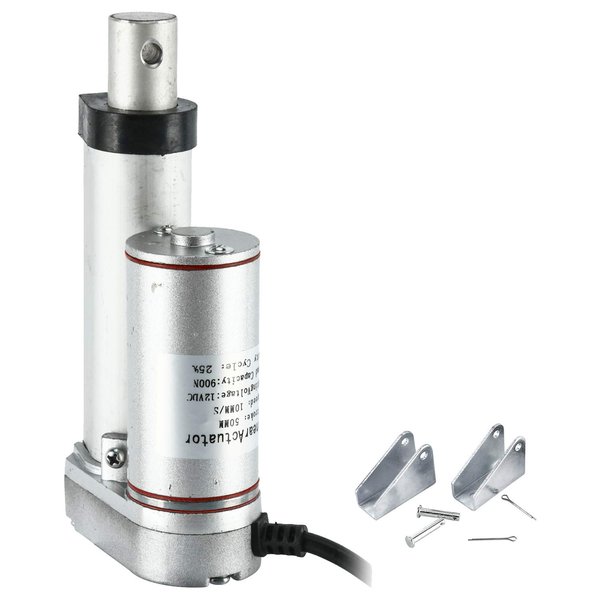

- ★ Package Included: 1pc 12V 2 Inch Linear Actuator with 2pcs mounting brackets.
- Manufacturer: Homend
- Model Number: GR9863
- Package Quantity: 1
- Part Number: GR9863
- Size: 2 inch
Specification:
Color: Silver
Material: Aluminum Alloy
Input Voltage: DC 12V
Rated Current: 3Amp
Stroke length = 50mm(2")
Retracted length = 155mm(6.2");
Extended Length= 205mm(8.2")
Rated Load: 900N
Travel Speed: 10mm/s
Limit Switch: Built-in
Working Temperature: -20ºC to 65ºC
Protection Class: IP54
Duty Circle: 25%
Noise Level: <50dB
How To Install
1. Prepare to connect the two wires of the actuator to a 12 volt battery
2.Blue wire to the positive terminal and grey wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
3.To simplify the last step, you can prepare a reverse polarity relay or switch (not included) for the actuator. When you want the actuator to extend and retract, just press the switch
4. Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
5.The actuator has pre-installed inner limit switch, it cannot be adjustable.

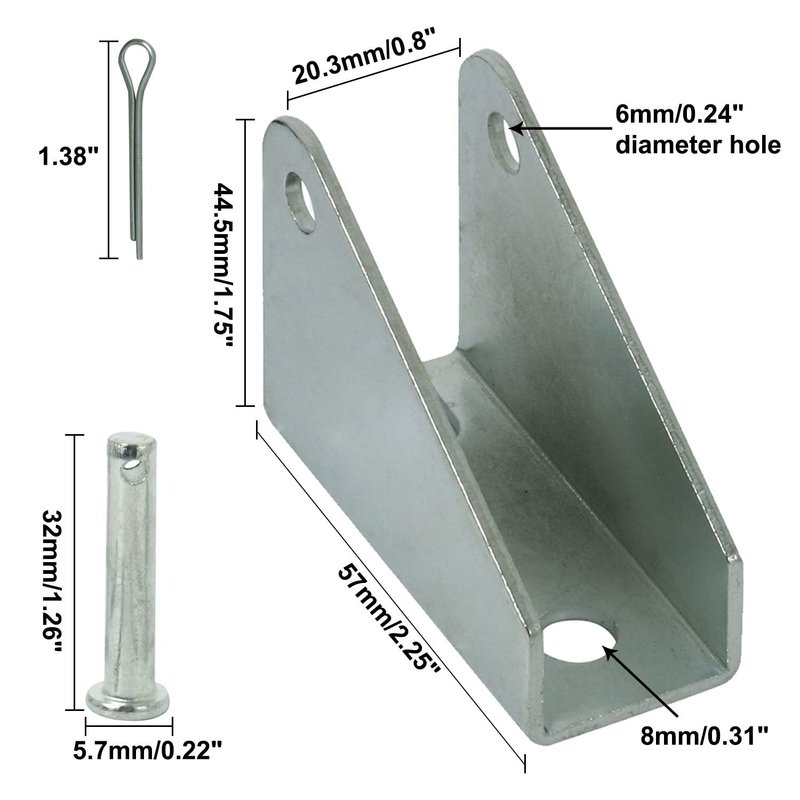

6. It comes with mounting brackets.
How to protect your actuator:
1. Please use the 12V DC power adapter
2. Please do not exceed the rated load
3. All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.
4. Please be careful, the actuator not completely waterproof

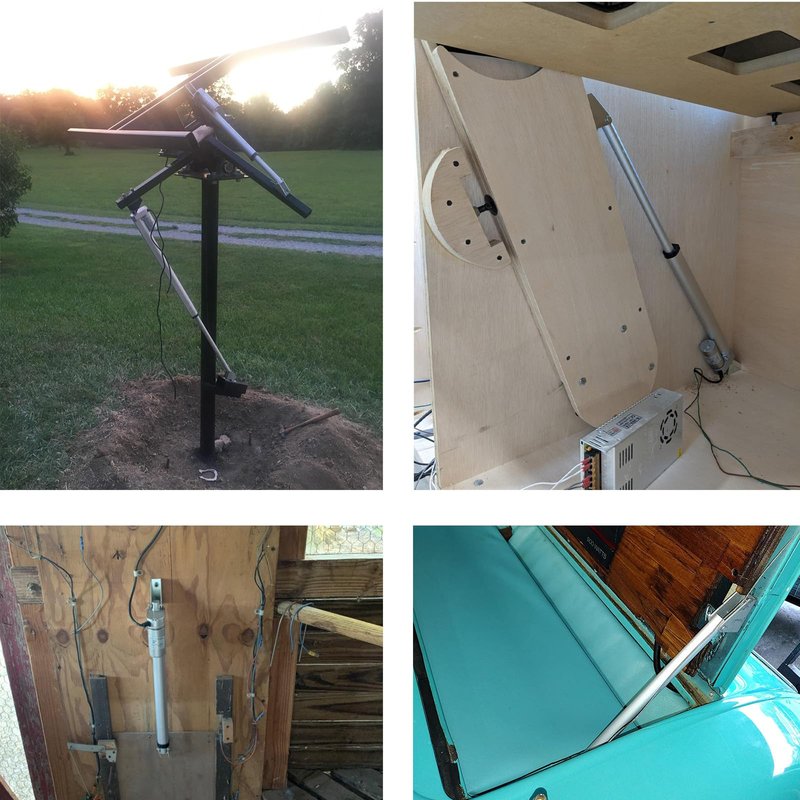

Widly Use:
Furniture and home application
Hospitals and healthcare
Industrial and construction application
Agricultural machinery
Package Included:
1 X 2" Linear Actuator
2 X Mounting Bracket
1 X Screw Set
