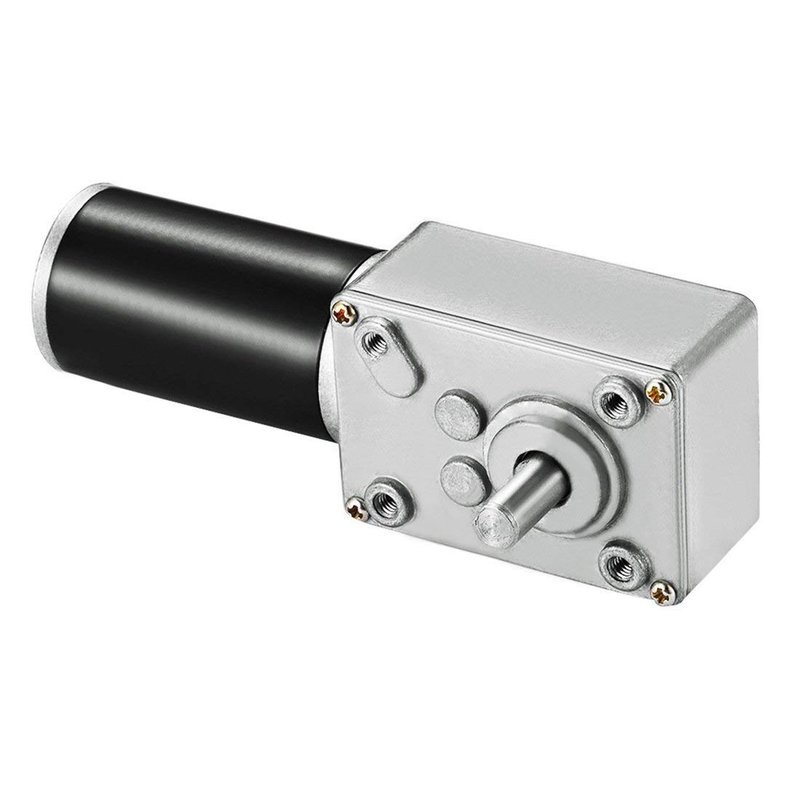

Greartisan DC 12V 10RPM 40Kg.cm 8mm Single Shaft Self-Locking Reversible Worm Gear Motor with Cable, High Torque Speed Reduction Motor, Turbine Electric Gearbox Motor
- 【High Torque & Lower Noise】: Long carbon brush high life, high precision gear design, small size, high torque, low noise, high efficiency.
- 【Positive-Negative Rotation】: This type is miniature High Torque Electric Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive andnegative be changed.
- 【Self-Locking】: Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock.
- 【Versatile】: The reducer output shaft arranged vertically with the motor shaft, whole motor output is relatively short,can be widely used in various of occasions that require special installation size.
- 【Application】: Boat, Car, Fan, Home Appliance, BBQ, Machinery and equipment, automation instruments, electric curtain, stage lighting, counter, faucet, safe, wet towel dispenser, vending machines, automatic monitoring and other modern art.
- Manufacturer: Greartisan
- Model Number: Greartisan
- Package Quantity: 1
- Part Number: Greartisan
- Size: 12V 10RPM

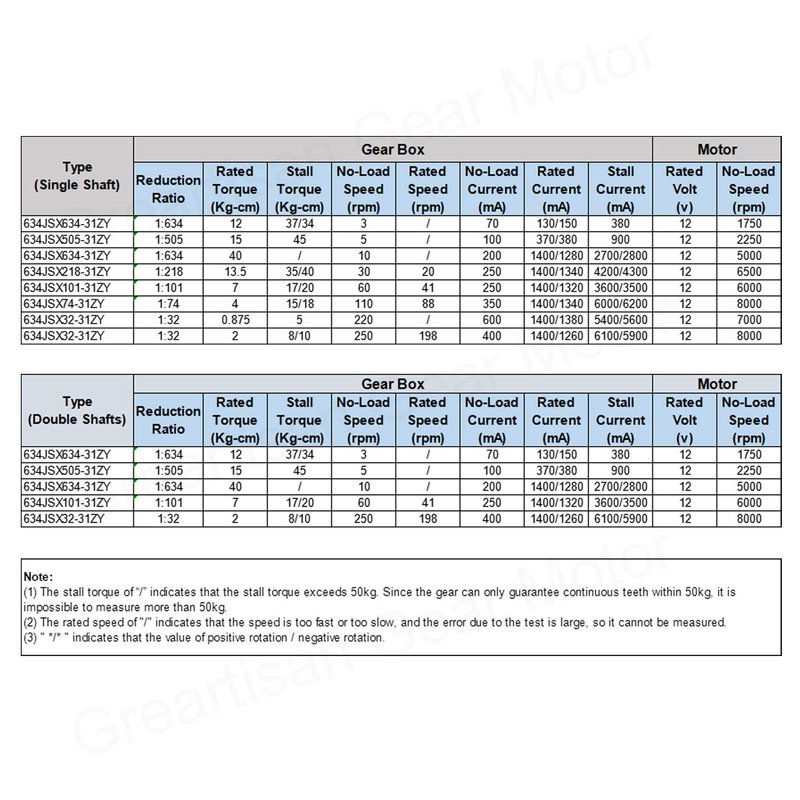

Rated Voltage: DC 12V
Reduction Ratio: 1:634
No-Load Speed: 10RPM
Rated Torque: 40Kg.cm
Rated Current: 1400/1280mA (Positive Rotation / Negative Rotation)
Error: ±10%

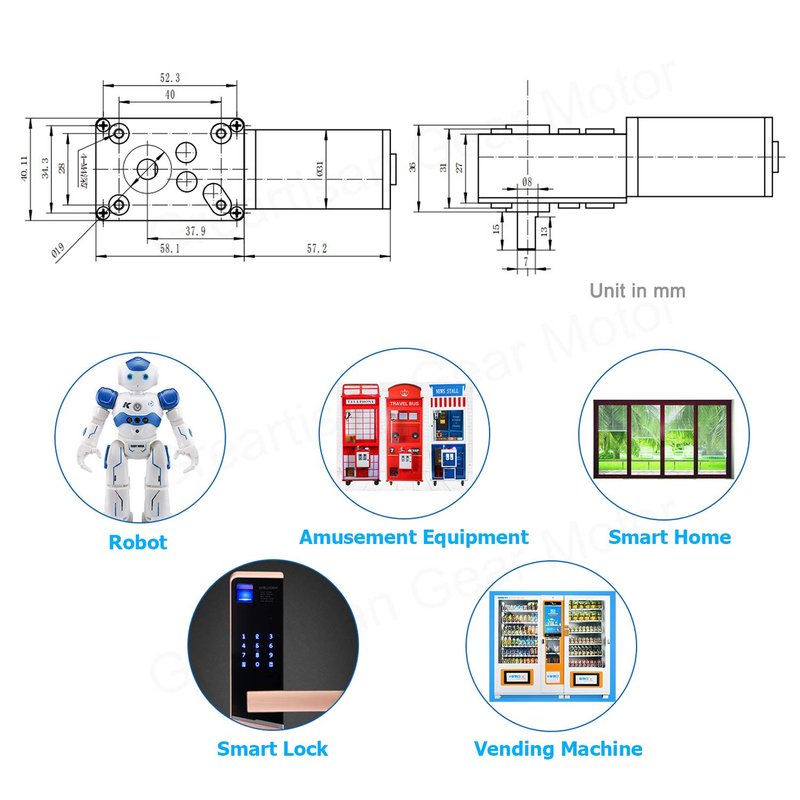

D Shaped Output Shaft Size: 8*15mm (0.31" x 0.59") (D*L)
Gearbox Size: 58.1 x 40.11 x 36mm (2.29" x 1.58" x 1.42”) (L*W*H)
Motor Size: 31 x 57.2mm (1.22" x 2.25") (D*L)
Mounting Hole Size: M4 (not included)
Main Material: Metal, Electronic component
Wire Length : 20cm
Packages:
- 1 x Worm Gear Motor
What does motor torque mean?
The standard torque of the motor is 10kg.cm. If the belt wheel is used for transmission, the belt wheel has a radius of 1cm, and the output tension of the belt is 10kg.
If the belt radius is 2cm, the output tension of the belt is 5kg, and so on.
PLEASE NOTE:
1.Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline.
2.Handling motors: Gently, as far as possible the use of motor shell part.
3.Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction.
4.Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out.
5.Motor storage:
-- Storage temperature: 0℃ - 40℃;
-- Storage humidity: 15% -90% RH;
-- Avoid placing in high temperature, high humidity and corrosive gases.
6.Motor use temperature: 0℃ - 70℃
