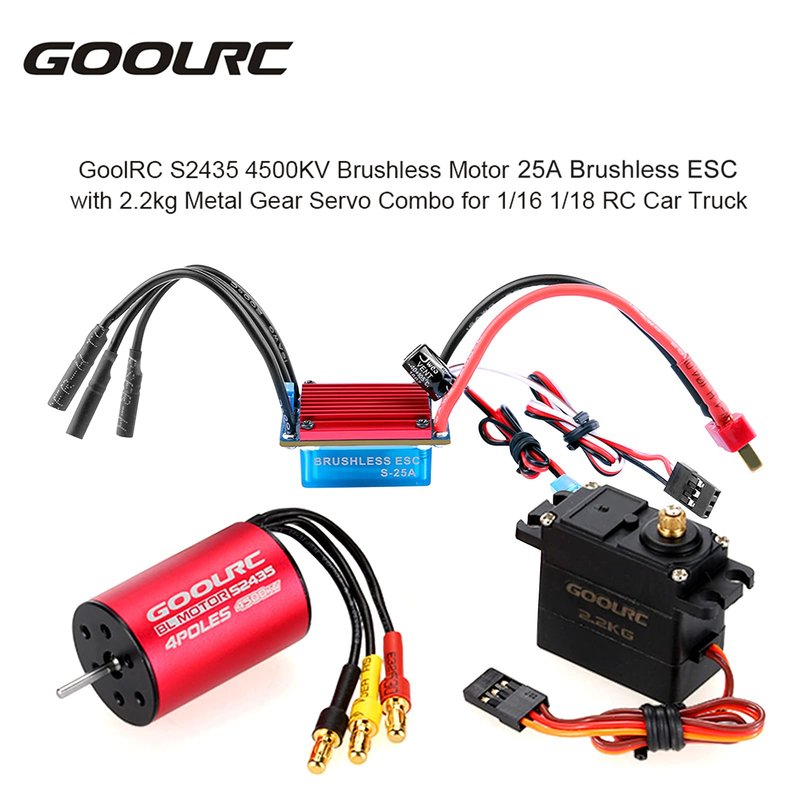

GoolRC S2435 4500KV Brushless Motor S-25A ESC with 2.2kg Metal Gear Servo Upgrade Brushless Combo Set for 1/16 1/18 RC Car Truck
- High purity copper windings maximizes efficiency,Suit for 1/10 scale RC car
- Precision engineered for maximum energy conversion
- Precision balanced rotor, smoothness for best reliability and maximum RPM
- Low heat production, long lifetime, strong overload protection.Super smooth and accurate throttle linearity
- Mutiple protection features: Low voltage cut-off protection for lithium or nickel battery, Over-heat protection, Throttle signal loss protection, Motor blocked protection
- Model Number: 43237-2
- Package Quantity: 1
- Part Number: 43237-2
The set includes a S2435 4500KV brushless motor, a 25A ESC and a 2.2kg servo, which is perfectly fit for the 1/16 1/18 RC car. What you needed is all included in the combo, specially for RC car DIY hobbies.

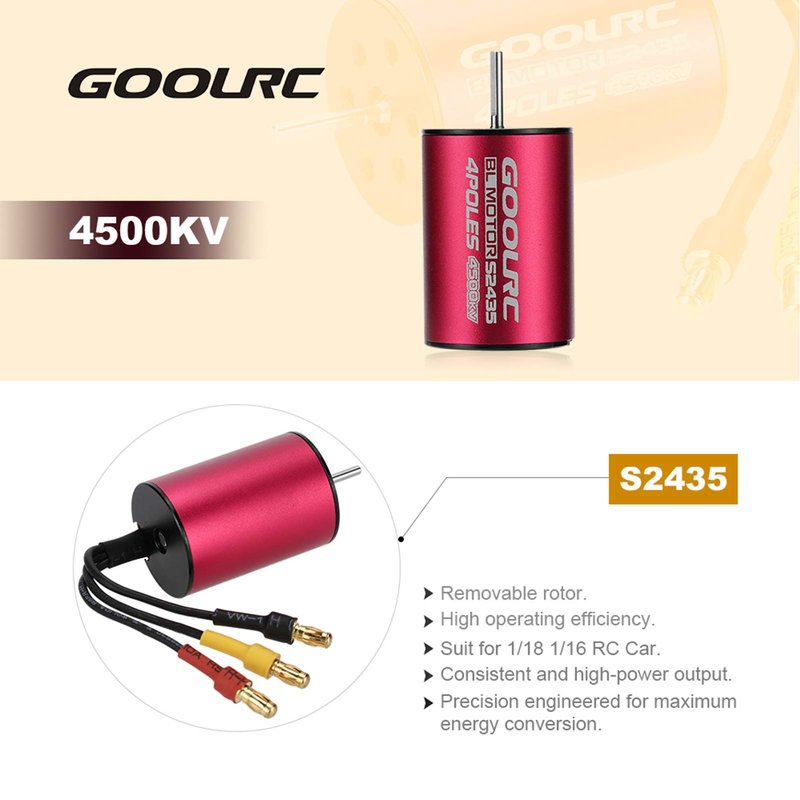

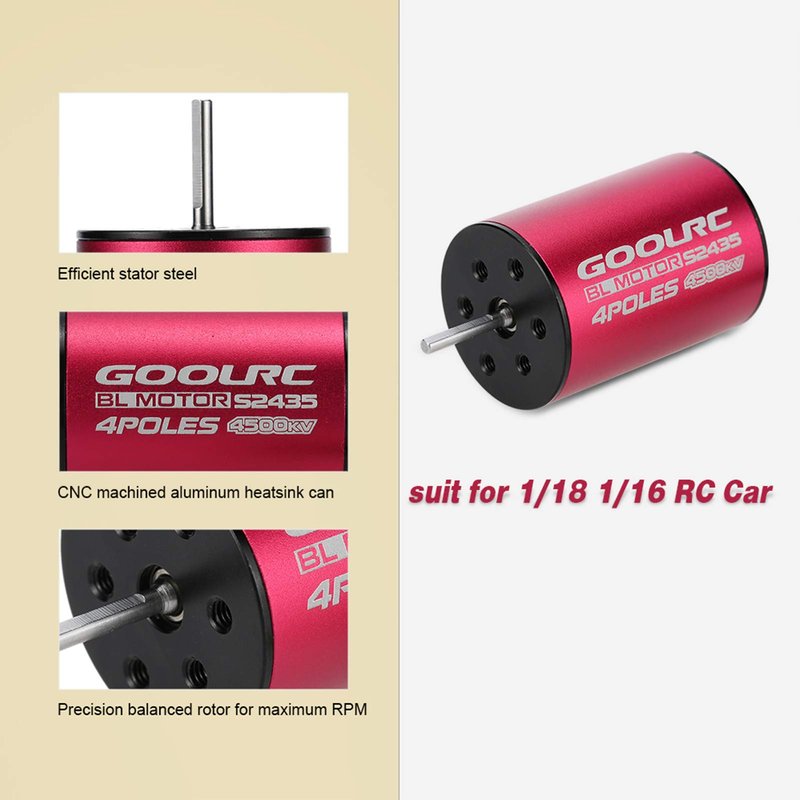

Motor Specifications:
KV(RPM/Volt): 4500KV
Max RPM: 60000
Max Current: 22A
Max voltage: <13.2V
Max Watts: 300W
Can Size: 2435
Can Diameter: 24mm
Can Length: 35mm
Shaft Diameter: 2mm
Shaft Length: 12mm
Connector: 3.5mm golden banana plug
Item weight: 56g

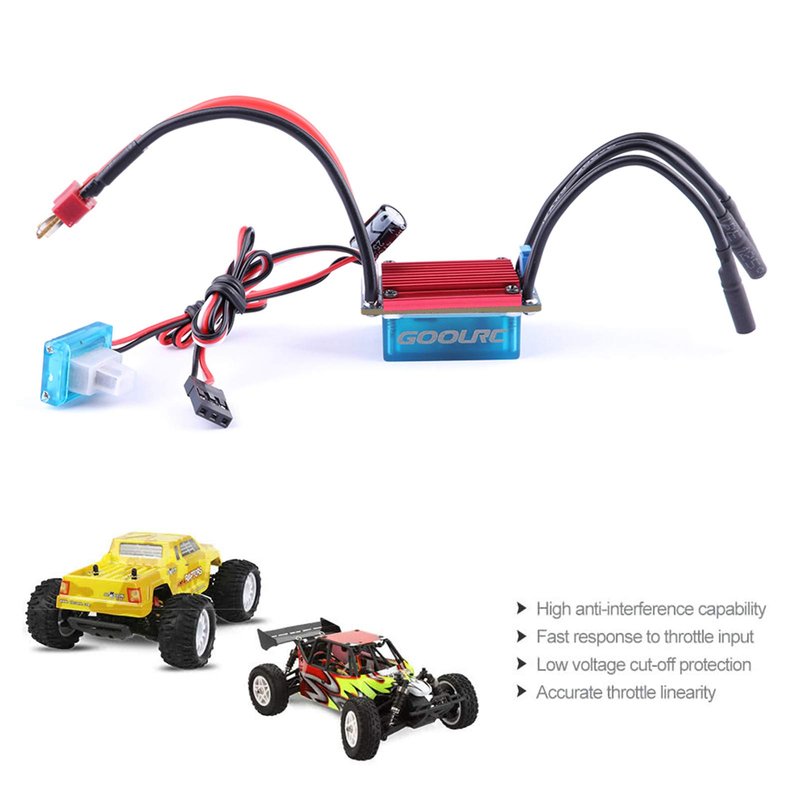

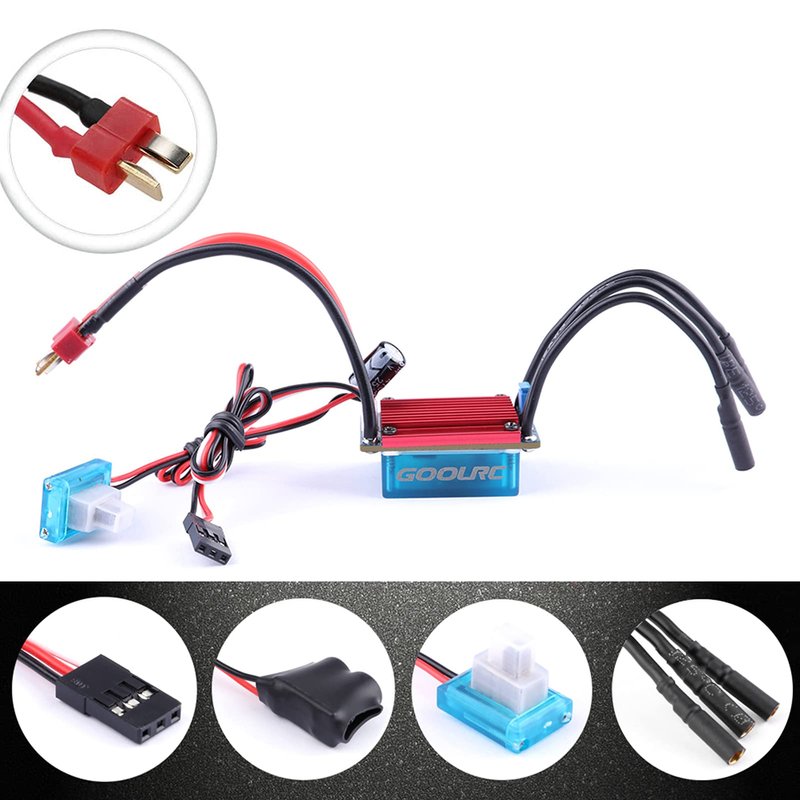

ESC Specifications:
Constant current: 25A
Burst current: 90A / 10sec
Battery: 2S Li-Po / 4-6S Ni-Mh
BEC Output: 5V / 2A
Power supply plugs: T plug male
Motor plugs: 3.5mm banana plug female
Item size: 37 * 26 * 15mm / 1.5 * 1.1 * 0.6in(without cables)
Servo Specifications:
Operating Voltage: 4.8V-6.0V
Operating Speed (4.8V): 0.10sec/60° at no load
Operating Speed (6.0V): 0.08sec/60° at no load
Stall Torque (4.8V): 1.4kg.cm
Stall Torque (6.0V): 1.8kg.cm
Item size: 43 * 15 * 30mm (L * W * H)
Package Information:
Package size: 10.5 * 8 * 6.3cm / 4.1 * 3.1 * 2.5in
Package weight: 183g
Brand gift box package

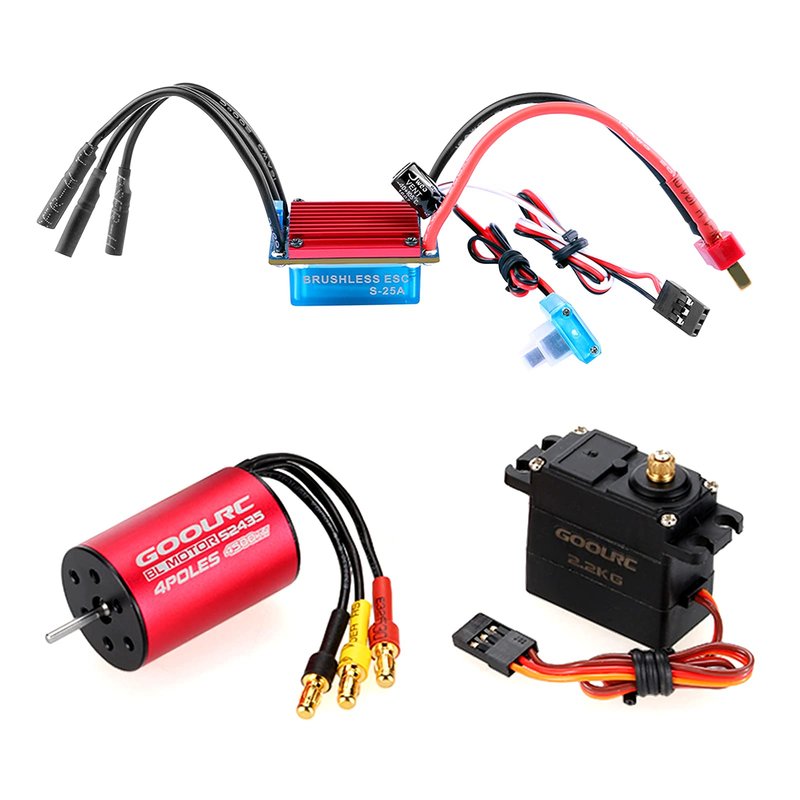

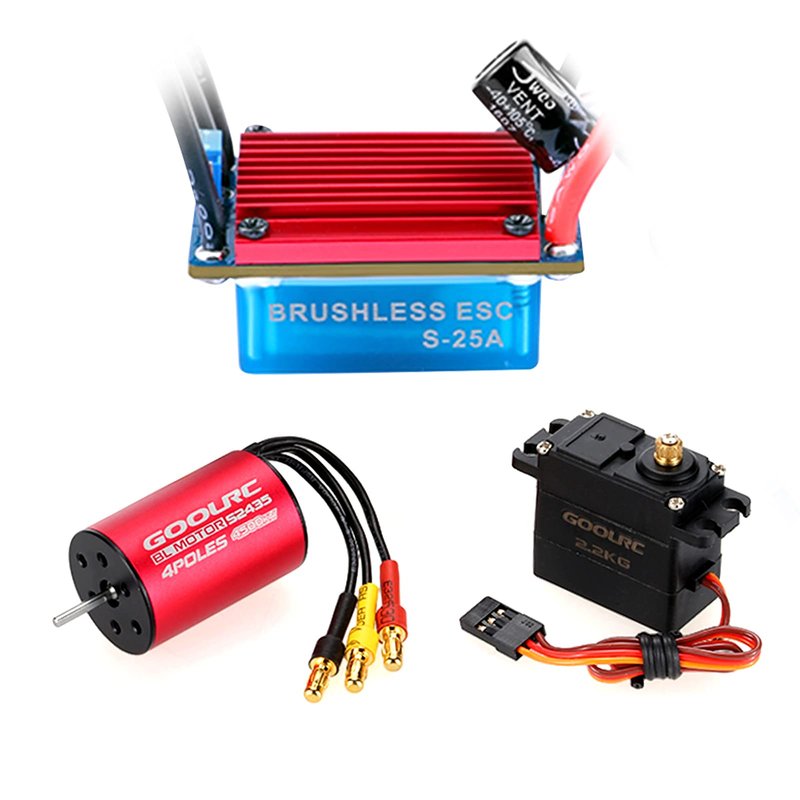

Package List:
1 * GoolRC S2435 4500KV Motor
1 * GoolRC S-25A ESC
1 * GoolRC 2.2kg Servo
