GaiRen 100Amp Trolling Motor Plug Receptacle Set, 2 prong 12/24/36/48 Volt Marine Boat Connector Compatible with 4/6 AWG Wire
- 【100A Continuous Rating】The marine trolling motor plug receptacle are universal design for 2 configuration 12V, 24V, 24/36V, 12/24V, 36V or 48V systems up to 100Amp continuous rating. Compatible with 4/6 AWG large gauge wire without overheating.
- 【Maximum Durable】 You will see the Corrosion-resistant, Silver-plated electrical connecting pins which have the best electrical conductivity.
- 【Convenient】Marine plug and receptacle have the best design, which is very easy to use and self-locking. You will feel easy to use this plug because of the ergonomically contoured handle design. This set adopts direct insertion systems. Time and effort saving.
- 【Safe and Stable】There are waterproof sealing caps and gaskets in the container to further strengthen the waterproof performance, provide additional safety guarantee, and ensure the fastening effect to prevent vibration.
- 【Visit GaiRen Store】You are welcome to our store to view more about Marine Hardware, like Trolling motor accessories, Bimini Top Fittings, Deck Hardware, Fishing gears, etc.
- Color: 2 Pin
- Manufacturer: GaiRen
- Model Number: MJ32 2Pin
- Part Number: MJ32 2Pin
Q & A
Q1: Will 6 awg gauge wire work with this?
Ans: Yes, Applicable from 6 AWG to 4 AWG.
Q2: Does this come with plug and receptacle?
Ans: Yes, it comes with plug and receptacle and a set of connectors and screws.
Q3: Can this be floor mounted on a pontoon and still be waterproof?
Ans: Yes, it is IP67 waterproof. It’s waterproof while it’s plugged in and you can cover the female seat with a rubber waterproof cover when it’s not plugged in.
Specification:
Rated Current: 100 Amp
Rated Voltage: 600 Vot
Material: SILVER Plated Brass (The Best Electrical Conductivity)

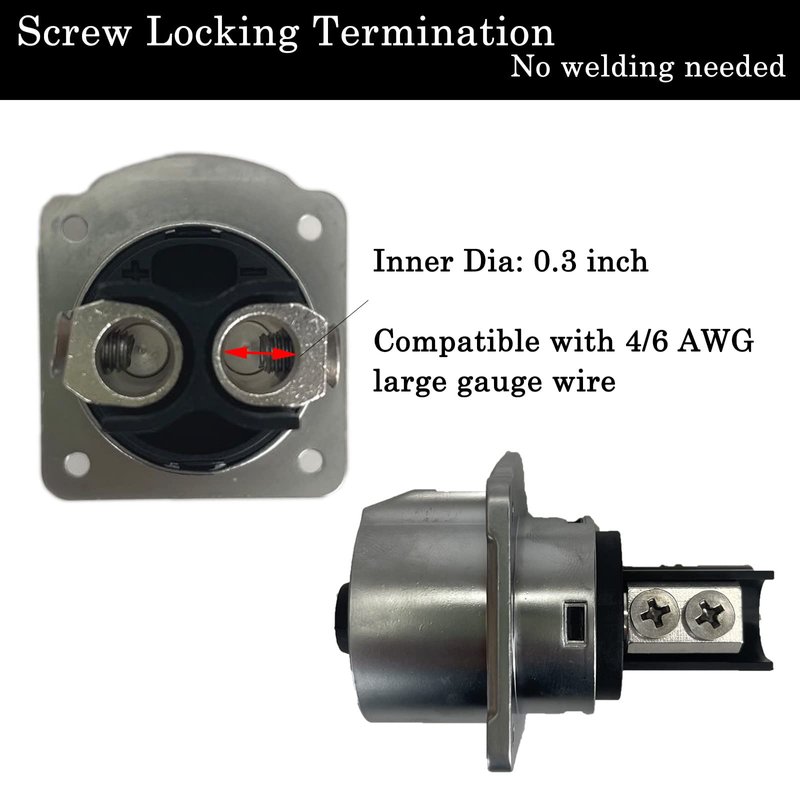

Wire Gauge: Compatible with 6 AWG to 4 AWG wire
Waterproof Grade: IP67
Connecting Method for Plug and Receptacle: Snap Fastener
Operating Temperature: Minus 40 degrees Fahrenheit to 220 degrees Fahrenheit
Times of Plug and Unplug: Up to 1000 times
Package List:
1 x Male Plug
1 x Female Receptacle
A set of Screws, Gaskets and Nuts
Special Reminder:
Make sure the power source is disconnected or, if controlled by a switch, turned OFF before beginning installation of the Plug Receptacle. Failure to remove power from the Boat Wires could cause electric shock.
