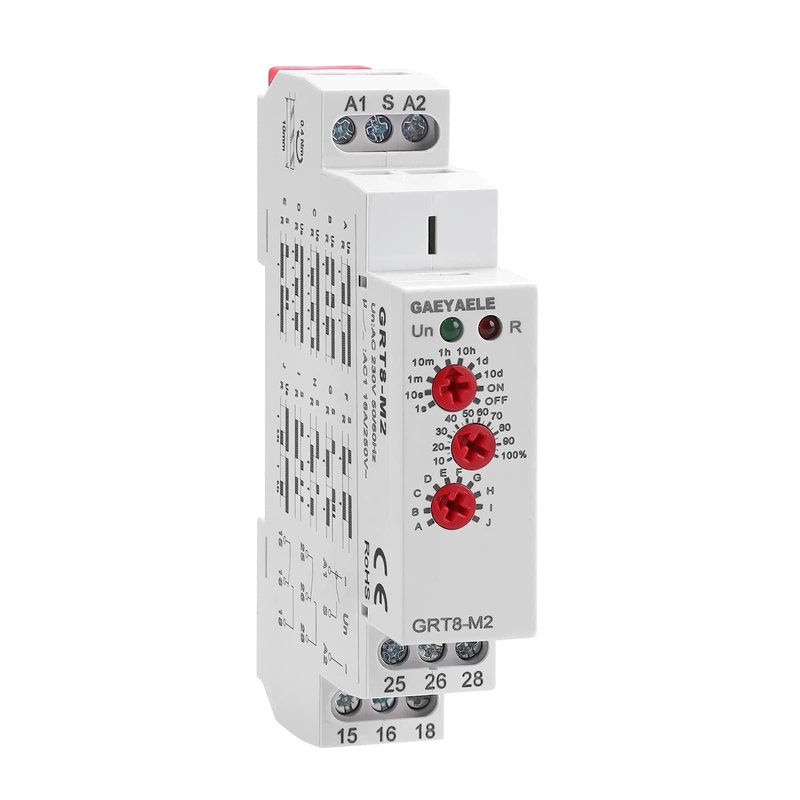

GAEYAELE 16A Multifunction Time Relay with 10 Function Choices AC230V Relay(GRT8-M2,A230)

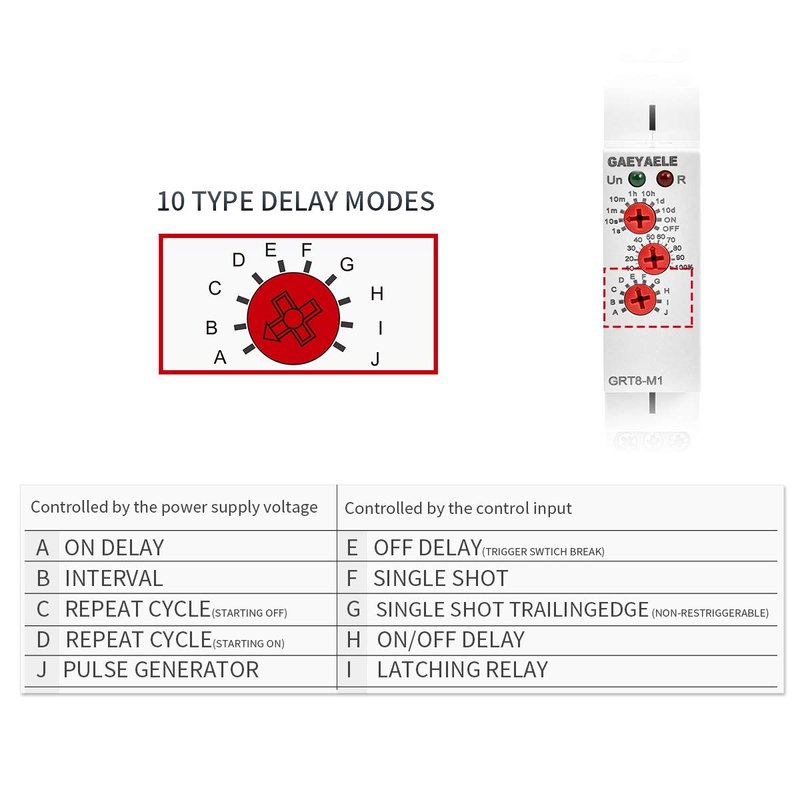

- Special 10 Functions: 5 time functions are controlled by the power supply voltage, 4 time functions are controlled by the control input, and 1 latch relay function.

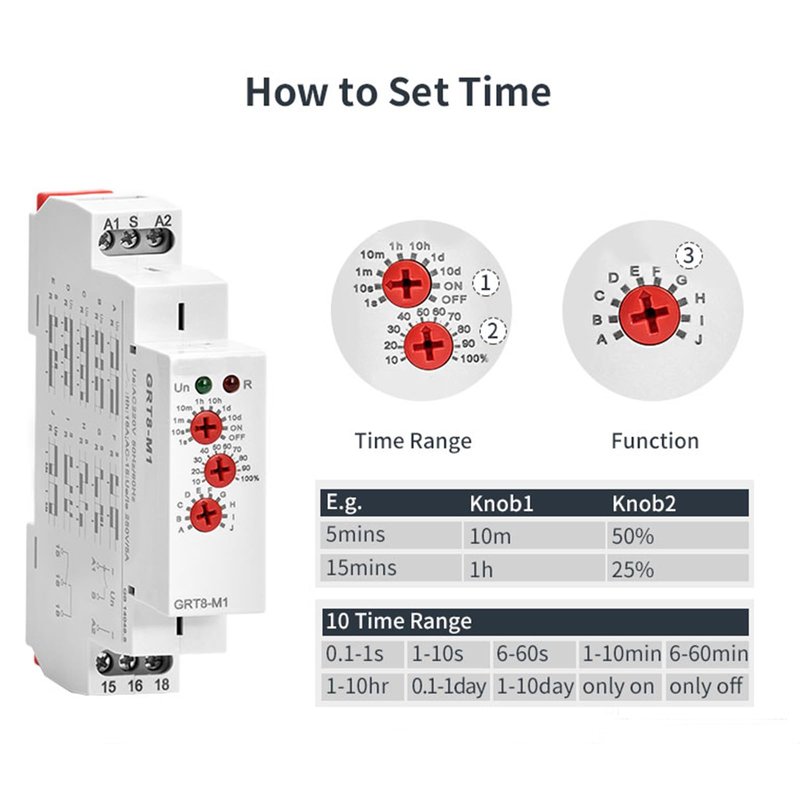

- Instructions: Comfortable and well-arranged function and time-range setting by rotary switches.
- Time range: The time scale is 0.1s-10 days, divided into 10 ranges.
- Relay Status : Its working status is indicated by the LED indicator.
- Product Size: Ultra-small size, only 18mm width, 35mm rail mounting.
- Color: GRT8-M2
- Manufacturer: ZHEJIANG GEYA ELECTRICAL CO.,LTD
- Model Number: le2
- Part Number: le2
- Size: GRT8-M2,A230
Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans(10 functions,10 time ranges, multi-voltage).
Model Number:GRT8-M Multifunction Time Relay
Product Name:GRT8-M1 AC/DC12-240V Multifunction Time Relay
Rated Control Supply Voltage:AC/DC 12V-240V
Contact Switching Voltage :AC/DC 12V-240V
Output Contact Rating:16A 250VAC/24VDC
Output Contact:1SPDT
Current Rating:16A
Contact Load:Low Power
Theory:Time Relay
Usage:General Purpose
Power Source:AC/DC
is_customized:Yes
Protect Feature:Sealed
Function:Delay on, Delay off, Interval, Cycle, Single Shot, Latching, Pulse
Rated Frequency:50/60Hz
Time Range:0.1s-10days (10ranges)
Certificate:CE CB
Guarantee:18months
MOQ:1PCS
