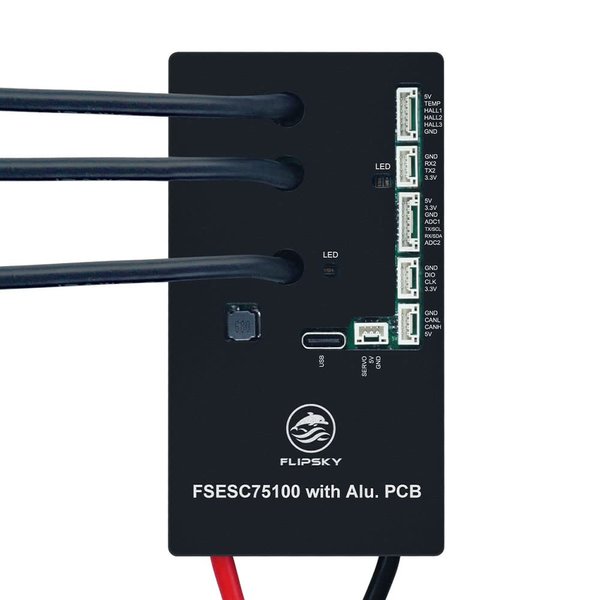

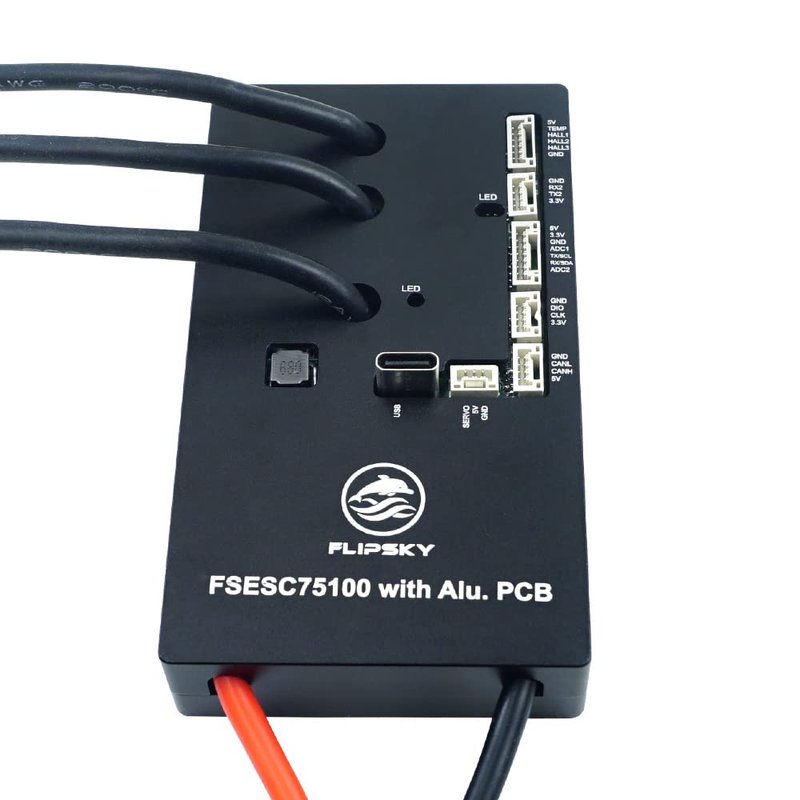

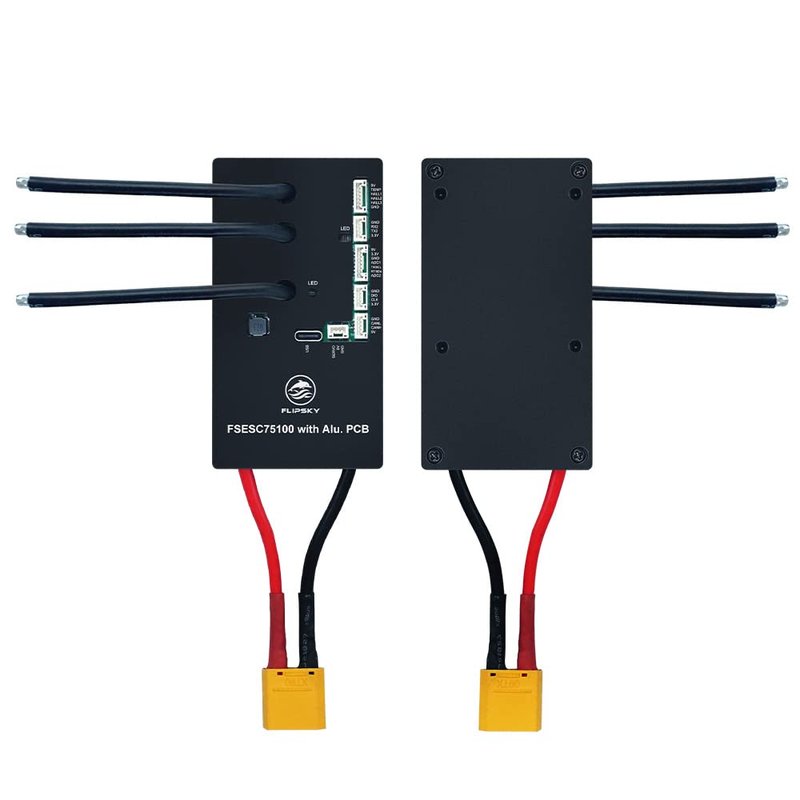

FLIPSKY 75100 FOC 75V 100A Single ESC with Aluminum PCB for Electric Skateboard/Scooter/Ebike Speed Controller

Brand: FLIPSKY Sold By: Everymarket
$224.50 In Stock
Ships from US, Arrives in 10-17 business days
Item can be returned in its original condition for a full refund or replacement within 30 days of receipt.
Delivery:
30
June2025
-
09
July2025
delivery Delivery Guarantee arrow
check$5 Credit If Delayed
checkFull Refund If Item Is Damaged
check15-Day Full Refund If No Updates
check30-Day Full Refund If Not Delivered
FLIPSKY 75100 FOC 75V 100A Single ESC with Aluminum PCB for Electric Skateboard/Scooter/Ebike Speed Controller

FLIPSKY 75100 FOC 75V 100A Single ESC with Alum...

$224.50

Product Details
  • Support BLDC square wave mode control and FOC sine wave mode
  • Programmable:Based on VESC, programmable via vesc_tool with overheat and overcurrent protection.
  • Supported Sensors:ABI,HALL,AS5047,AS5048A
  • More powerful :Voltage:14-84V (4-20S) ,Max Current:120A,ERPM:150000 .Provide your electric skateboard with more powerful power and a more exciting modification experience.
  • Firmware: latest (firmware update supported). Please be careful to limit the Absolute Maximum Current below 250A.
  • Top Service: If there are any question or need help , just feel free contact us , we will always here help you out within 24 hours.

  • Color: Black
  • Manufacturer: Flipsky
  • Model Number: 75100 Aluminum PCB
  • Package Quantity: 1
  • Part Number: 75100 Aluminum PCB
  • Style: Electric Skateboard/Scooter/Ebike Speed Controller

Warm tips:It is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.

Please be careful to limit the Absolute Maximum Current below 250A,setting page

Specs:

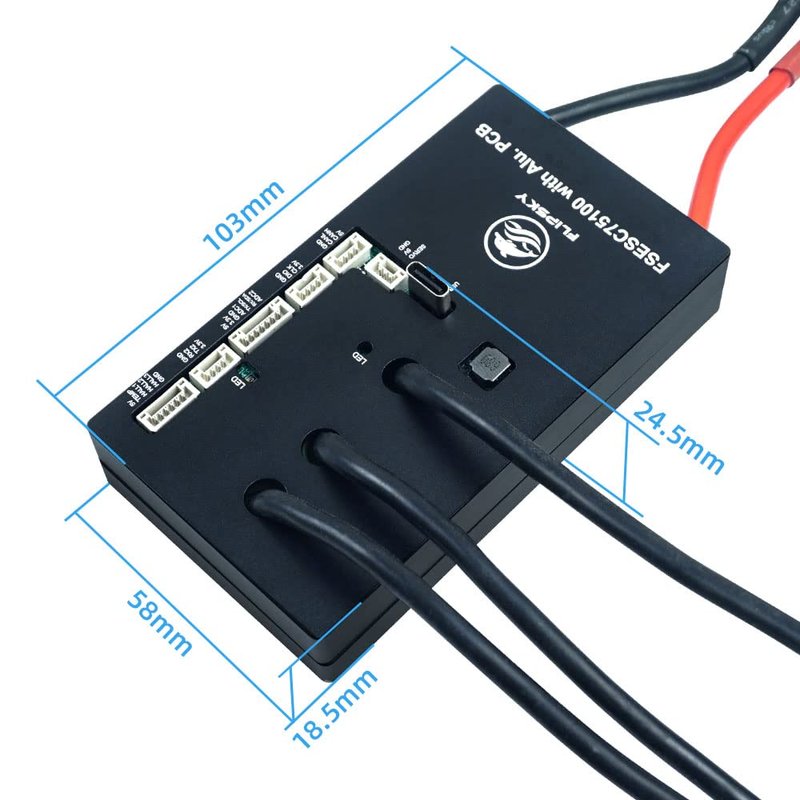

  • Size:L103mm*W58mm*H18.5mm+5.9mm USB TYPE
  • Voltage:14-84V (4-20S)
  • Current:100A Continuous,burst 120A
  • BEC:5V@1.5A
  • Support BLDC square wave mode control and FOC sine wave mode
  • Firmware: latest (firmware update supported)
  • ERPM:150000
  • Control Interface Ports:USB,CAN,UART
  • Supported Sensors:ABI,HALL,AS5047,AS5048A
  • Input Set Support:PPM,ADC,NRF,UART
  • Wire Size: 12AWG
  • Programmable: Yes
  • Regenerative Capacity: Yes

Warm tips:

Phase filering is not available for Flipsky ESC75100 and 75200!

Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
