FLASH HOBBY D3548EVO 1150KV 760KV 900kv RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter (760kv)
- D3548EVO-760kv Max watt 353.6W,70A ESC and APC13*6.5 (3S) propellers are recommended.
- Featuring 14P12N 48H Level Magnet High Torque Motor Design ,Precision Balanced Rotor Test
- CNC machined 6061 T6 Aluminum Bell and Imported(NSK/NMB) Bearing, extended motor life
- High Temperature Resistant Copper Wire Winding

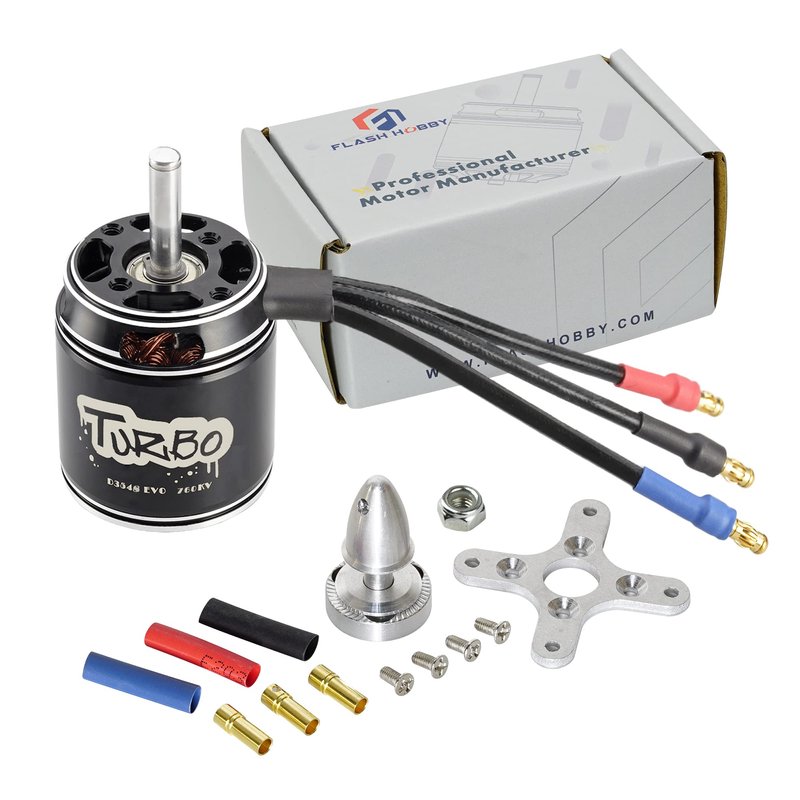

- Packing content:1pcs*D3548EVO-760kv motor ,4pcs* M3*6MM Flat Wafer Head Screw, 1pcs* Propeller Nut , 1* Adapter, 3pcs*3.5MM banana female plug， 3pcs* heat shrink tube
- Manufacturer: FLASH HOBBY
- Model Number: D3548EVO
- Part Number: D3548EVO
- Size: 760kv
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

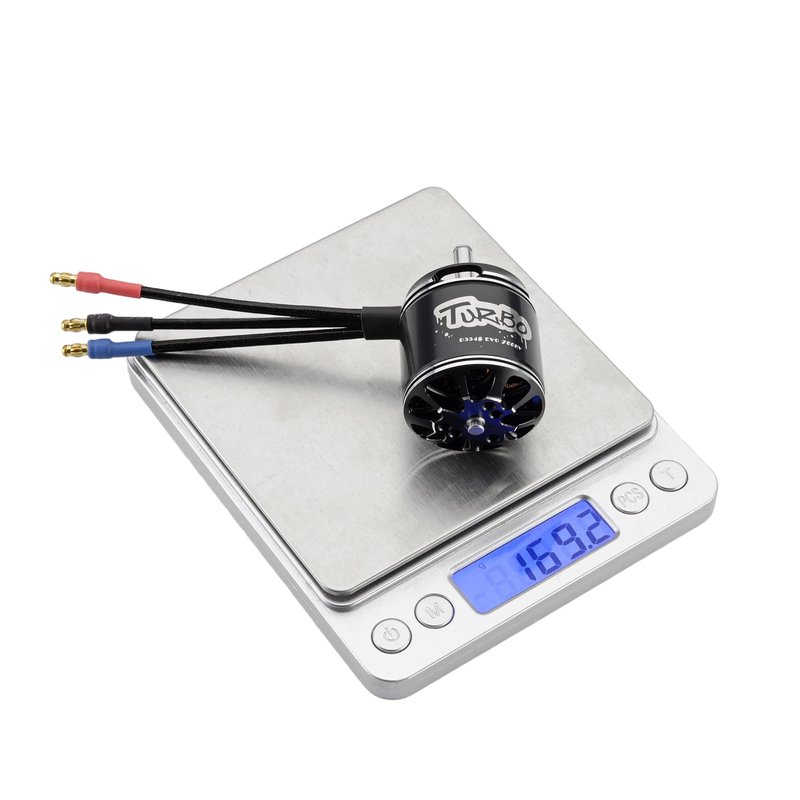

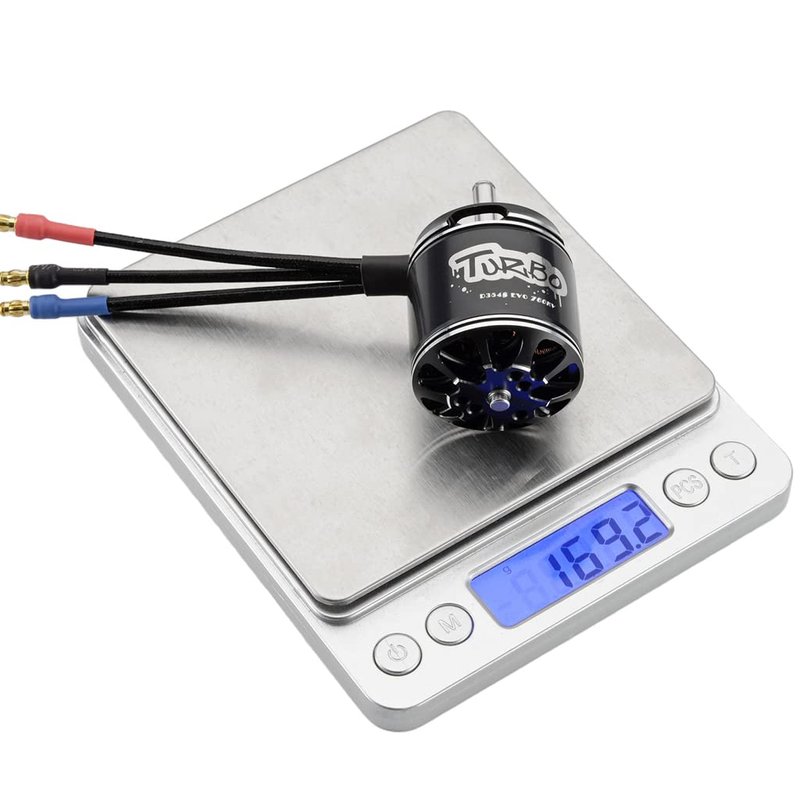

Weight: 170g(Including wires)
Motor Size: 35.3 x48mm
Shaft Size: 5.0*67.5mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
KV Value: 790KV, 900KV,1150KV
Working Temperature Range：-0℃~+80℃
Control Method：Use ESC And Adjust PWM signal For Control，PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
KV: 760KV
Max watts: 353.6W
Max Current: 29.44A
No Load current: 1.54A/10V
Resistance: 34.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 13 inch prop
KV: 900KV
Max watts: 1324.1W
Max Current: 55.8A
No Load current: 2.66A/10V
Resistance: 24.0mΩ
Battery: 3-6S Lipo
Suggested Prop: 9 inch prop
KV: 1150KV
Max watts: 623.8W
Max Current: 54.62A
No Load current: 3.34A/10V
Resistance: 19.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
