FEETECH 9g Servo Motor FT90M 6V 2.3kg.cm Digital Servo Steering Full Copper Gear Iron Core, Control Angle 280° for Scx24,1/8 1/10 RC Cars,TRAXXS x4, Baja, RC4WD, GTR and More

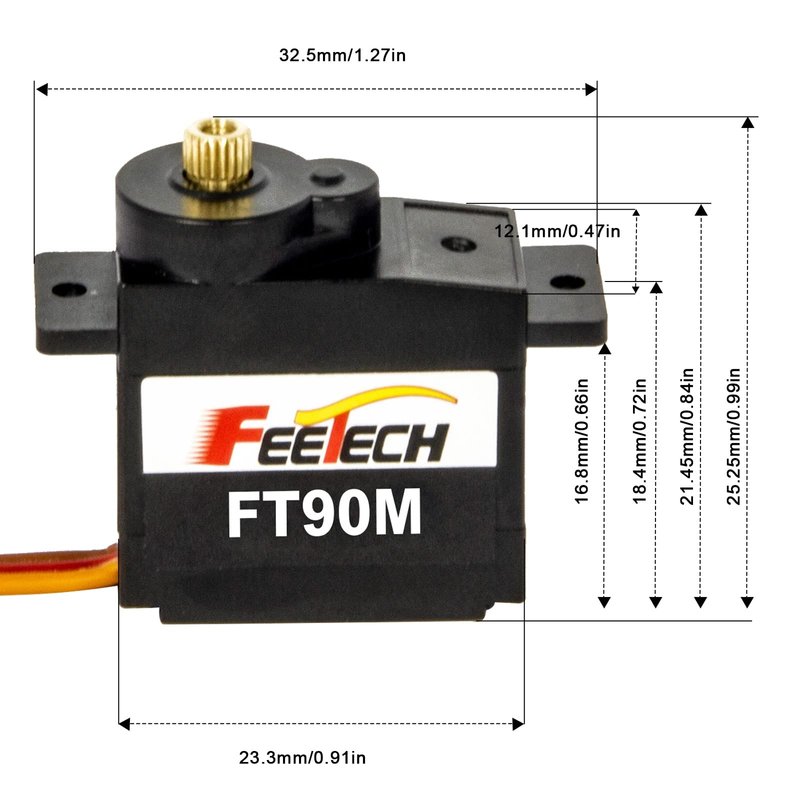

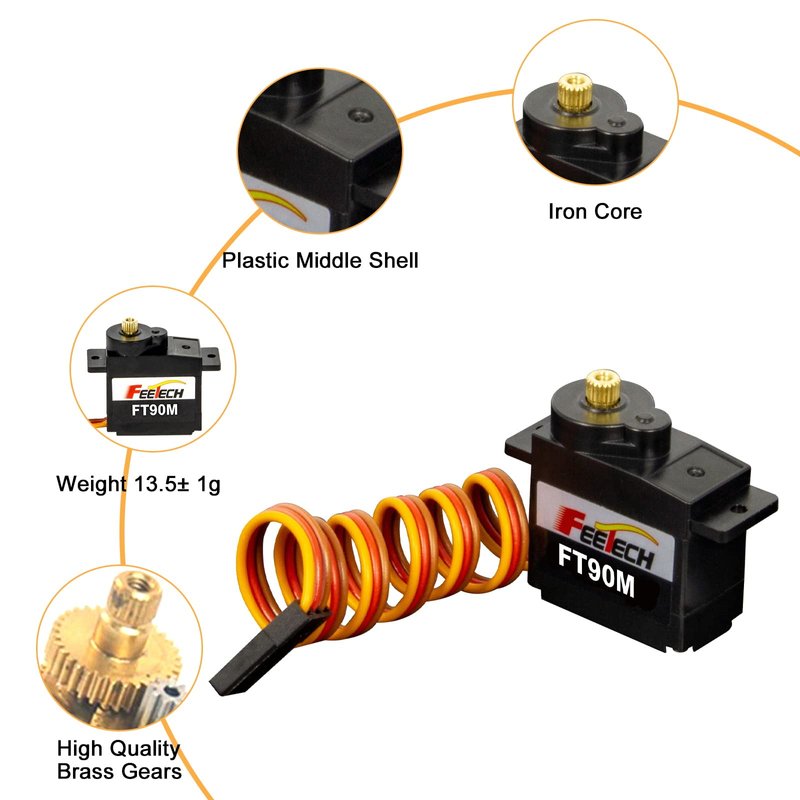

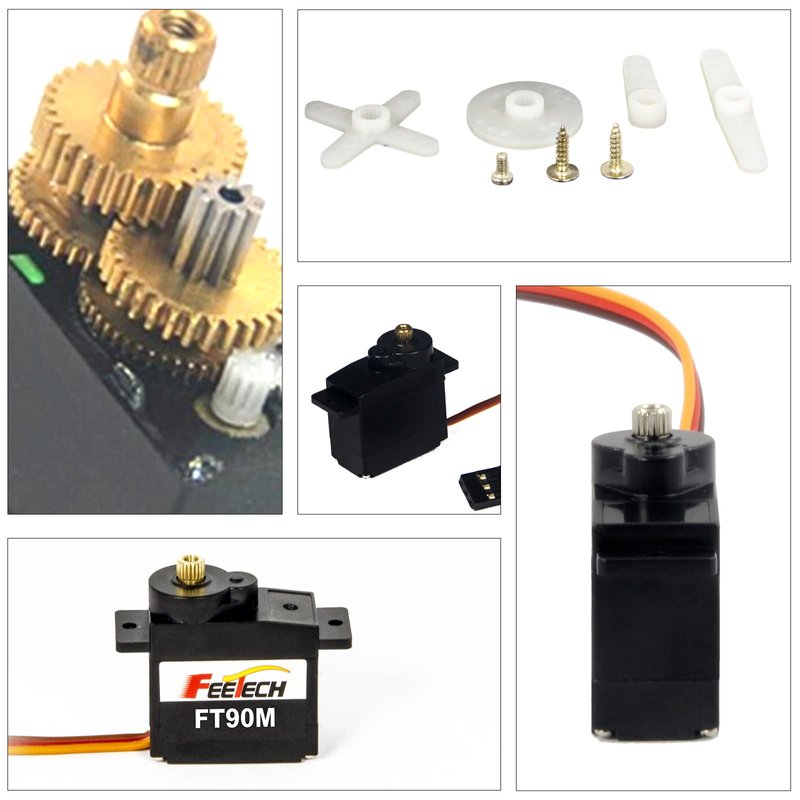

- BRAND COPPER GEAR SERVO MOTORS : upgrad studry copper gear, strong metal core shaft, ball bearing,plastic shell. Light weight and suitable size: 23.3X12.1X25.25mm/0.91X0.47X0.99in.Weight:13.5g/pcs.

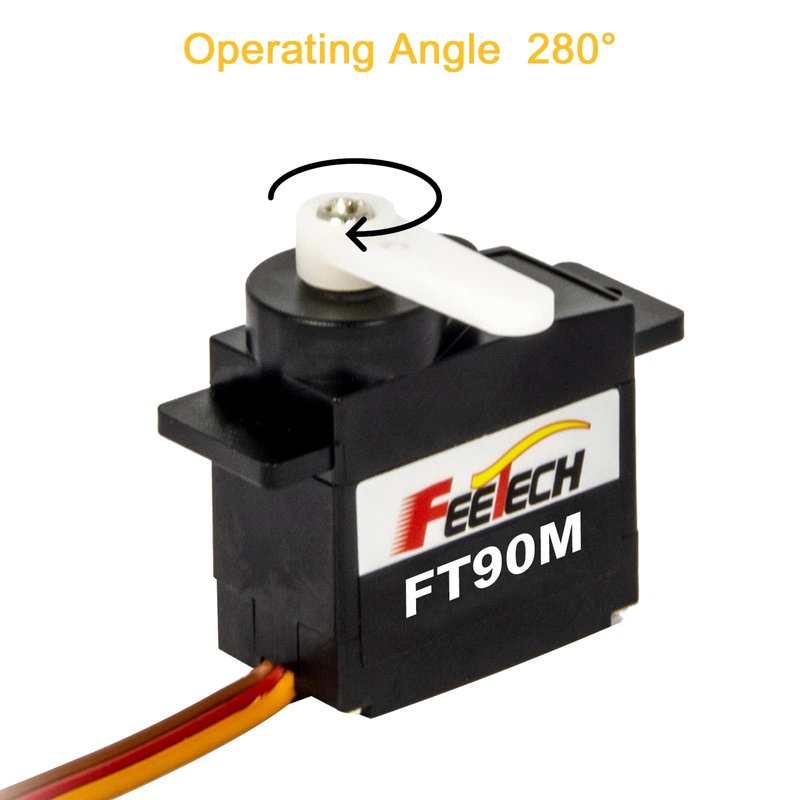

- HIGH PRECISE SERVO: Rotation angle is 280 degrees (at 1000→2000μsec), and the dead band width is ≤4 μsec, compatible with Arduino and Raspberry Pi. Work great with no stuck problem.
- STRONG STALL TORGUE MOTOR:(4.8V) 26.3oz/in(1.89kg/cm), (6V) 31.99oz/in(2.3kg/cm) The working voltage is 4.8V-6V. Low noise. Keep stable.
- WIDE COMPATIBLE MOTOR: Come with pulse-controlled servo system, compatible with 1/8 and 1/10 scale remote control robots, trucks, off-road vehicles, robotic arms and so on.

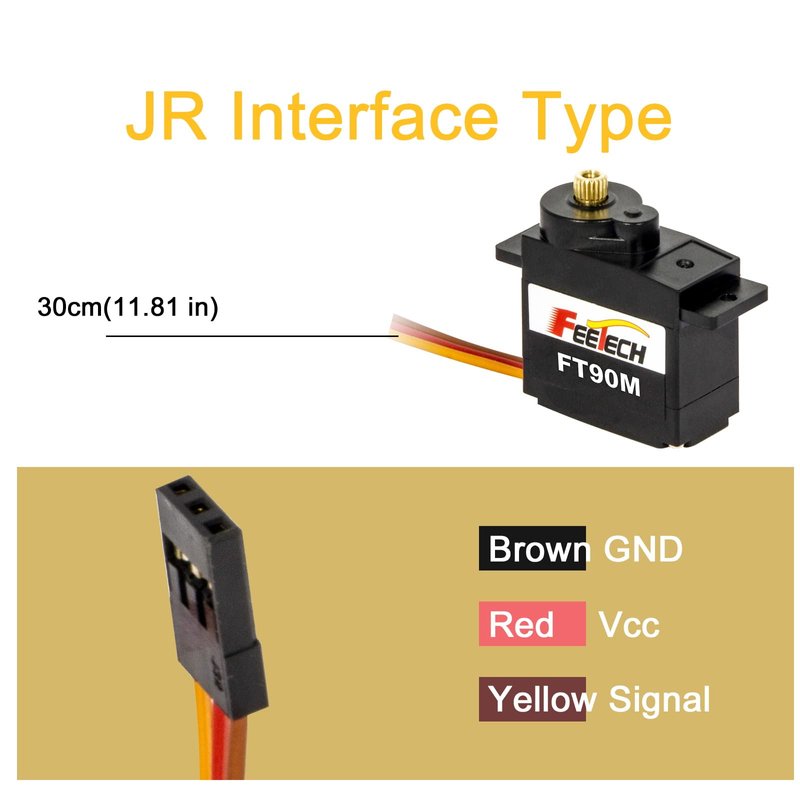

- INTERFACE TYPE: Compatible with JR, the cable is made of PVC material, the length of the wire is 25cm.
- Manufacturer: FEETECH
- Model Number: FXDL-90M0-C001
- Part Number: FXDL-90M0-C001
- Style: 280°-90M0
Control Specification · Command Signal: Pulse width modification · Control System Type: Digital comparator · Operating Travel: 280°Continuous rotation(at 1000→2000μsec)/ Neutral Position: 1500 μsec/ Dead Band Width: ≤4 μsec · Rotating Direction: Counterclockwise (at 1500→2000 μsec)/ Pulse Width Range: 1000→2000 μsec · Electronic Protection: Stall 3sec/ Temperature Protection: >70°C Mechanical Specification · Equipped with PA+Fiberglass shell, POM gear, iron core · 180-degree high-speed operation · JR connector, PVC material, length 30cm · Weight 41.5±1g/ Horn Type 25T/5.9mm · Core motor Electrical Specification · No-load current: 120mA(4.8V), 150mA(6V) · No Load Speed: (4.8V)0.125sec/60°(80RPM), (6V)0.1sec/60°(100RPM) · Stall Torque (at locked): (4.8V) 26.3oz/in(1.89kg/cm), (6V) 31.99oz/in(2.3kg/cm) · Stall Current (at locked): 800mA(4.8V), 1000mA(6V)/ Rated Torgue: 0.6kg/cm(4.8V), 0.7kg/cm(6V) Rated Current: 250mA(4.8V), 350mA(6V)/ Kt constant: 2.3kg.cm/A Control Specification · Command Signal: Pulse width modification · Control System Type: Digital comparator · Operating Travel: 280°Continuous rotation(at 1000→2000μsec)/ Neutral Position: 1500 μsec/ Dead Band Width: ≤4 μsec · Rotating Direction: Counterclockwise (at 1500→2000 μsec)/ Pulse Width Range: 1000→2000 μsec · Electronic Protection: Stall 3sec/ Temperature Protection: >70°C
