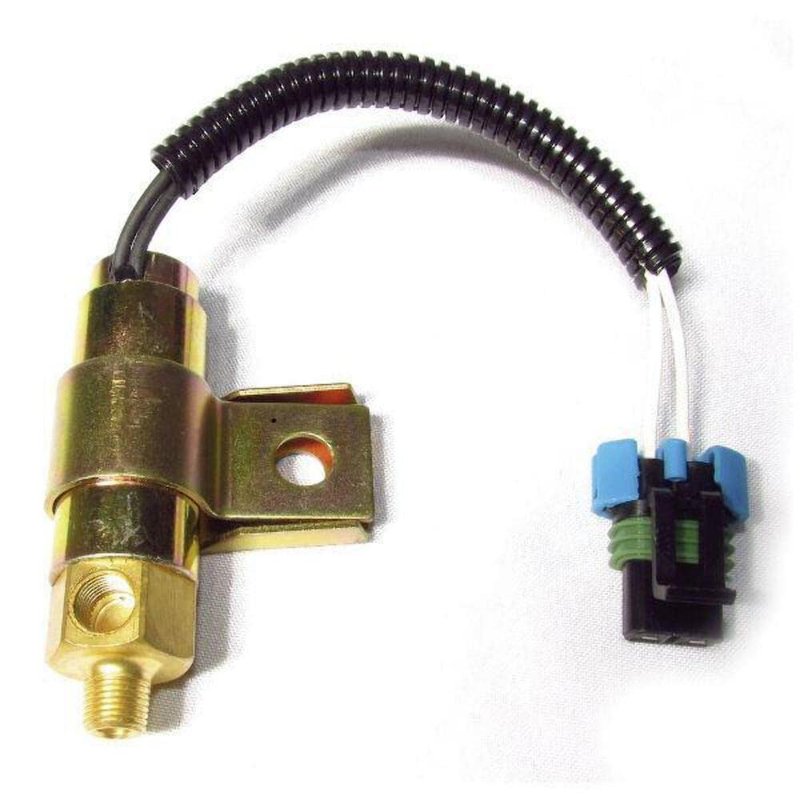

Fan Clutch High Temperature Solenoid Valve For Freightliner | Replace A06-26631-000
- Very important: All connectors Included. Be careful when buying universals solenoids valves without diode and connectors
- This unit comes incorporated with a Diode to protect the current to flow in one direction
- Fully tested IN the USA
- It complies with OEM quality performance
- Direct Replaces a one-step installation. Even though Professional installations is recommended
- Manufacturer: Fortpro
- Package Quantity: 1
- Part Number: F224904
What is a Fan Clutch and why you need it?
A fan clutch is a thermostatic engine cooling fan that can freewheel at low temperatures when cooling is not needed, allowing the engine to warm up faster, relieving the unnecessary load on the engine. As temperatures increase, the clutch engages so that the fan is driven by engine power and moves air to cool the engine.
Our Freightliner Fan Clutch Solenoid ApplicationOE-Genuine replacement solenoid valves with connectors meeting OEM specifications and avoid hassle during replacement.
Specifications:
- Normally Open Inlet Port Size: Female 1/8-27 NPTF
- Normally Closed Inlet Port Size: Female 1/8-27 NPTF
- Outlet Port Size: Male 1/8-27 NPTF
- Voltage: 12 Volts
- Orifice Size Minimum: .047" minimum
- Flow Rate @ 120 psi: 2.77 Standard Cubic Feet/min
- Diode Installed: No
- Wire Length: 6"
- Replace: A06-26631-000
How does fan clutch solenoids work?When the engine is cool or even at normal operating temperature, the fan clutch partially disengages the engine's mechanically driven radiator cooling fan, generally located at the front of the water pump and driven by a belt and pulley connected to the engine's crankshaft. This saves power since the engine does not have to fully drive the fan.
However, if engine temperature rises above the clutch's engagement temperature setting, the fan becomes fully engaged, thus drawing a higher volume of ambient air through the vehicle's radiator, which in turn serves to maintain or lower the engine coolant temperature to an acceptable level.
Mechanical fans are most
