Electric Fan Wiring Kit Electric Fan Relay Kit with Thermostat Radiator Fan Sensor Switch Electric Cooling Fan Thermostat Kit Temperature Sensor Switch 185 On 175 Off, 40 AMP Waterproof Relay Kit
- Easy to follow wiring diagram simplify wiring your electric fans. RED to 12VDC positive battery terminal, COFFEE to Fan Positive, BLACK to Ignition, GREY to Sending Unit per wiring diagram. Direct replacement part fits 10, 12, 14, and 16 inch cooling fans. For dual fan wiring, you would need two of this relay kit
- Temperature switch turns on fan approximately at 185 Degrees and Off at 175 Degrees. The temp sensor has a 3/8 inch pipe thread, and a 1/2 inch adapter included
- This electric cooling fan thermostat kit comes with everything you need, includes 40A relay, wiring harness, thermostat switch, 3/8 inch to 1/2 inch adapter, inline fuse holder, 20 amp fuse, 1 spade connector for the temp sensor, 4 ring terminals and 2 wire connectors
- The thermostat supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed. The thermostat MUST be grounded through the threads to the engine in order for it to work, and the engine MUST be grounded
- If you intend to mount high-profile fans, you could crimp or solder bigger wires to it. The 14AWG wires (15 amps) are not bigger enough for high amps draw
- Manufacturer: MAXCOOLING
- Part Number: JDQ1DG
40A electric fan relay kit with color-coded wires for easy installation (Wiring diagram included in package).
Direct replacement part, fits 10, 12, 14, and 16 inch fans including dual fans. Suggest using one separate relay wiring kit for each fan.

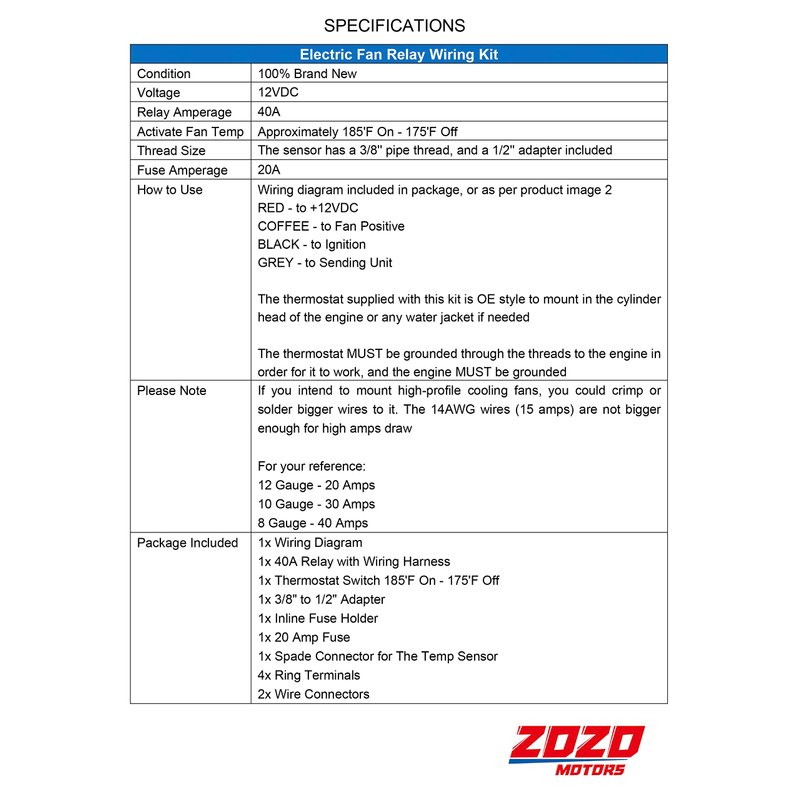

Specifications:
100% Brand New
Voltage: 12V DC
Approximately 185'F On - 175'F Off relay wiring kits

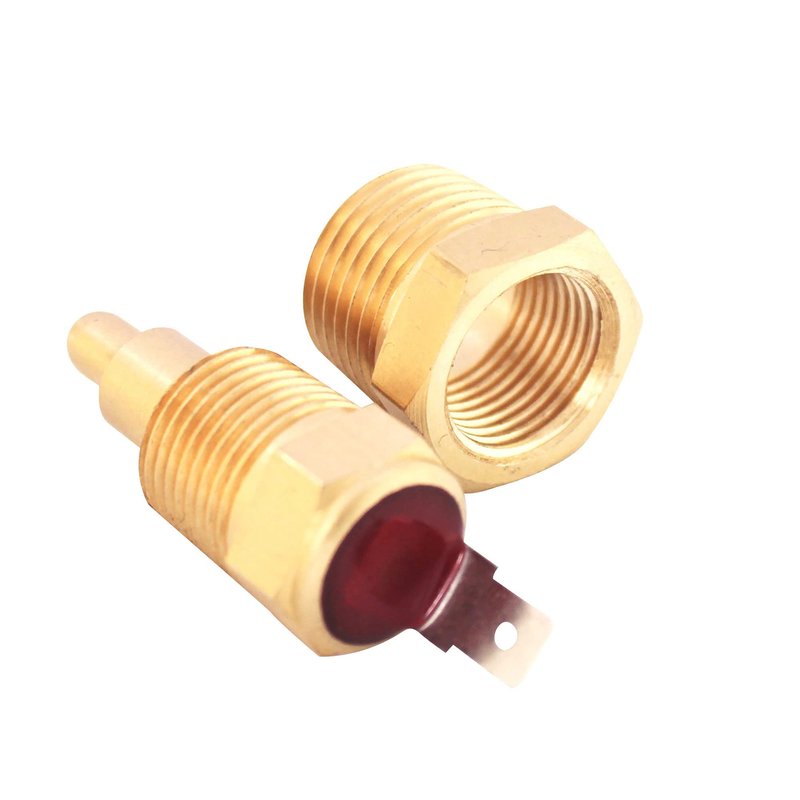

Thread Size: the sensor has a 3/8'' pipe thread, and a 1/2'' adapter included
How to use:
Connect the color-coded wires per the diagram (product image 2) and notes below:
RED - to +12VDC
COFFEE - to Fan Positive
BLACK - to Ignition
GREY - to Sending Unit
The thermostat supplied with this kit is OE style to mount in the cylinder head of the engine or any water jacket if needed.
Do not use thread tape on the sensor it may cause poor electrical contact or incorrect temperature readings.
Please note:
If you intend to mount high-profile cooling fans, you could crimp or solder bigger wires to it. The 14AWG wires (15 amps) are not bigger enough for high amps draw
12 Gauge - 20 Amps
10 Gauge - 30 Amps
8 Gauge - 40 Amps

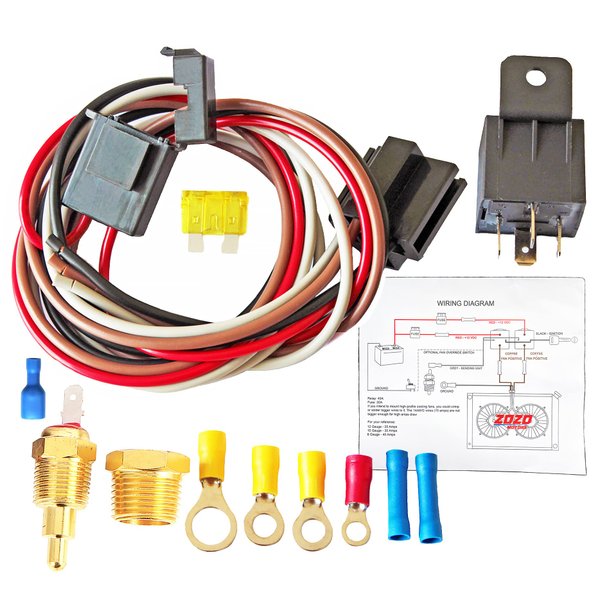

Package included:
1x Wiring Diagram

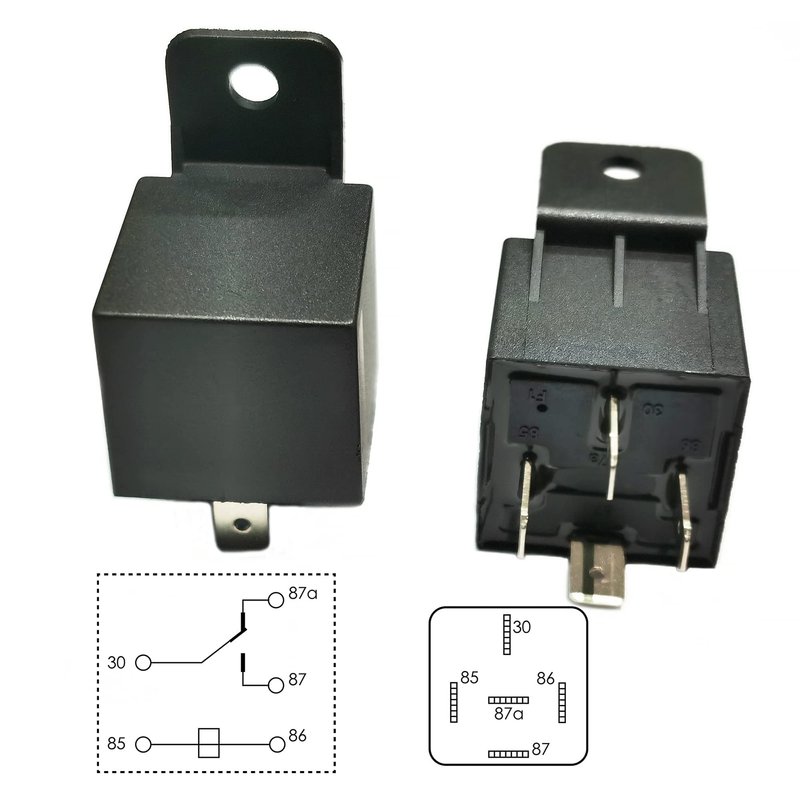

1x 40A Relay with Wiring Harness

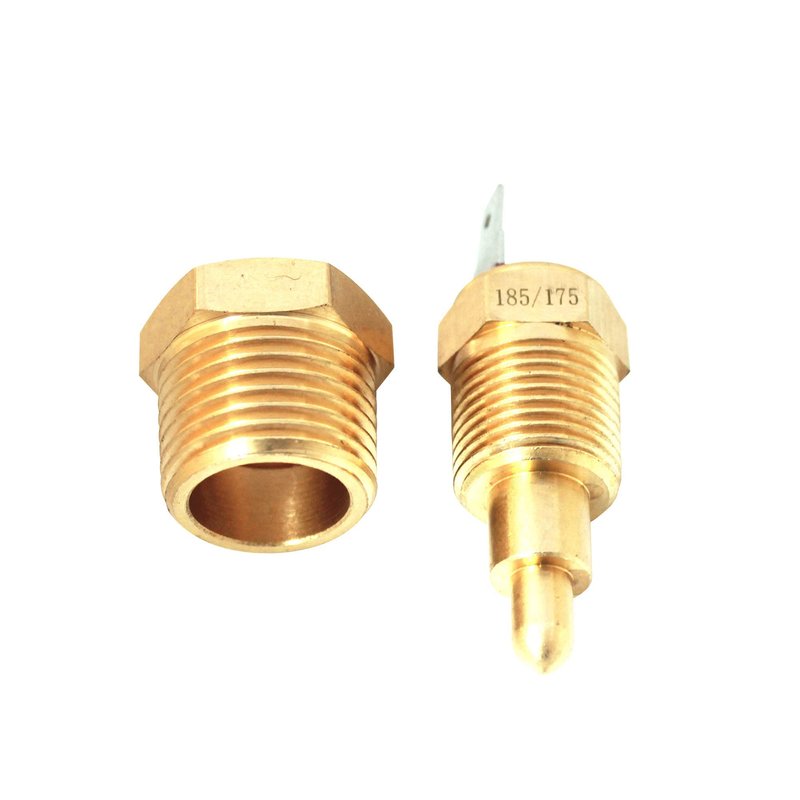

1x 185'F On - 175'F Off Temperature Switch
1x 3/8" Thread-In Probe
1x 3/8" to 1/2" Adapter
1x Inline Fuse Holder
1x 20 amp Fuse

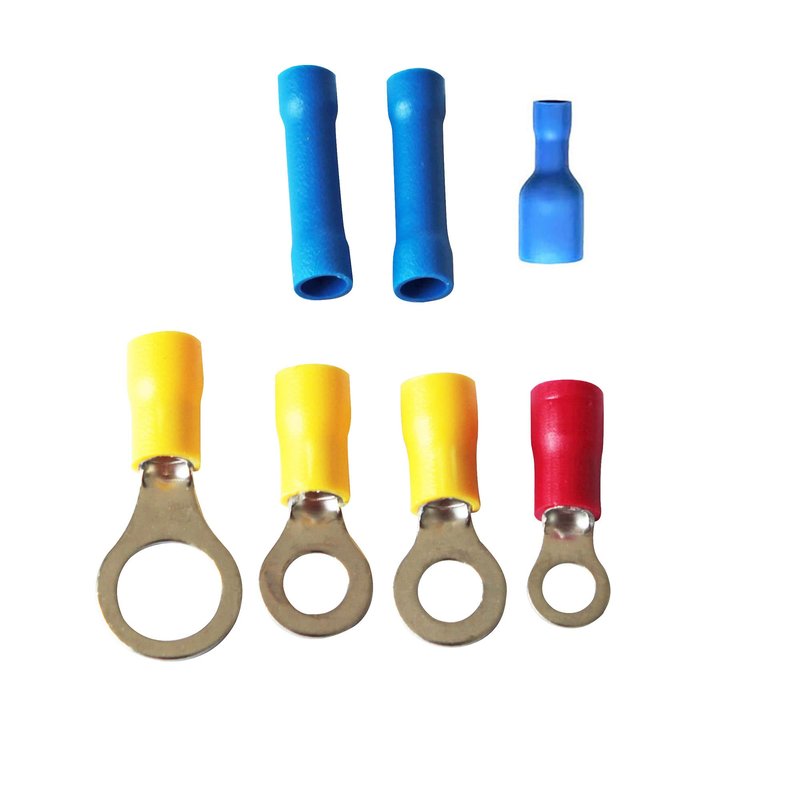

4 Ring Terminals
2 Fan Pigtail Connectors
