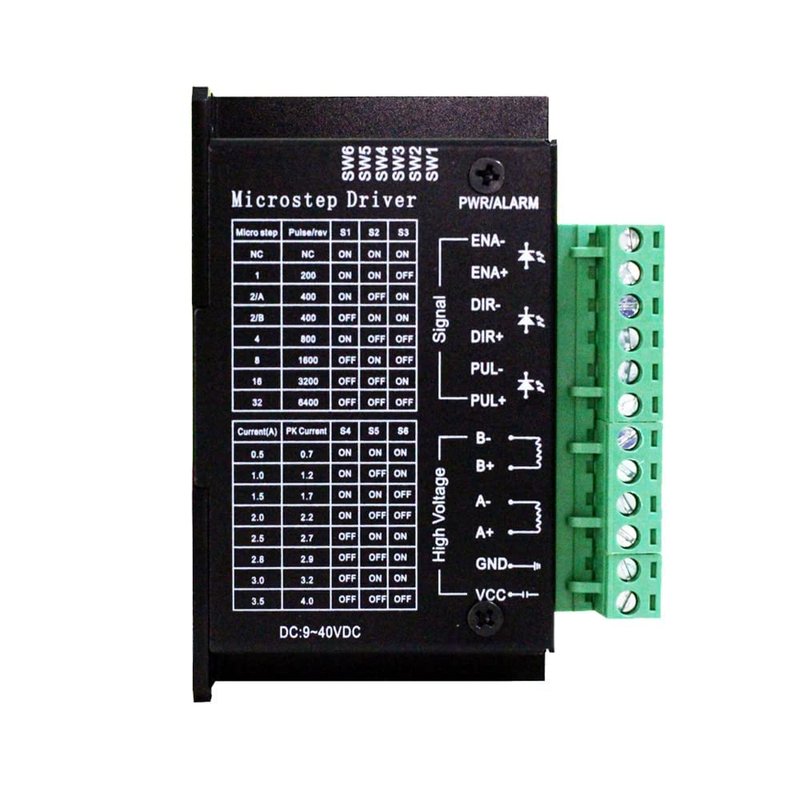

EASON Stepper Motor Driver TB6600 4A DC9-42V 32 Subdivision for Nema 17, 23 Series Stepper Motor CNC Controller Single Axis Hybrid MicroStepping
- This driver is an upgraded version of TB6600 and with plastic cover.
- The subdivision is increased to 32 subdivision, which is suitable for high subdivision.
- Suitable for drive Two-phase stepping motor dynamic voltage 9V to 42V, the maximum drive current is less than 4A.
- Suitable for step motor:NEMA(17,23) 42, 57 type 2 phase 4 phase (4 / 6 / 8 wires)
- Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.
- Color: Black
- Manufacturer: Yisheng Technology
WORKING Specifications
Operating voltage: 9V-42V
Direction control input voltage: 5-24V
The input current: 1-4A
Output Current:
OUT= 4.0 A (absolute maximum ratings, peak)
OUT= 3.5 A (operating range, maximal value)
With auto standby function (low motor heat in standby)

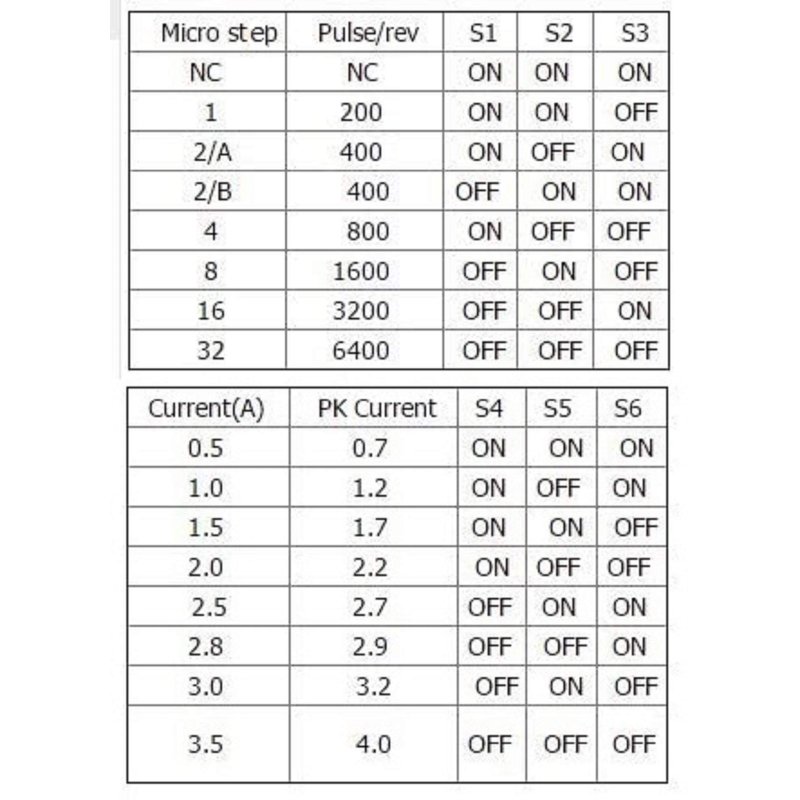

Selectable microstepping resolution (1/1, 1/2, 1/4, 1/8, 1/16 and 1/32 step)
LED indicator for Power ON / Alarm (error)
Operating Temperature: -10 to 45 ℃
Storage temperature: -40 ℃ to 70 ℃
FEATURES
The TB6600 is a two-phase bipolar stepping motor driver using a PWM chopper.The clock in decoder is built in. Fabricated with the BiCD process, rating is 30Vmax / 4.0 A .
: PWM constant current drive single-chip bipolar sinusoidal micro-step stepping motor driver

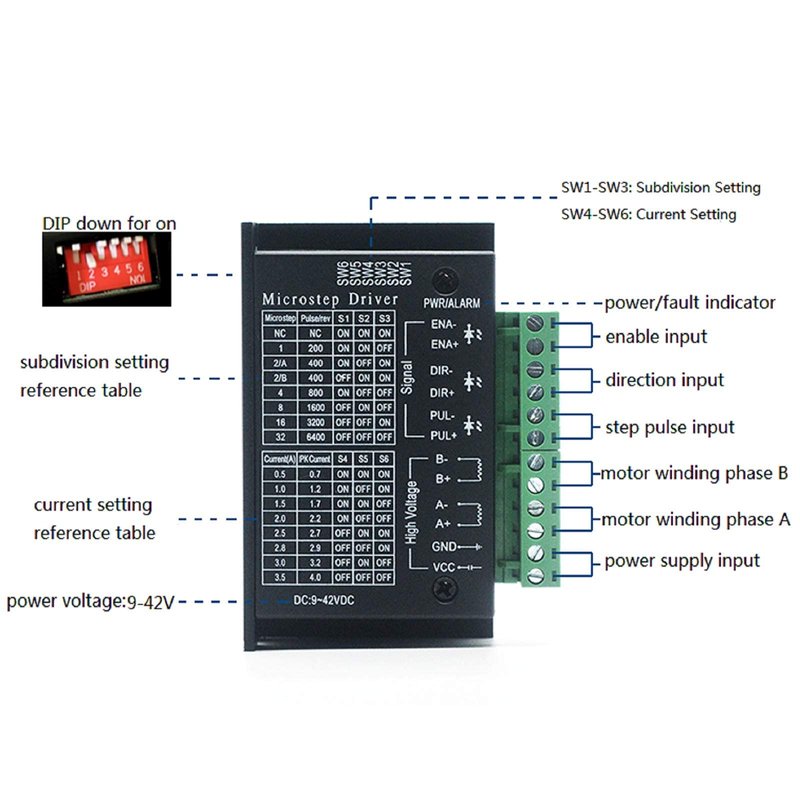

Selectable excitation mode (1/1, 1/2, 1/4, 1/8, 1/16 and 1/32 step)
Single power supply
Average current control (in 8 steps from 0.5A to 3.5A), two-phase sinusoidal current drive output
DC 9 ~ 42V Single power supply operation
Optically isolated inputs
Over voltage, under-voltage, over-current, and short-circuit protection
High starting speed
High-speed torque

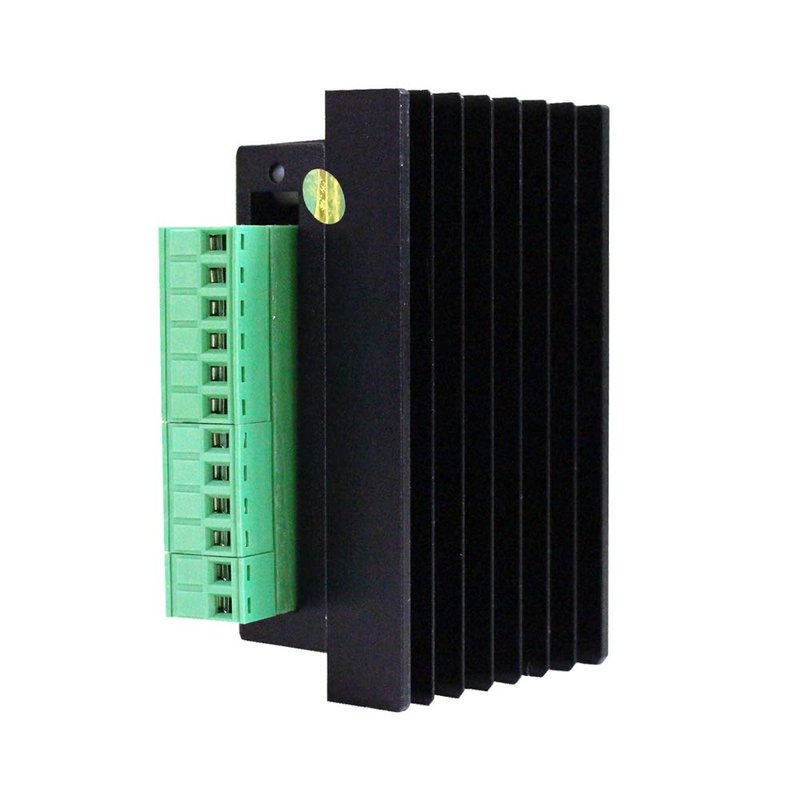

Black Rugged All metalic Enclosure and Large Black Aluminium Heat Sink
: Mounting Holes on Heat Sink for Mounting the Drive in Machine Panels
: High efficiency motor current control mechanism ADMD (Advanced Dynamic Mixed Decay)

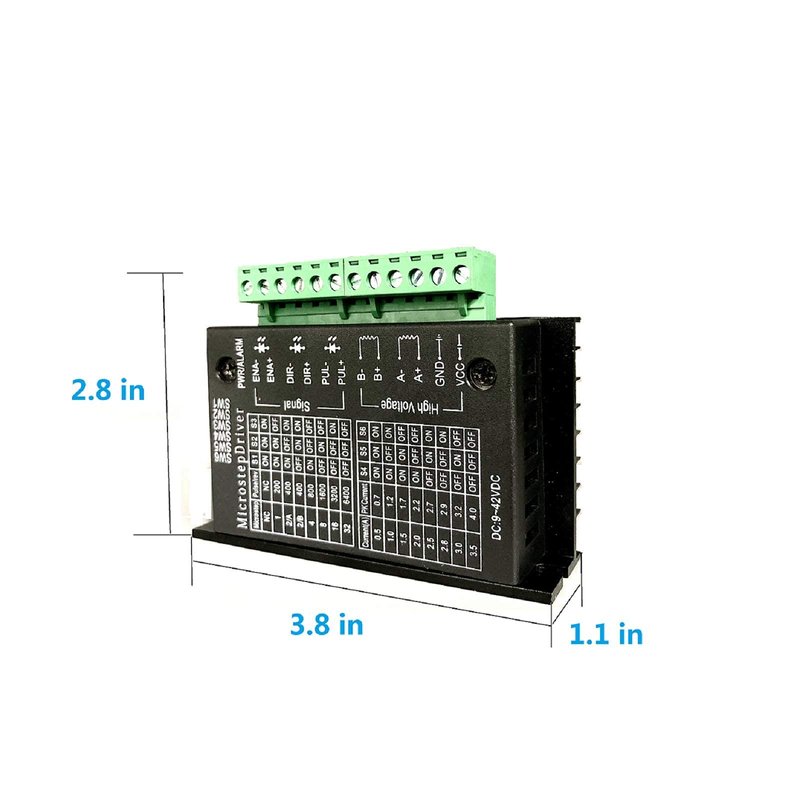

: Weight 122g
