DZS Elec Temperature Controller -50 to 110 Celsius (-58 to 230 F) DC 12V Programmable Heating/Cooling Thermostat Control Switch Module NTC Waterproof Sensor Probe Dual Color LED Display Monitor
- Temperature controller monitoring instrument, show the measured temperature (red) and set temperature (blue) at the same time. Can be used for cooling/heating control. Operating Voltage: DC12V 200mA
- Measurement Range: -50 to 110 Celsius (-58 to 230 F), the C/F button allows you to switch between Celsius and Fahrenheit temperatures
- Clear Working State: the relay is closed when the light is on, and the relay is disconnected when the light is off. It has high temperature protection.
- With a waterproof NTC (10K 0.5%) temperature sensor probe, rogrammable heating/cooling mode, delay start, high temperature alarm, Celsius/Fahrenheit mode, etc.

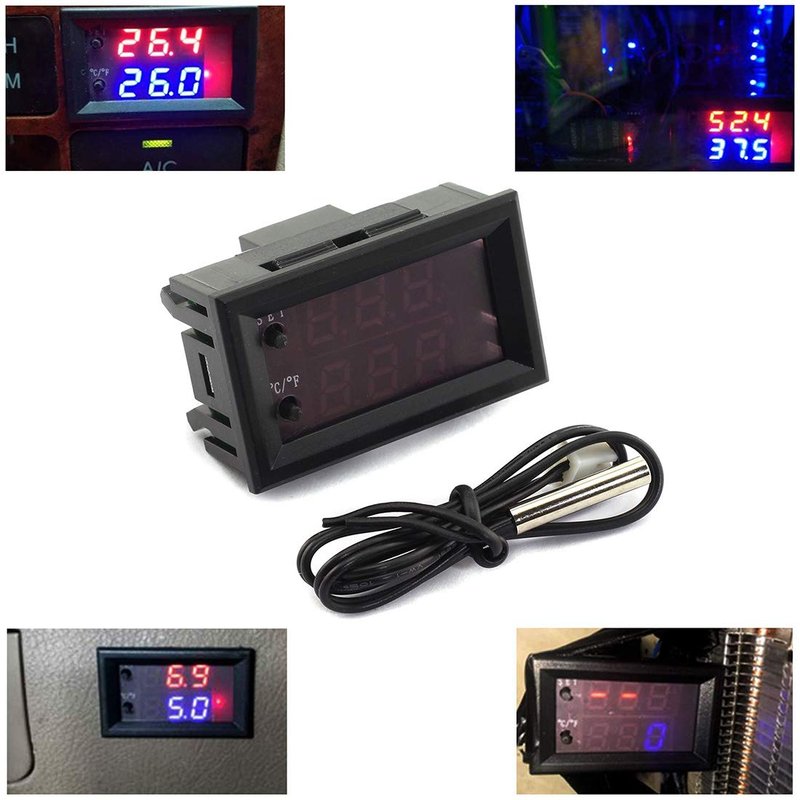

- Can be used for fish tank water temperature control, incubation field, equipment cabinet, air conditioning system, temperature control protection, control cabinet cooling system and other DIY temperature control systems.
- Model Number: TEMP-12V2LED
- Package Quantity: 1
- Part Number: TEMP-12V2LED
Product Description:

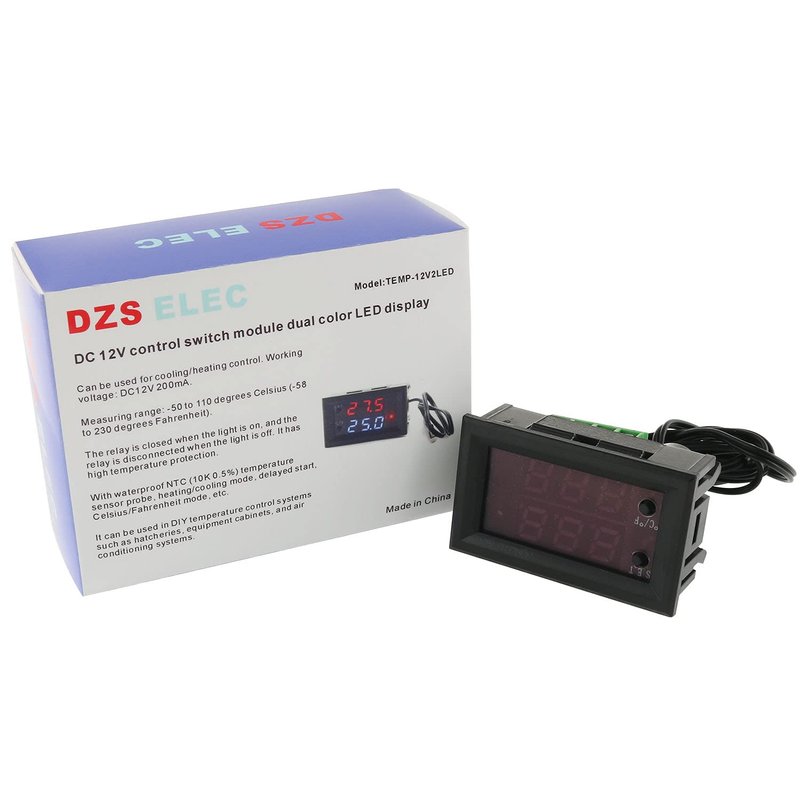

Product Name: Programmable Dual LED Display Temperature Controller
Operating Voltage: DC12V 200mA
Measurement Range: -50 to 110 Celsius (-58 to 230 F)
Elaboration Precision: +/-0.1 Celsius
Control Precision: 0.1 Celsius
Backlash Precision: 0.1 Celsius
Refresh Rate: 0.5s
High Temperature Protection: 0 to 60 Celsius (32 to 230 F)
Temperature Sensor Type: 10K 0.5% NTC
Operating Temperature: -10 to 60 Celsius (14 to 140 F)
Compatible Load: 5A / 15A 220VAC; 20A 14VDC
Power Consumption: Less than and equal to 35mA (Static), Less than and equal to 65mA (relay closure)

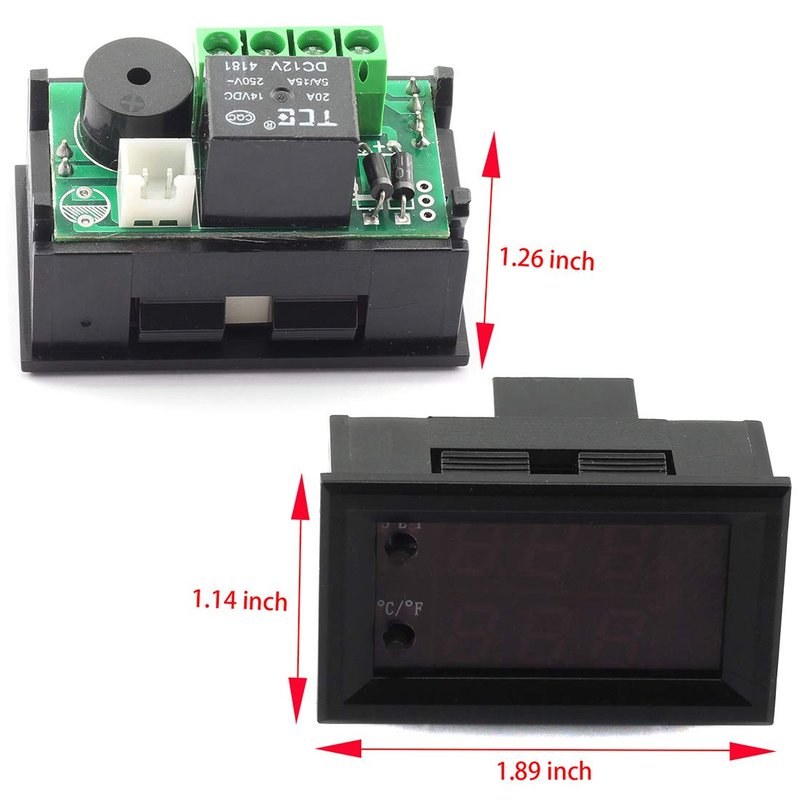

Module Size: 48x29x32mm / 1.89x1.14x1.26 inch (LxWxH)
Temperature Setting:
Press STC key and the LED will flash. Press STC (+) and C/F (-) key to reach the set temperature value, wait for 3s, and the module will automatically save the parameters and exit.
Indicator:
Lights on, relay closed; Lights out, relay disconnected.

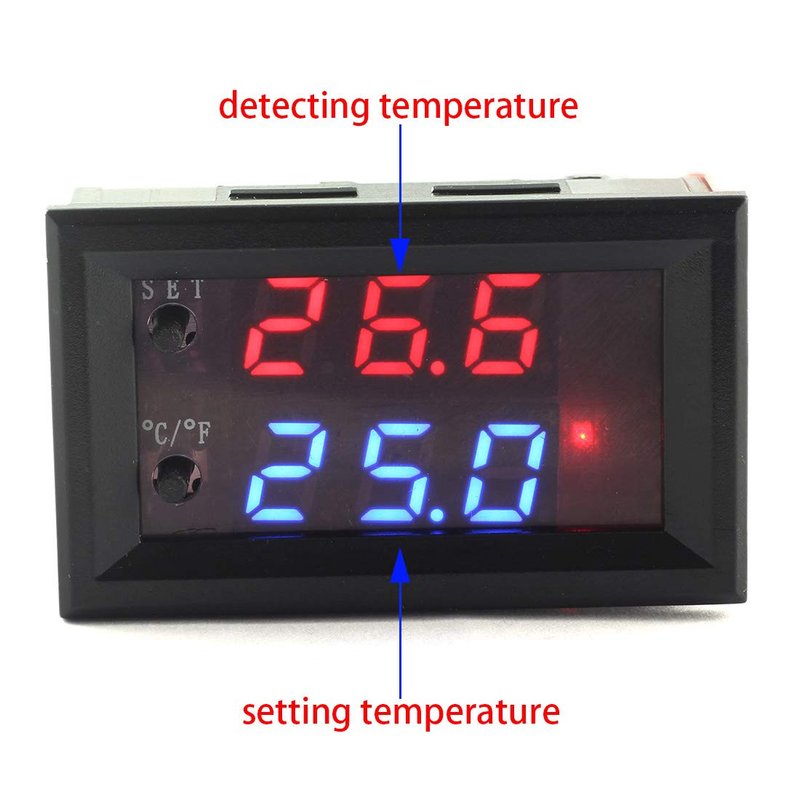

LED Display:
Red: Measuring Temperature; Blue: Setting Temperature
LL: Means the sensor is open
HH: Indicates that the temperature exceeds the measurement range of the module
--: Indicates that the module is under high temperature protection
Programmable Thermostat Introductions (Code, Explain, Setting range, Factory setting):
P0, Heating/Cooling, H/C, C
P1, Return difference, 0.1-30, 2
P2, Set limit maximum, +110, 110
P3, Set limit minimun, -50, -50
P4, Temperature correction, -15 - +15, 0
P5, Delay start, 0-10, 0
P6, High temperature alarm, -50 - +110, OFF
P7, Celsius/Fahrenheit, CS/FH, CS
P8, Factory reset, ON-OFF, OFF
Package Content:
1pc Temperature monitoring controller
1pc operating manual
