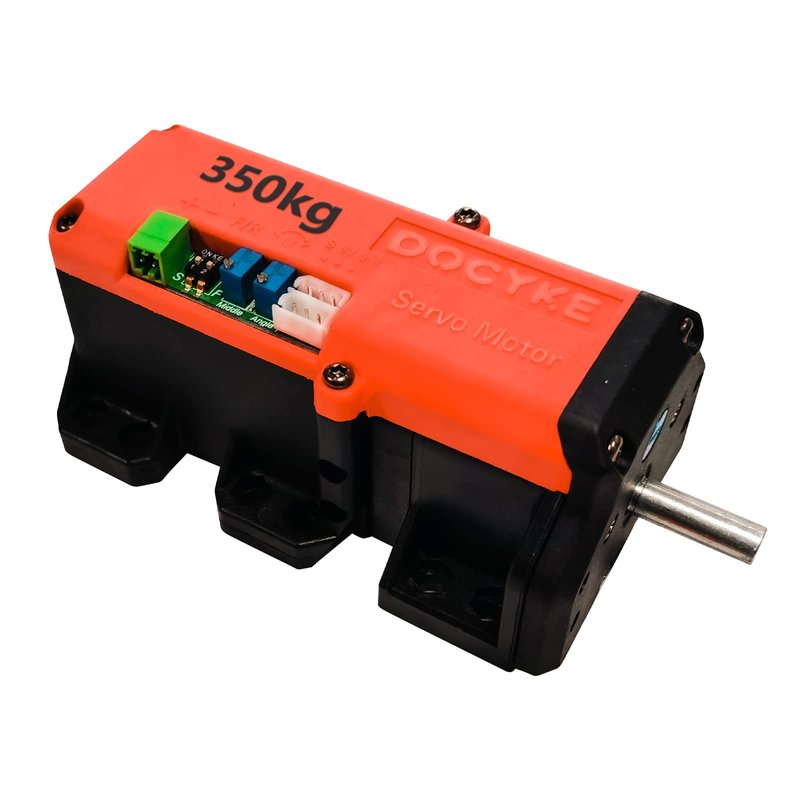

DOCYKE 350kg High Torque RC Servo, 2 in 1 Servo and Motor 16V~24V High Voltage Full Metal Gear Digital Servo（Control Angle 360°）

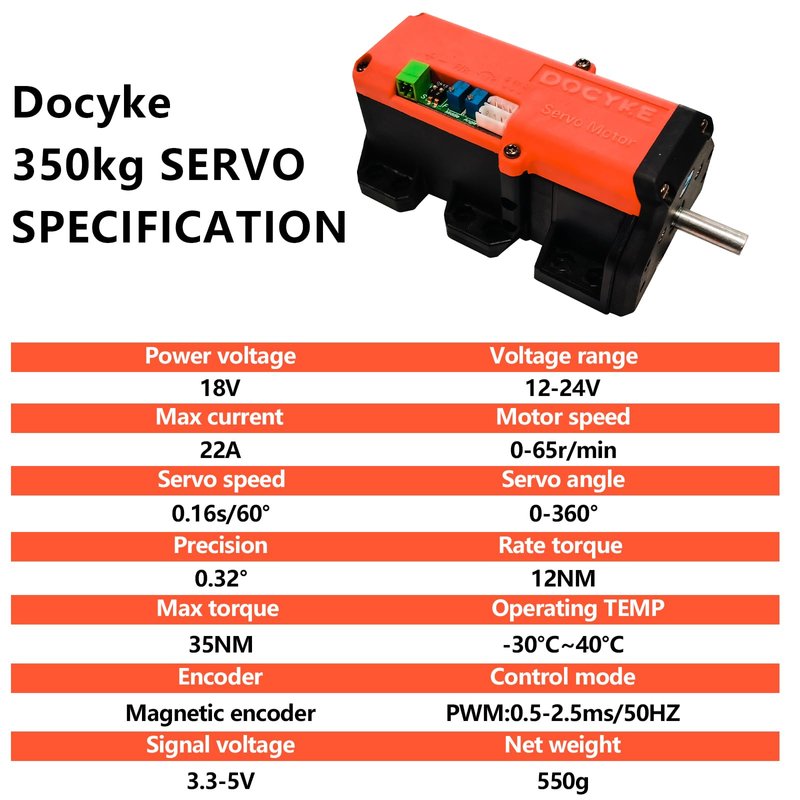

- High Torque Servo: 16V-24V (Rate 18V). Speed ( 18v): 0.16s/60°. Max Torque: 350kg.cm ; Rated torque: 150kg.cm ; Angle range: 0-360 ° ; Input signal: PWM: 50us ~ 2200us, 50-400Hz.
- High Quality Servo: Magnetic encoder feedback, high repeatability; High hardness steel planetary gear transmission, High durability; Overcurrent protect; jam protection; could double-shaft positioning: one is the driving shaft, one is the assistant shaft.

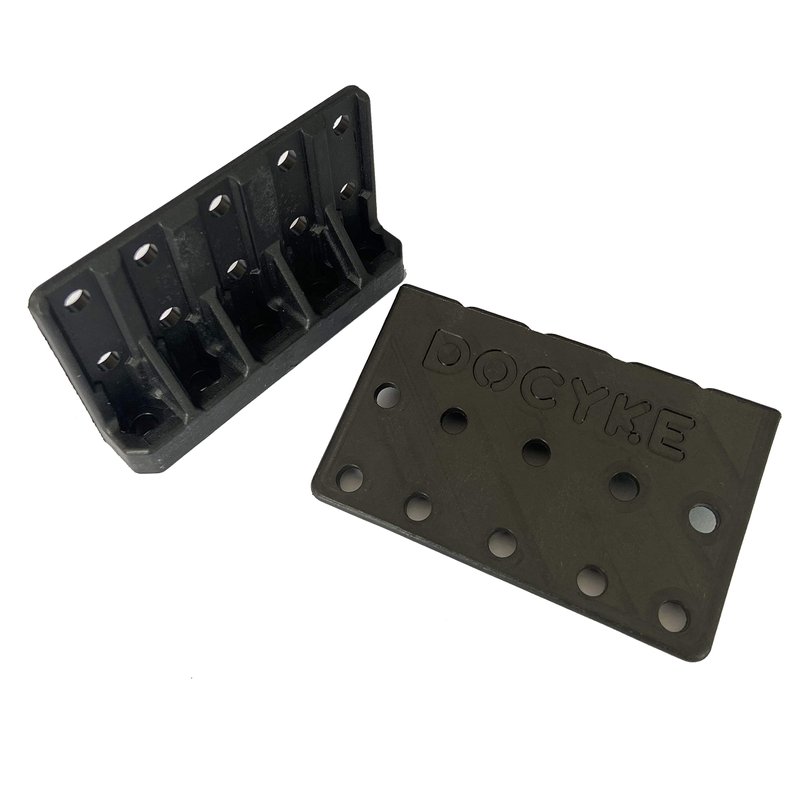

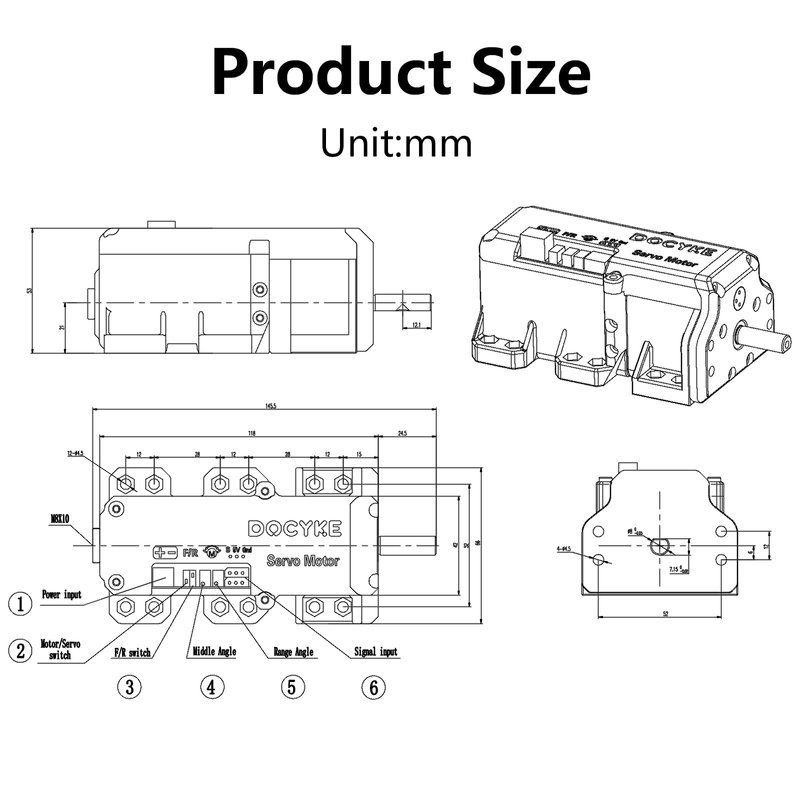

- Servo Size: L：143mm; W：66mm; H：58m. Weight:550g.Product included: 350kg Servo*1, Accessories: big Bracket *2,small Bracket *2,cable*1

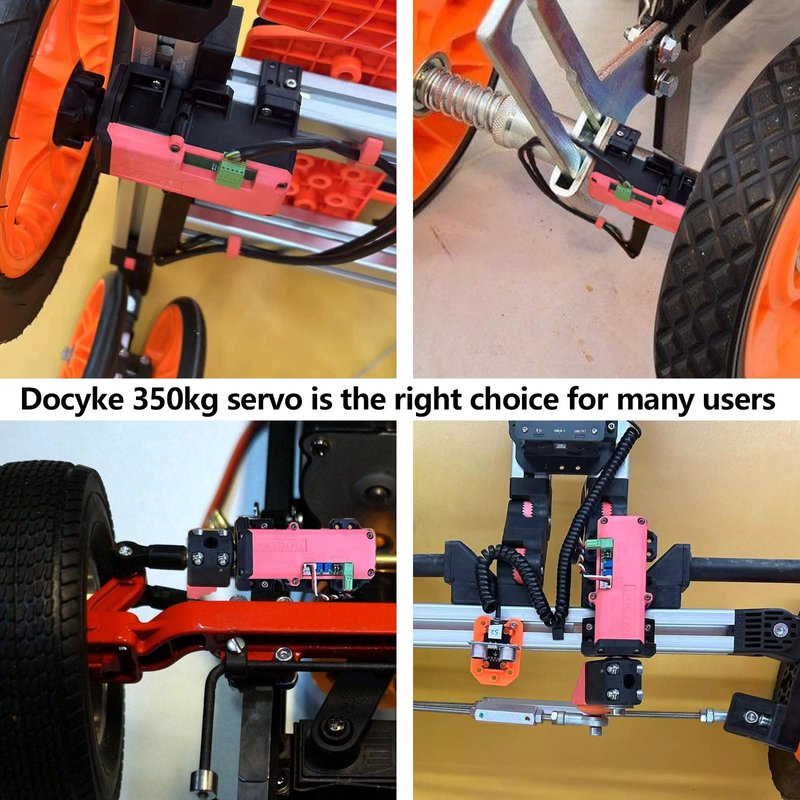

- Widely Use Servo: You can use like normal Servo or motor, DIY an advanced robot, robotic arms, PTZ cameras, Remote control vehicle, and other mechanical projects. At Motor Mode, you can use like wheel-drive, or DC motor. It can perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems and Arduino PCB

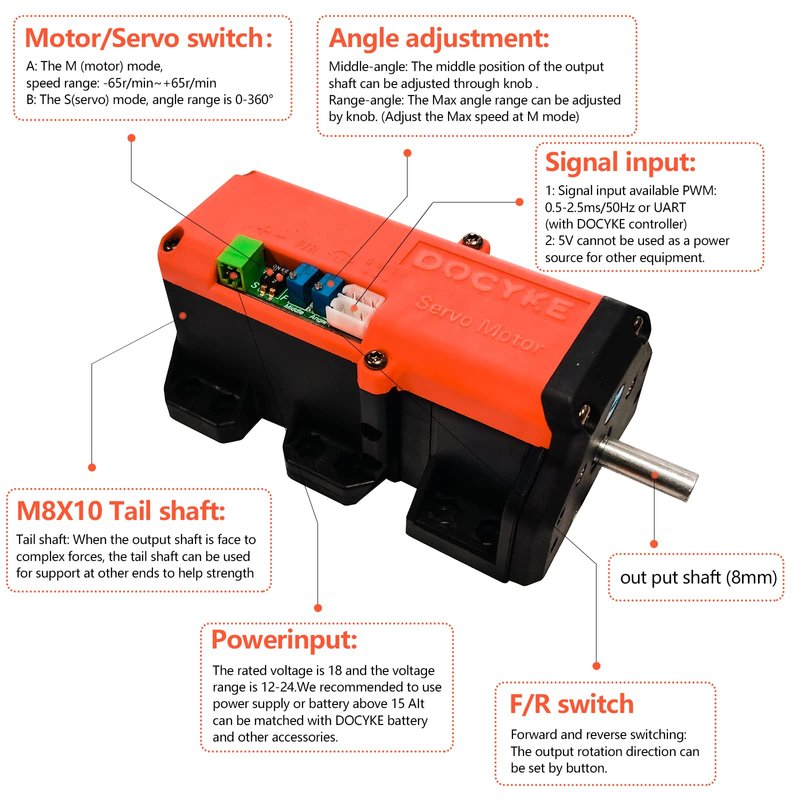

- Two modes: servo position and motor drive, which is selected by a DIP switch. In servo mode the shaft rotation can move 0-360 degrees for 0.5 to 2.5 uSec pulse width. There are gain and offset potentiometers to calibrate the motion over any standard servo range. There is also a reversing DIP switch to change the sense of the rotation.
- NOTE! As this is a high-power servo, so a high-power power supply (16-24V, 25A) is required, We recommend using 20V battery.
- Color: Orange
- Manufacturer: DOCYKE
- Model Number: 697394023
- Part Number: 697394023
- Size: 350kg
- Style: Modern
DOCYKE Servo-350B has 2 mode : servo and motor, it's Perfectly compatible for robots, models（Futaba, for JR, for SANWA, for Hitec and other remote control and Arduino PCB）, toys, and other fields. It has super-high torque and power. our concept of the product: Powerful, Durable and Universal.1: The Max output torque 350kg / cm. 2: Super power (180W) and torque can be output under light weight (550G). 3：Useing High hardness steel gear which can support various conditions. Even if it exceeds 2 times of Max torque.4: The control signal and connection are similar to ordinary servo. 5: Motor mode and servo mode can be easily switched .6:With its own mounting hole, it can be installed in profiles, sheet metal parts and other places without additional support, which is suitable for various occasions. 7:Double-shaft installation can be used in special force occasions to increase reliability.(one is the driving shaft, one is the assistant shaft).8: Using planetary reducer,and Industrial-level design. 9: There are strict manufacturing for motors, gears, PCBs, etc. to ensure reliability and durability.10: Using magnetic encoder as feedback, which has high repeatability, no wear and good durability. 11: The PCB has various protections including jam, overcurrent, over temperature and so on.
