diymore Robotic Arm Kit ROT3U 6DOF Aluminium Mechanical Robotic Clamp Claw Kits for Boys & Girls to Learn Programming/Science/Techology, with MG996R Metal Gear Servo Motor,Ideal Christmas Gift

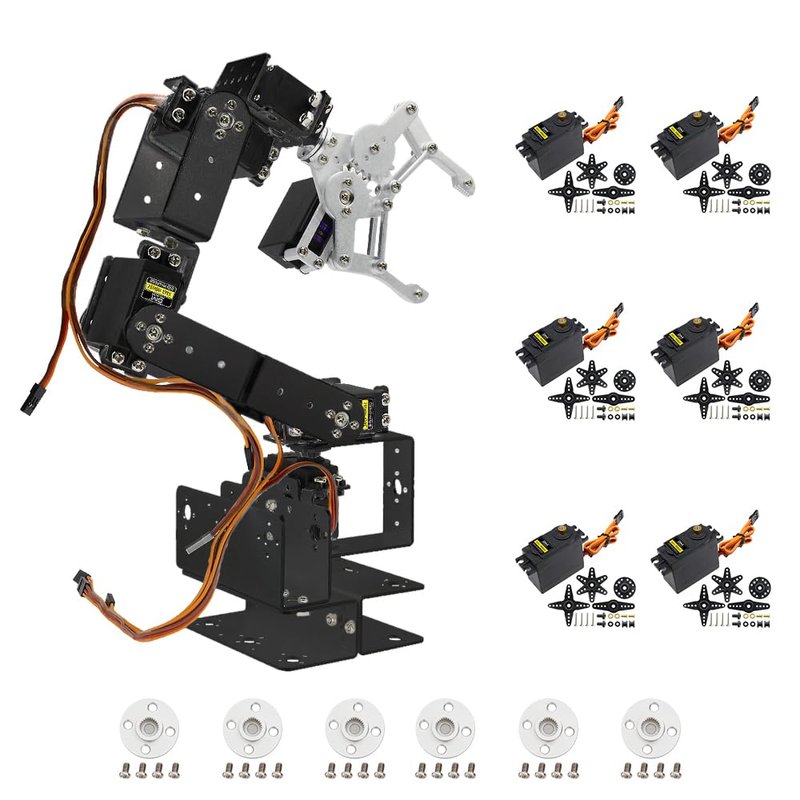

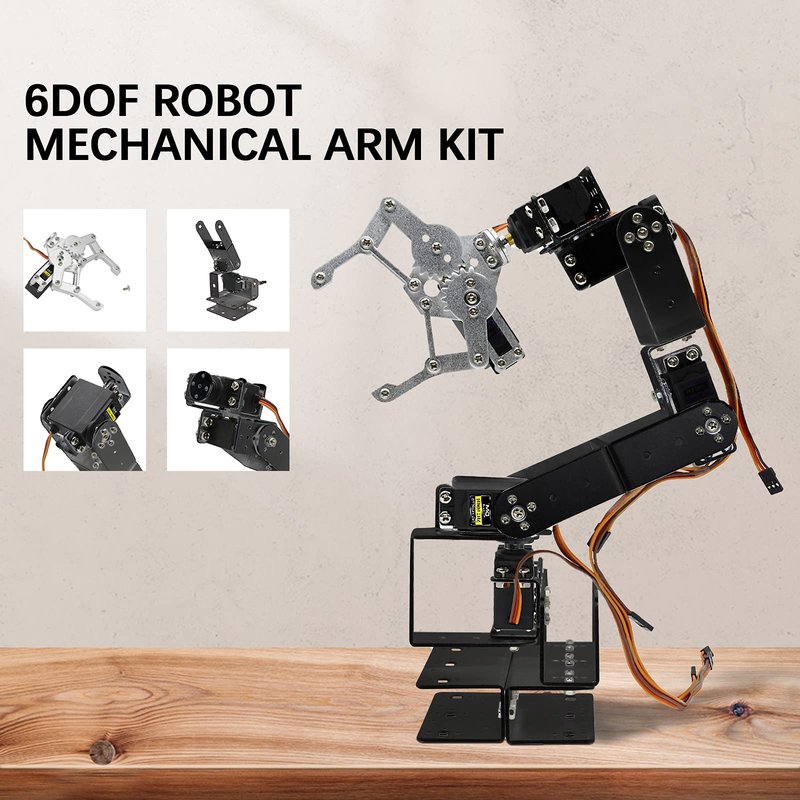

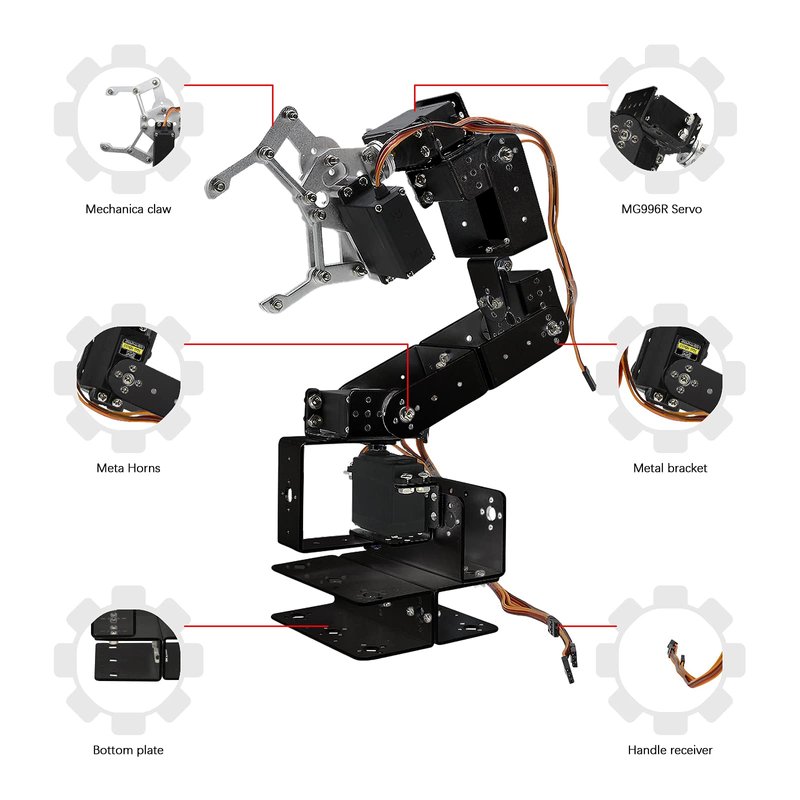

- This is a ROT3U 6DOF aluminium robot arm DIY kit, need to assemble by yourself
- Rotation angle of 180 degrees
- Holder of the widest distance: 98mm
- Height: 460mm (holder closed).
- The kit included MG996R servos, for the joint bears larger force. And come with 6*25T metal horns mounts
- Color: Black
- Manufacturer: diymore
- Model Number: ARM
- Package Quantity: 1
- Part Number: ARM
- Size: Arm Claw Kits
This is a ROT3U 6DOF aluminium robot arm DIY kit, need to assemble by yourself
Specification of Robot Arm Kit:
Rotation angle of 180 degrees
Radius of gyration: 355mm
Height: 460mm (holder closed)
Clamp Max Open is 55mm
Holder of the widest distance: 98mm
Color: black
Specification of MG996 Servo
Dimension: 40*19*43mm
Weight: 55g
Operating Speed: 0.17sec / 60 degrees (4.8V no load)
Operating Speed: 0.13sec / 60 degrees (6.0V no load)
Stall Torque: 13 kg-cm (180.5 oz-in) at 4.8V
Stall Torque: 15 kg-cm (208.3 oz-in) at 6V
Operation Voltage: 4.8 - 7.2Volts
Gear Type: All Metal Gears
Connector Wire: 11.81" (300mm)
Power Supply: Through External Adapter
Specification of 25T Servo Horns
Color: Silver
Material: CNC Aluminium
Mounting Hole Spacing: approx.14mm
Servo disc diameter: approx.20mm
Pinking aperture: approx.5.5mm

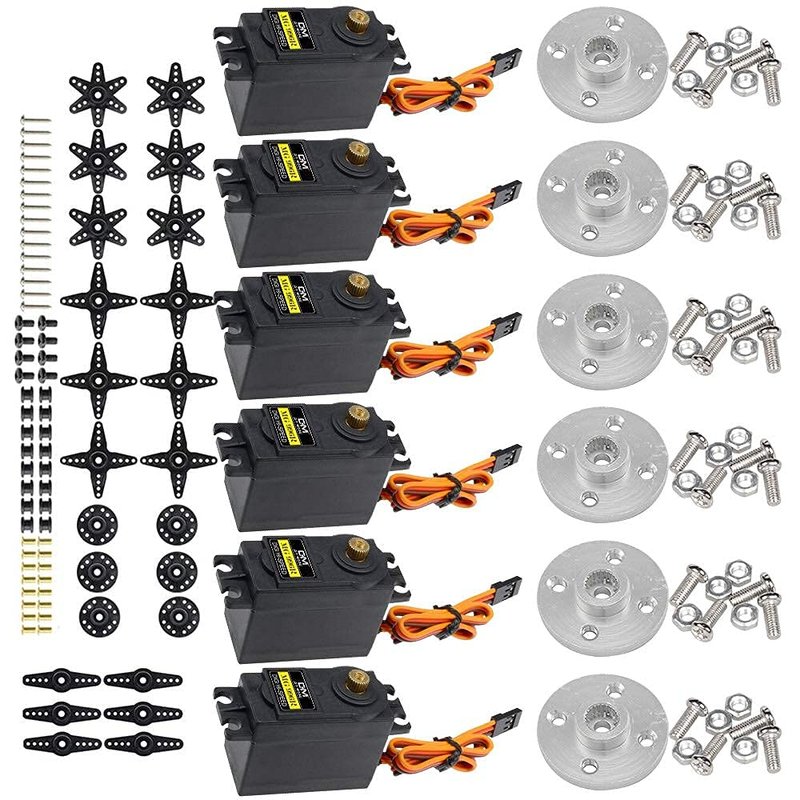

Package Included:

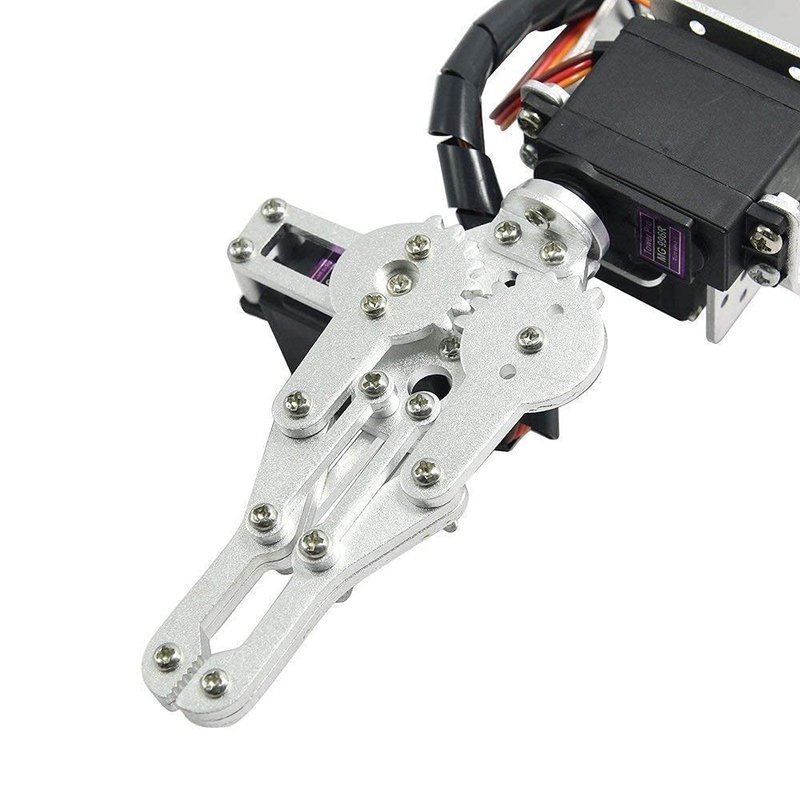

1 x Aluminium Clamp Claw
1 x L-type servo bracket
3 x U-type robot waist bracket
4 x Long U-type servo bracket
4 x Miniature Ball Radial Bearing
5 x Multi-functional servo bracket
6 x MG996 Servos
6 x aluminium servo horns
4 sets x Round head M3*10 screws and M3 nuts; 20 sets x Round head M3*8 screws and M3 nuts
24 sets x Fixed head M4*10 screws and M4 nuts; 30 sets x Round head M3*6 screws and M3 nuts
