DC HOUSE Mini Electric Linear Actuator Stroke 4"–Force 4.5 lbs–12V | High-Speed 1.97"/sec–Weight 0.25KG Ideal for Intelligent Range Hood, Fan Blades, Cabinets, Robotics, Home Automation

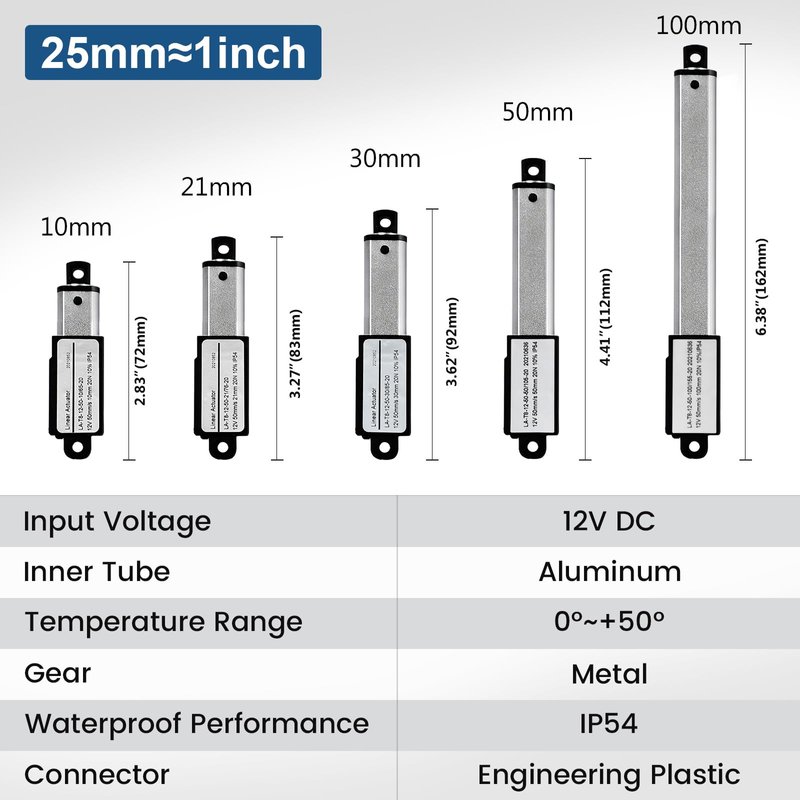

- ✦Specification:Stroke length = 4 inches (100mm);Travel Speed: 1.97in/sec(50mm/sec); Retracted length = 155mm(6.1"); Extended Length= 255mm(10.03");Maximum Load = 4.5lbs(20N);Inner Tube: Stainless Steel Tube;Input Voltage: 12VDC;Temperature: 0-50 degrees Celsius.
- ✦Advantage:Our Linear Actuator with Linear Reciprocating Motor and Durable Stroke Ideal for Intelligent Range Hood, Fan Blades, Cabinets, Window Opener, Robotics, Home Automation
- ✦Feel Stop: Stop at Any Position,With Automatic Machine Lock, It will Automatically Stop When It Reaches the Top.
- ✦Safe and Worry-Free: Overcurrent Protection, Short Circuit Protection, Overload Protection, Overvoltage Protection.
- ✦1 Year product warranty,any problems about the product please feel free to contact us.
- Color: Silver
- Manufacturer: ECO LLC
- Part Number: L11010101010-1
- Size: 4 inch
- Style: Small
Specification:
Material: Aluminum alloy
Load capacity: 20N
Speed: 50mm/s(1.97"/sec)
Input Voltage: DC 12V
Duty cycle: 10%
Technical Parameters:
Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top of the top, it will automatically disconnect the electricity.

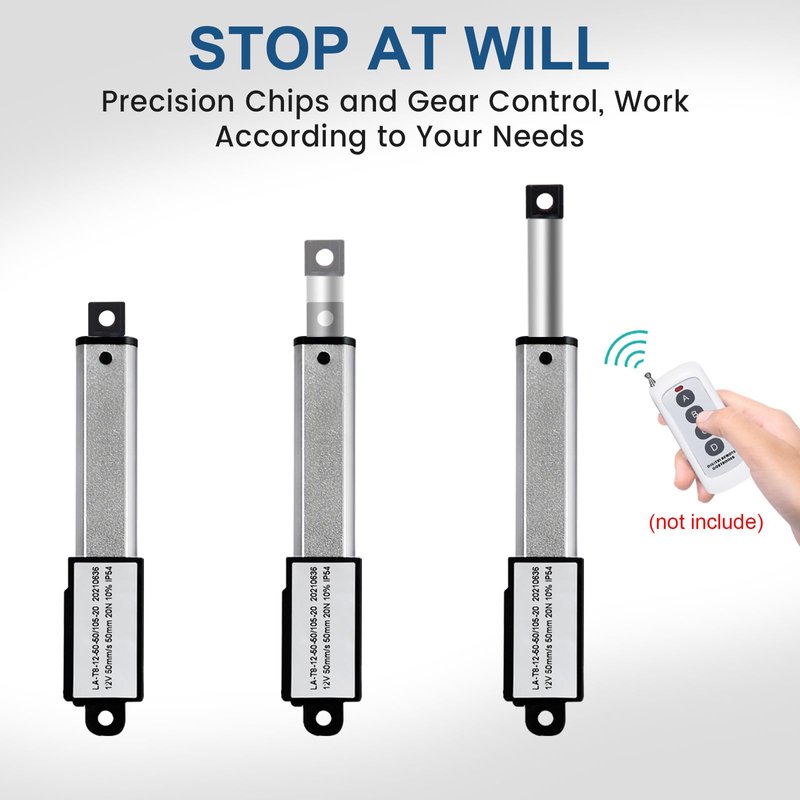

The motor will not idle. Cut off the power, it can be stoped at any position, with a self-locking function.

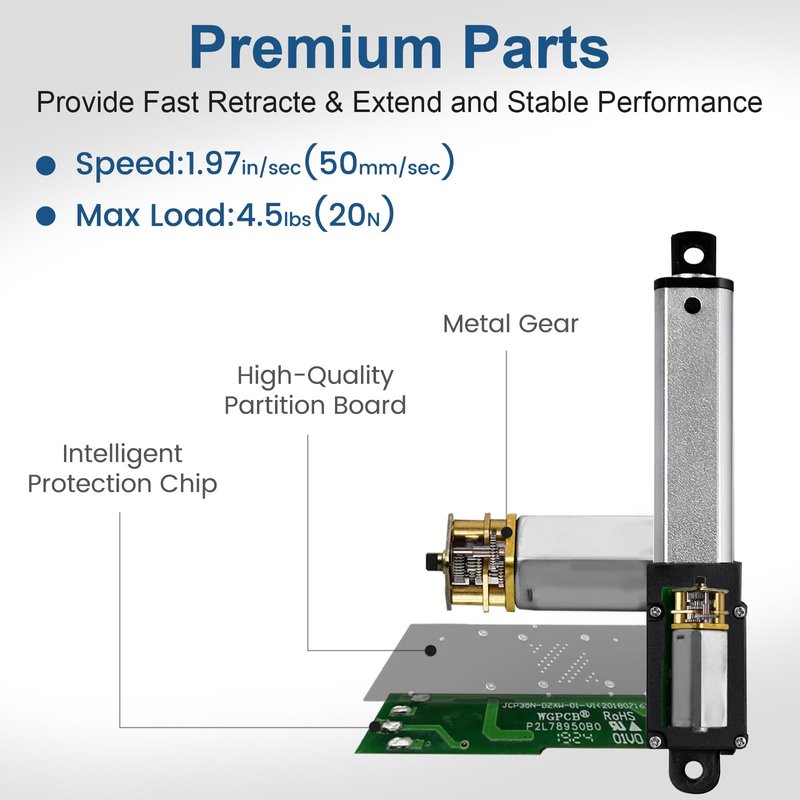

The pushrod is driven by a DC motor with a screwdriver. The telescopic rod can only be retracted without rotation.

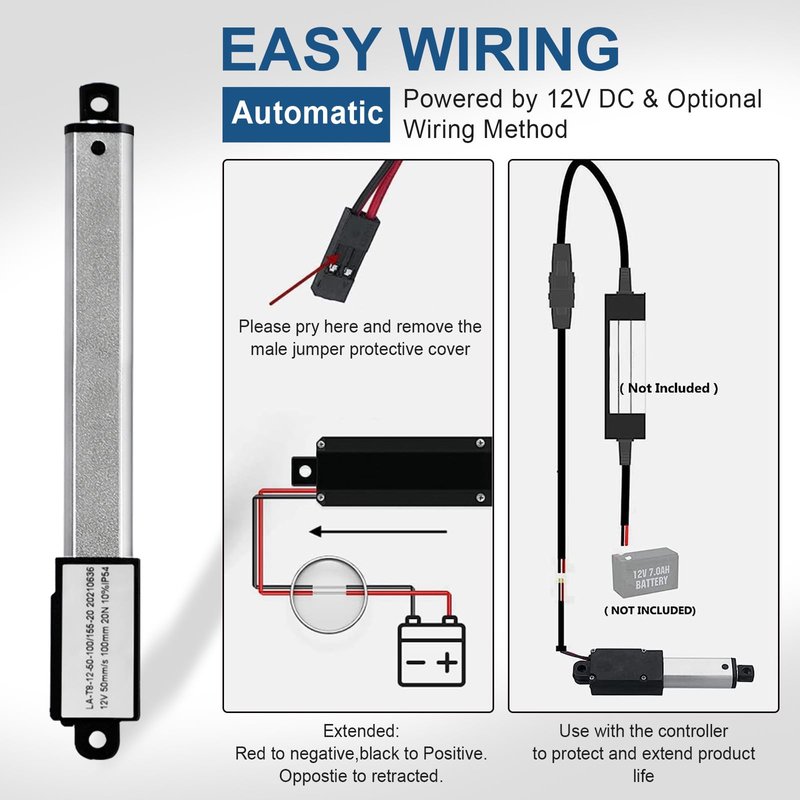

The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it. Ambient temperature -20°C to +60°C.
Standard protection class: IP54.
Low noise design, noise level less than 50dB.
Notice:
Please do not disassemble the machine.
Before use, first recognize whether the motor voltage is correct. If it is a DC motor, then also consider that the power supply current is sufficient.
Do not store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.
When soldering is required on the positive and negative power supply's motor terminals, the soldering iron temperature is 340°C±40°C. Within 3 seconds of heating time.
Do not deform the plastic.
Please note: Controllers need to be purchased separately(B07FVLXB1D)

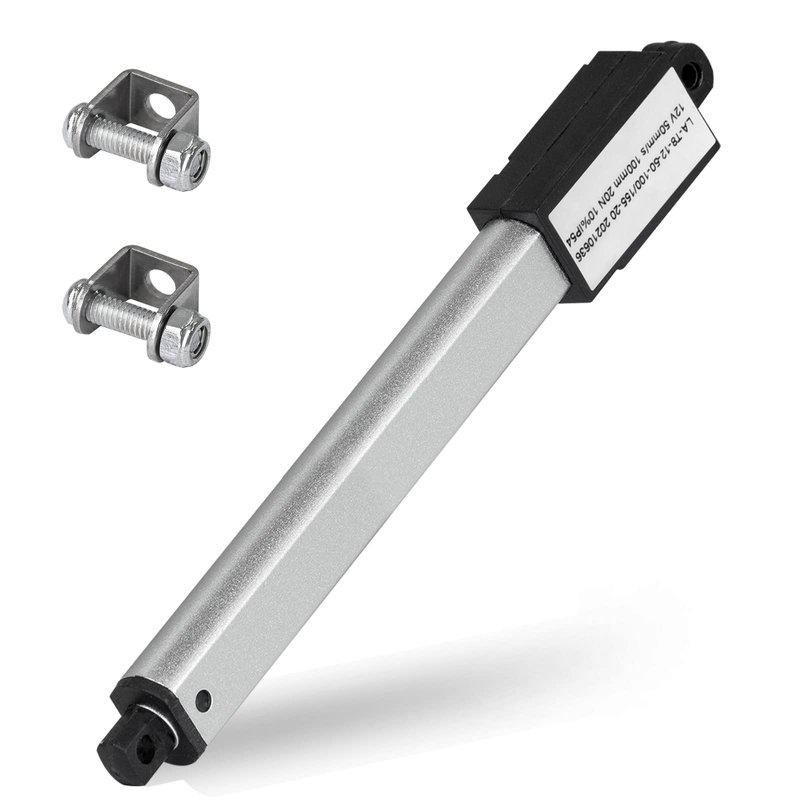

Package Included:
1 x Mini Linear Actuator Motor
2 x Mounting Brackets
Typical Use in Improve Agriculture:
A new ways to ease the labor in this industry to improved ways machines assist agriculture production including comfort, speed and precision
Such as:Drilling / Spraying / Spreader Machines/Combine Harvester/Tractors and Plows/Watering System
Also Widely use in Aerospace/Home Application/RC Projects/Automotive Projects.....
