DaierTek Round Rocker Switch Shell 12V Lighted 3 Pin with Blue LED 12 Volt DC Rocker Toggle Switch for Automotive Car Truck ON Off 20A SPST
- Features: A dot LED light is designed to be embedded in the round rocker switch, which is available in blue color. The LED light will be on when the switch is on.
- Material: The round 12 Volt rocker switch shell is made of nylon 66. The terminal is made of brass, silver plated.

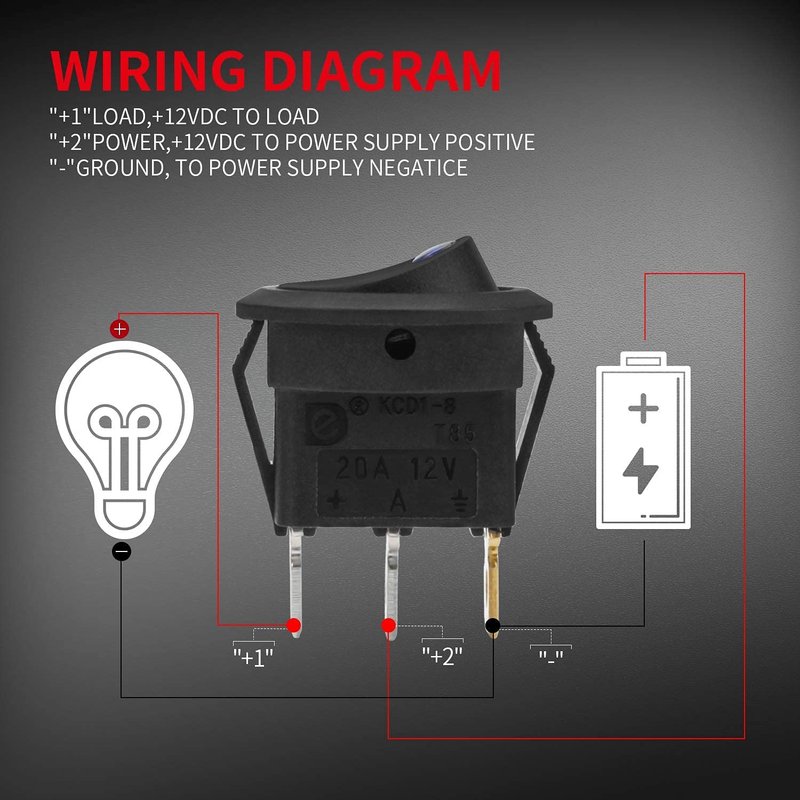

- Function: The round rocker switch has 3 pins, and SPST (single pole single throw) design with a set of jumpers, easy to turn ON/ OFF. The rating is 20A 12VDC.

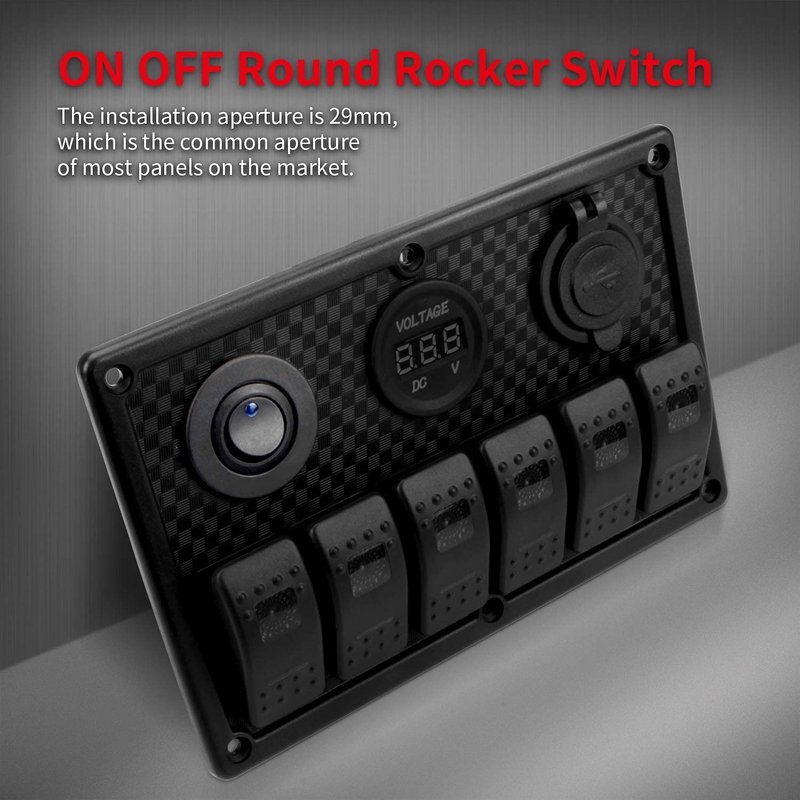

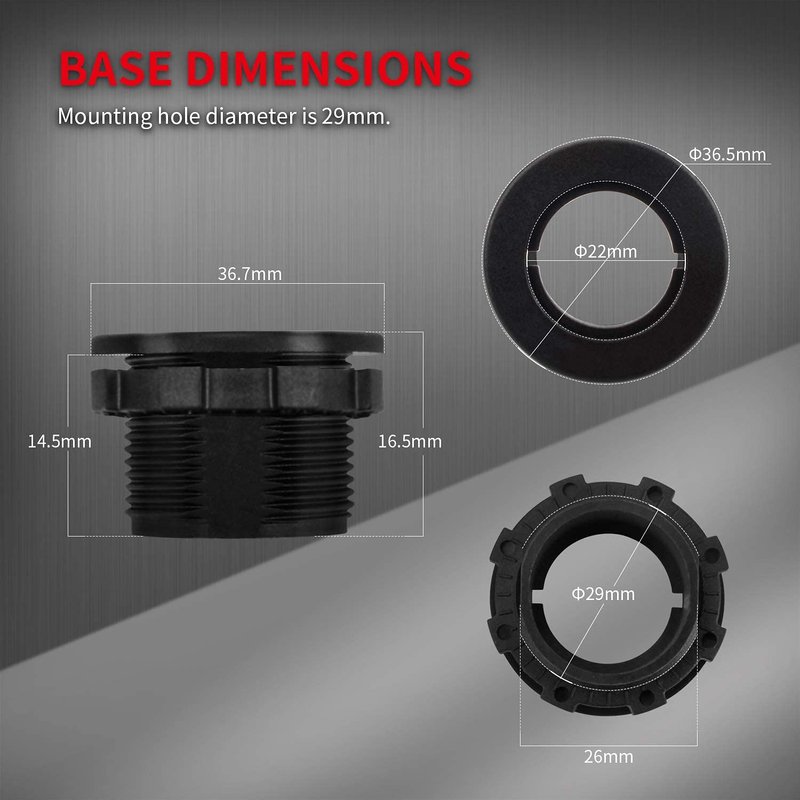

- Installation: The mounting hole size of the round rocker switch shell is 29mm (about 1.14 inches), if you remove the shell, the mounting hole size will be 20mm (about 0.79 inch).
- Application: The round 12V rocker switch is widely applied to automotive, race cars, RVs, marine, heavy duty trucks, off road vehicles, ATVs, and nearly everything that uses a 12V power source.
- Color: Blue LED - 1PCS
- Manufacturer: DAIERTEK
- Model Number: DS1825+KCD1-8-101EN-BL
- Package Quantity: 1
- Part Number: DS1825+KCD1-8-101EN-BL
- Size: with Bezel
Specifications:

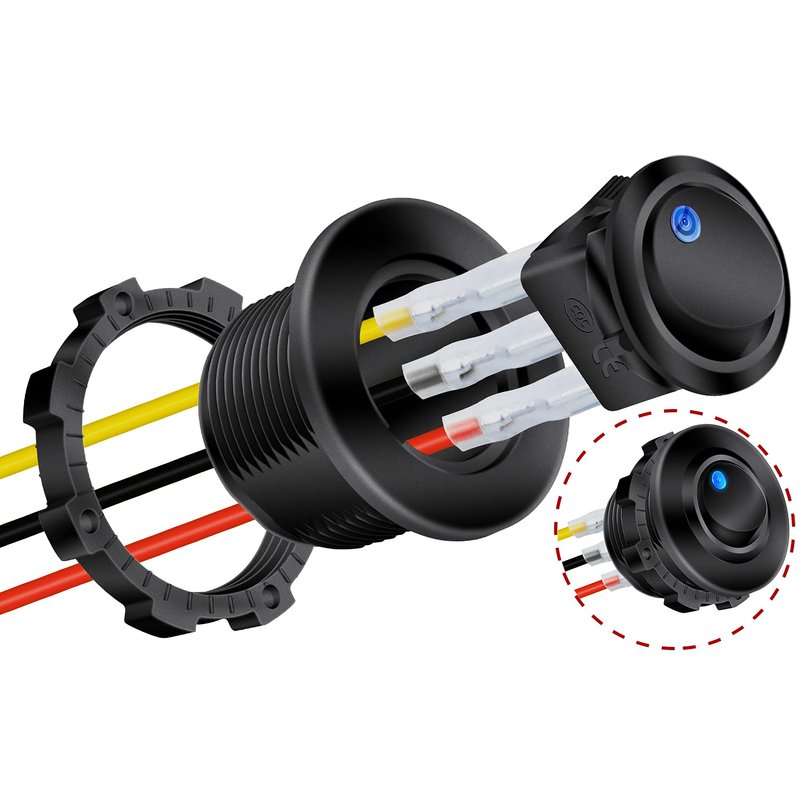

Package includes: 1 X Car Round Rocker Switch + 1 X Switch Shell.
Terminal Type: Solder Terminal
Contact Resistance:35mΩ max
Insulation Resistance:100mΩ min (500VDC)
Dielectric strength:1500VAC 1 minute
Operating Temperature:-25℃~+85℃
Electrical Life:≥ 10,000 Cycles
toggle switch round rocker switch toggle switch 12v rocker switch round 12 volt toggle switch round rocker switch 12v round switch round rocker switches linkstyle rocker switch lighted rocker switch automotive toggle switch 12v rocker switch shell dc switch led light switch toggle switch 3 pin 12v switch round round switch 12v automotive switches 12v 12 volt led switch
