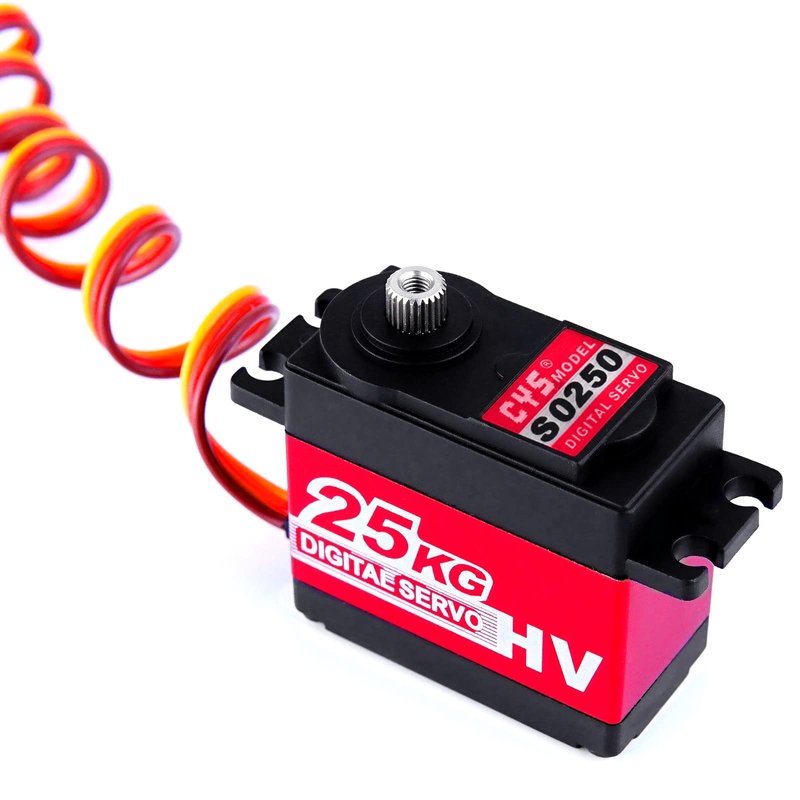

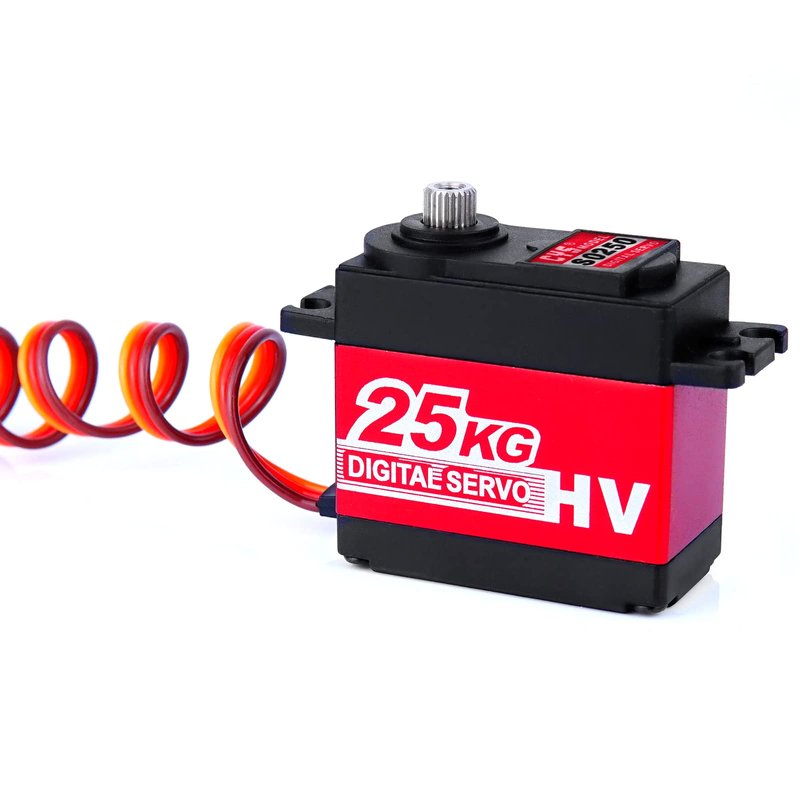

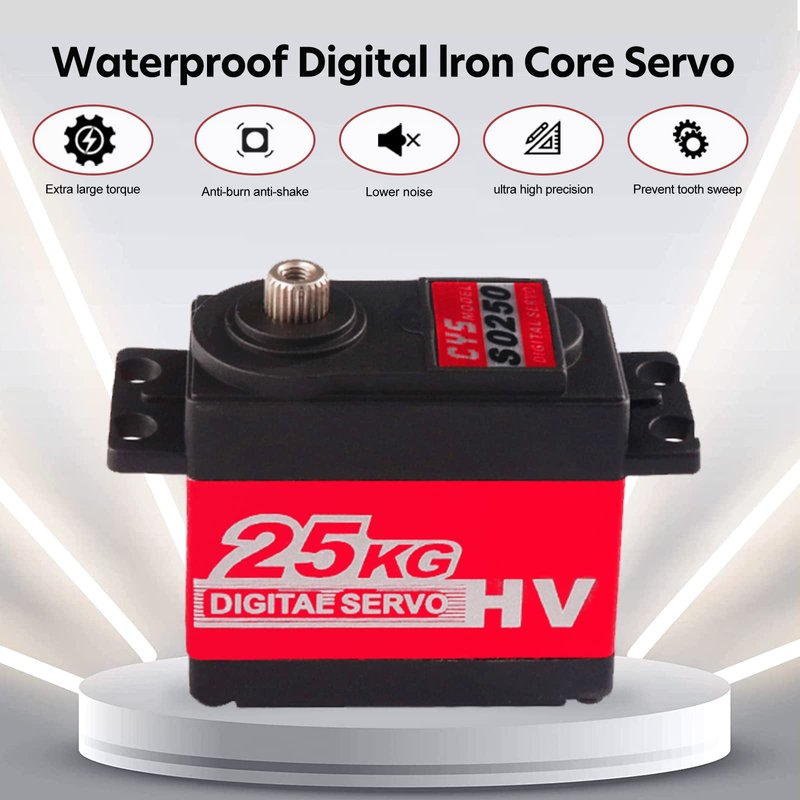

CYS 25KG RC Servo, Waterproof Digital Servo, High Torque RC Motor, Stainless Steel Gear, Full Aluminum Case, 25T Standard Digital Iron Core Servo for 1/8 RC Car/Helicopter/Airplane
- ▶Aluminum Case, Metal Gear, Dual Ball, Bearing 25T, Stall Torque: 22kg.cm ~ 25kg.cm
- ▶High Operating Speed, High Stall Torque, High Precision Gear, High energy quenching, no teeth
- ▶Adjustable Angle, Operating Angle: 45deg.one side pulse traveling 500 usec
- ▶Waterproof, High Protection Grade
- ▶Size: 1.59*0.79*1.50 inches (40.5*20*38mm), weight: 2.19±0.03 ounces (62g ± 1g)
- Manufacturer: CYS
- Part Number: S0250
- Style: S0250
Specification Sheet of S0250
Type: Digital
Weight: 2.19±0.03 ounces (62g ± 1g)
Size: 1.59*0.79*1.50 inches (40.5*20*38mm)
Control System: (+)Pulse Width Control 1500usec Neutral
Operating Voltage: 6.0~7.4Volts
Operating Temperature Range: (-)10 to +50 degree C
Operating Speed (6.0V): 0.14sec/60° at no load
Operating Speed (7.4V): 0.12sec/60° at no load
Stall Torque (6.0V): 22kg.cm
Stall Torque (7.4V): 25kg.cm
Operating Angle: 45deg.one side pulse traveling 500 usec
Direction: Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V): 20mA/idle and 100mA no load operating
Current Drain (7.4V): 20mA/idle and 150mA no load operating
Stall Current: 2.5A/2.8A
Dead Band Width: 4usec
Motor Type: NdFeB
Bearing Type: Dual ball bearing
Horn gear spline: 25T
Gear Type: Metal
Connector Wire Length: 11.81±0.2 inches (300mm±5mm)
Wire info: Brown/Black = Negative, Red = Positive, Orange/White = Signal

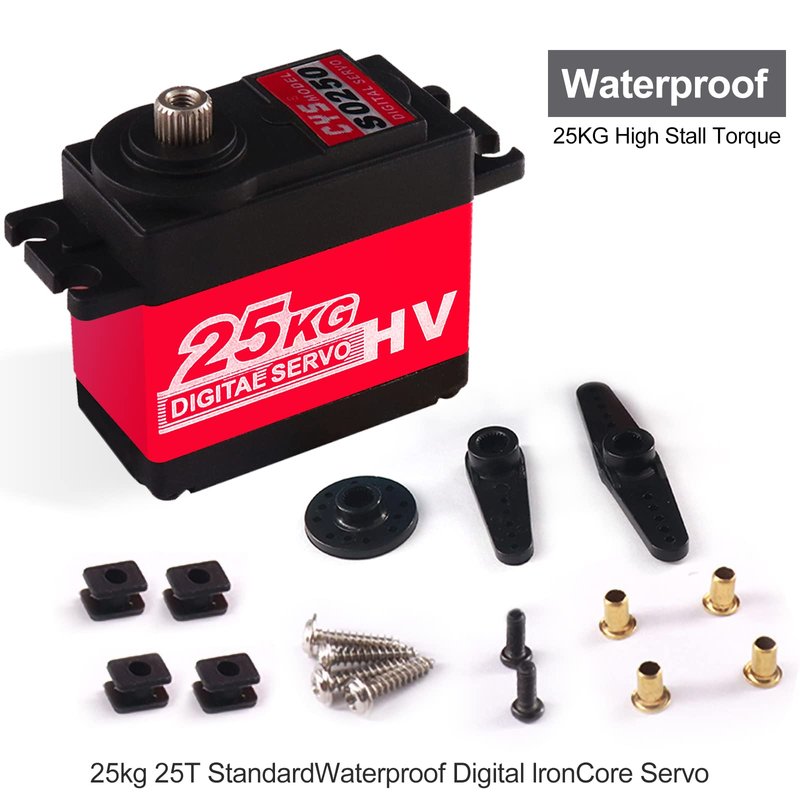

Steering engine*1
Metal screws*2
Black screws*2
Rubber pad*4
Screws*4
Rudder arm*3
