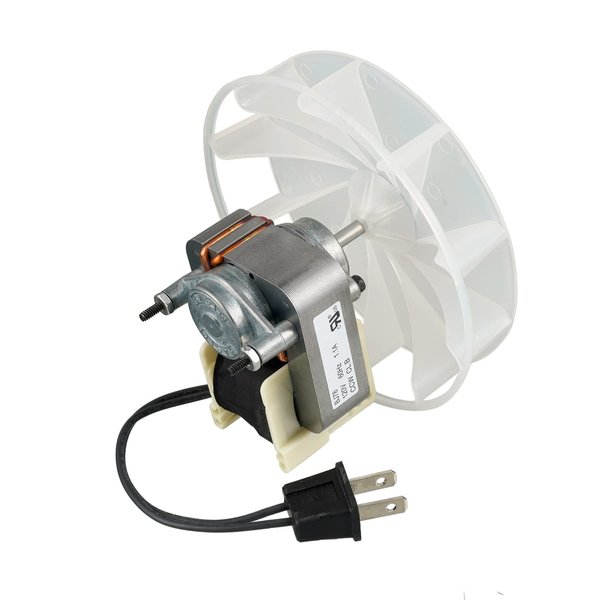

BOJACK YJF6178 Bathroom Vent Fan Motor 70CFM 120V 60Hz 1.1A Replacement for Model N678,N655, N671,N679,671a,671, 655,657, 658, 679 Bath Fans
- Bathroom exhaust fan replacement: 1.1 AMP, 3400±100 RPM, 120 volt, 60 Hz,70cfm
- Wire length =8.661" with 2-prong plug
- Wire length =8.661" with 2-prong plug
- Mounting studs 1.882" on center

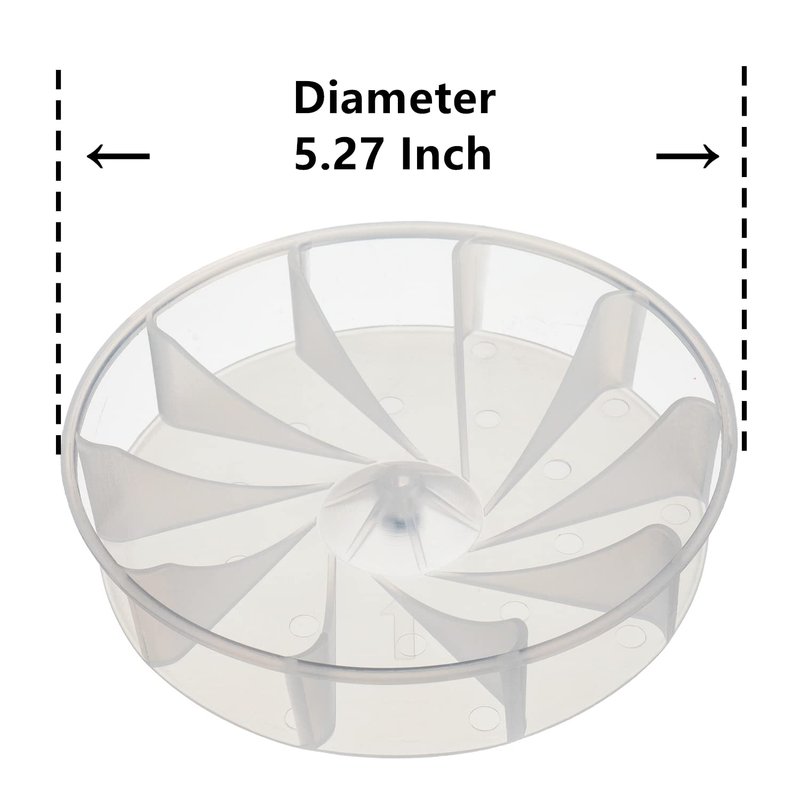

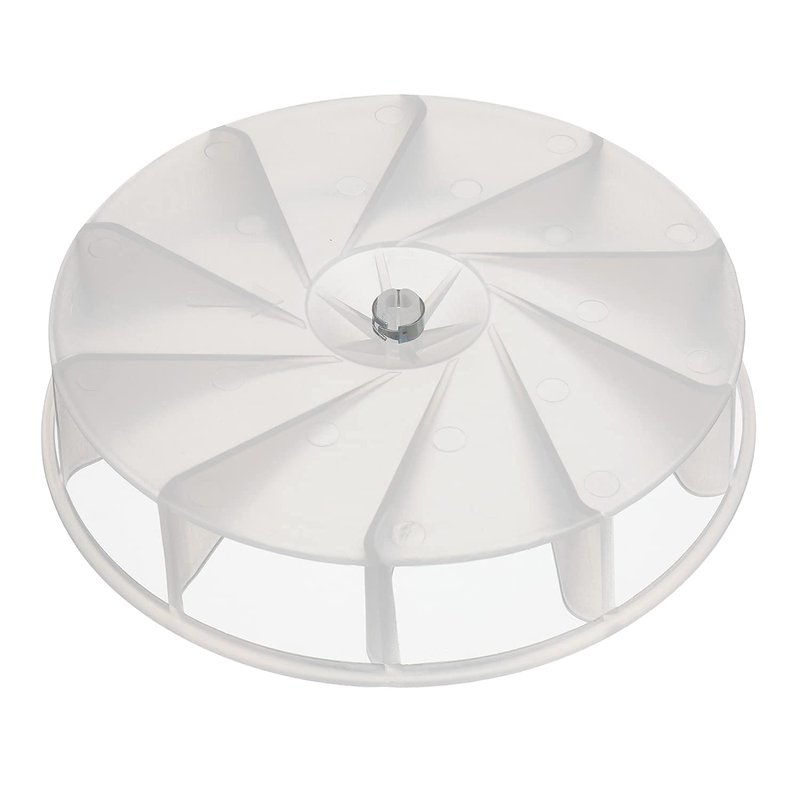

- Kit contains: 1 x motor, 1 x fan = 5.27" (flat/paddle style),Replacement for motors : N678 Nautilus N655, N671 and N679 bath fans and Broan 671a ,671, 655,657, 658, 679
- Manufacturer: BOJACK
- Model Number: BJ-YJF-6178
- Part Number: BJ-YJF-6178

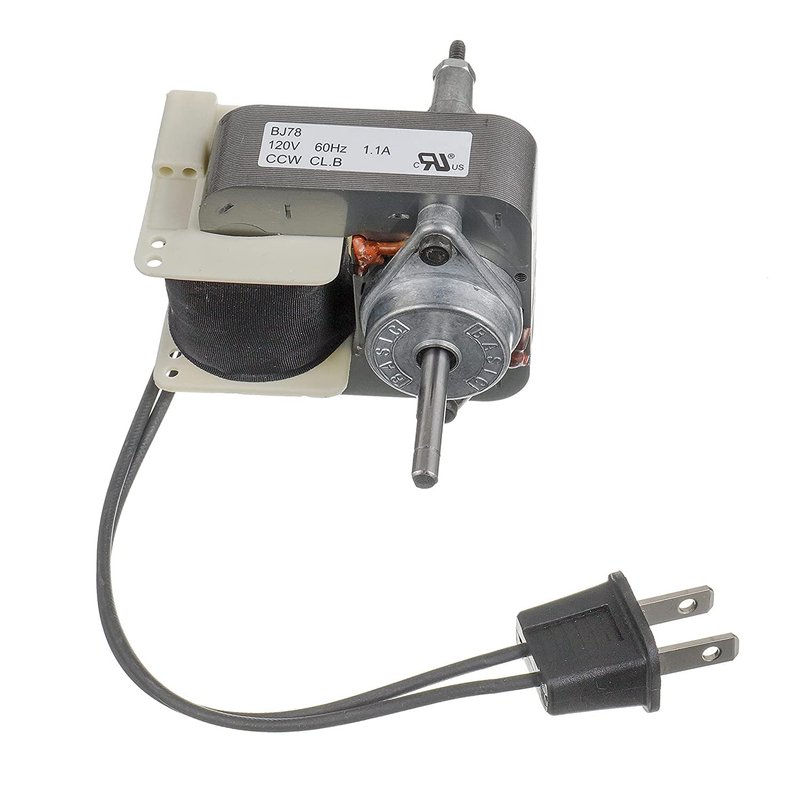

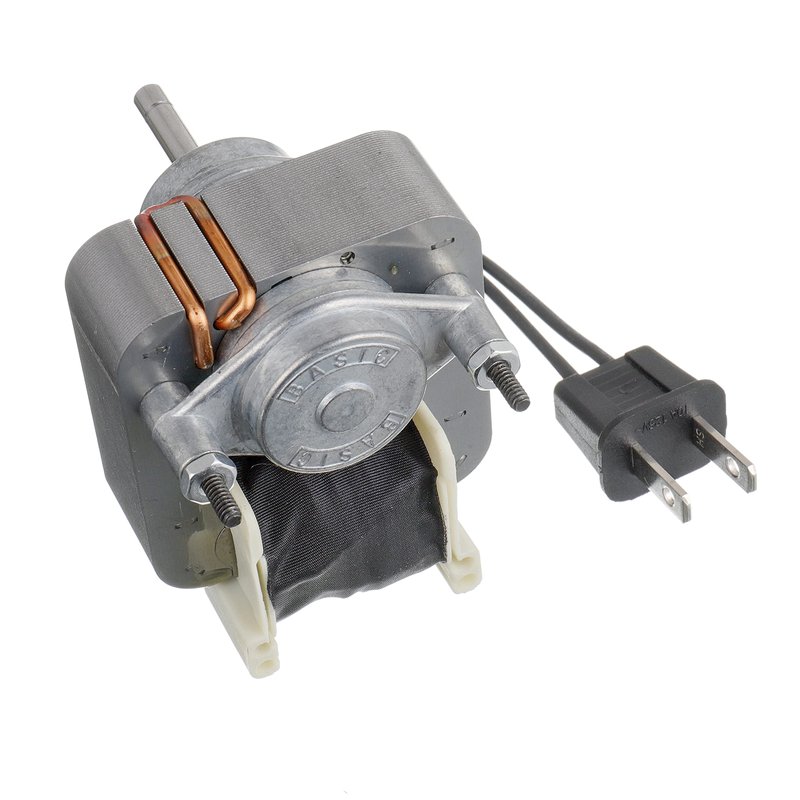

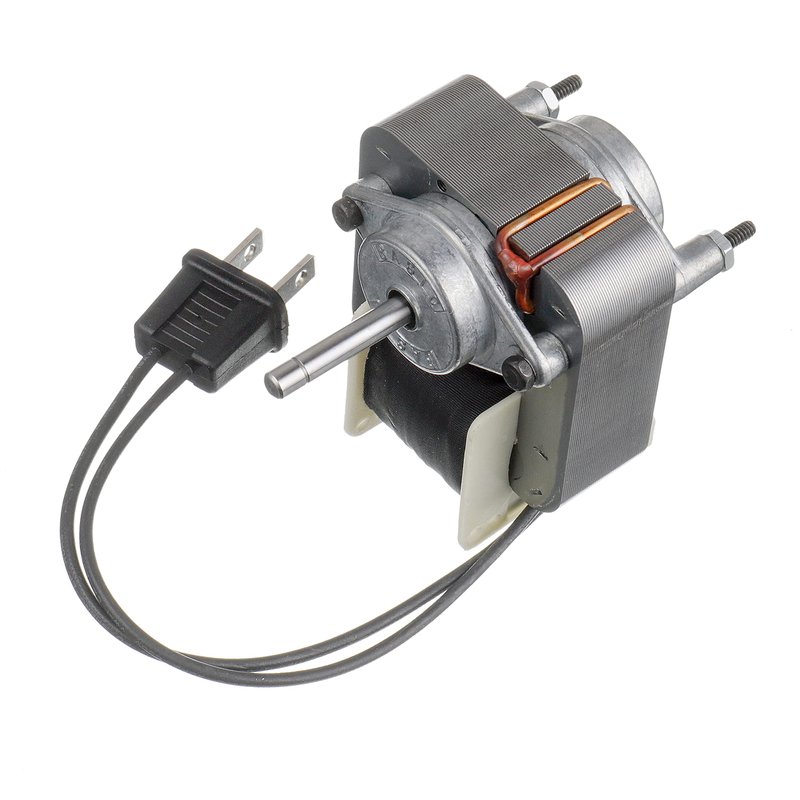

BOJACK Universal Bathroom Vent Fan Motor
Electric Specification:
1.1 amps, 3400±100 RPM, 120 volt, 60 Hz,70 CFM
wire length =8.661" with 2 prong plug
Mounting studs 1.882" on center
Direction of rotation: seeing from the shaft driving side,the motor rotates in C. CW (clockwise) direction when is powered on.
Acceptance standard Rated voltage /frequency: AC 120V/60Hz
The dielectric strength: AC1800V / 1mA/1S should be no flashing or breakdown phenomenon.
Load start-up voltage:≤102V
The inter-turn test: 1500V/1S, should no abnormal waveform;
No-load low voltage star-up: ≤72V, load low voltage star-up: ≤90V.
Insulation class: B
This is a Electric Motors Replacement Kit with Fan, 120V Fan kit is designed to replace most repair projects.
Continuous duty, Air Over. Kit contains 1 Motor, 1 fan = 6.6"(flat/paddle style).
Replacement for N678 Nautilus N655, N671 and N679 bath fans and Broan 671a ,671, 655,657, 658, 679
Packing includes:
1 x Bathroom motor
1 x Bathroom fan
Shipping Summary:
-
