BOJACK 12 Values 60 pcs Variable Resistor 100 to 500K ohm 3296W Multiturn Trimmer Potentiometer Assortment Kit
- BOJACK High Quality 3296W Multiturn Trimmer Potentiometer Assortment Kit
- Rated power: 0.5 W
- Max Operating Voltage: 300 V
- Potentiometer Model:12 Type-100Ω (101), 1KΩ (102), 10KΩ (103), 100KΩ (104), 200Ω (201), 2KΩ (202), 20KΩ (203), 200KΩ (204), 500Ω (501), 5KΩ (502), 50KΩ (503), 500KΩ (504)

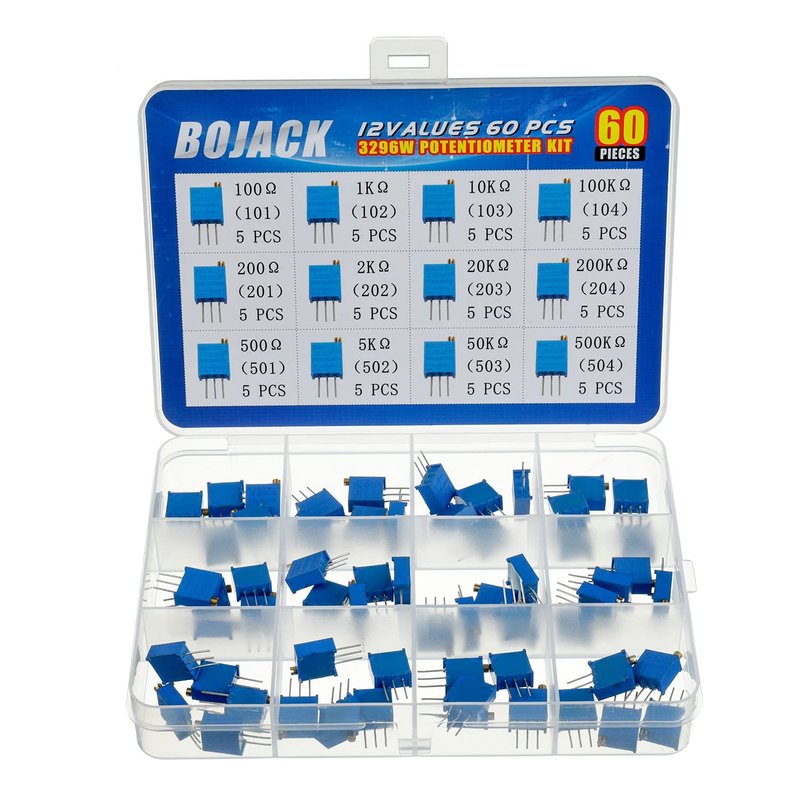

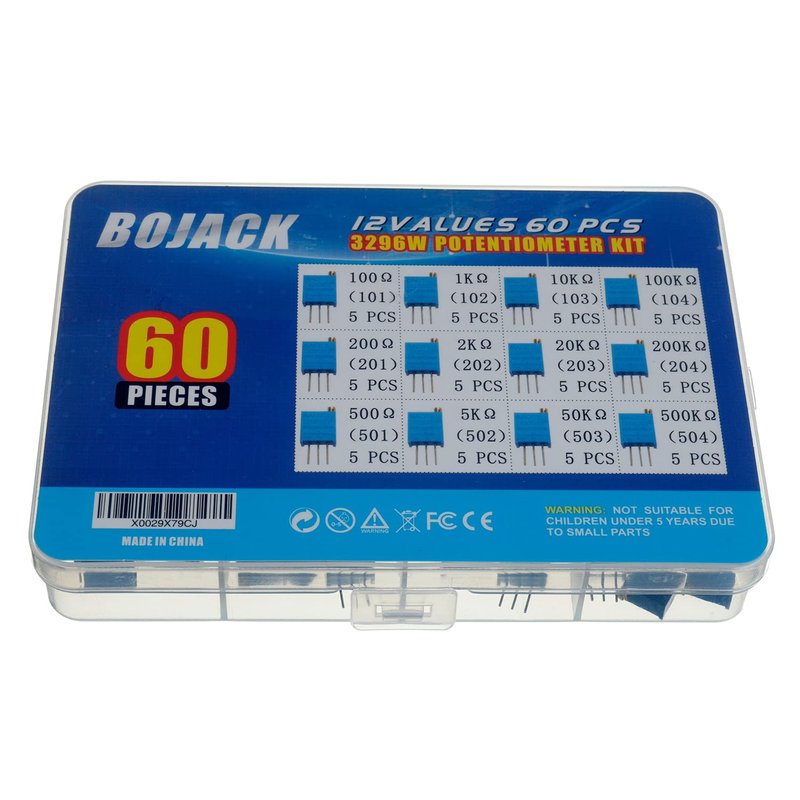

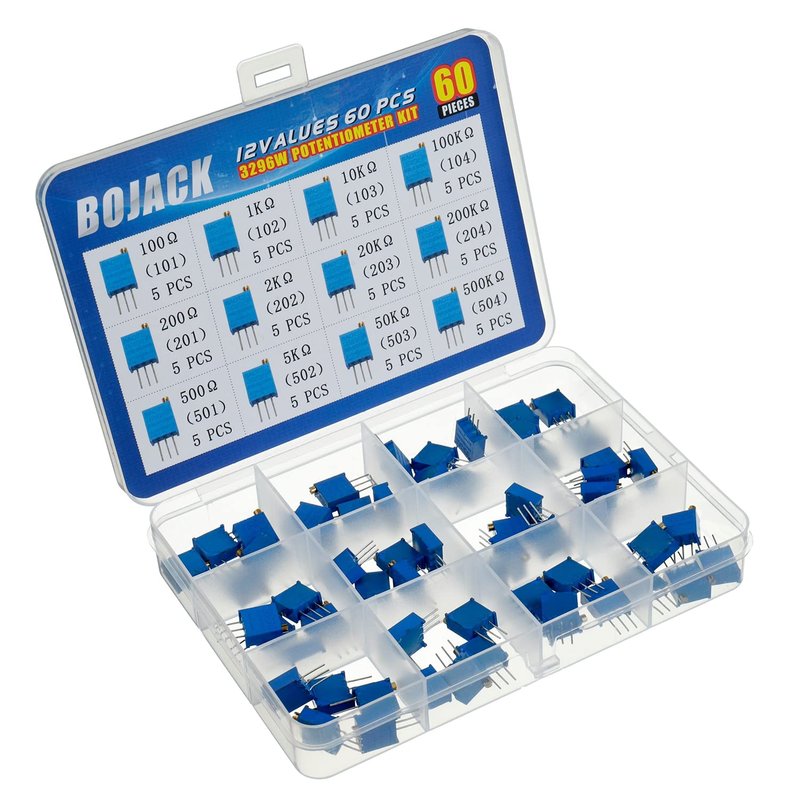

- Package Quantity: 60 pcs (Each model 5 pcs), Packed in A plastic storage case
- Manufacturer: BOJACK
- Model Number: BJ-POT12
- Package Quantity: 1
- Part Number: BJ-POT12
BOJACK 60 pcs High Quality 3296W Multiturn Trimmer Potentiometer Assortment Kit

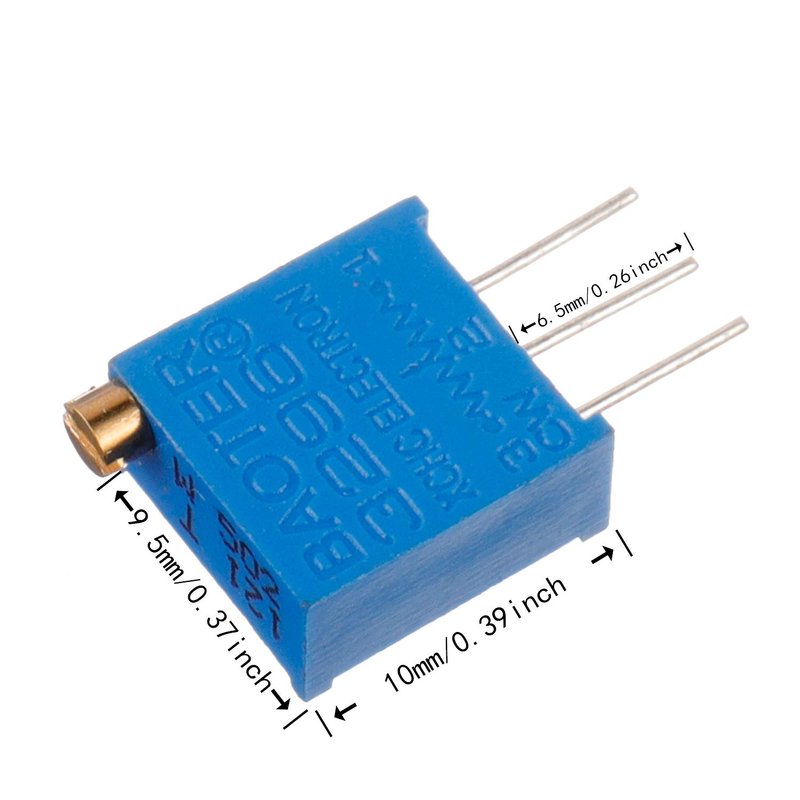

3296W potentiometer physical characteristics:
Total mechanical properties: 28± 2turns
Starting torque: ≤36mNm
Stop torque: ≥36 mNm
Potentiometer performance:
Resistance range (Ohms): 100~500K
Operating temperature range: -55°C ~+125°C
Temperature coefficient: ±200ppm/°C
Resistance deviation: ±10%
Resistance change characteristics: B
Terminating resistor: ≤1%R or 2Ω
Contact resistance change: ≤3%R or 3Ω
Insulation resistance: R1≥1GΩ
Withstand voltage: 101.3Kpa 600V, 8.5Kpa 250V
Effective electric stroke: 25± 2turns
Product Description:

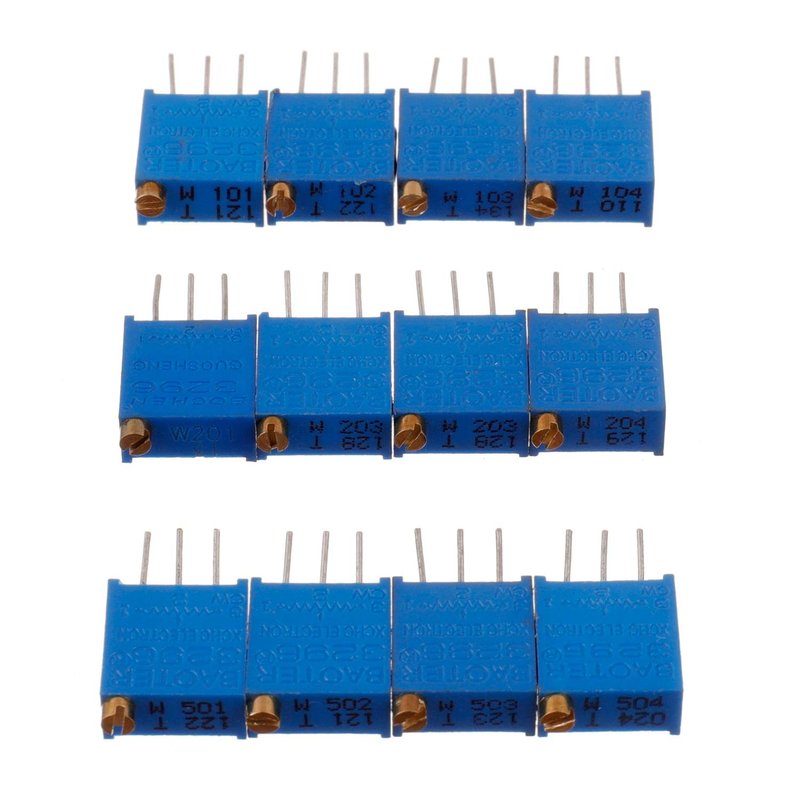

101--------100Ω----5 pcs
102--------1KΩ -----5 pcs
103--------10KΩ----5 pcs
104--------100KΩ--5 pcs
201--------200Ω----5 pcs
202--------2KΩ------5 pcs
203--------20KΩ----5 pcs
204--------200KΩ--5 pcs
501--------500Ω-----5 pcs
502--------5KΩ-------5 pcs
503--------50KΩ-----5 pcs
504--------500KΩ---5 pcs
