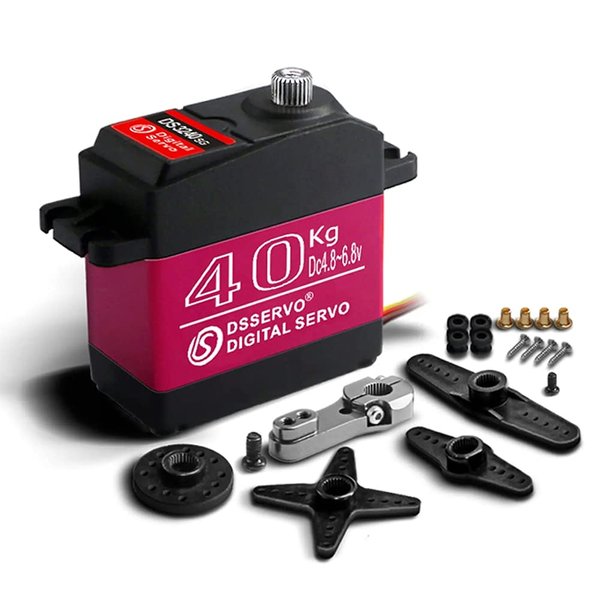

ANNIMOS RC Servo Motor 40kg High Speed/Torque Stainless Steel Gear Waterproof Standard Digital Servos (270 Degree)
- 【Best RC Servo Upgrades】Designed for 1/8 1/10 1/12 Scale RC Cars,Trucks/DIY Robot/Boat
- 【Excellent Performance】Operating Speed:0.17sec/60°; Stall Torque: 45kg-cm(624.9oz-in)@6.8V
- 【High Quality】Extremely Strong Unique Stainless Steel Gears, Fast Heat Dissipation CNC Metal Case And High Strength Dual Ball Bearings Ensure Long Life and Durability
- 【Highly recommended】High Reliability, Strong Adaptability, Low Noise, Smooth Operation
- 【Dimensions(L x W x H) 】1.57 x 0.79 x 1.59 inches (40 x 20 x 40.4mm);Weight:60g
- Manufacturer: ANNIMOS
- Model Number: DS3240
- Part Number: DS3240
- Size: Large
Recommended Application: 1/8 1/10 1/12 scale surface
Operating Voltage: 5 – 6.8 Volts DC
Torque:
@5V: 36kg.cm(499.94oz-in)
@6.8V: 45kg.cm(624.93oz-in)
Speed:
@5V: 0.2sec/60°
@6.8V：0.17sec/60°
Operating Temperature: -25°C~70°C
Waterproof: IP66
Limit angle: 360°
Bearing: 2BB
Horn Gear Spline: 25-Tooth , (Diameter:5.9mm)
Case Material : Engineering Plastic & Aluminum Alloy
Connector Wire: 17.7in (450mm)
Motor: 3-pole(s)
Gear Type: Steel
Command Signal: Pulse Width Modification
Amplifier Type: Digital Controller
Pulse Width Range: 500～2500usec
Neutral Position: 1500usec
Running Degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)
Dead Band Width: 3 usec
Rotating Direction Counterclockwise: (when 1000～2000usec)
CE /RoHs:Yes
Package:
1 x 40kg Servo
1 x 25T Metal Arm
More Options:
✔Only $27.99 Pack of 2 20KG Servos, Please Search ASIN: B07TKTQ2NZ
✔Only $35.99 Pack of 2 25KG Servos, Please Search ASIN: B0C69KY39C
✔Only $52.89 Pack of 2 35KG Servos, Please Search ASIN: B0C69KF77Q
✔35KG Coreless Digital Servo, Please Search ASIN: B07SWST8D6 or B07SWW9NDR
✔45KG Coreless Digital Servo, Please Search ASIN: B0C69BXL6V or B0CCPDYBDQ
✔35KG 7.4V Digital Servo, Please Search ASIN: B0CDQ95Q49 or B0CCPHT83N
✔Robot Servo with Brackets, Please Search ASIN: B0C69NNP9P
