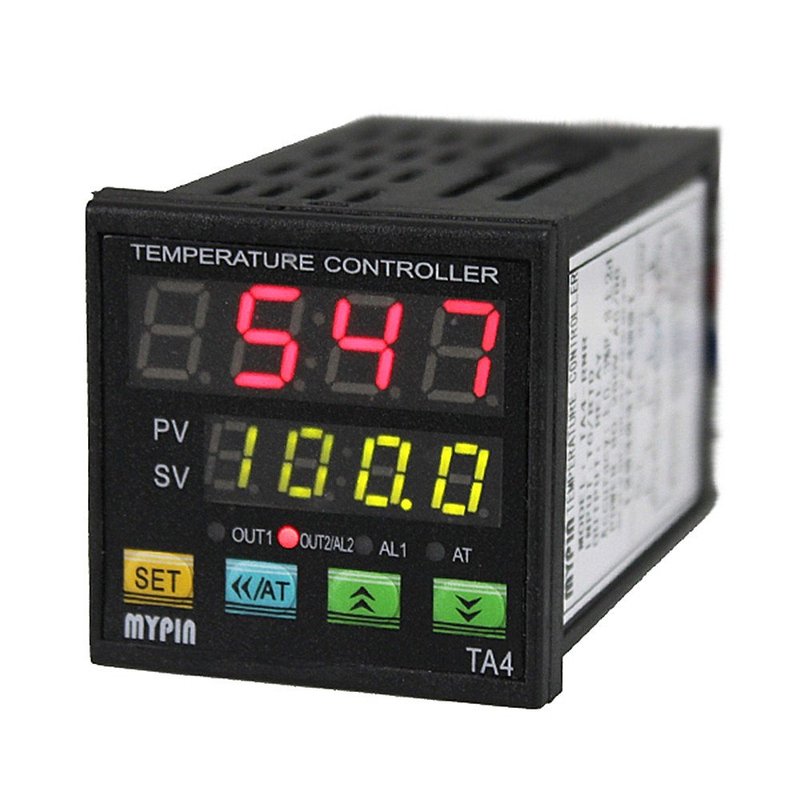

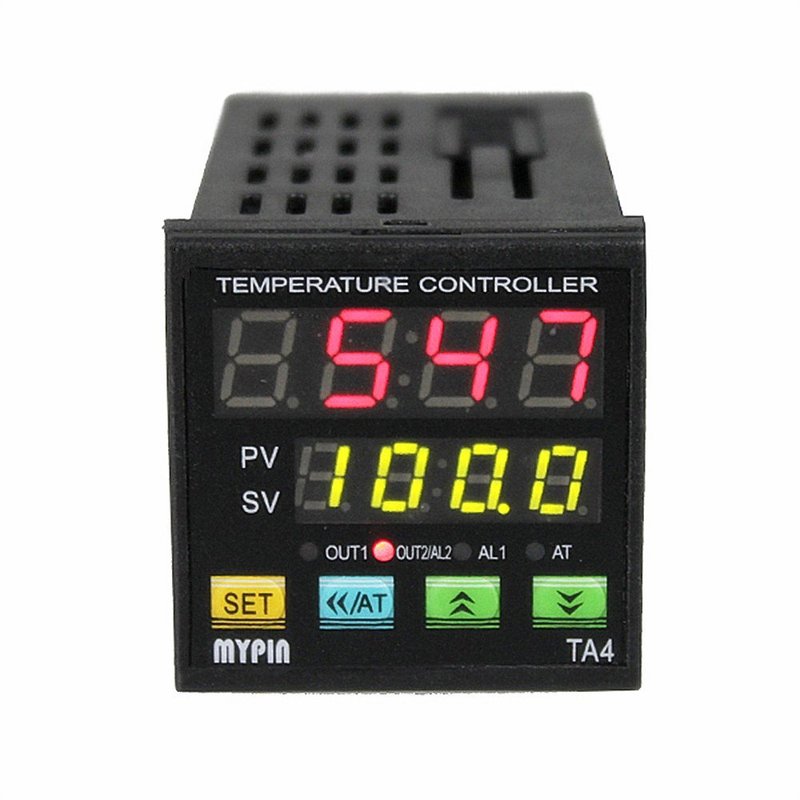

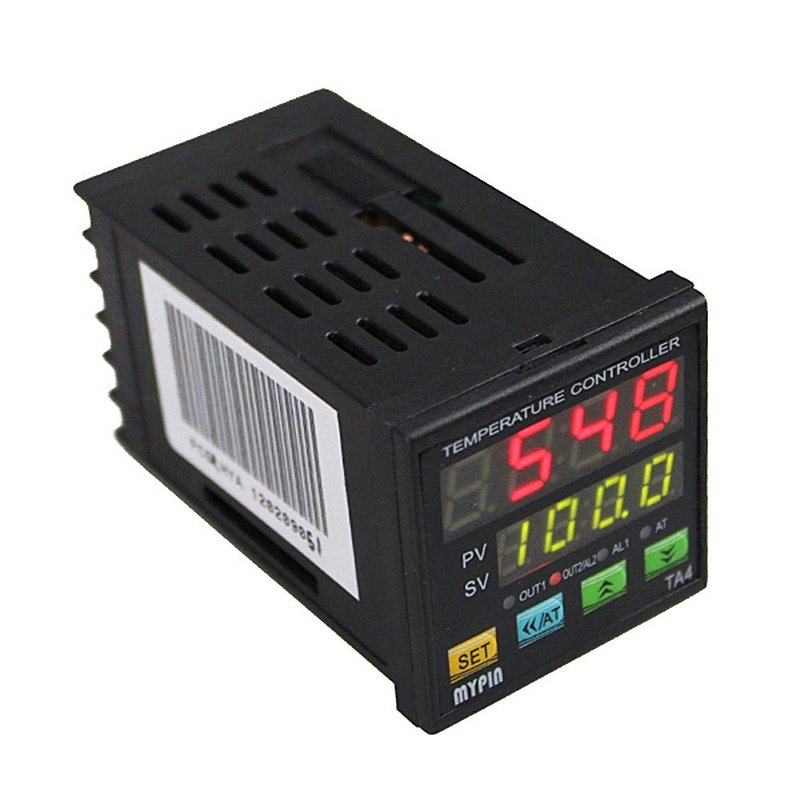

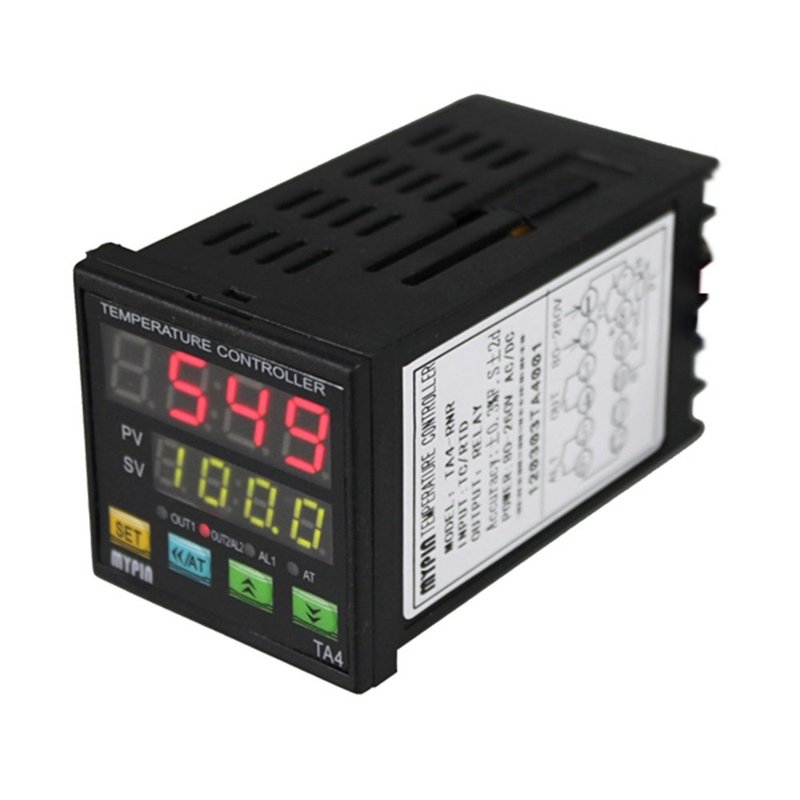

AGPtek® Universal Digital PID Temperature Controller RNR Control Out Dual display For Fahrenheit(F) and Celsius(C)
- Display: Dual display for Fahrenheit(F) and Celsius?
- Range: -1999 to 9999 (depends on the input signal)
- Main output: Relay,Normal open, AC 250V/3A DC 30V/3A COS¦Õ=1
- PID cooling/heating control( can choose normal alarm output by software)
- Alarm output: 2 lines output,7 kinds of alarm mode.
- Manufacturer: MamBate
- Model Number: PC5R
- Package Quantity: 1
- Part Number: PC5R
This is a bid for a dual display universal digital programmable temperature controller that supports many type of thermocouple sensor. It can be powered by 90-265V AC/DC, Comsumption5VA. DIN 1/16.
3 build-in Auto-Tuning Time proportion PID Algorithms to choose for different applications or environments to be controlled. (for variety of industries or home projects heating or cooling applications.)
Accuracy: 0.2%
Input: Thermo Resistor: PT100, Cu50
Thermocouple: J,S,K,E,Wre3 ~ Wre25
Dimension: DIN: 1/16 (48mmX48mmX80mm)
Weight: about 150g
Individually programmable PID control parameters
P, I, d, controlling period, digital filter coefficient, and more¡ (for control theory experts only)
SSR control ready to connect external Solid State Relay to handle High current.
DIN 1/16, great form-factor to be included/build-in to your product.
Apply with step control,1 independent PID control for heating/cooling over temperature,pressure,level,flowm,etc..Widely used in auto system in line of light industry, chemistry, machine, metallurgy,ceramics,pertrification industry, or temperature control and adjust system of food & beverage; oven; furnance, plastic extruder heating process etc;
One key operation, Auto-tuning PID/ Fuzzy PID control.Easy operation,Reliable performance
Input: TC(K¡J¡S¡E)/ RTD£¨Pt100¡CU50£universal input, or 4-20mA/0-10V signal from standard pressure/level transmitter, (24V/30mA supply available for standard transmitter£
Control output: RELAY SSR SCR 4-20mA 0-10V (If 4-20mA output,you can choose PID control or analog output)
Alarm output: 2 lines output,7 kinds of alarm mode.
