AGFRC 40KG Waterproof RC-Steering-Servo High-Torque - Full Metal Gear Brushless Digital Servo for 1/10 RC Car, Control Angle 180° (A73BHLW V2)
- 【High Precision & Torque】 Advanced linearity and accuracy, stable, low noise, waterproof, dust-proof. The maximum torque of this rc crawler steering servo is up to 40 kg-cm (556 oz-in) @ 8.4V and speed up to 0.100sec/60° @ 8.4V.

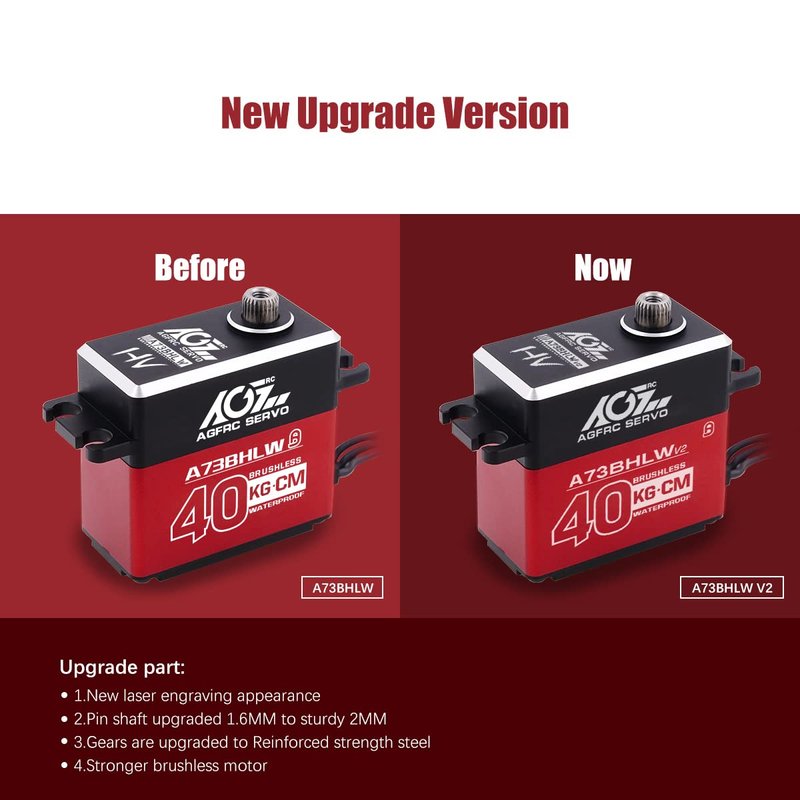

- 【Upgrade Version & High Quality】 This upgraded A73BHLW V2 brushless servo motor uses the upgraded thicker pin shafts and all strengthen steel gears, which is more sturdy and durable and has stronger shockproof performance.
- 【Programmable】 This high torque rc crawler servo is programmable by the AGF-SPV3 servo programmer (not include) to change the torque, speed, angle, inversion, neutral position, etc.

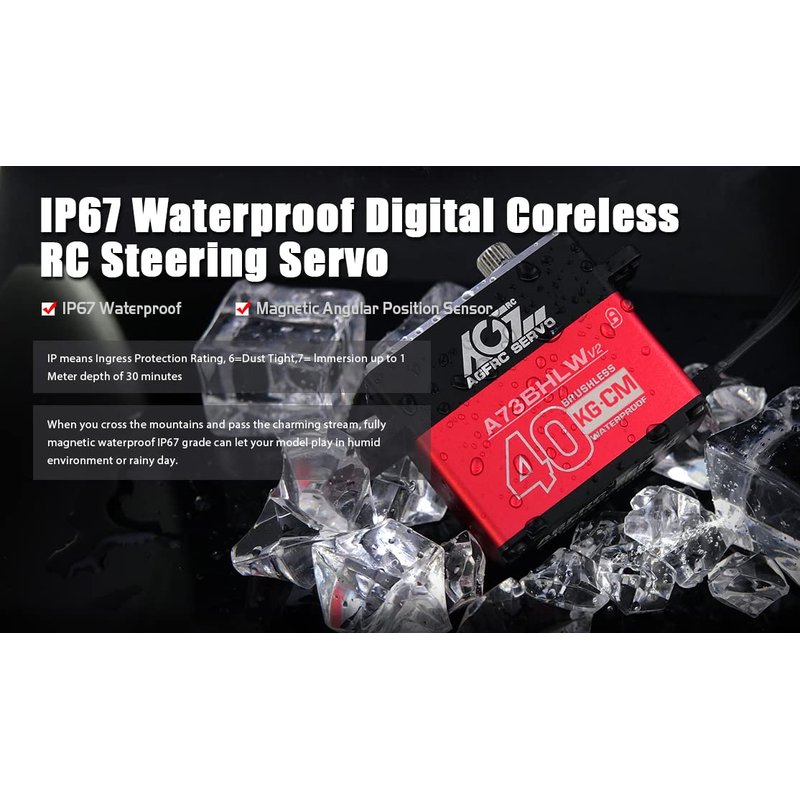

- 【IP67 Waterproof Design】 When you cross the mountains and pass the charming stream, fully magnetic waterproof IP67 grade can let your rc model play in humid environment or rainy day.

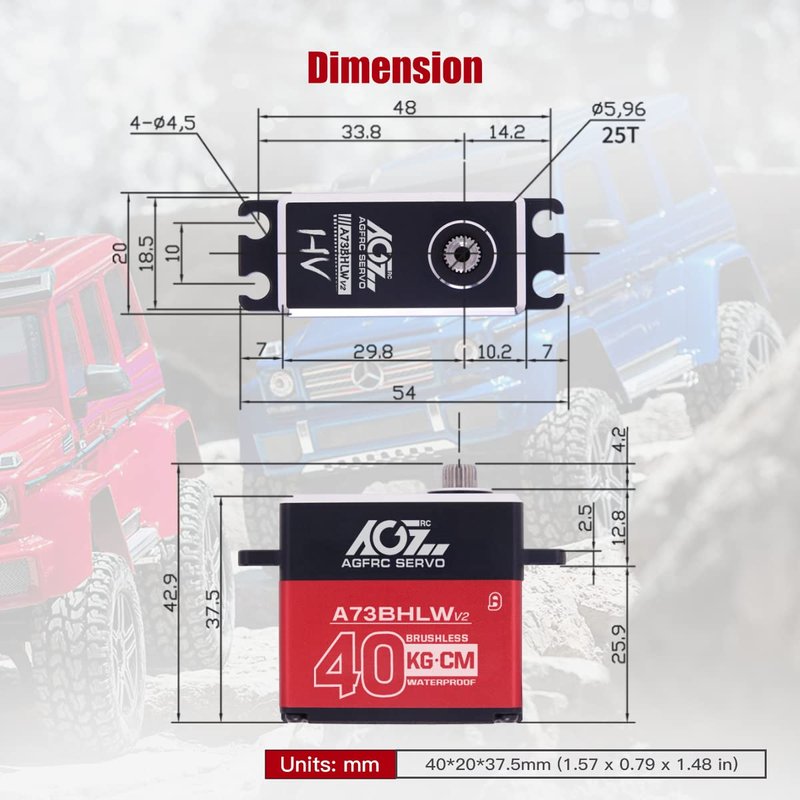

- 【Standard Size & Application】 A73BHLW V2 servo with a standard servo size:40*20*37.5mm (1.57*0.79*1.48in), ideal for 1/10 on road, off road, RC crawlers , monster trucks, buggies, RC boats and other vehicles that require high level waterproof.
- Manufacturer: AGF-RC Electronic Technology CO.,Ltd
- Model Number: A73BHLW
- Part Number: A73BHLW
- Style: A73BHLW V2 & Metal Servo Horn

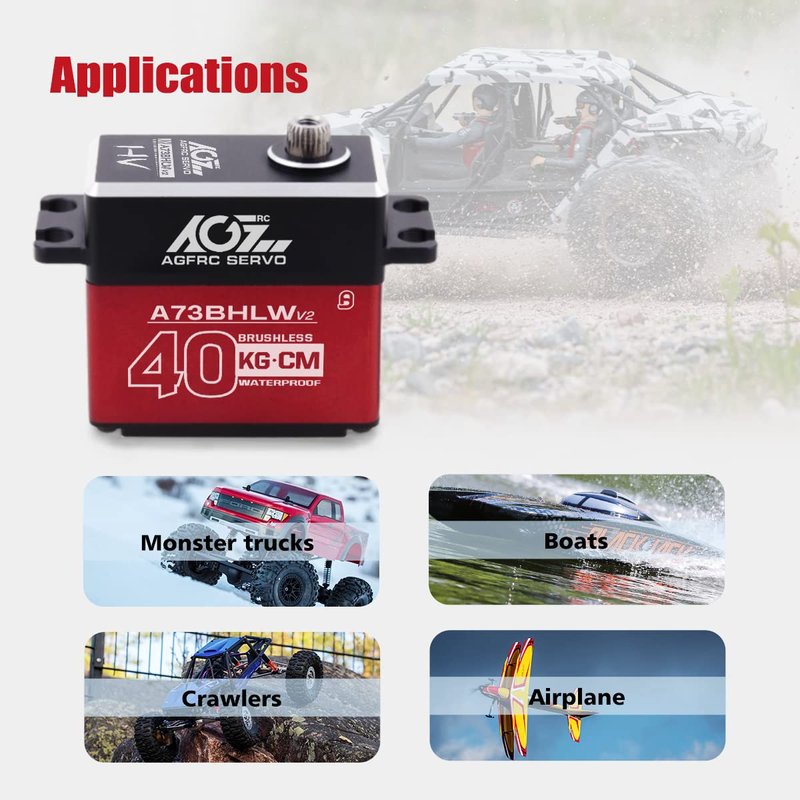

AGFRC A73BHLW high torque servo can be common use in RC climbing cars, 1:10 Buggies, RC boats, helicopters, robots, mechanical arms, and others RC model.
Good choice for the RC model enthusiasts who love DIY, and university professor or student who are interested in developing software for robot parts.

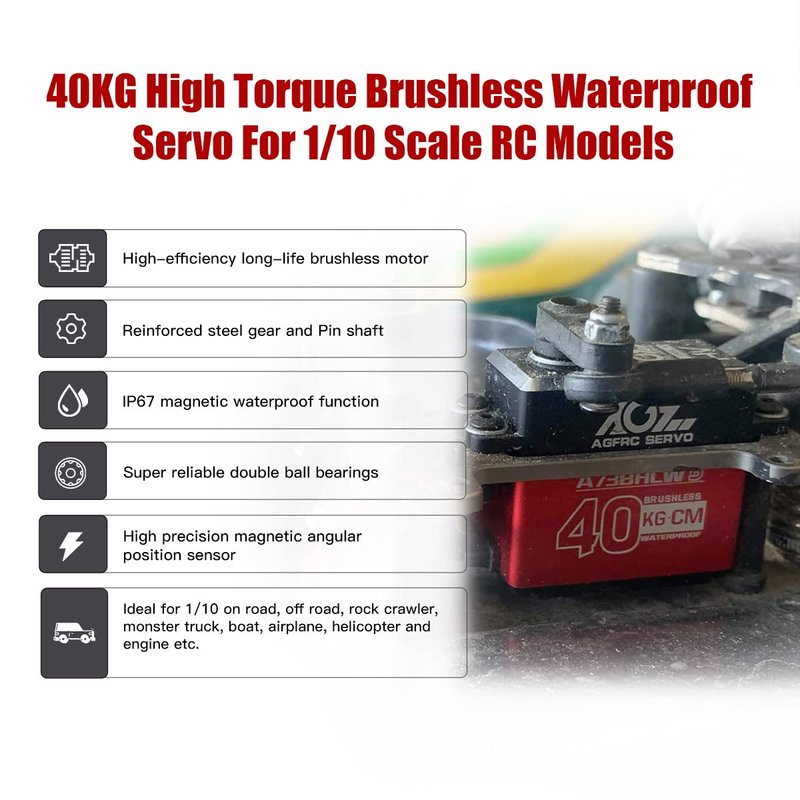

Features
- Programmable by the AGF-SPV3 servo programmer to change the torque, speed, angle, etc.
- Full Aluminium shell, and it adopts AGFRC patented strength steel gear.
- 40kg high torque, strong compatibility and sensitive response, etc.
- Contactless magnet angle sensor for a longer using life.
- IP67 waterproof design and waterproof rubber seals screws.
Stall Torque:
- 25 kg-cm (347 oz-in) @ 4.8V
- 29 kg-cm (403 oz-in) @ 6.0V
- 35 kg-cm (486 oz-in) @ 7.4V
- 40 kg-cm (556 oz-in) @ 8.4V
Operating Speed:
- 0.145sec/60° @ 4.8V
- 0.123sec/60° @ 6.0V
- 0.110sec/60° @ 7.4V
- 0.100sec/60° @ 8.4V

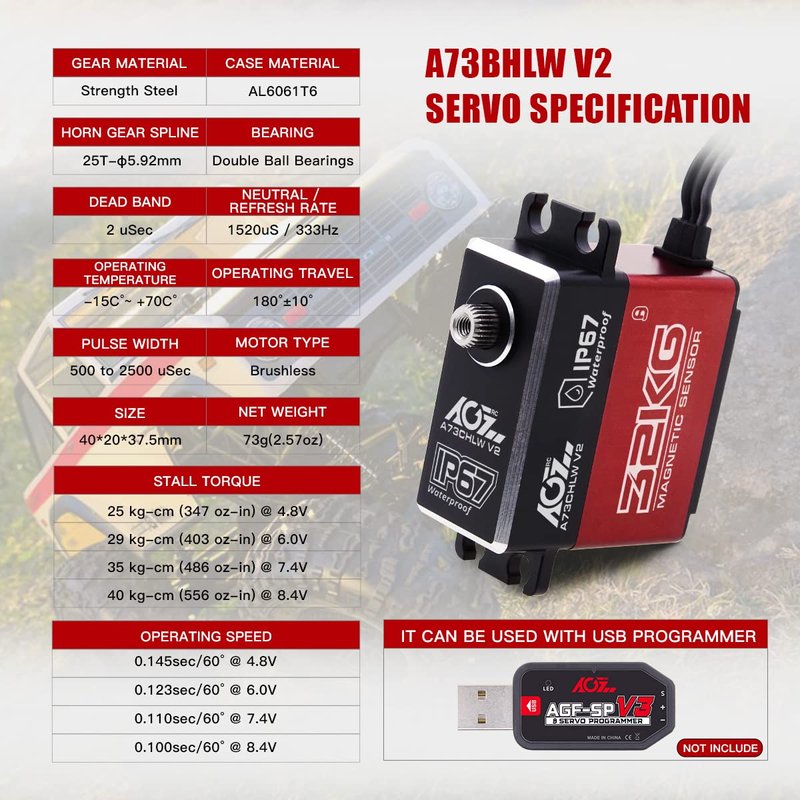

Specification:
- Brand: AGFRC
- Control System: PWM, 1520uS/333hz
- Waterproof Level: IP67
- Dead band: 2 uSec
- Mechanical Angle: No limit
- Operating Travel: 180°±10 °, 500 to 2500 uSec
- Horn Gear Spline: 25T-φ5.92mm
- Bearing: Dual Ball Bearing
- Case Material: Al6061T6
- Size: 40*20*37.5mm (1.57*0.79*1.48in)
- Certification: CE, FCC, RoHs
- Weight: 73.5g
- Wire: JR 300mm/22AWG
Package included:
- 1 x AGFRC A73BHLW Programmable Servo
- 1 x AGF-SPv2 Servo Programmer

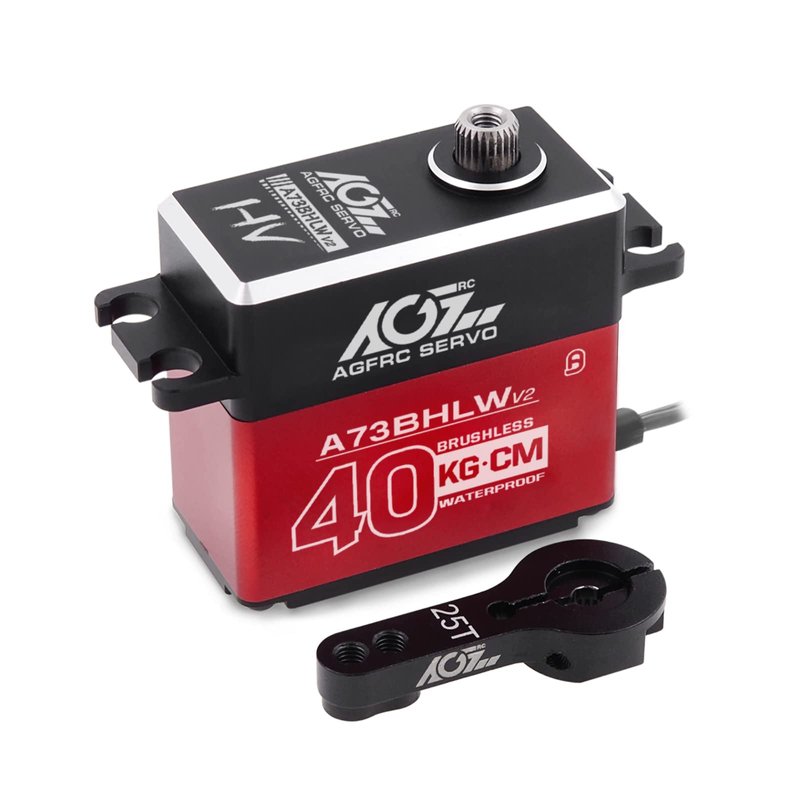

- 1 x 25T Metal Servo Horn
