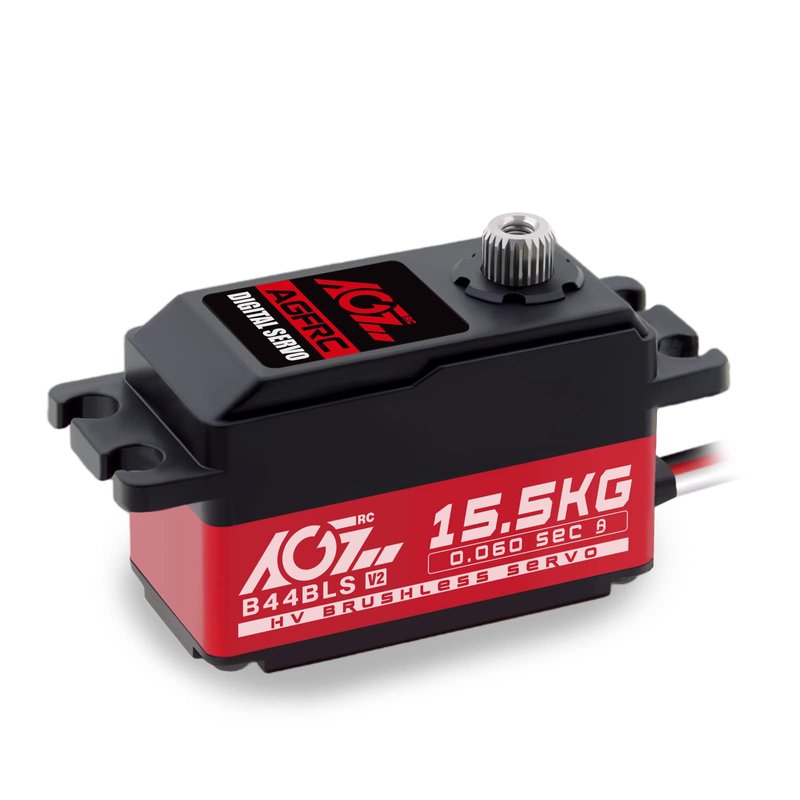

AGFRC 15.5KG Low-Profile High-Torque Steering-Servo - Brushless Digital Metal Gear RC Servo for 1/10 1/12 RC Car Truck Planes (B44BLS V2)
- Upgrade version: programmable, higher torque and speed, new appearance.
- Stall Torque: 14.0 kg-cm (194 oz-in) @ 7.4V; 15.5 kg-cm (215 oz-in) @ 8.4V
- Operating Speed: 0.065sec /60° @ 7.4V; 0.060sec /60° @ 8.4V
- Operating Voltage: 4.8-8.4V; Size: 40.8*20.2*26.5mm (1.61 x 0.80 x 1.04 in); Weight: 48g
- Application: Ideal for 1/10, 1/12 on road, truck & plane, touring car, drift car, boat, robot, etc.
- Color: Red
- Manufacturer: AGF-RC Electronic Technology CO.,Ltd
- Model Number: B44BLS
- Part Number: B44BLS
AGFRC B44BLS V2 0.060Sec high speed digital brushless low profile rc servo is with advanced linearity and accuracy with precision potentiometer, stable, low noise.
Feature
- High performance low profile digital servo
- High precision titanium gear
- Long lifespan brushless motor
- Smooth dual ball bearings
- Aluminium middle case
- Programmable digital circuit
- Ideal for 1/10, 1/12 on road, truck & plane, touring car, drift car, boat, robot, etc.

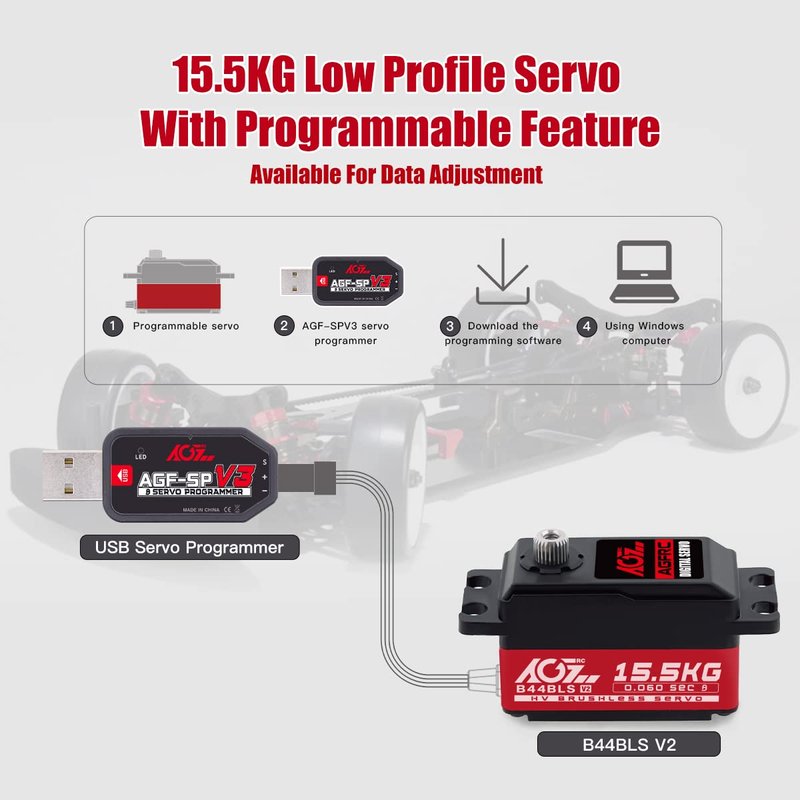

Kindly Reminder: AGF-SPV3 USB servo programmer is not included, if need it, please search the Asin: B09NR1KPM6
Stall Torque
- 10.0 kg-cm (139 oz-in) @ 4.8V
- 13.0 kg-cm (180 oz-in) @ 6.0V
- 14.0 kg-cm (194 oz-in) @ 7.4V
- 15.5 kg-cm (215 oz-in) @ 8.4V
Operating Speed
- 0.080sec /60° @ 4.8V
- 0.070sec /60° @ 6.0V
- 0.065sec /60° @ 7.4V
- 0.060sec /60° @ 8.4V

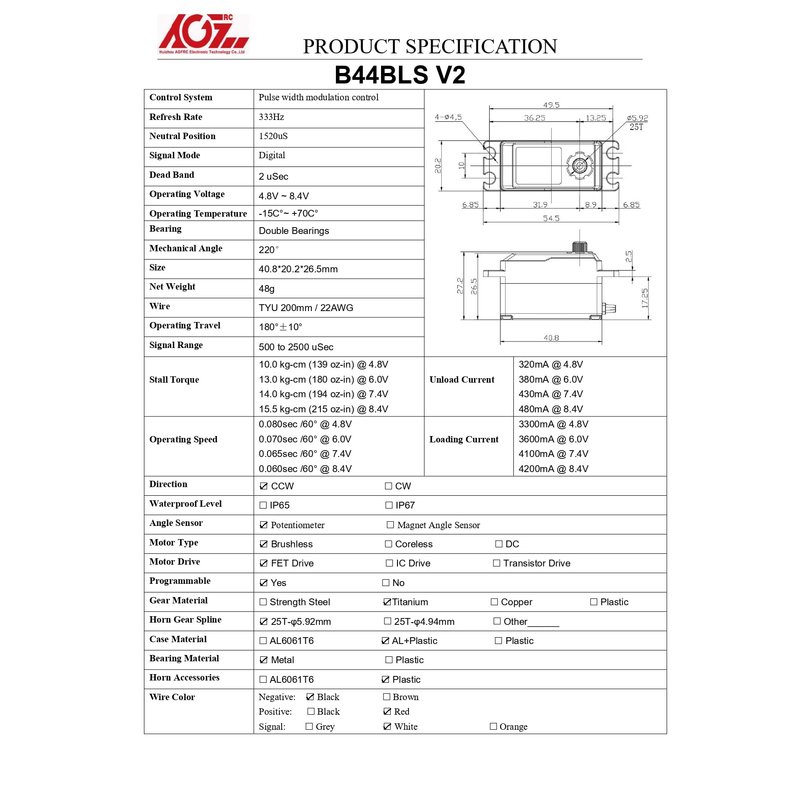

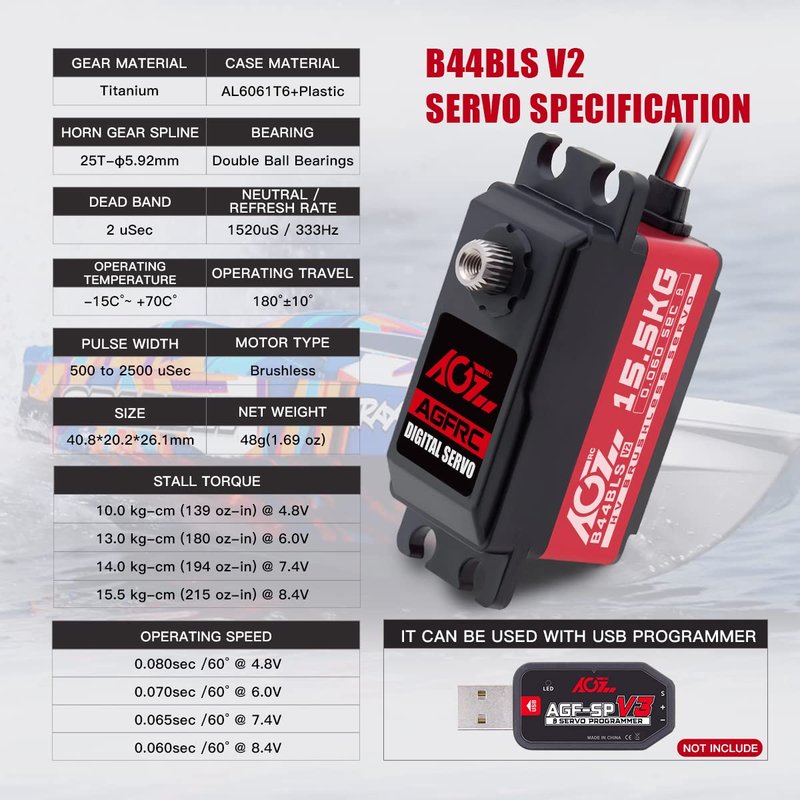

Specification
- Brand: AGFRC
- Item: B44BLS V2
- Control System: PWM
- Neutral Position: 1520uS
- Refresh Rate: 333Hz
- Dead Band: 2 uSec
- Operating Voltage: 4.8V ~ 8.4V
- Operating Travel: 180°±10°, 500 to 2500 uSec
- Horn Spline: 25T-φ5.92mm
- Case Material: AL+Plastic
- Gear Material: Titanium
- Weight: 48g (1.69oz)
- Wire: JR 200mm / 22AWG

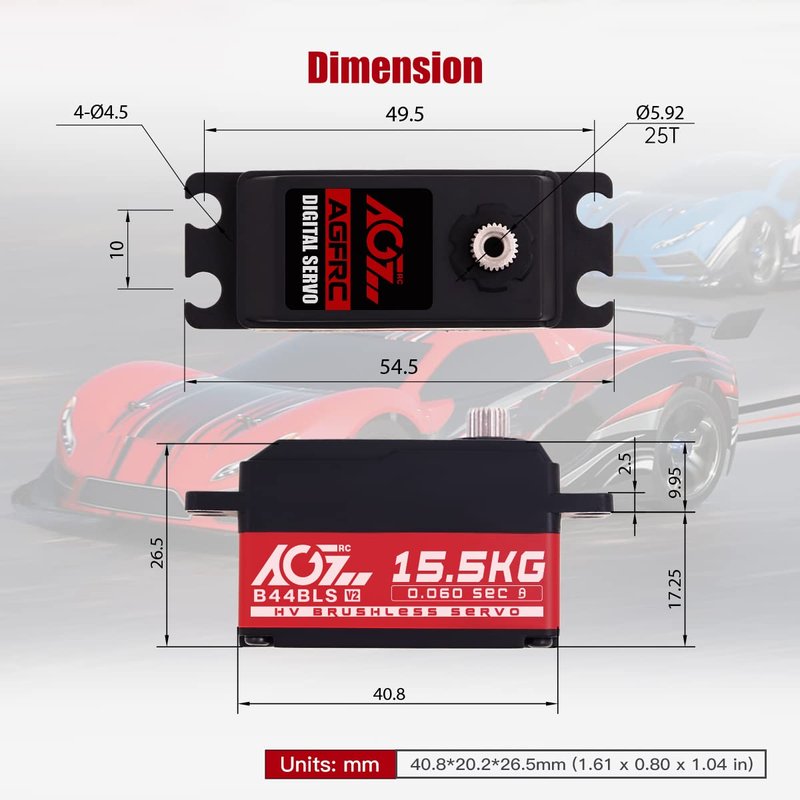

- Size: 40.8*20.2*26.5mm (1.61 x 0.80 x 1.04 in)
Package Included:
- 1 x AGFRC B44BLS V2 Digital Servo
- 1 x Accessory Kit
