100TECH Fuel Sending Unit 240-33 ohms 14"(360mm) Marine for Boat Vehicle Truck RV Fuel Tank Sending Unit Fuel Water Level Sending Unit Fuel Gas Sender Fuel Water Level Sensor Fuel Gauge Sending Unit
- 100TECH Stainless Steel Fule Tank Sending Unit is Made With OKI Reed Switch(Imported from Japan). It is the Direct Replacement for Arm Type sender. The Advantage of This Fuel Level Sender Over Thick-Film Swim Arm Type Level Sender is the Reed Switch's Durability and Reliability.
Additionally, No Moving Parts to Break. No Adjustment Needed for Tank. - The Fule/Water Level Sensor with American standard output 240-33 ohms (240 ohms at empty, 33 ohms at full). If you Need Lengths Other than 4"-24", Please Contact us Directly for More Information.
- [Easy to Install] The Fuel Level Sending Unit Comes with Gasket,Mounting Screws,Well-Written and Illustrated instructions; The Wiring Instructions are Straight Forward and Easy to follow.
- SAE 5 hole Mounting Pattern, Heavy Duty 316 Stainless Steel and Rugged Construction. Wide Application: It Could Support Fuel Level Gauge and Water Level Gauge for Boat/Auto.
- 100Tech Guarantees with 1 Year Limited Warranty & Free Lifetime Technical Support
Attention: To Allow the Fule Sender not Hit the Bottom of the Tank, Please Measure from the Top of Your Tank to the Bottom on the Outside and Subtract 1 Inch the Length of Sender. - [The Size of Float] The Diameter of Float is 1.38"(35mm). If You Have to Drill the hole, Diameter 1.50"(38mm) Hole Would be Perfect.
- Color: 240-33 ohms Sender
- Manufacturer: 100TECH direct
- Model Number: BY360-240
- Part Number: BY360-240
- Size: 14"
- Style: 240-33 ohms Sender
100TECH Stainless Steel Fule tank Sending Unit is Made With OKI Reed Switch(Imported from Japan). It's Easy to Install. A Perfect Match with All the Screw Holes Lining up the Unit Comes with 5pcs of Screws and 1pc of New Neoprene Gasket. It is the Direct Replacement for Arm Type Sensors or Original Wema Unit for Better Durability and Reliability.
The Substantial Flange can Seal the Tank Completely
The 100TECH Marine Fule Sending Units are Widely Used in Marine, On-road, Off-road, Generator set, and Industrial Applications. The Electric Liquid Level Sending Unit Utilizes Reed Switch and Magnetic Field technology. In 100TECH Reed Switch Level Senders the Float is the Only Moving Part of the Sender, Thereby Minimizing Potential Mechanical Failures.

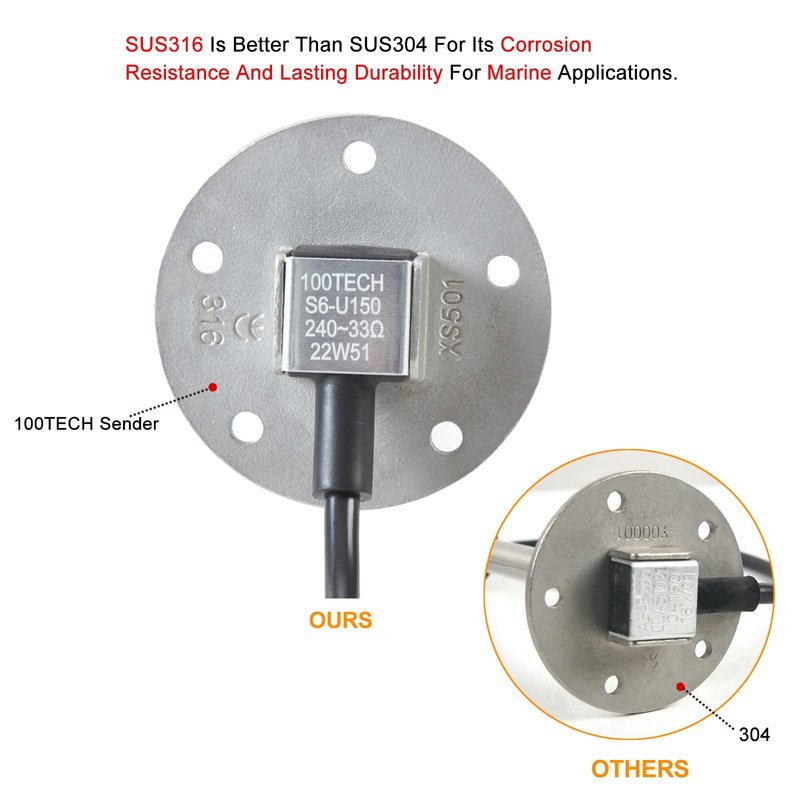

Material:Body: SUS 316 Stainless Steel.
Cable: PVC.
Float: NBR.
Mounting Methods: Standard SAE 5 hole pattern.
Protection Rank: IP65.

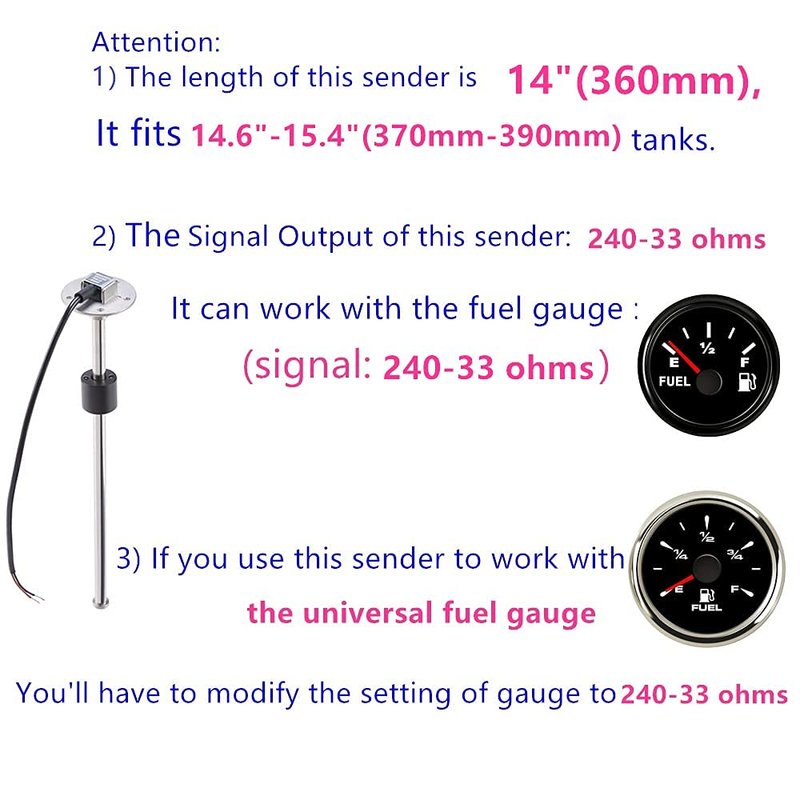

Output Signal: American Standard 240-33 ohms (240 ohms at empty , 33 ohms at full).
Resolution Range:
10mm: 4”,5”,6”,7”
21mm: 8”,9”,10”,11”,12”,13”14”15”
Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C).
Package Information:

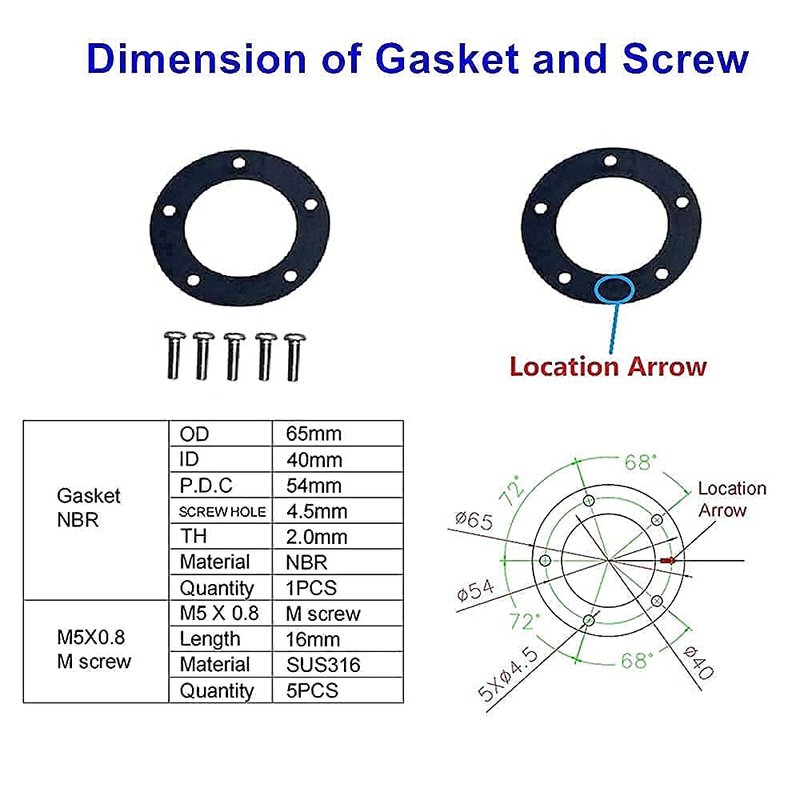

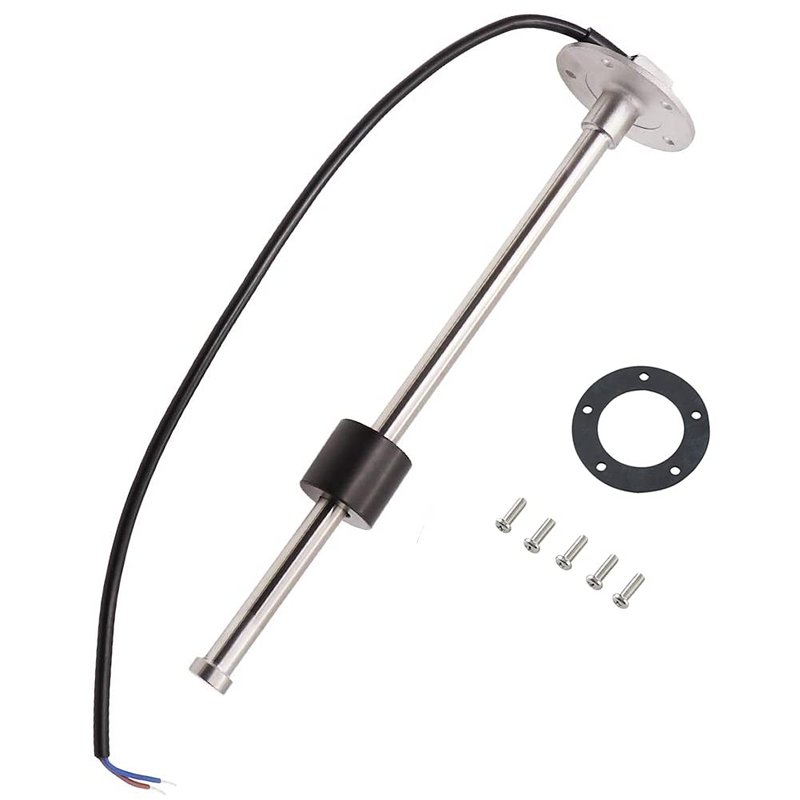

1 x 100TECH Fuel Sending Unit 1 x Gasket 5 x M5*0.8 Length(16mm) Screws 1x Sending Unit Installation Guide Note: Please kindly pay Attention to the Product Description, Especially the Resolution and Length (the Length of Sender Should be 1" less than the Depth of the Tank if tank is Plastic,
and 0.5" Less Than the Depth of the Tank if Tank is Metal) Before Placing the Order.
