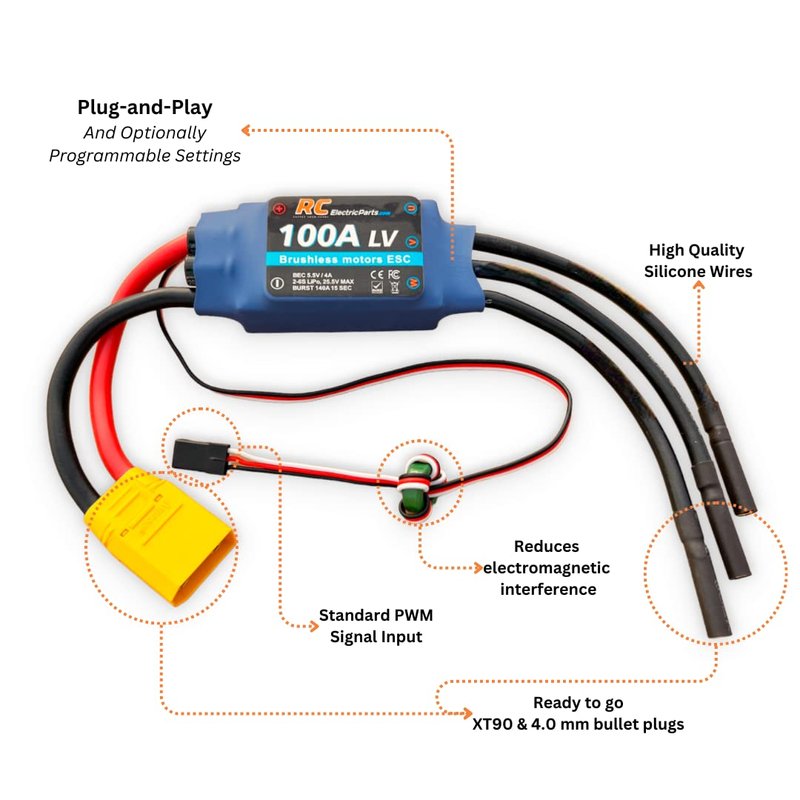

100A RC Brushless Motor Electric Speed Controller ESC 5.5v 4A UBEC

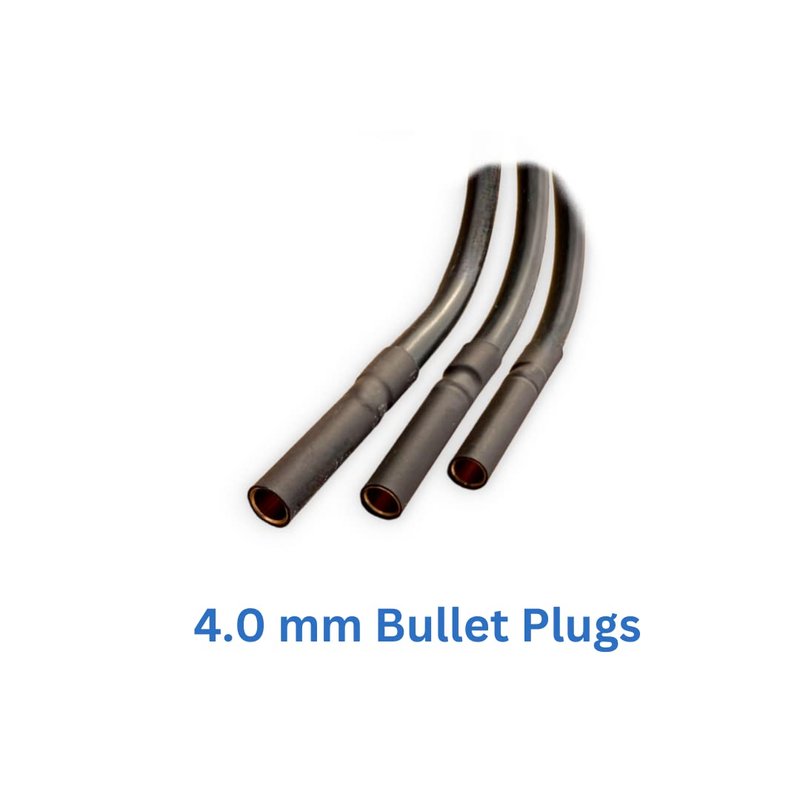

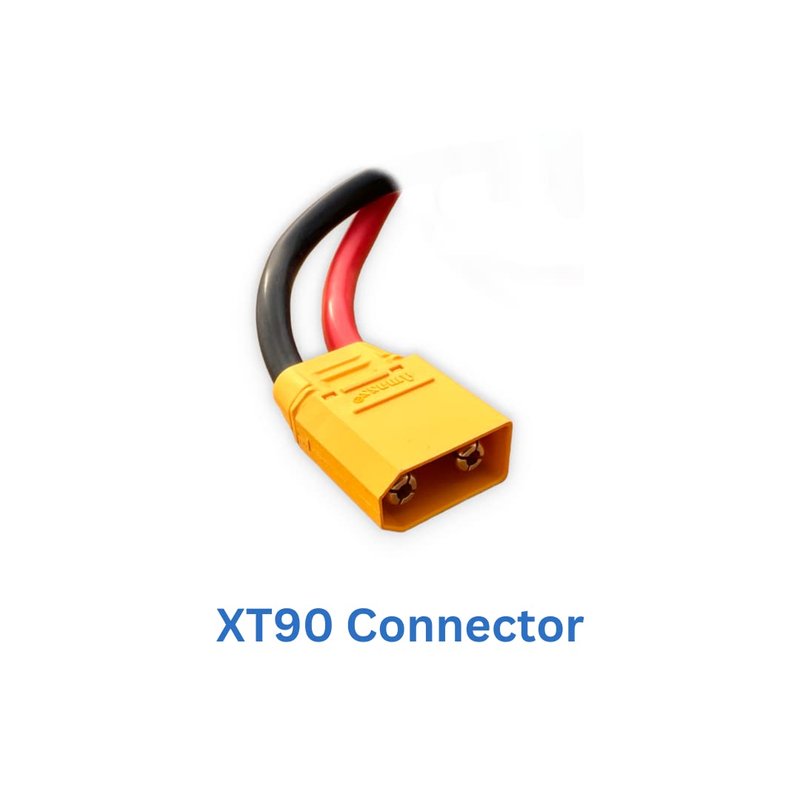

- Comes Pre-soldered with XT90 Connector and 4.0mm bullet plugs
- 5.5v/4A UBEC (Very Efficient)- ESC will power receiver and servos
- LiPo 2 - 6s (Cells), NiCd/NiMH: 5 - 18 Cells, 6.4v - 25.2v
- Low Battery Protection, Overheat Protection, Startup Throttle Protection, Signal Loss Protection, and Abnormal Voltage Protection
- Programmable - Programming card or using Transmitter
- Manufacturer: RC Electric Parts
- Model Number: 2619
- Part Number: 2619
- Style: 100 Amp
The RC Electric Parts 100A Electric Speed Controller (ESC) is a great little powerful ESC that runs very well and doesn't run hot like other ESCs!

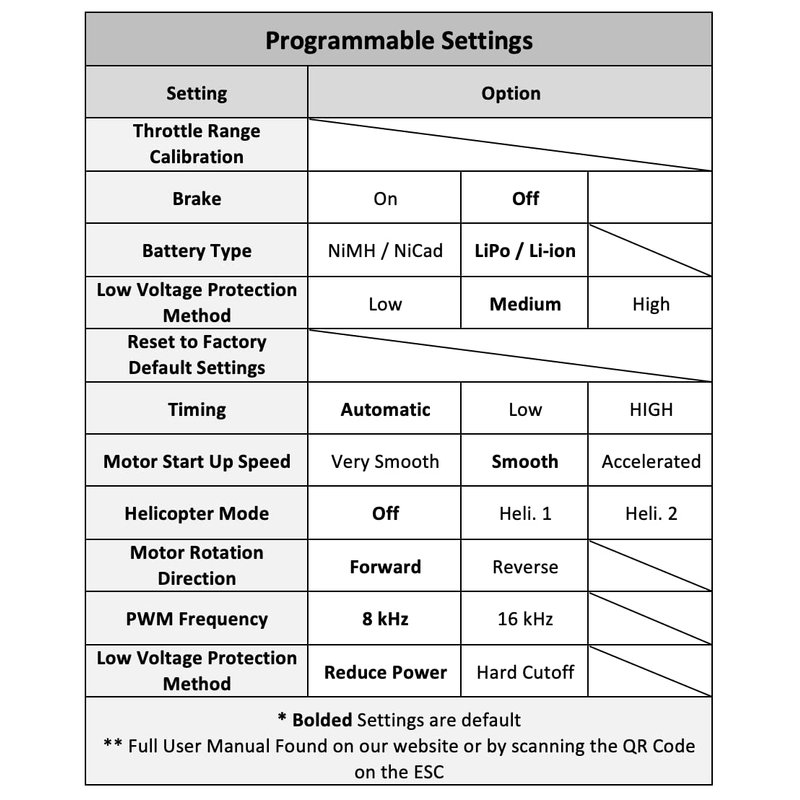

The ESC can be programmed via the transmitter as explained in the instructions or using a programming card that can be purchased separately. Make sure to use an RC Electric Parts Programming card to ensure that it'll properly program the ESC.
Benefits:
Programmable either using a programming card or transmitter
Super smooth and accurate linear throttle adjustment
Supports high RPM motors.
Utilizes smaller MOSFETs to minimize weight.
Minimal heat loss
Specs:
Continuous Output: 100A
Bursts Output: 140A for 15 seconds
UBEC: 5.5V/4A
Lipo Battery: 2 - 6s (cells)
NiCd/NiMH: 5 - 18 cells
Voltage Input: 6.4v - 25.5v

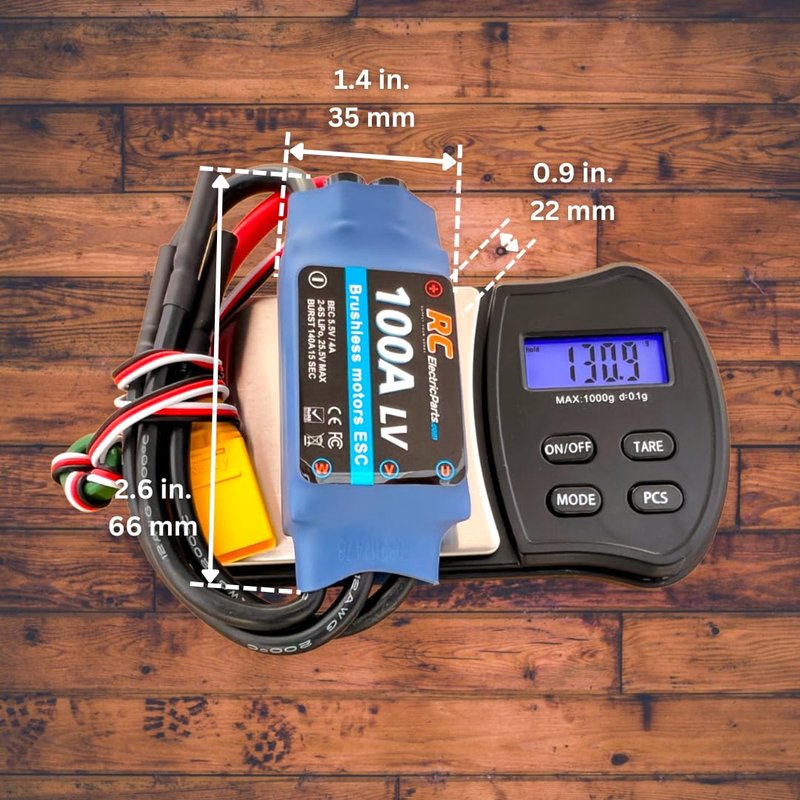

Size: 66mm x 35mm x 25mm
Weight: 95g
Motor Type: Brushless Motor
Max RPM: 240,000 rpm for a 2 pole, 80,000 rpm for a 6 pole, or 40,000 rpm for a 12 pole brushless motor
ESC Manual Link
https://www.rcelectricparts.com/esc-user-guide.html
