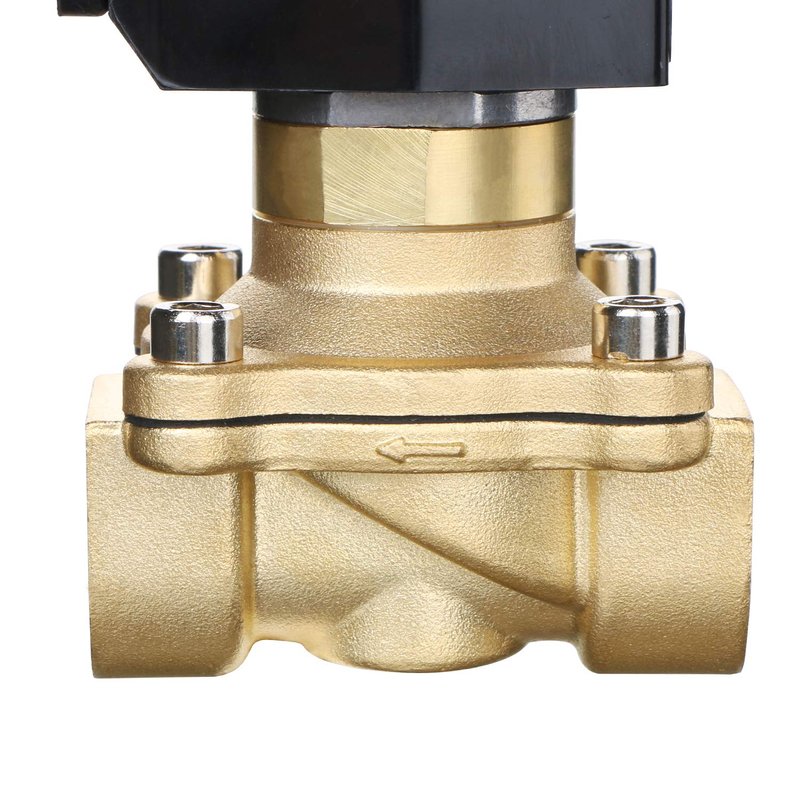

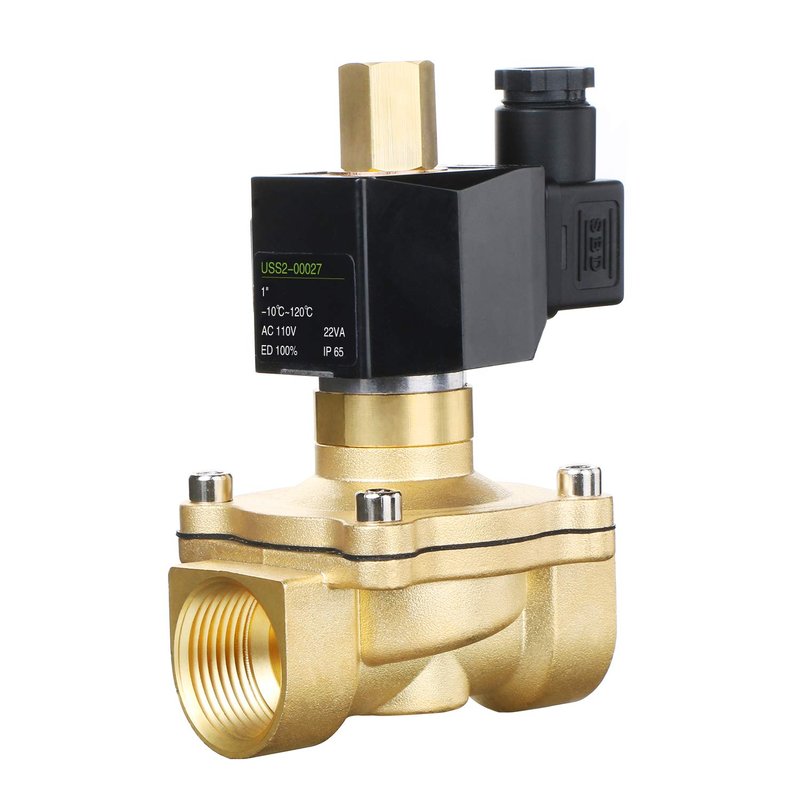

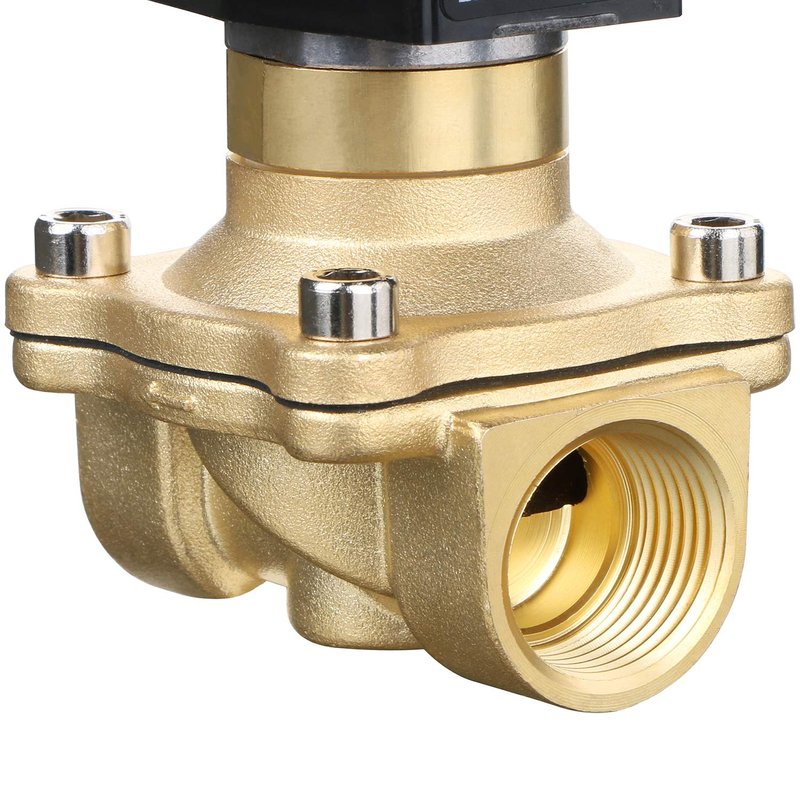

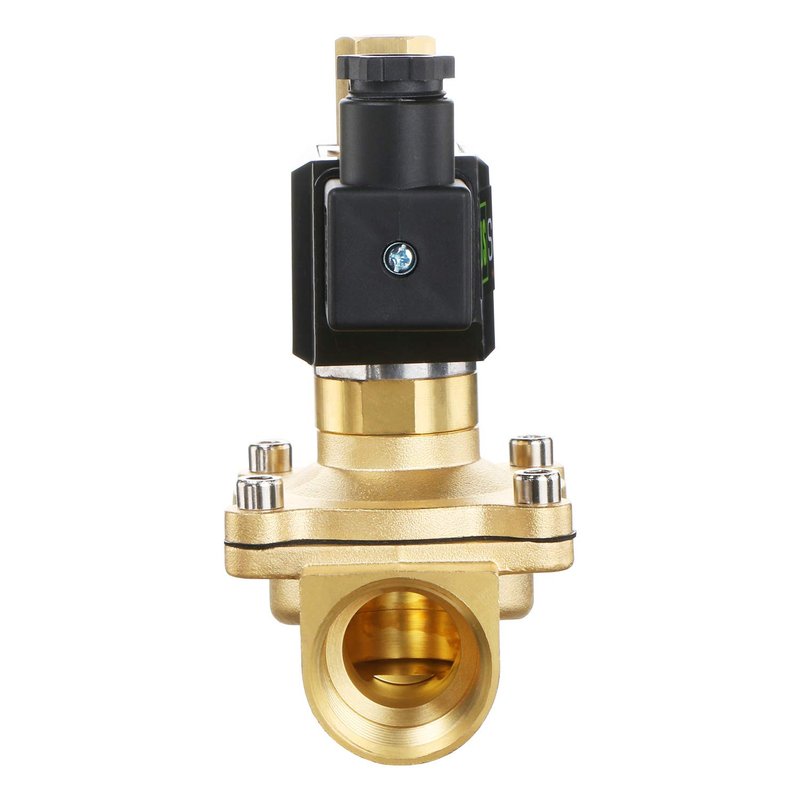

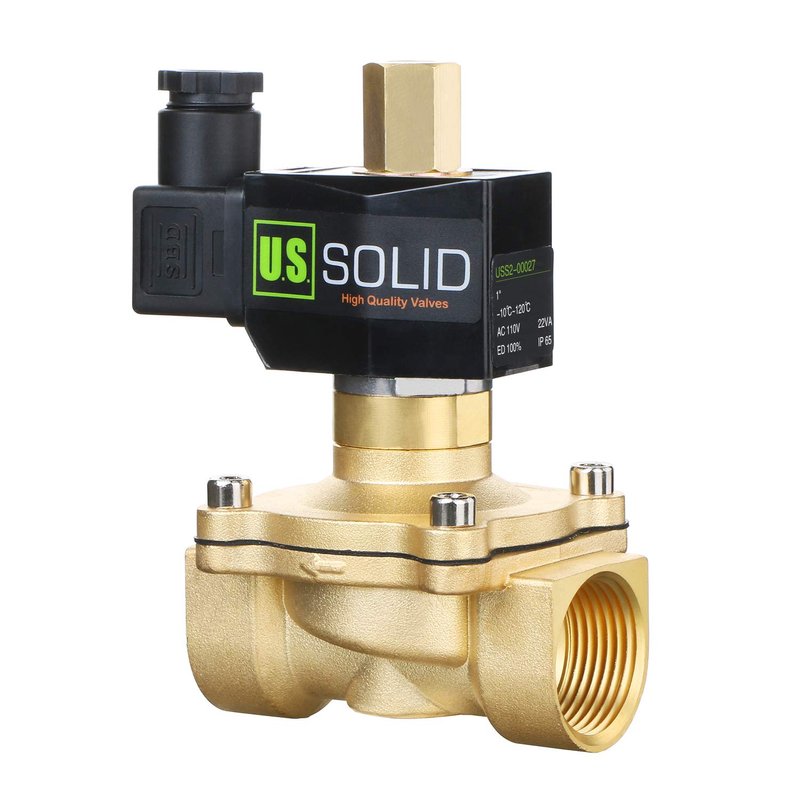

1" Brass Electric Solenoid Valve 12V DC NPT Normally Open Air Gas Non-potable Water Viton
- 1" NPT THREAD- Commonly used standard pipe thread in U.S..
- SOLID BRASS -This valve's body is made of solid brass (very corrosion resistant material).
- NORMALLY OPEN- The solenoid's magnetic field will directly move the plunger and close the orifice for any fluid or gas flow, while energized.
- FLOW DIRECTION- The arrow indicates the flow direction (horizontal mounting please).
- VITON GASKET- Viton is space age material that is very chemically inert. As such it is commonly used with gasoline, kerosine and other organic solvents. Some companies sell solenoid valves with NBR gasket and advertise gasoline use. DO NOT USE NBR gasket for gasoline (it will corrode the gasket and can cause serious gasoline leak and accident).
- Manufacturer: U.S. Solid
U.S. Solid normally open (N/O) electric solenoid valve is constructed with a durable brass body, one inch (1") female threaded (NPT) connections, and VITON gasket.
Suitable for use with hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst) and gasoline or other petroleum based liquids. Customers chose this general purpose valve for supplemental gas tanks, sprinkler systems, and more. Can not be used in strong acid, strong base, waste water, industrial gas and other media containing many impurities. Suitable for outdoor use; not for use underwater.
Brand: U.S. Solid
Model: USS2-00028
Size: 1"
Flow Aperture: 25 mm
Body Material: Brass
Gasket / Diaphragm / Seal: VITON
Rated voltage: DC 12 V, ± 10%
Current: 1.667 A
Power rating: 20 W
Operation Type: Semi-direct lift valve
Operation Mode: Normally open
Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
Flow capacity: 12 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI
Flow value: 12 Cv
Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc.
OVERHEATING WARNING: Not designed for continuous operation(not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 80℃. It is fully complied with national standard: JB/T7352-2010. If energized continuously for more than 8h the coil may burn.
